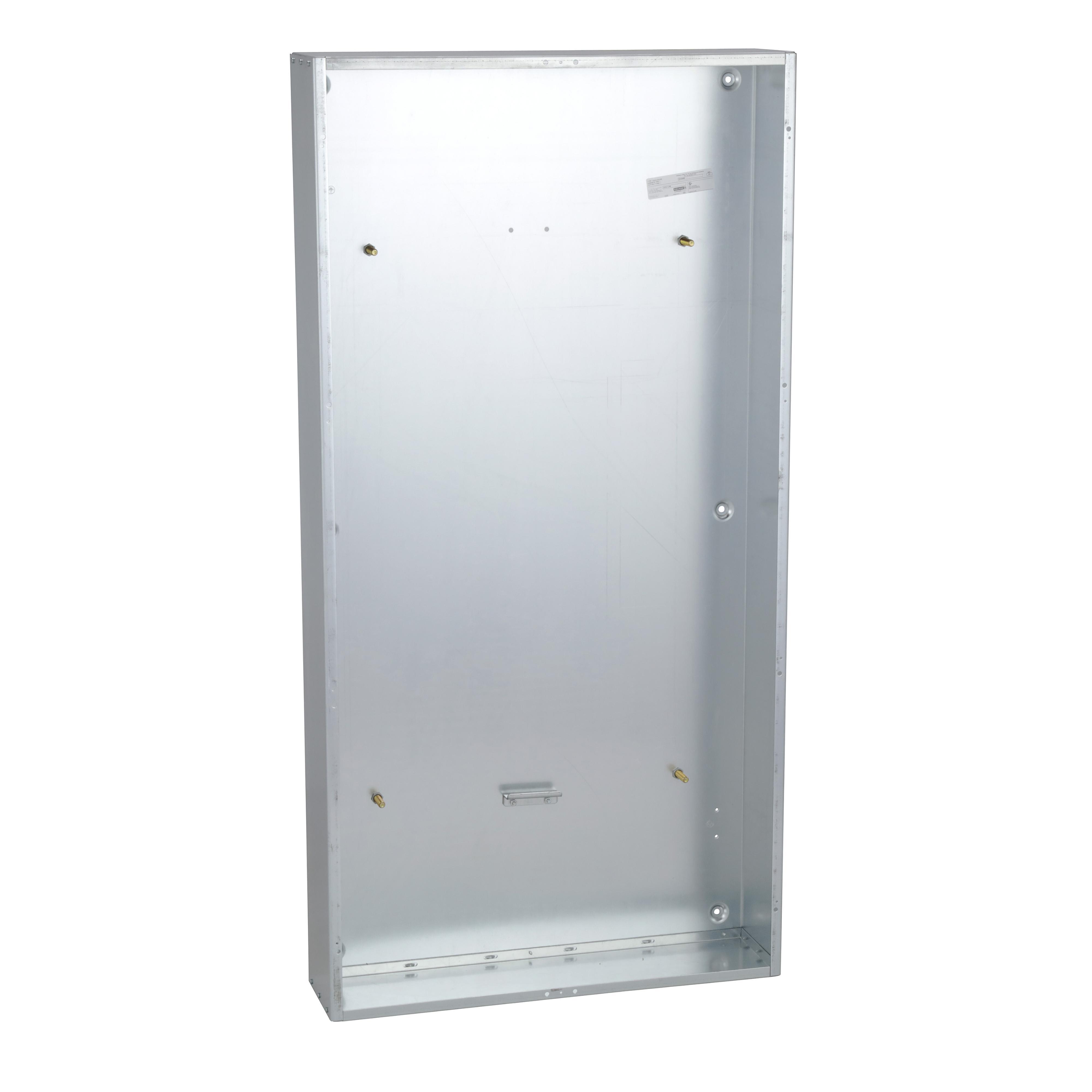

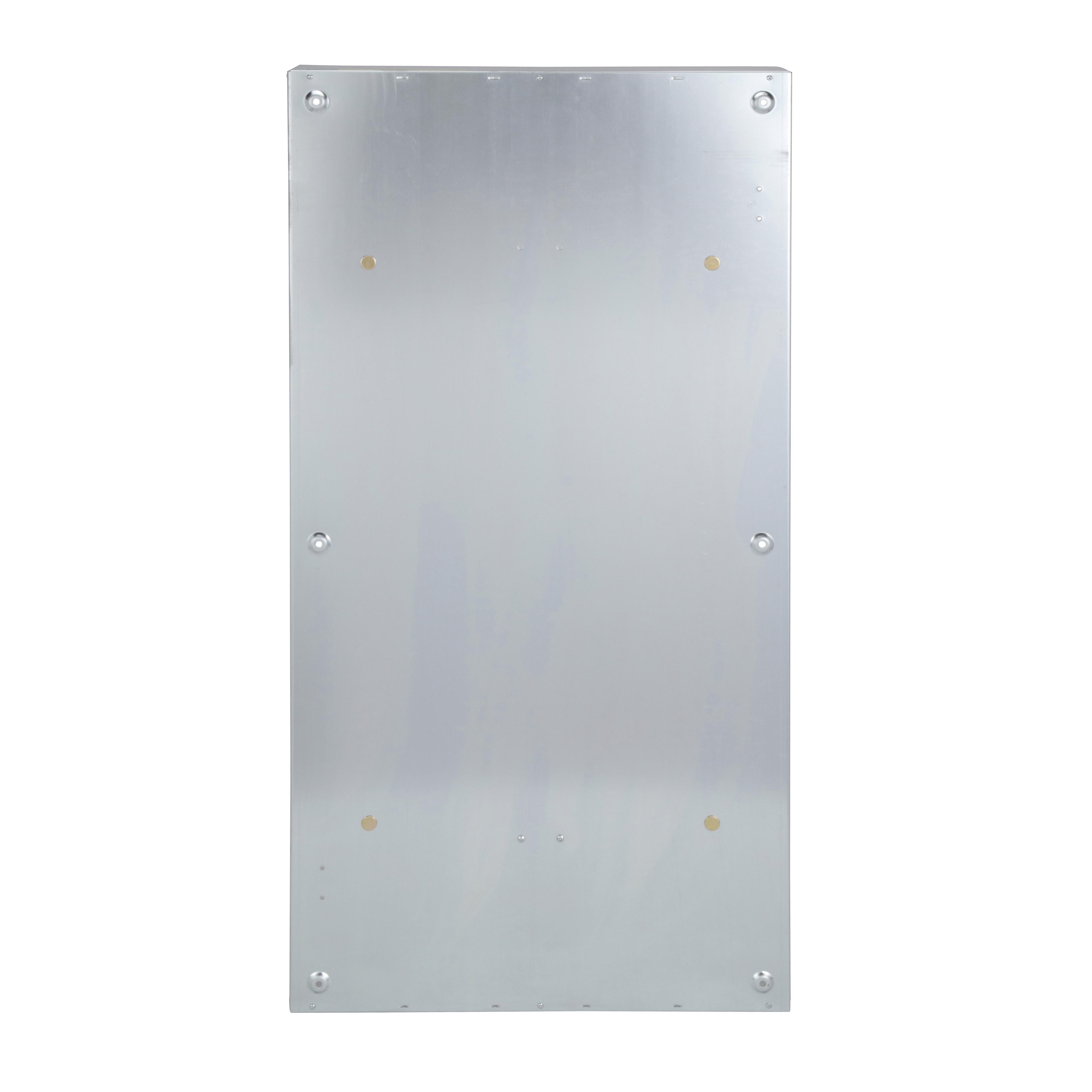

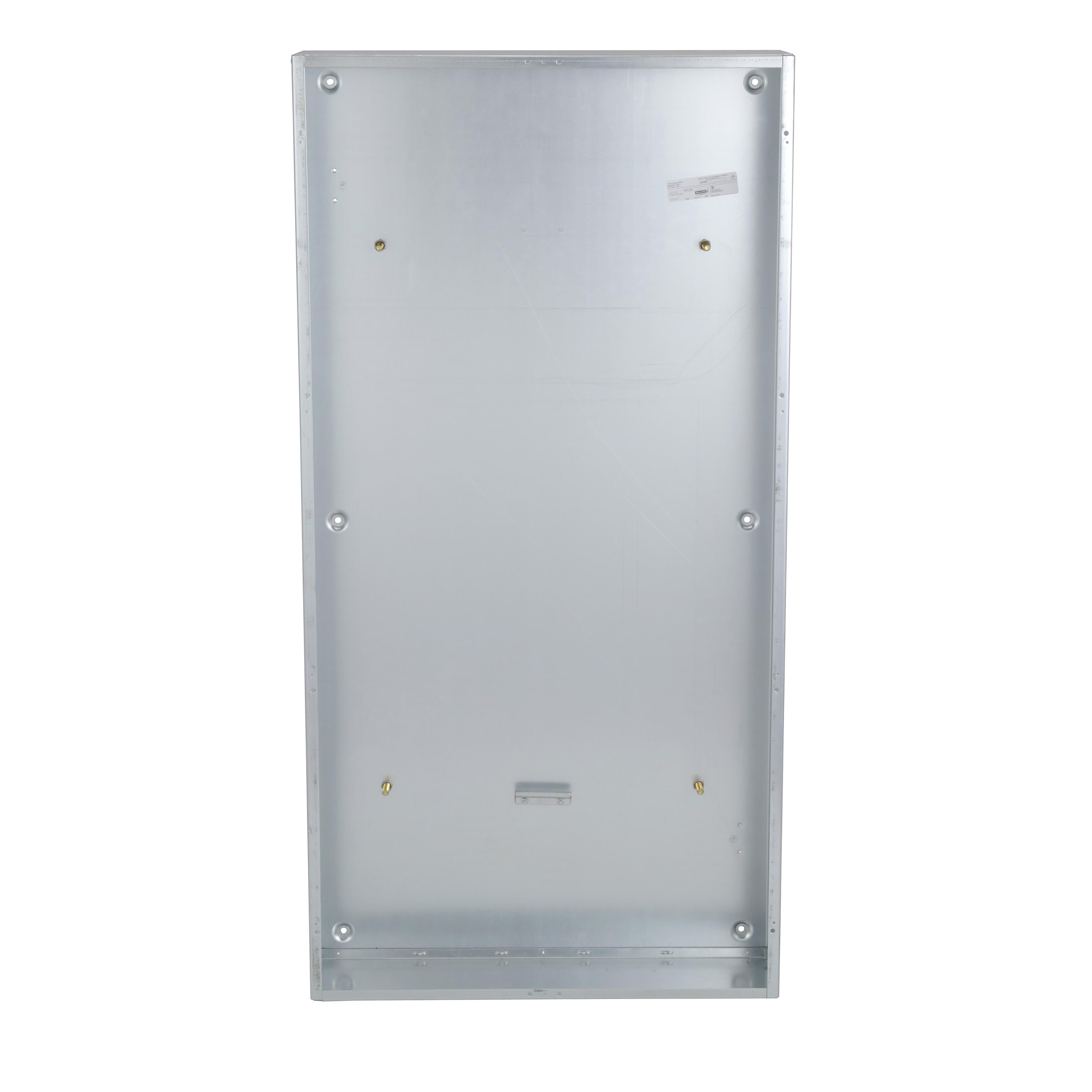

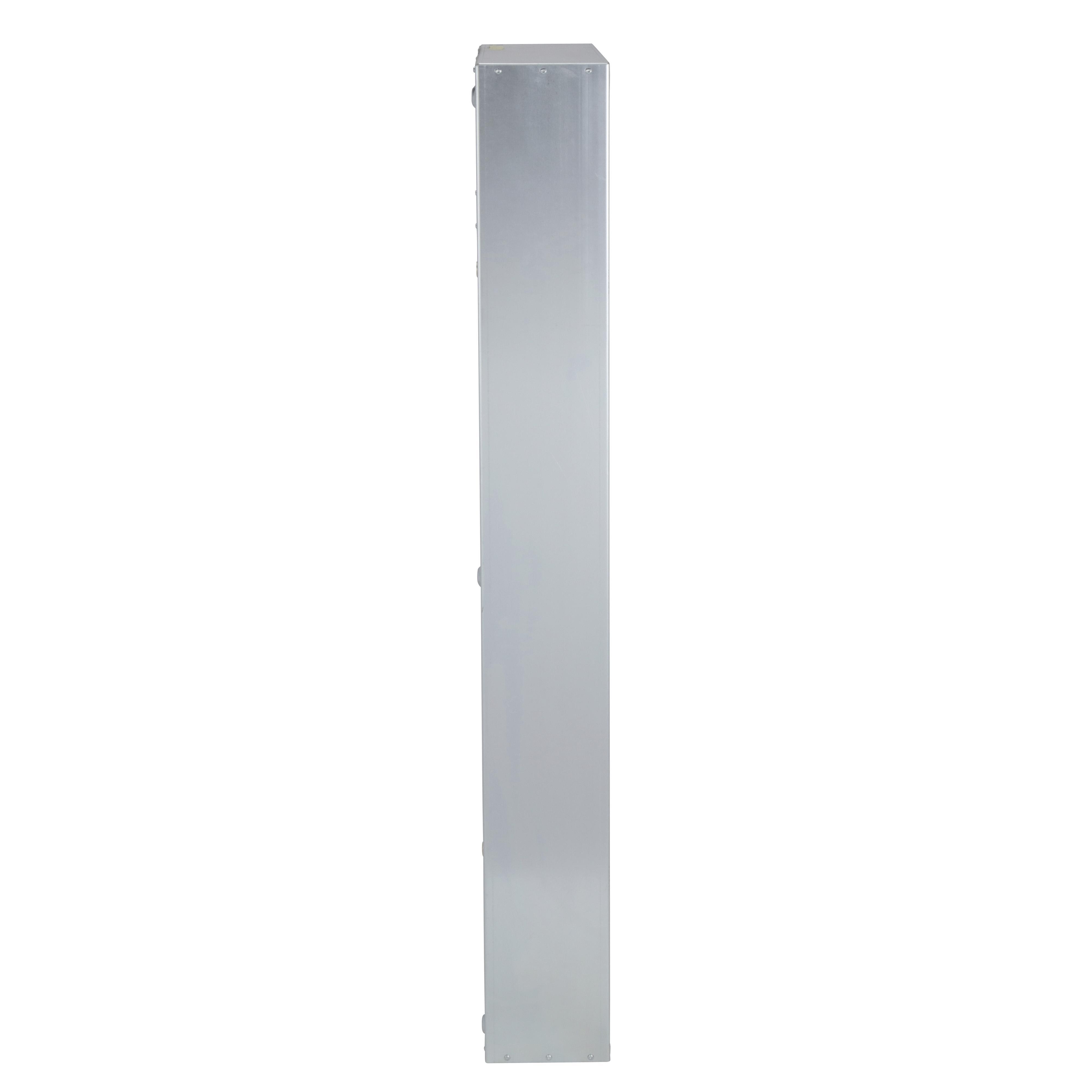

Square D™ HC3248DB9
Square D™ HC3248DB9 HC I-Line, for use with Panelboard
Brand: Square D™
Item ID: 480064
MPN: HC3248DB9
UPC: 785901235910
Login for Price
Features
- 600 Vac, 250 Vdc maximum
- 1200 Amp main circuit breaker or main lugs
- 1200 Amp maximum branch circuit breaker
- Main Lug interiors are field convertible for top or bottom feed
- Dead front trim is easily installed
- Branch circuit breaker mounting flexibility; capable of mounting a 15 A circuit breaker next to or across from a 1200 A circuit breaker
- Circuit breakers on right-hand side of I-Line bus stack completely independent of position and frame size of circuit breakers on left-hand side
- Circuit breaker plug-on jaws have no fasteners - less time spent on installation and maintenance
- Circuit breaker connections are "blow-on" type which draw the connector jaws together, providing a firmer grip under high level short circuit conditions
- Circuit breakers include a push-to-trip feature to exercise the tripping mechanism
- With toxic heavy metal free
Description
Square D™ HC3248DB9, I-Line, Series: HC, For Use With: Panelboard , 48 in H x 9.5 in D Dimensions
Specifications
Dimensions |
48 in H x 9.5 in D |
Series |
HC |
Suitable For Use With |
Panelboard |
Type |
I-Line |
Standard Approval |
PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|ULCSA |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248DB9_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248DB9_Specification_Sheet.pdf
