Square D™ HC3248WP

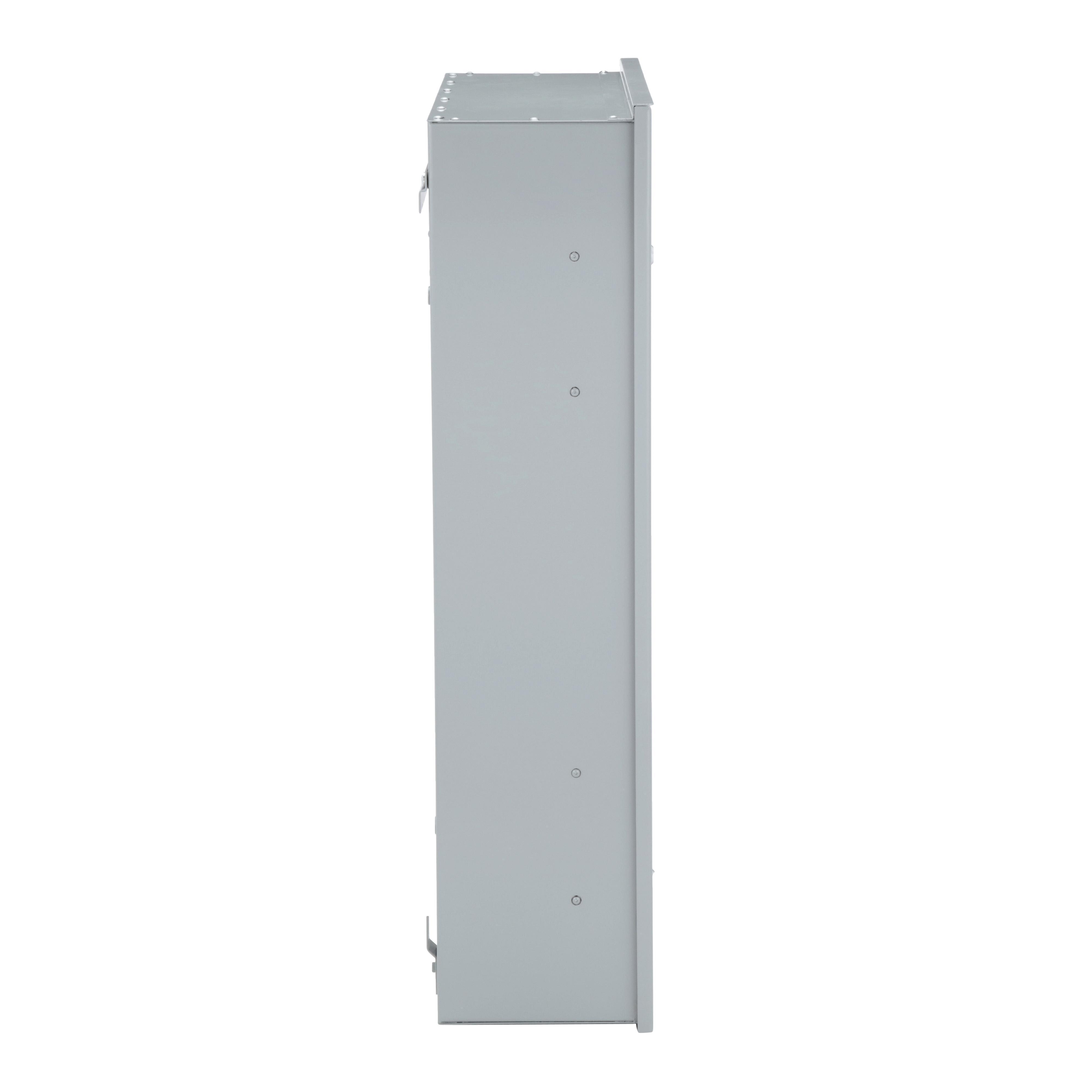

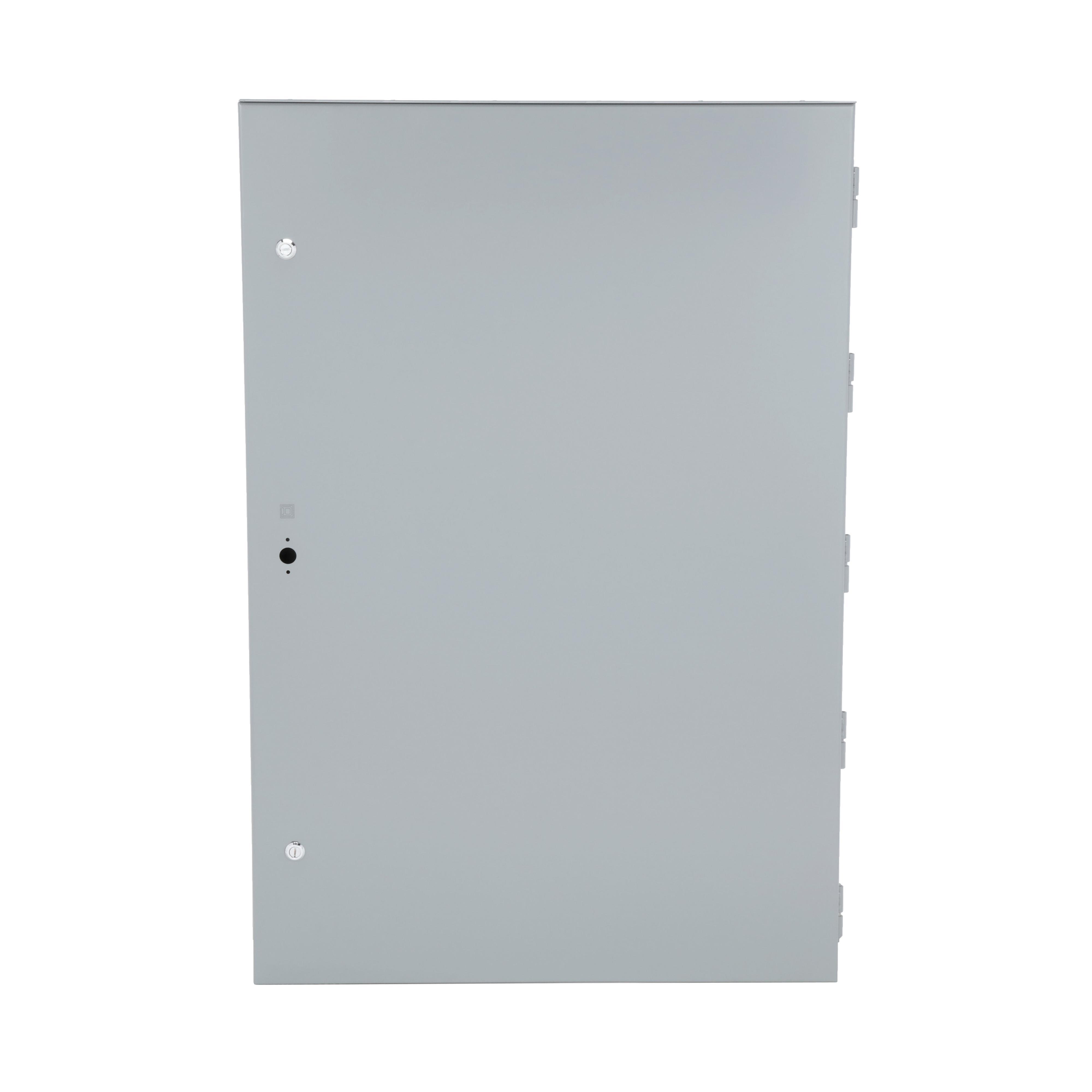

Square D™ I-Line™ HC3248WP Panelboard Enclosure Box, NEMA 3R/5/12 NEMA Rating, 48 in L x 32 in W x 8-1/4 in D, Steel
Brand: Square D™
Item ID: 443580
MPN: HC3248WP
UPC: 785901056850
Login for Price
Features
- 48 in H
Description
Square D™ I-Line™ Panelboard Enclosure Box, 48 in Length, 32 in Width, 8-1/4 in Depth, Surface Mounting, Steel, Painted, NEMA 3R/5/12 Rating
Specifications
Depth |
8-1/4 in |
Finish |
Painted |
Length |
48 in |
Material |
Steel |
Mounting Type |
Surface |
NEMA Rating |
NEMA 3R/5/12 |
Width |
32 in |
Standard Approval |
CSA Certified|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For I-Line™ circuit breaker panelboard |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4f9bf38f228085512a8661a70d45df9d3c553ed517869c876390bda5e9658493.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e395a7a1e644b4119800818c293ba12fd71e7e6e87fdb795f0d4f1004e2c87d9.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1b24c2aedb349fb7624a44e85fd4253ad60c838b4469d775e9d88b205a73bc09.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf
