Square D™ HC4250DB

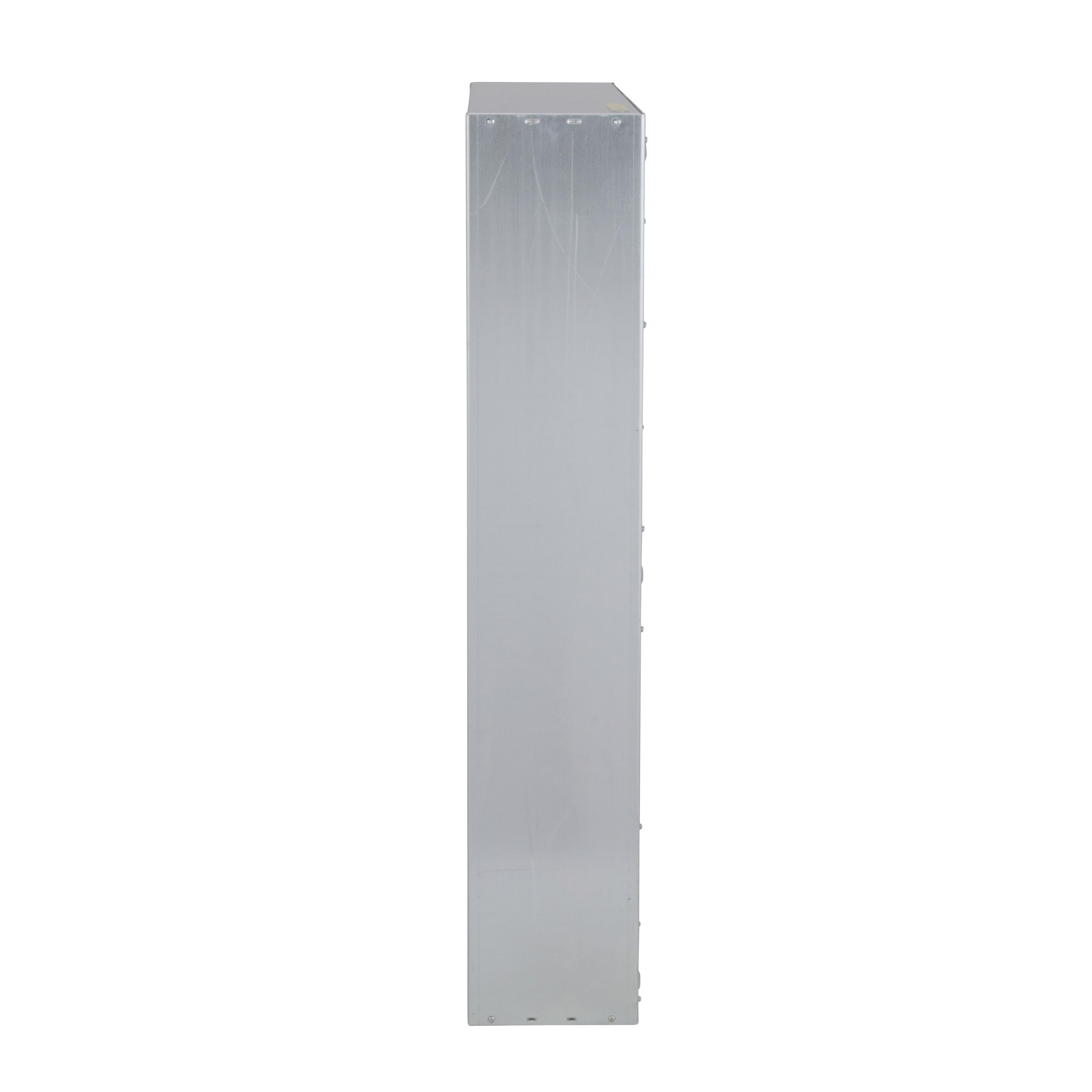

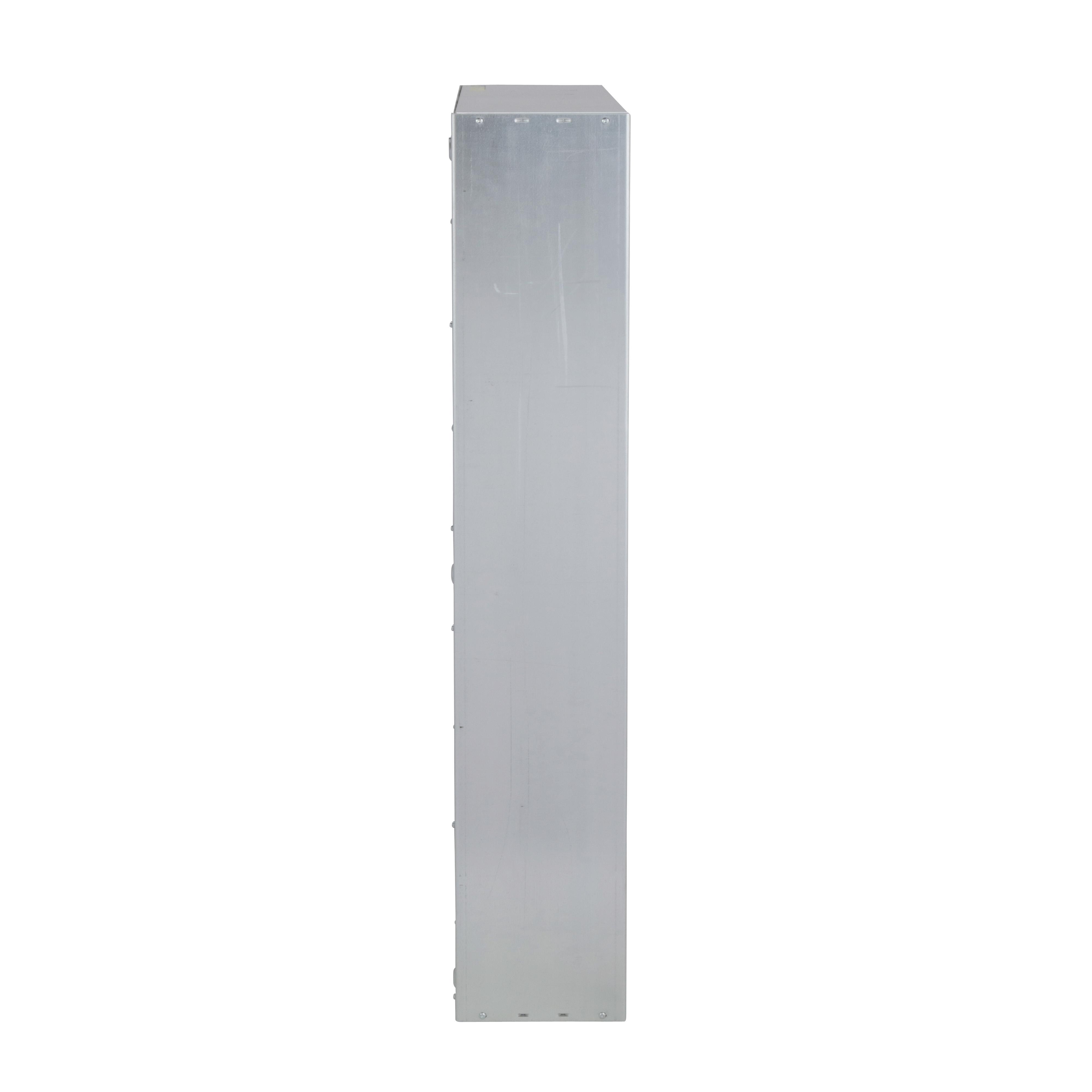

Square D™ I-Line™ HC4250DB Panelboard Enclosure Box, NEMA 1 NEMA Rating, 50 in L x 42 in W x 9-1/2 in D, Steel
Brand: Square D™
Item ID: 52075
MPN: HC4250DB
UPC: 785901790884
Login for Price
Features
- 50 in H
Description
Square D™ I-Line™ Panelboard Enclosure Box, 50 in Length, 42 in Width, 9-1/2 in Depth, Wall Mounting, Steel, Hot Dipped Galvanized, NEMA 1 Rating
Specifications
Depth |
9-1/2 in |
Finish |
Hot Dipped Galvanized |
Length |
50 in |
Material |
Steel |
Mounting Type |
Wall |
NEMA Rating |
NEMA 1 |
Width |
42 in |
Standard Approval |
Buy American Act Compliant|CSA Certified|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For I-Line™ circuit breaker panelboard |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4231693a2a3a5a4fd9b635c04f5d8ec421c39604c15f87462de3203583eb3b88.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3291B_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d28003660e2e9ab682b877e70af4d36428f7a78f6c312630241fe71081cf73cb.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4259WP_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250DB_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_01918e819b5bd1fa127257d63974c443b1438cc9482e0f3118bbfe1d902c1854.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250DB_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Technical_Bulletin.pdf
