Square D™ HC4286WP

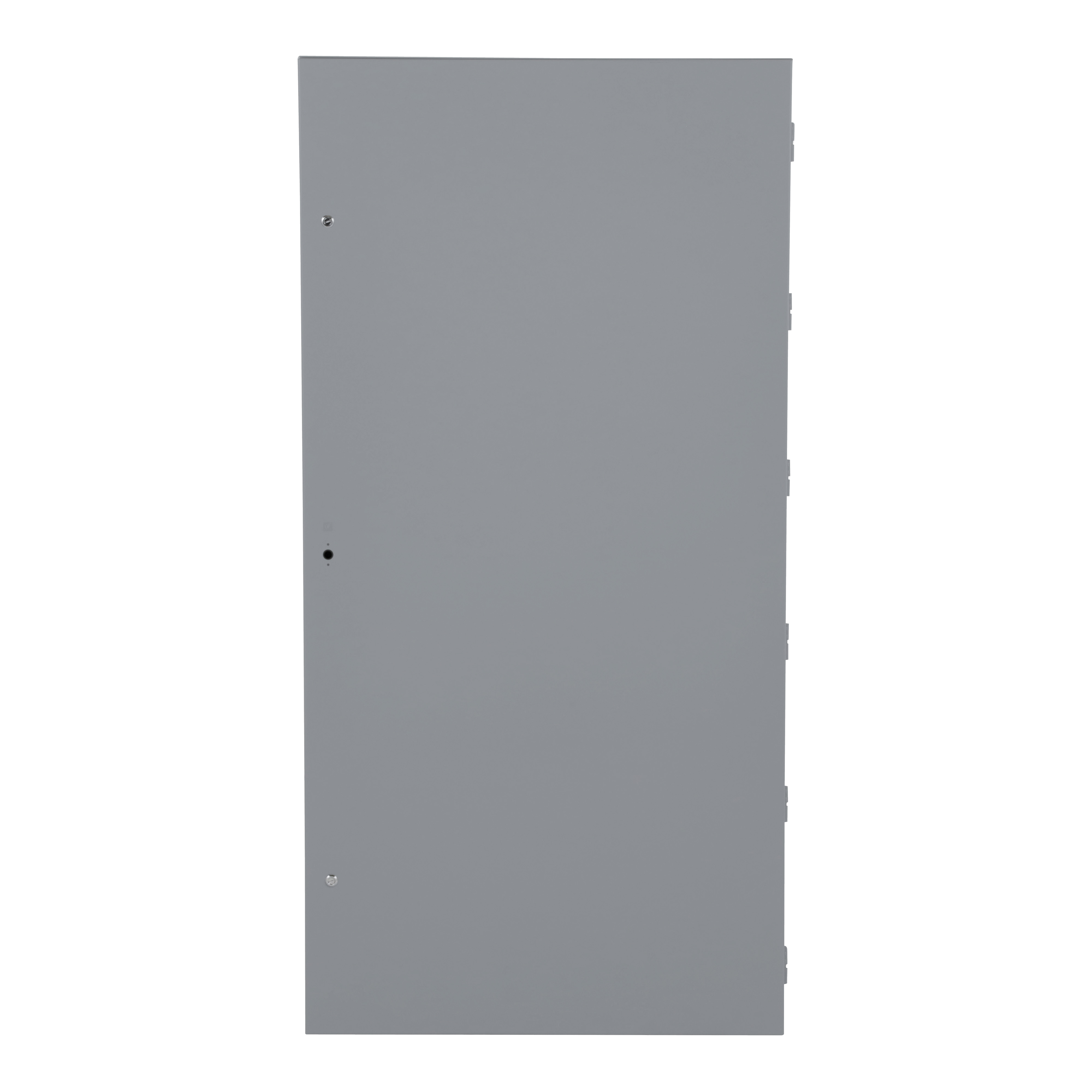

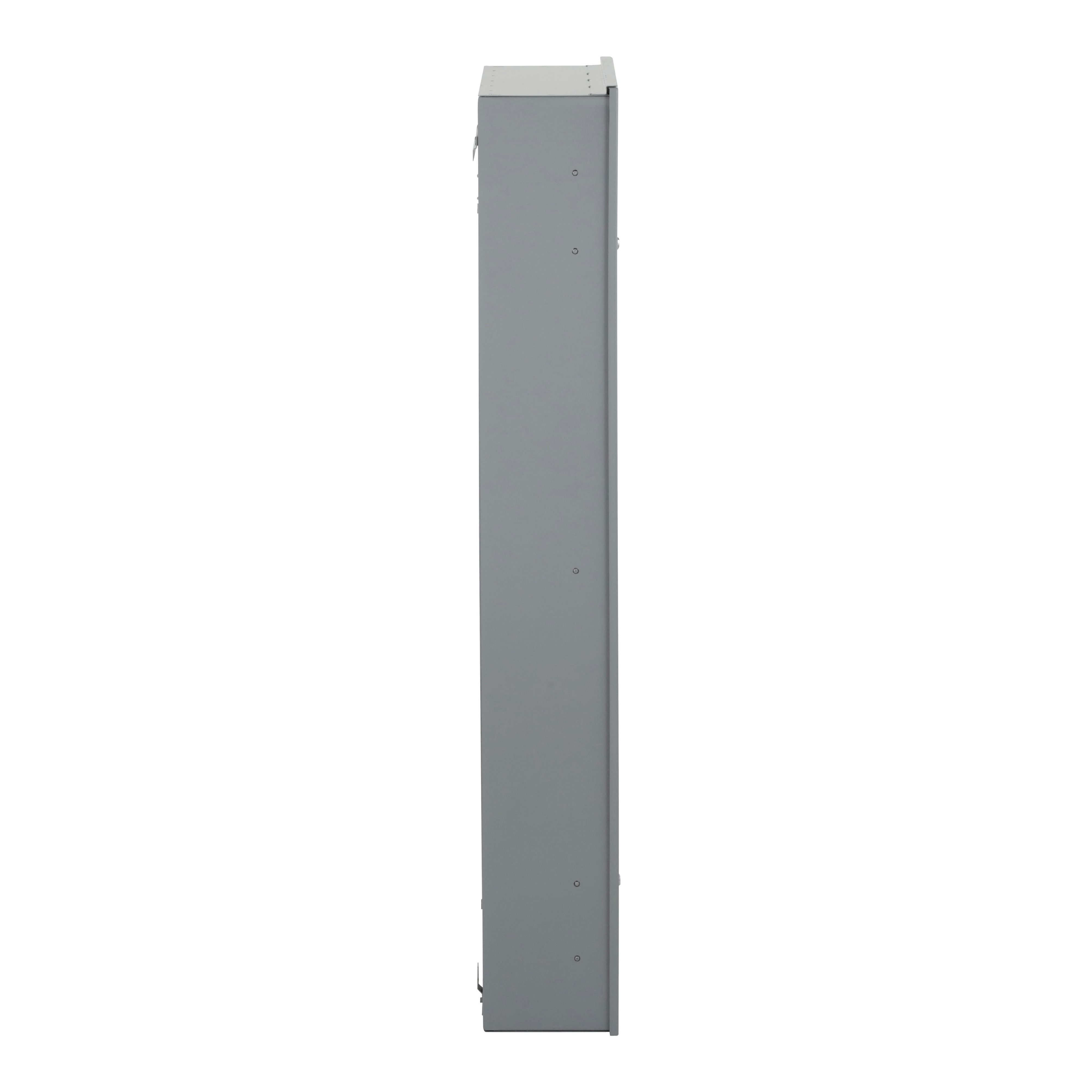

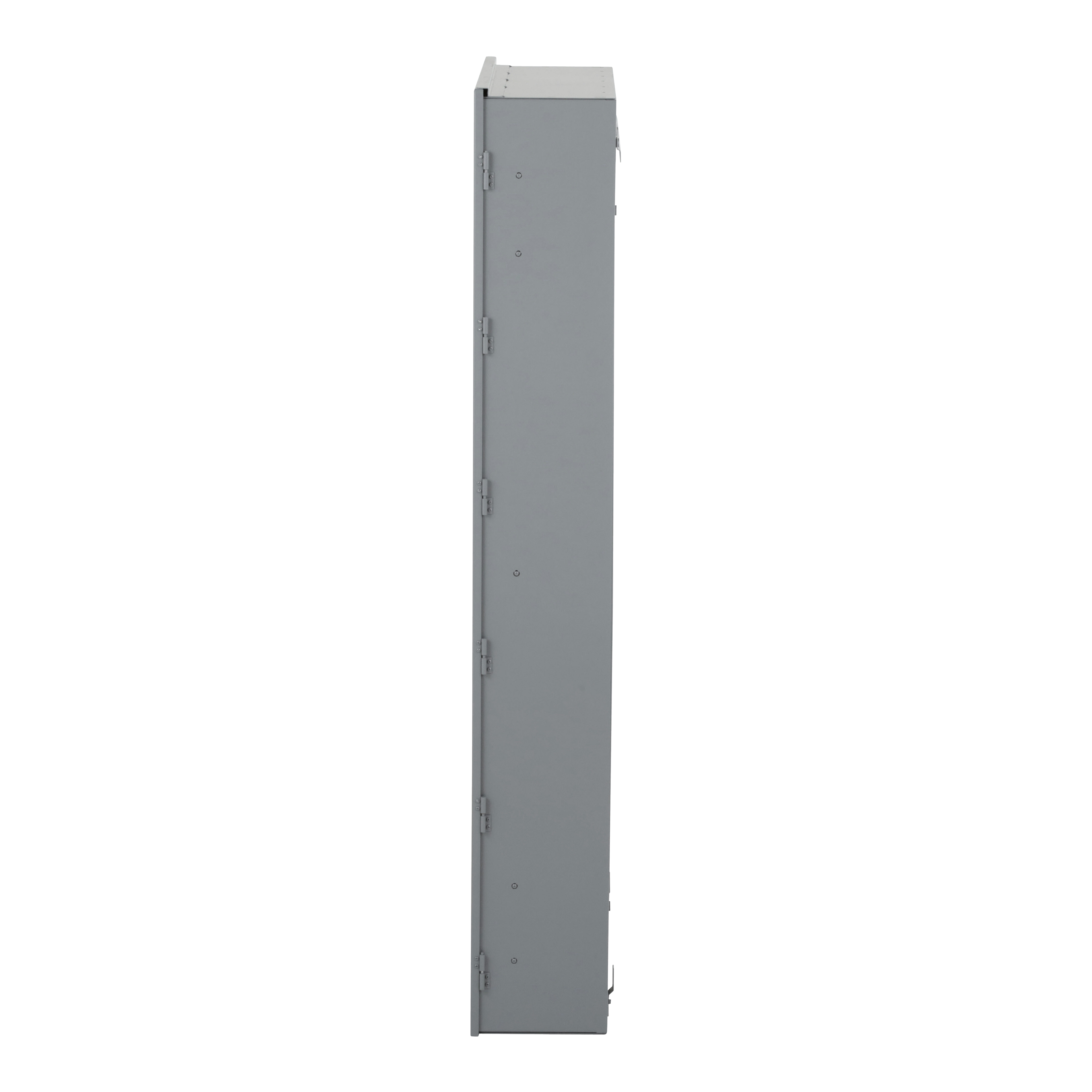

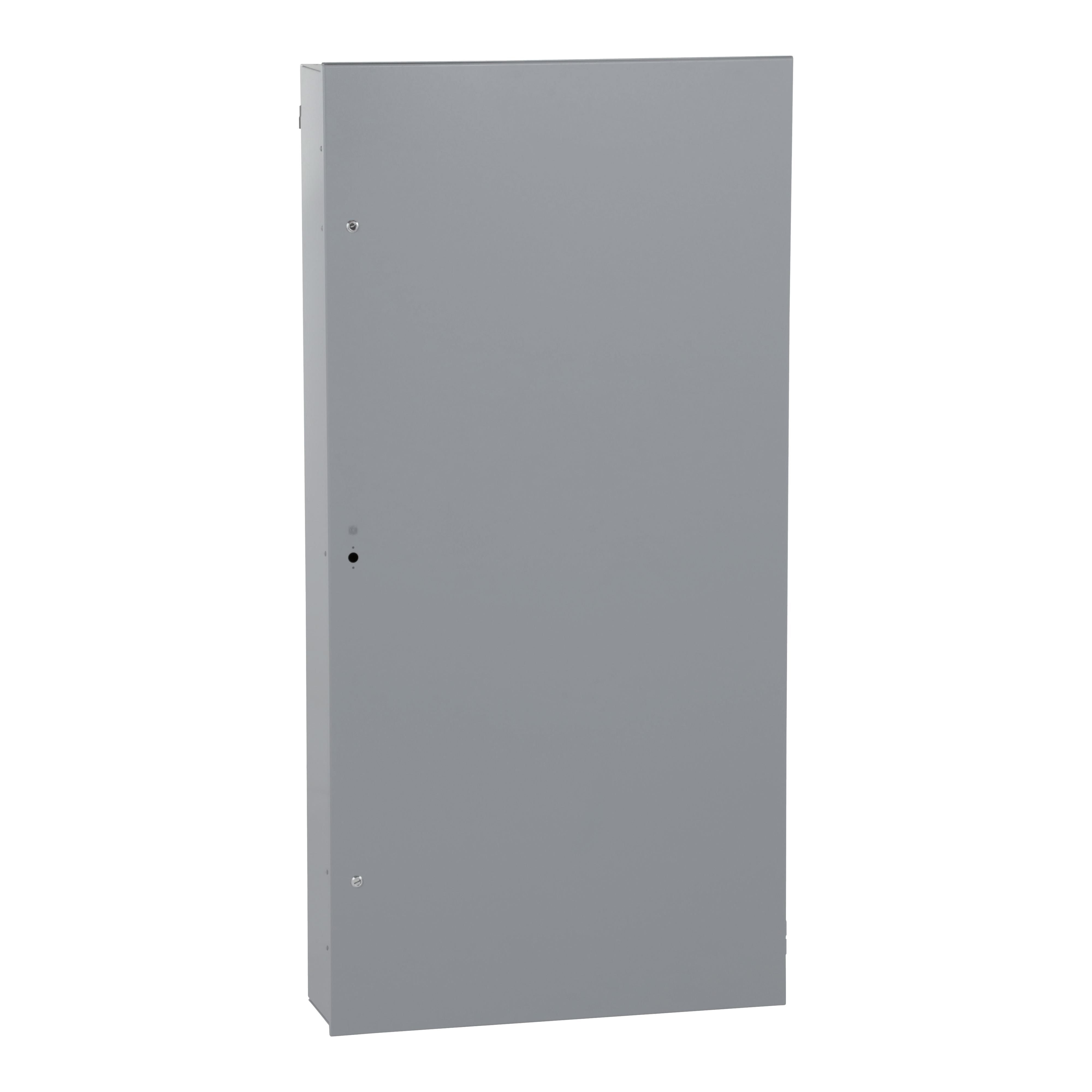

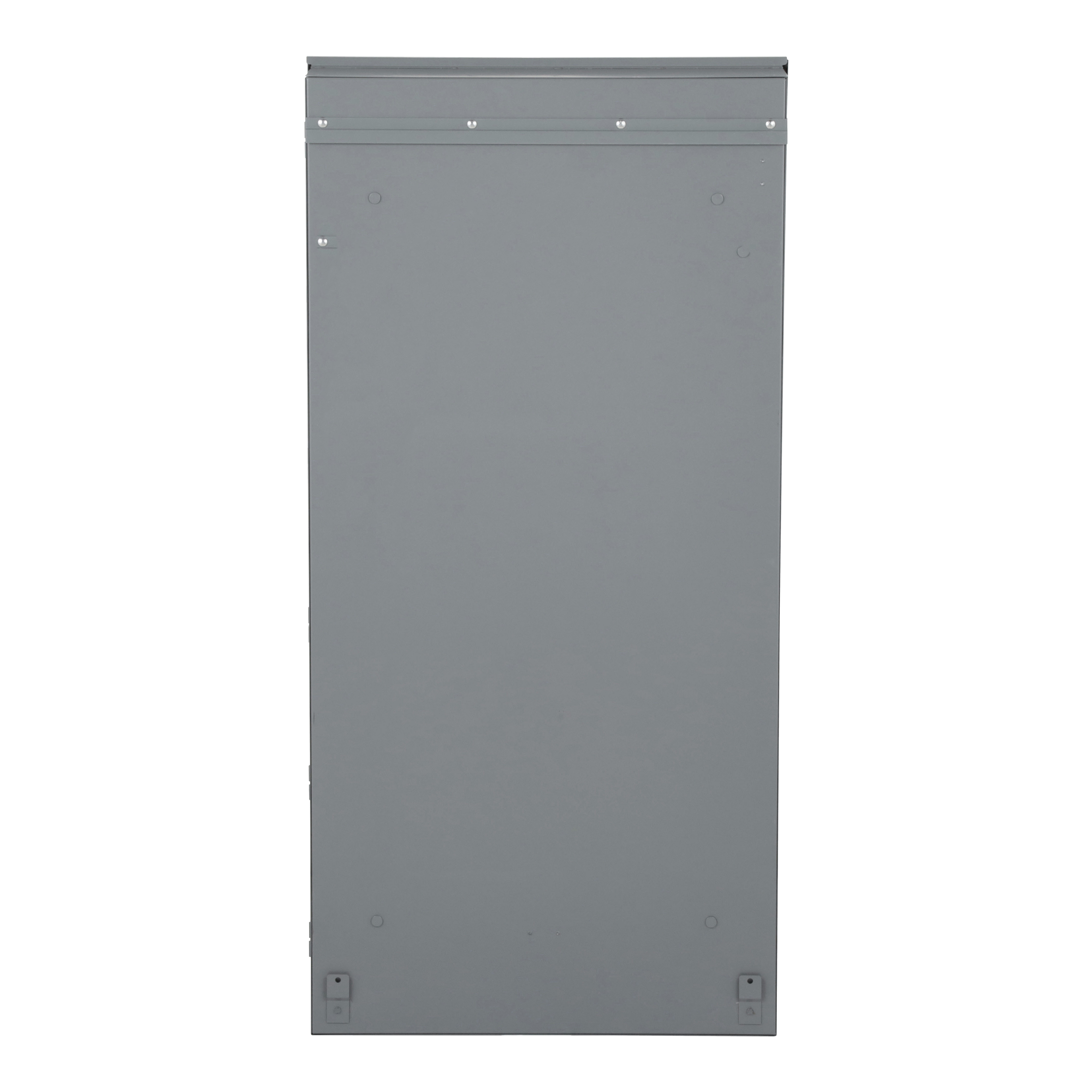

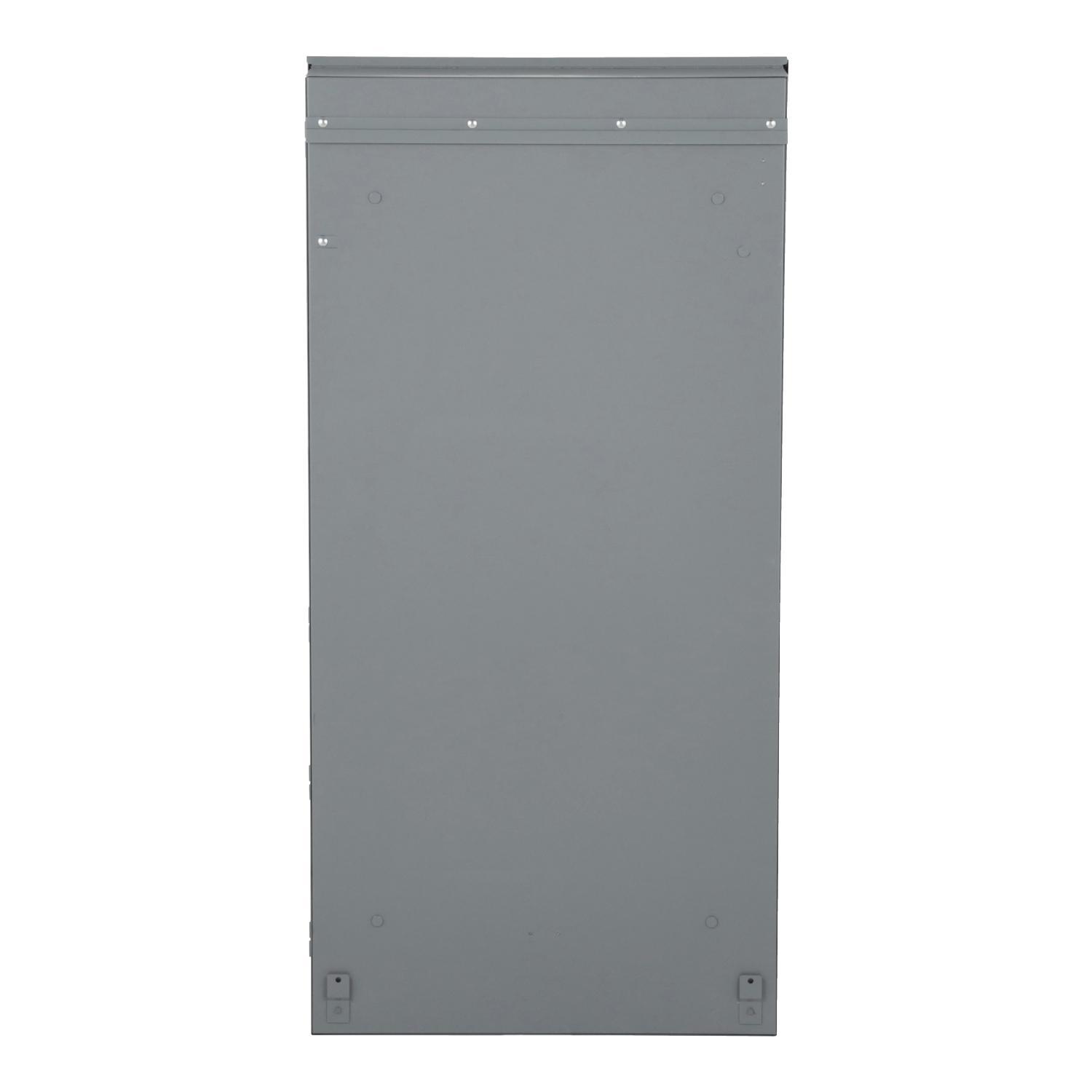

Square D™ HC4286WP Panelboard Enclosure Box, NEMA 3R/5/12 NEMA Rating, 86 in L x 42 in W x 241 mm D
Brand: Square D™
Item ID: 465853
MPN: HC4286WP
UPC: 785901077220
Login for Price
Description
HCP 42 INCH WIDE by 86 INCH HIGH TYPE3R/12 I-LINE PANELBOARD ENCLOSURE
Square D™ Panelboard Enclosure Box, 86 in Length, 42 in Width, 241 mm Depth, Surface Mounting, Painted, NEMA 3R/5/12 NEMA Rating
Specifications
Depth |
241 mm |
Finish |
Painted |
Length |
86 in |
Mounting Type |
Surface |
NEMA Rating |
NEMA 3R/5/12 |
Width |
42 in |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For I-Line™ circuit breaker panelboard applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8b93c36e70ec0f1a3a4cc36bf19e0791b86b97bf07e238f3cc57c2510542707b.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4259WP_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4286WP_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2ac11e46022a82d07750bf59acd9fc6f390962d0d6d22daa4feccf4019fba4ec.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4286WP_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Technical_Bulletin.pdf
