Square D™ HCJ14486CU

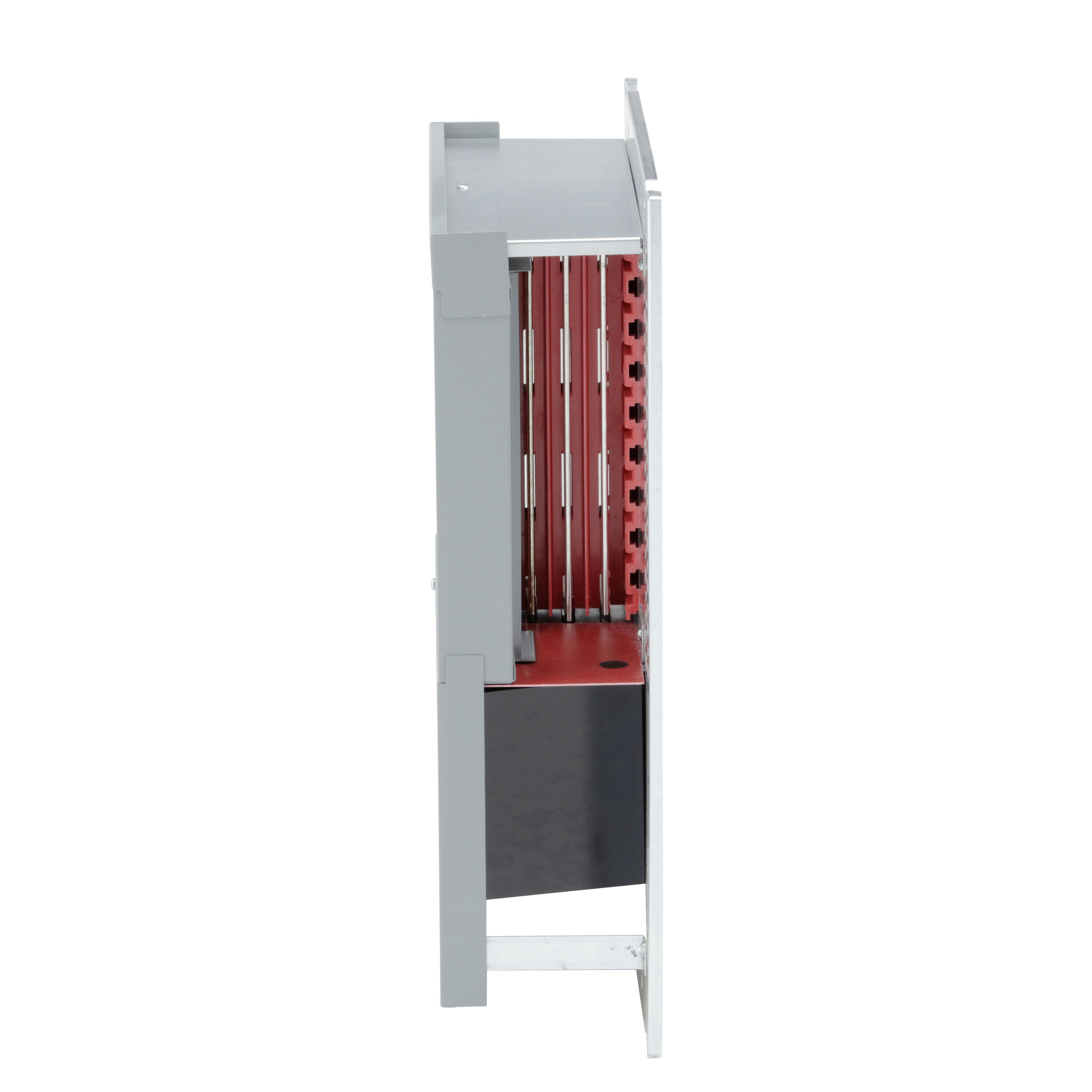

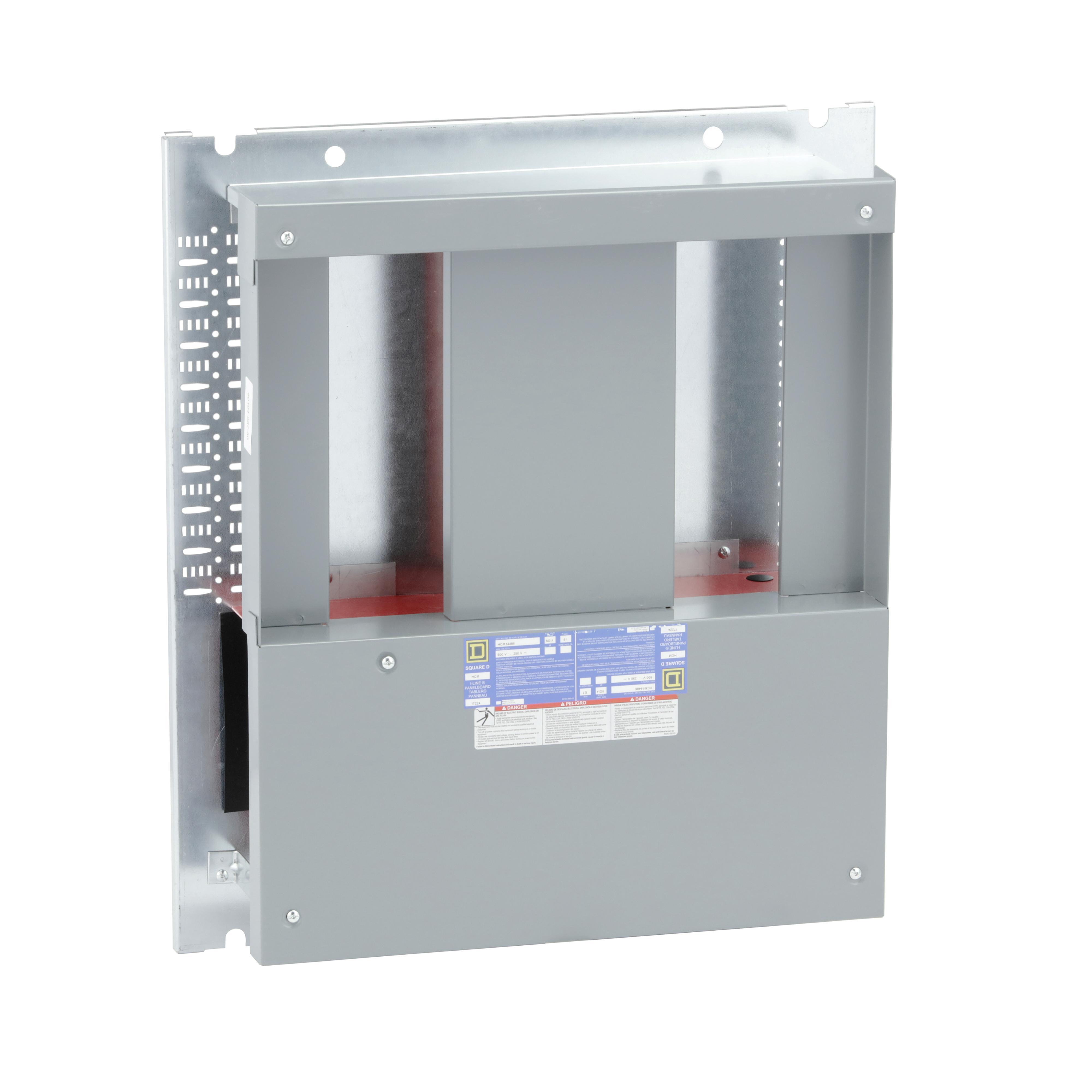

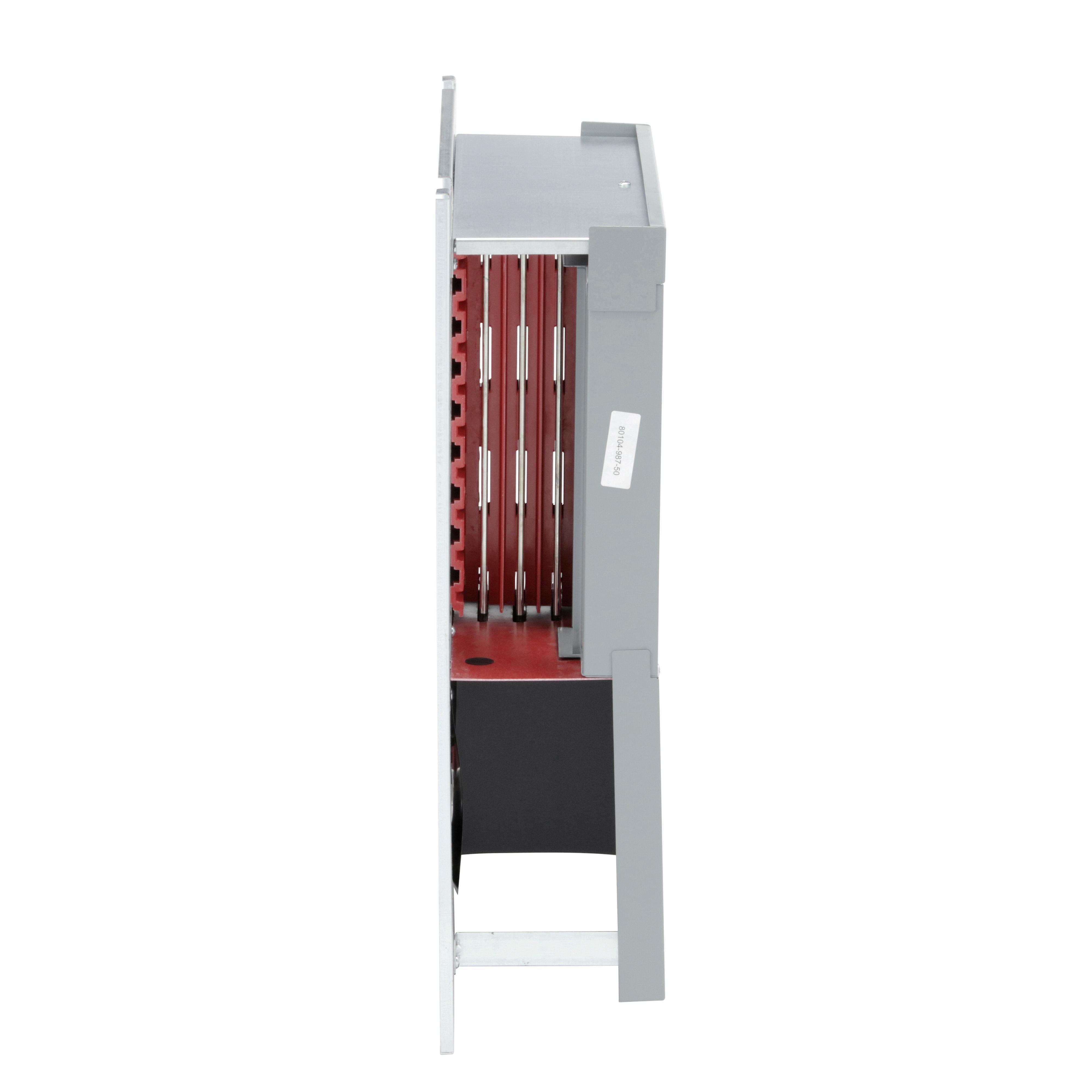

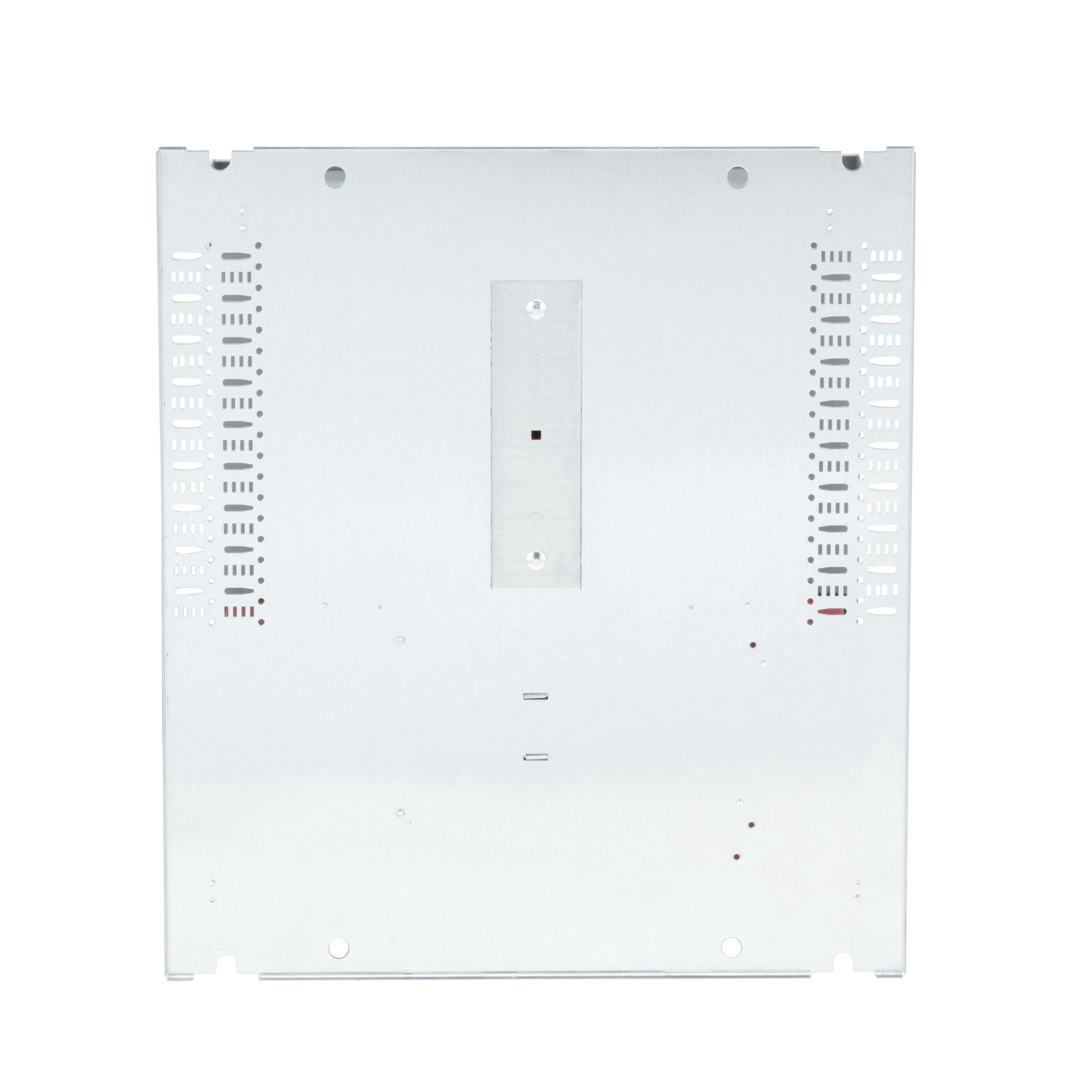

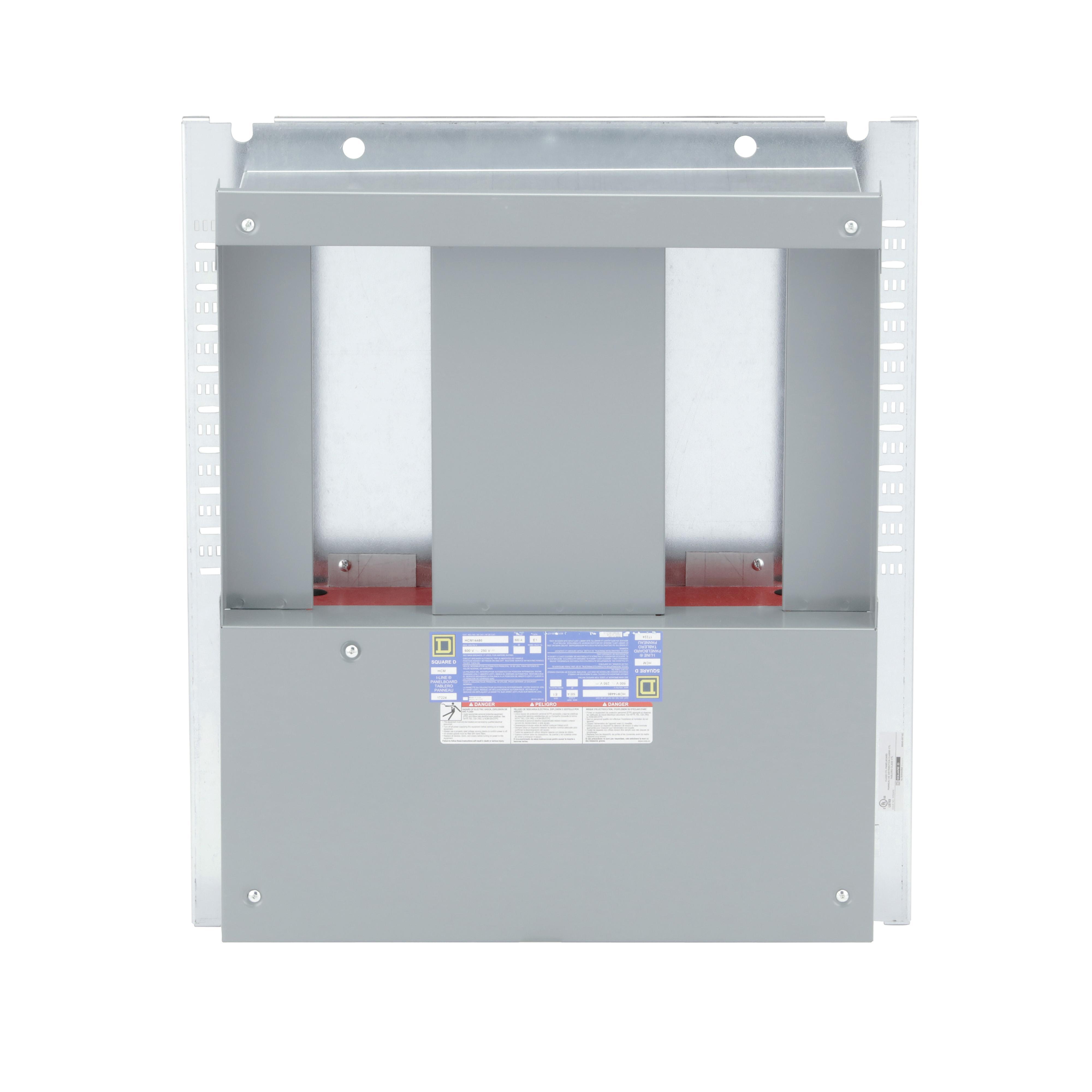

Square D™ I-Line™ HCJ14486CU 3-Phase Main Lug, 600 A
Brand: Square D™
Item ID: 537202
MPN: HCJ14486CU
UPC: 785901800712
Login for Price
Description
Square D™ I-Line™ Main Lug, 3-Phase, 600 A, Steel Housing, 26.44 in W x 8.7 in D x 30.02 in H
Specifications
Amperage Rating |
600 A |
Dimensions |
26.44 in W x 8.7 in D x 30.02 in H |
Housing Material |
Steel |
Type |
3-Phase |
Standard Approval |
Green Premium™|cULus Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.gov |
Application |
For interior |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_38e17582968155b691aee20eb84769e164532a8c8a3f4c1c225e3b26bd436de1.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a100d1427838fb0a0ac43f7ec97a0eaa34edcfbc0654feef2e0476dbc71a2bc8.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3291B_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Instruction_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCJ14486CU_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9840a560d1288290f52ef75f1ac9fa25c0541e2bcc498e3c9f1a92fdb7ef0f34.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCJ14486CU_Specification_Sheet.pdf
