Square D™ HCM14484

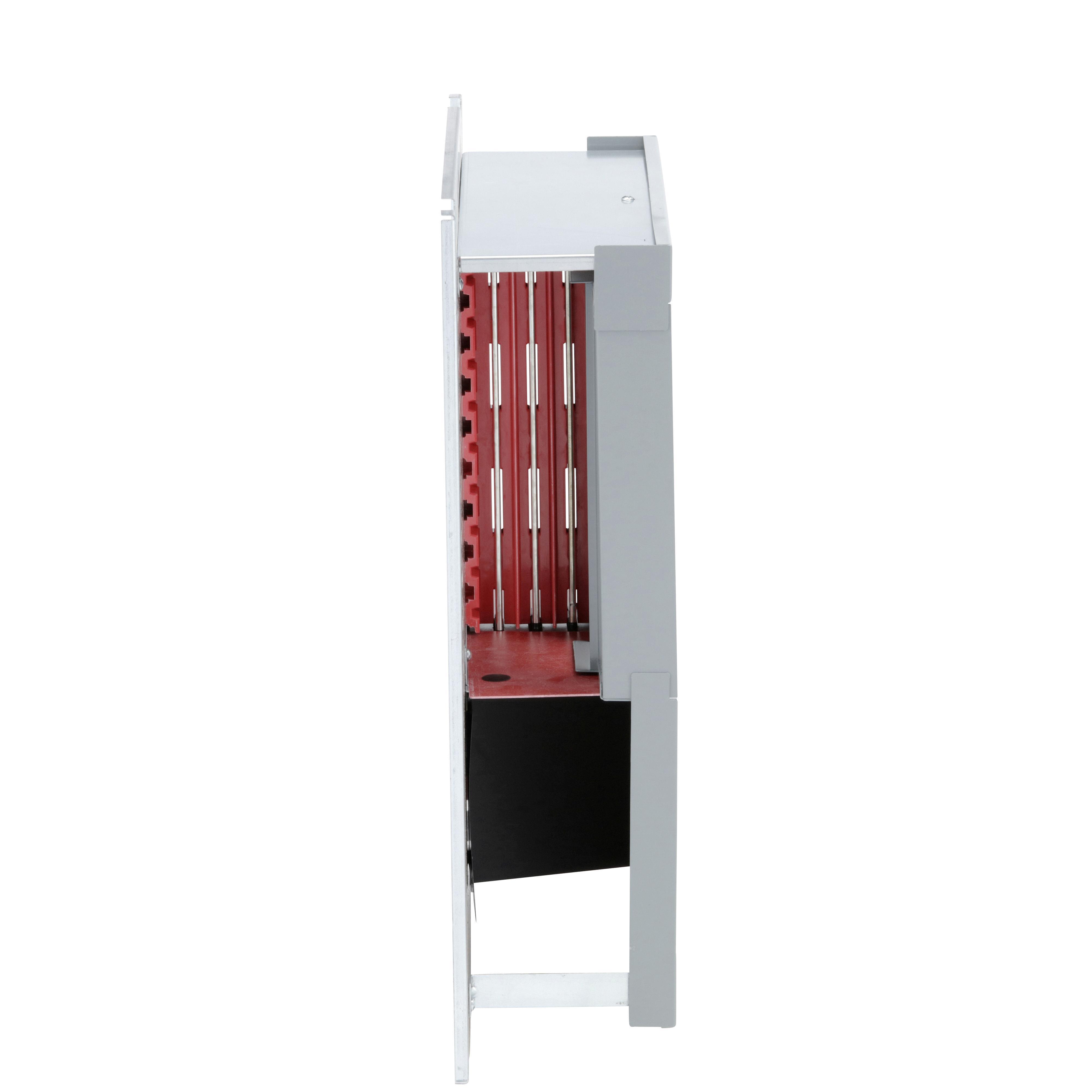

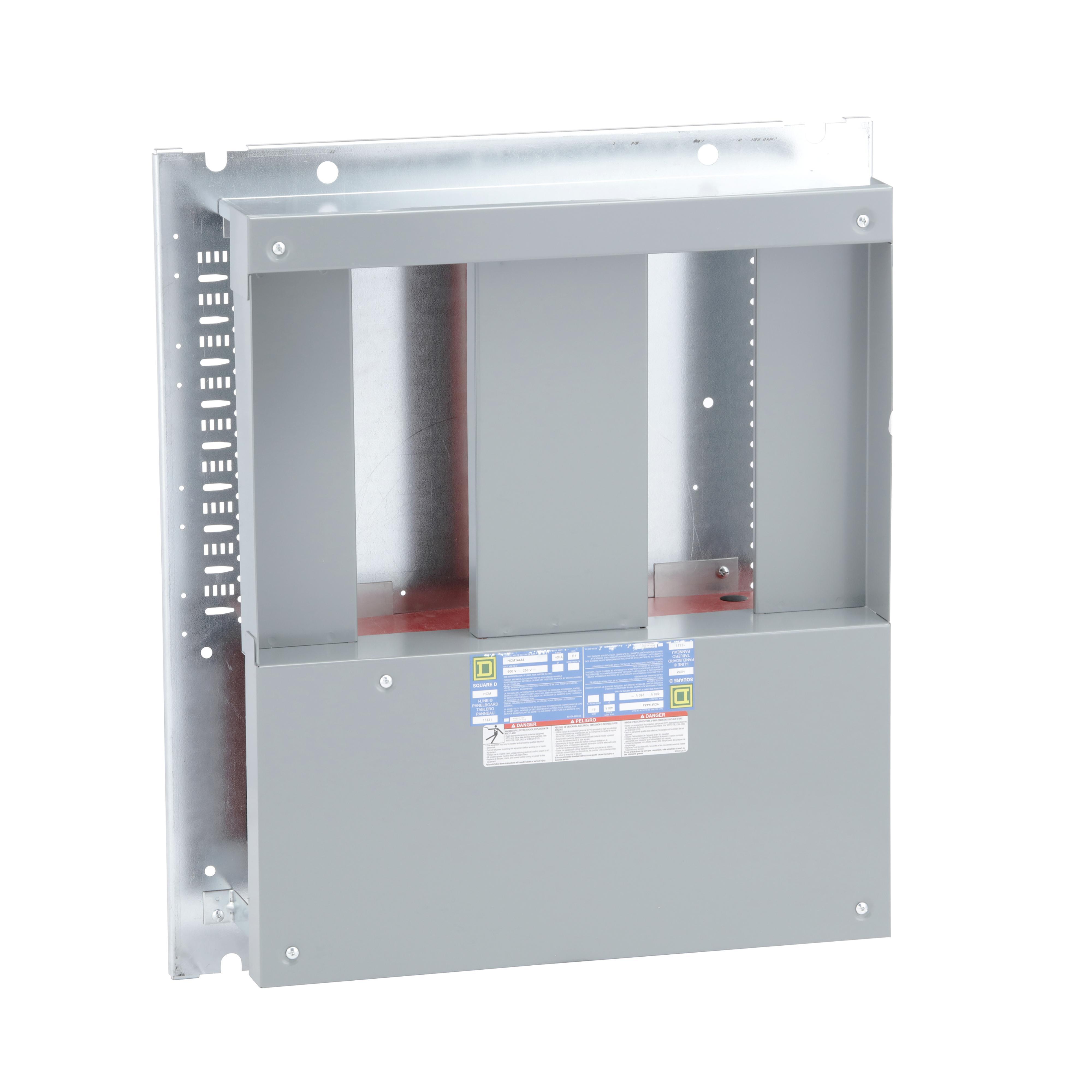

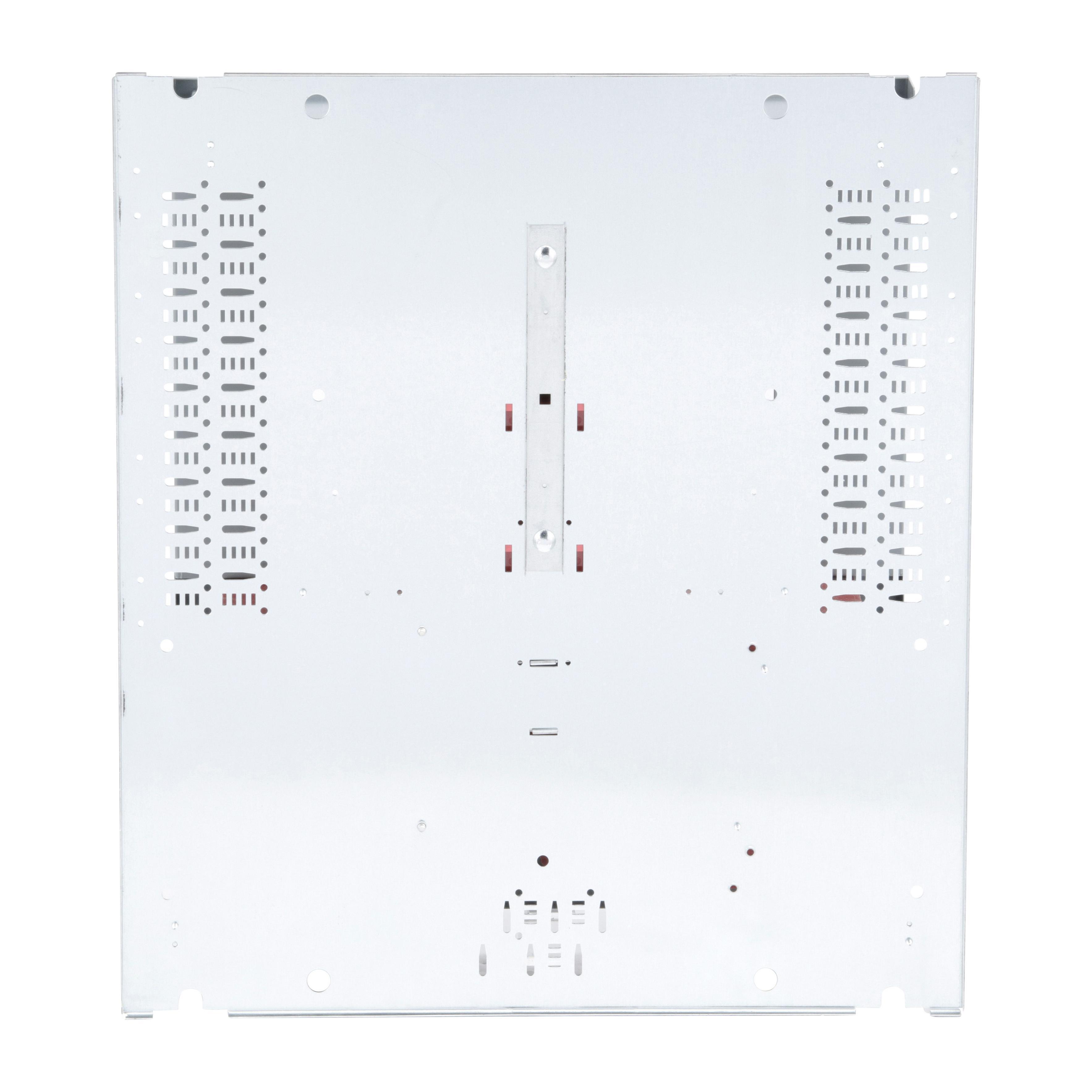

Square D™ I-Line™ HCM14484 3-Phase Bottom Type HCM Panelboard Interior, 600 VAC/250 VDC, 400 A, 27 Spaces, 200 kA SCCR
Brand: Square D™
Item ID: 395805
MPN: HCM14484
UPC: 785901780564
Login for Price
Description
Square D™ I-Line™ Panelboard Interior, 3-Phase Bottom Type HCM, 600 VAC/250 VDC, 400 A, 60 Hz Frequency, 27 Spaces, 200 kA Short Circuit, FA/HD Breaker, 3-Wire Wiring Configuration, Aluminum/Copper Bus, Panel Mounting, 32 in W x 8-1/4 in D x 48 in H Dimensions
Specifications
Amperage Rating |
400 A |
Breaker Type |
FA/HD |
Bus Material |
Aluminum/Copper |
Dimensions |
32 in W x 8-1/4 in D x 48 in H |
Frequency Rating |
60 Hz |
Mounting Type |
Panel |
Number of Spaces |
27 |
Short Circuit Current Rating |
200 kA |
Type |
3-Phase Bottom Type HCM |
Voltage Rating |
600 VAC/250 VDC |
Wiring Configuration |
3-Wire |
Standard Approval |
RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For main lug load center |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e1175fa3a5180e352755fb860629763661f1d73823405a25c83e625d50bf334e.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D096BL_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D25R7_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5eb62747c8bed3c1fe835fd8d0dc3afd24f2bbb45ac217ea748607331d46f65a.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf
