Square D™ HCM14488

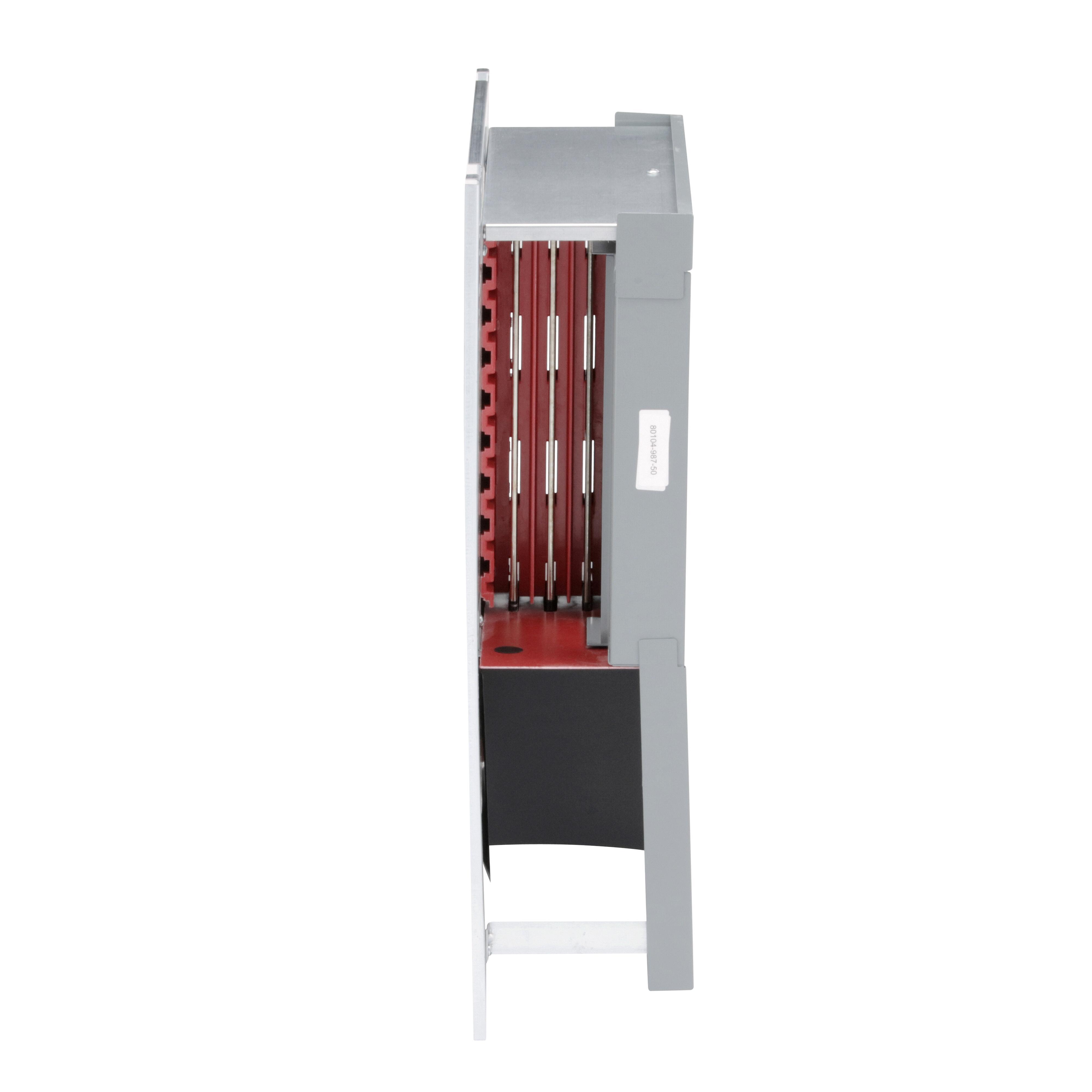

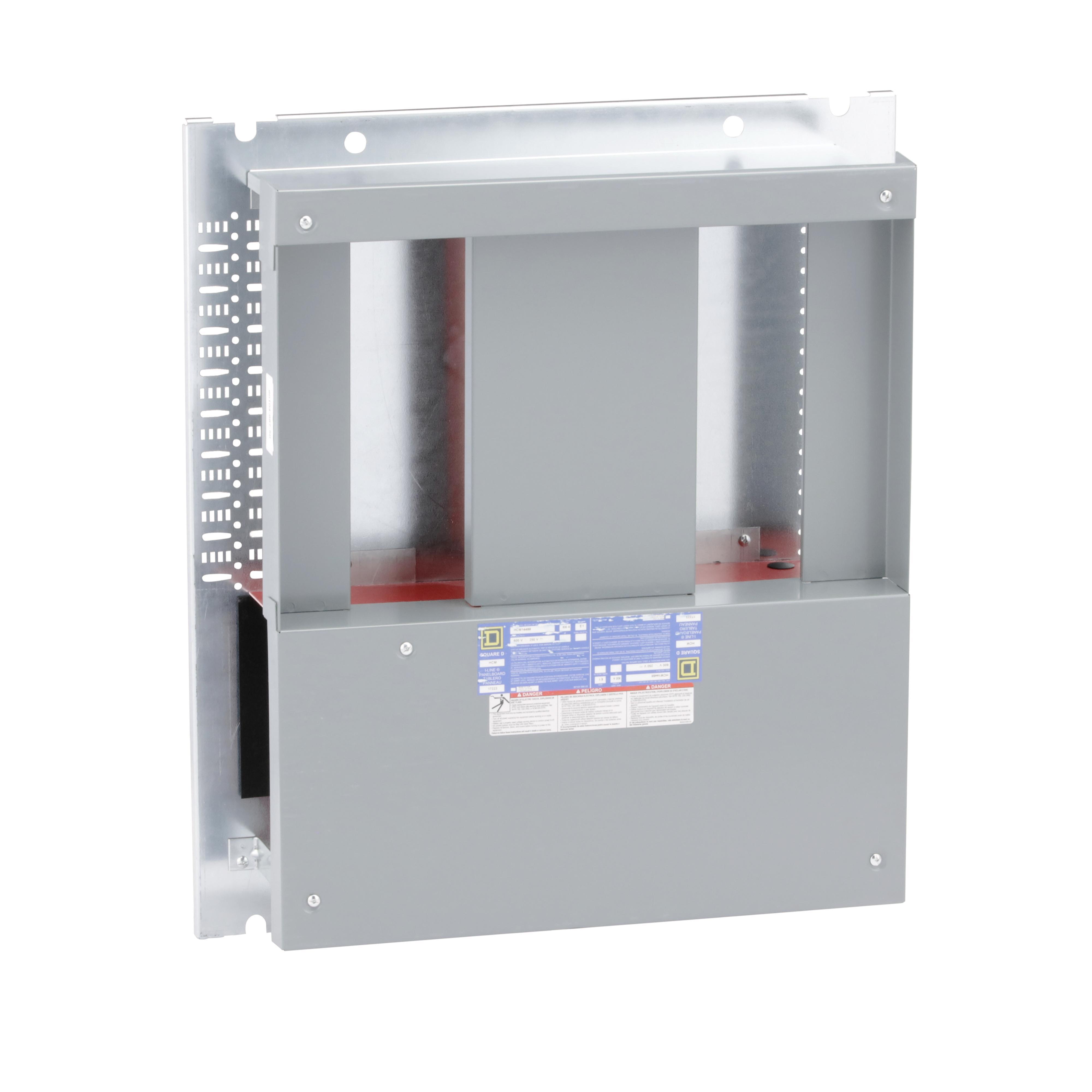

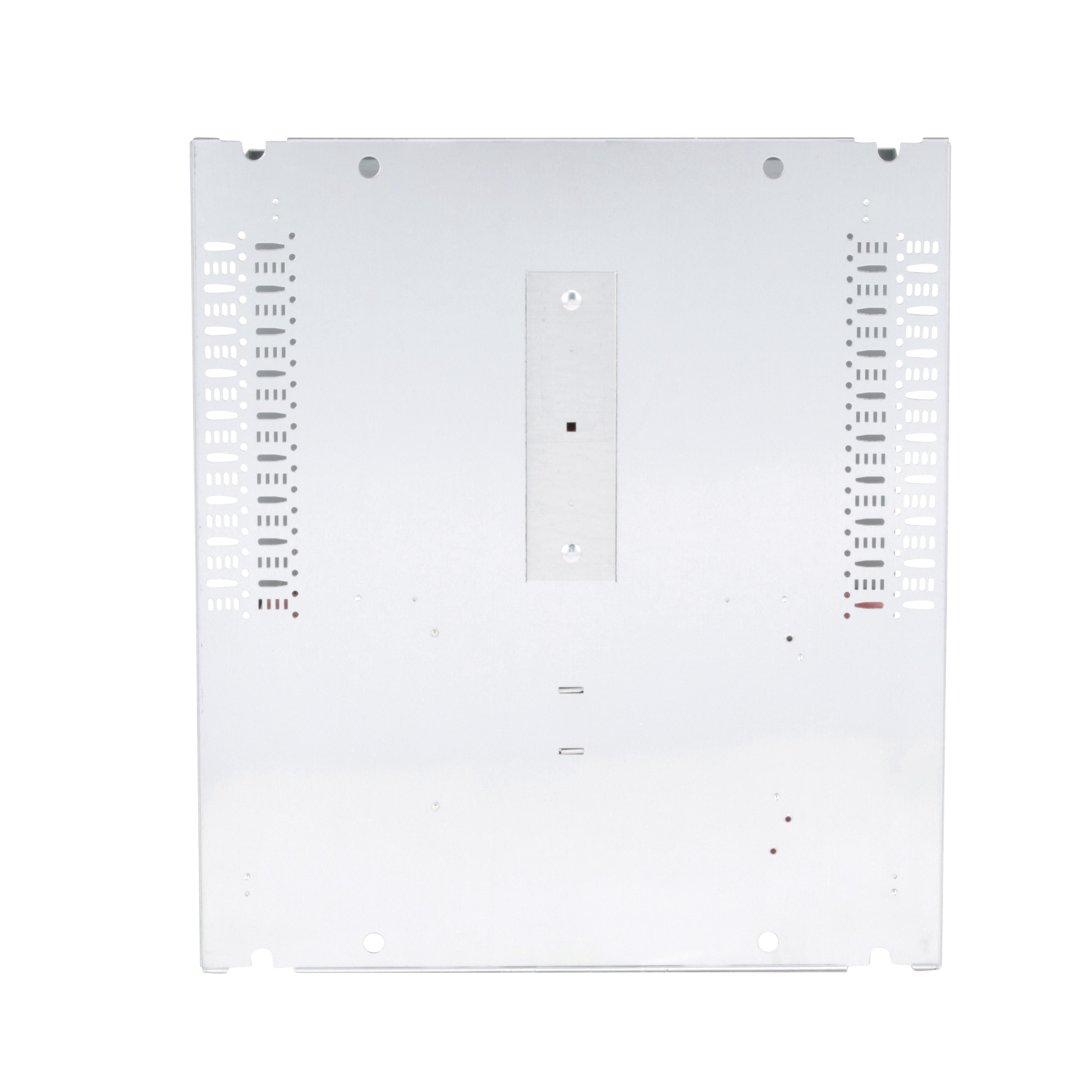

Square D™ I-Line™ HCM14488 3-Phase Bottom Type HCM Panelboard Interior, 600 VAC/250 VDC, 600 A, 27 Spaces, 200 kA SCCR
Brand: Square D™
Item ID: 52110
MPN: HCM14488
UPC: 785901780687
Login for Price
Features
- Bottom connection
- 3-pole feeder
- Main lugs only
- FA/FH/FC/FI/FY/KA/KH/Q2/Q2-H/Q2H branch breaker
Description
Square D™ I-Line™ Panelboard Interior, 3-Phase Bottom Type HCM, 600 VAC/250 VDC, 600 A, 60 Hz Frequency, 27 Spaces, 200 kA Short Circuit, Q2H Breaker, 3-Wire Wiring Configuration, Copper Bus, Panel Mounting, NEMA 1/3R/5/12 Enclosure, Aluminum/Copper Housing Material, 32 in W x 8-1/4 in D x 48 in H Dimensions
Specifications
Amperage Rating |
600 A |
Breaker Type |
Q2H |
Bus Material |
Copper |
Dimensions |
32 in W x 8-1/4 in D x 48 in H |
Enclosure Type |
NEMA 1/3R/5/12 |
Frequency Rating |
60 Hz |
Housing Material |
Aluminum/Copper |
Mounting Type |
Panel |
Number of Spaces |
27 |
Short Circuit Current Rating |
200 kA |
Type |
3-Phase Bottom Type HCM |
Voltage Rating |
600 VAC/250 VDC |
Wiring Configuration |
3-Wire |
Standard Approval |
RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Documentation
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf
