Square D™ HCM18736MP

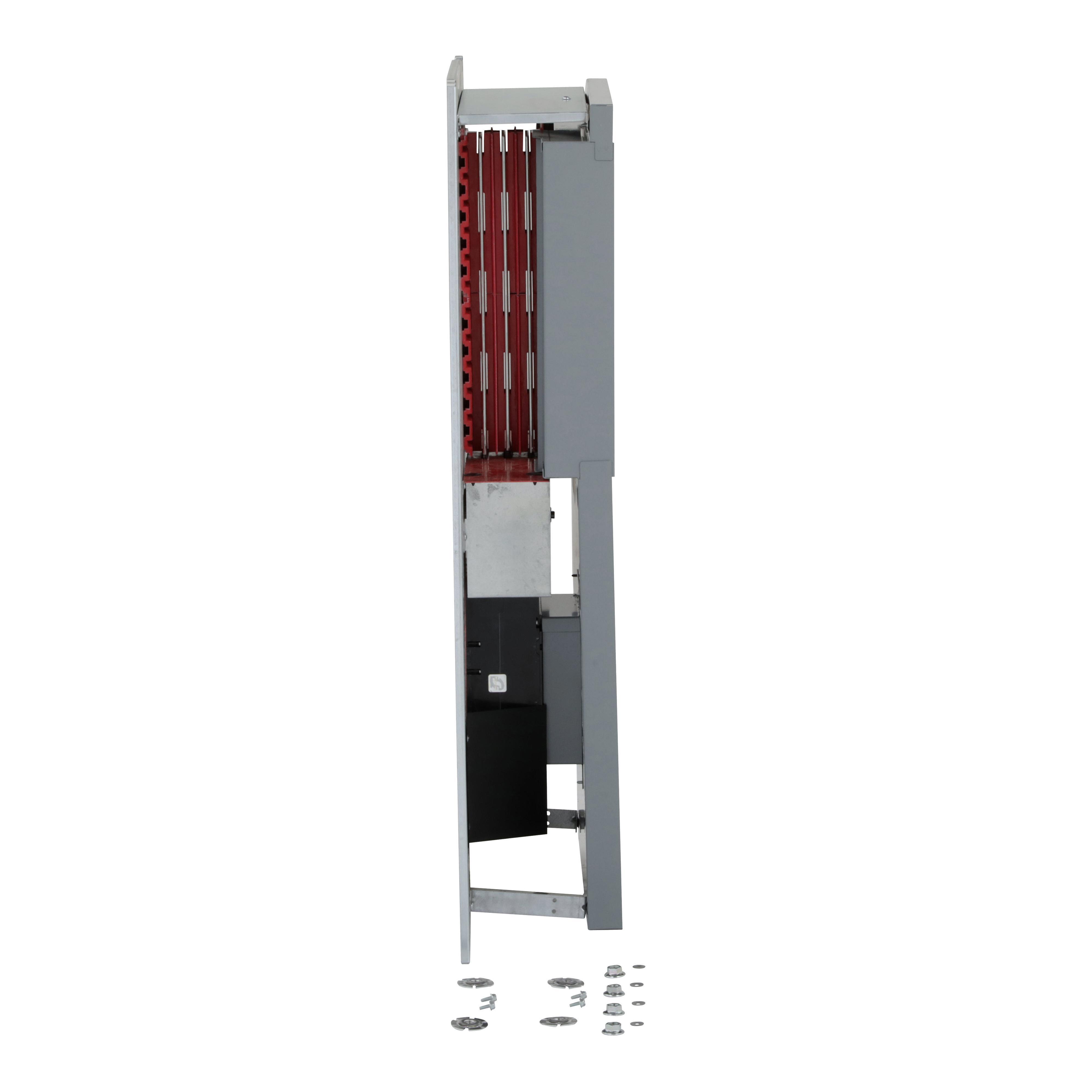

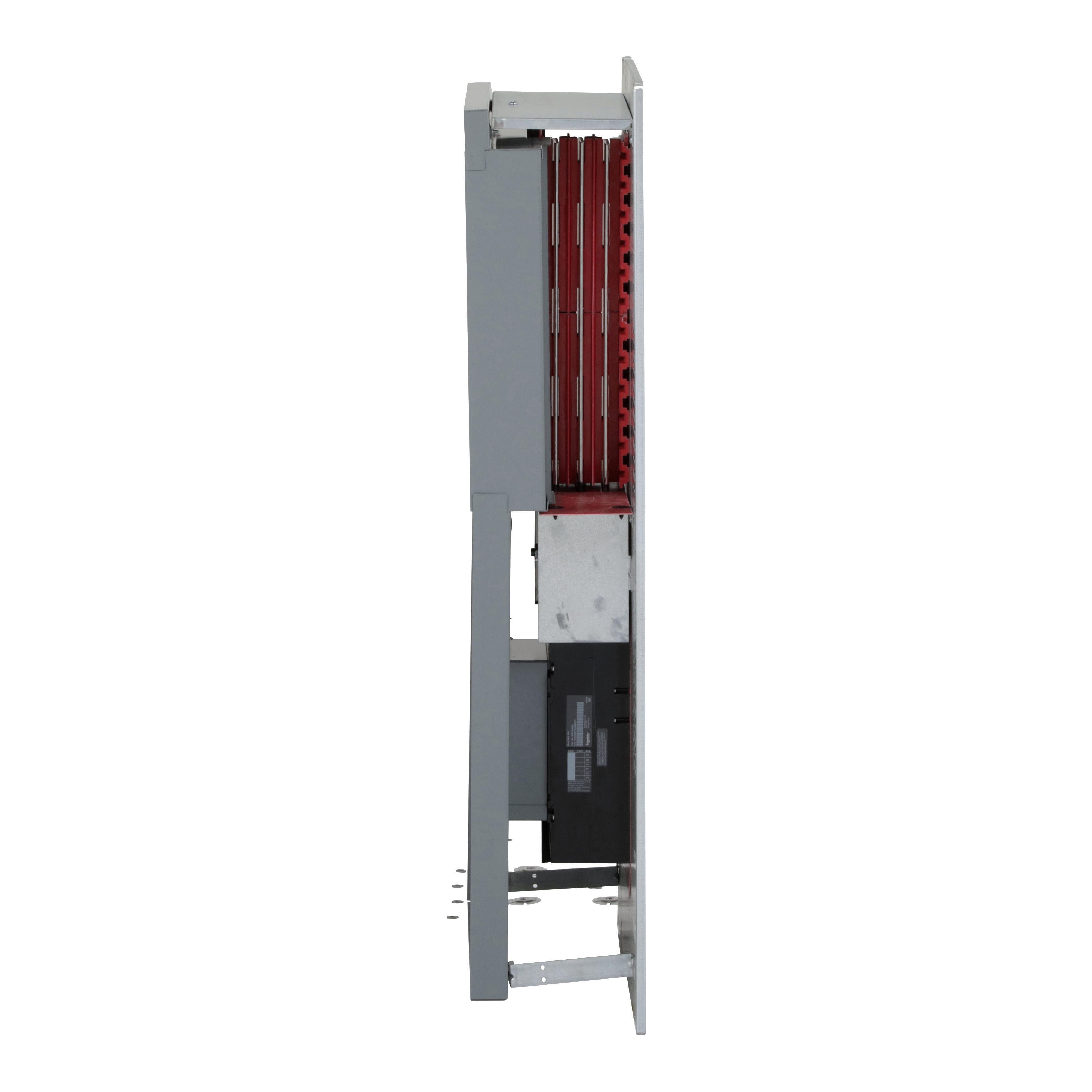

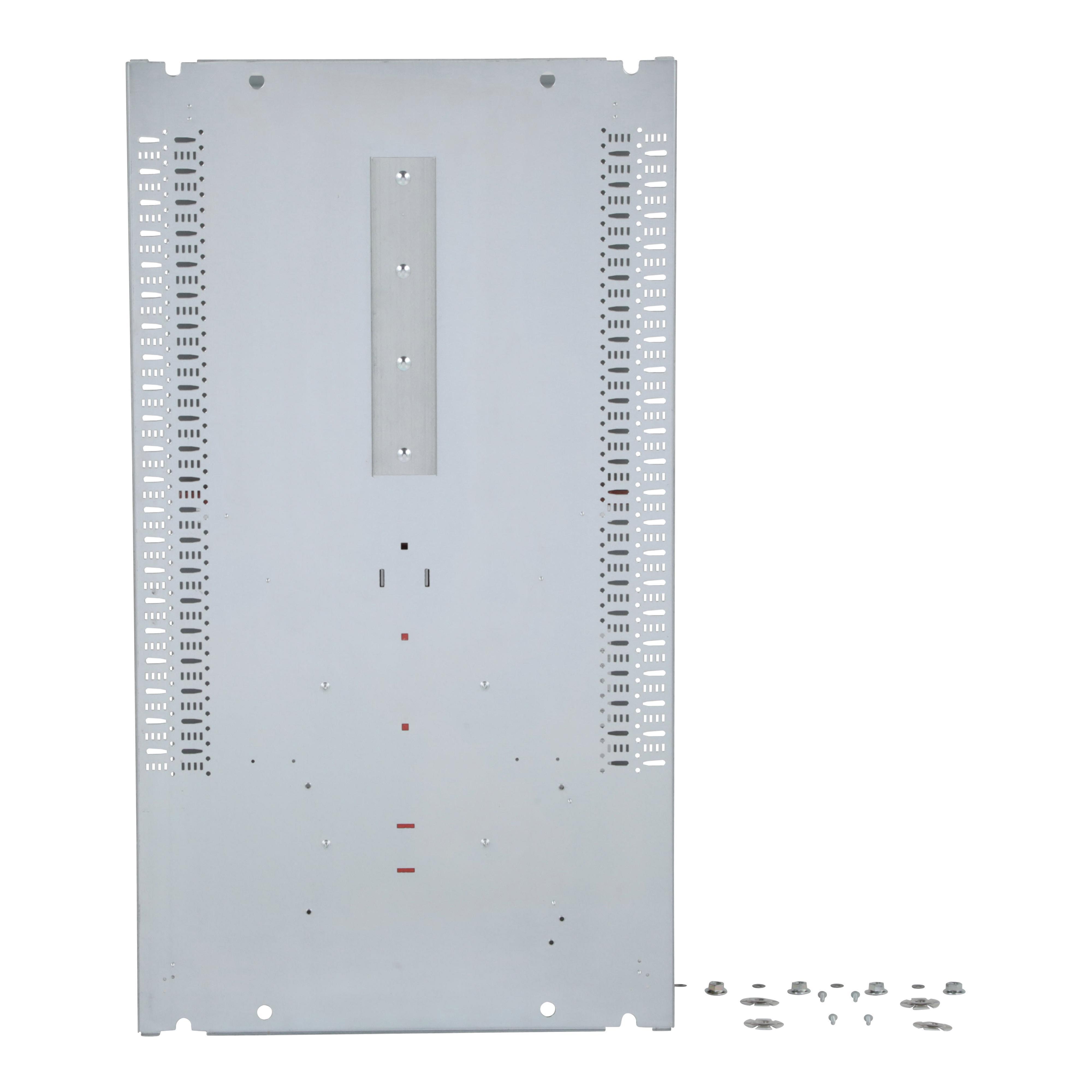

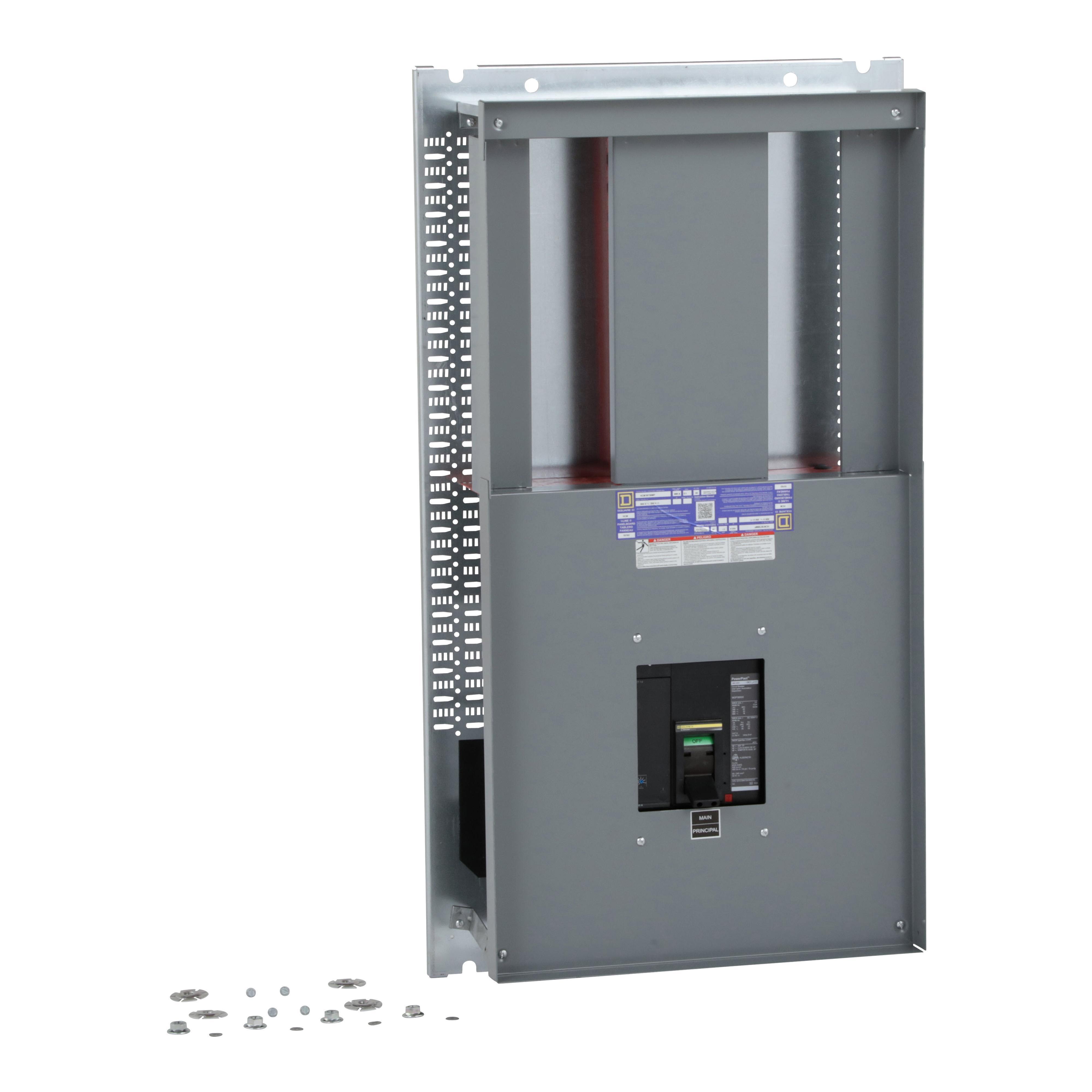

Square D™ I-Line™ HCM18736MP Type HCM Panelboard Interior, 600 VAC, 250 VDC, 600 A, 36 Spaces, 200 kA SCCR
Brand: Square D™
Item ID: 392630
MPN: HCM18736MP
UPC: 785901520566
Login for Price
Features
- Bottom connection
- Load center interior
- 600 a line current rating
- 36 in L bar
Description
Square D™ I-Line™ Panelboard Interior, Type HCM, 600 VAC, 250 VDC, 600 A, 36 Spaces, 200 kA Short Circuit, FA/FH/FI/FY/HD/HG/HJ/HL/JD/JG/JJ/JL/QB/QD/QG/QJ Breaker, 3-Phase, 3-Wire Wiring Configuration, Aluminum Bus, Panel Mounting, Aluminum/Copper Housing Material, 32 in W x 8-1/4 in D x 73 in H Dimensions
Specifications
Amperage Rating |
600 A |
Breaker Type |
FA/FH/FI/FY/HD/HG/HJ/HL/JD/JG/JJ/JL/QB/QD/QG/QJ |
Bus Material |
Aluminum |
Dimensions |
32 in W x 8-1/4 in D x 73 in H |
Housing Material |
Aluminum/Copper |
Mounting Type |
Panel |
Number of Spaces |
36 |
Short Circuit Current Rating |
200 kA |
Type |
Type HCM |
Voltage Rating |
600 VAC, 250 VDC |
Wiring Configuration |
3-Phase, 3-Wire |
Standard Approval |
RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For use with 600 A HCM panel applications |
Documentation
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6b29fbef24a2673999cdc8d3683db022c0de412201bae2962bc77ec6f6a5cde2.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf
