Square D™ HCM23646

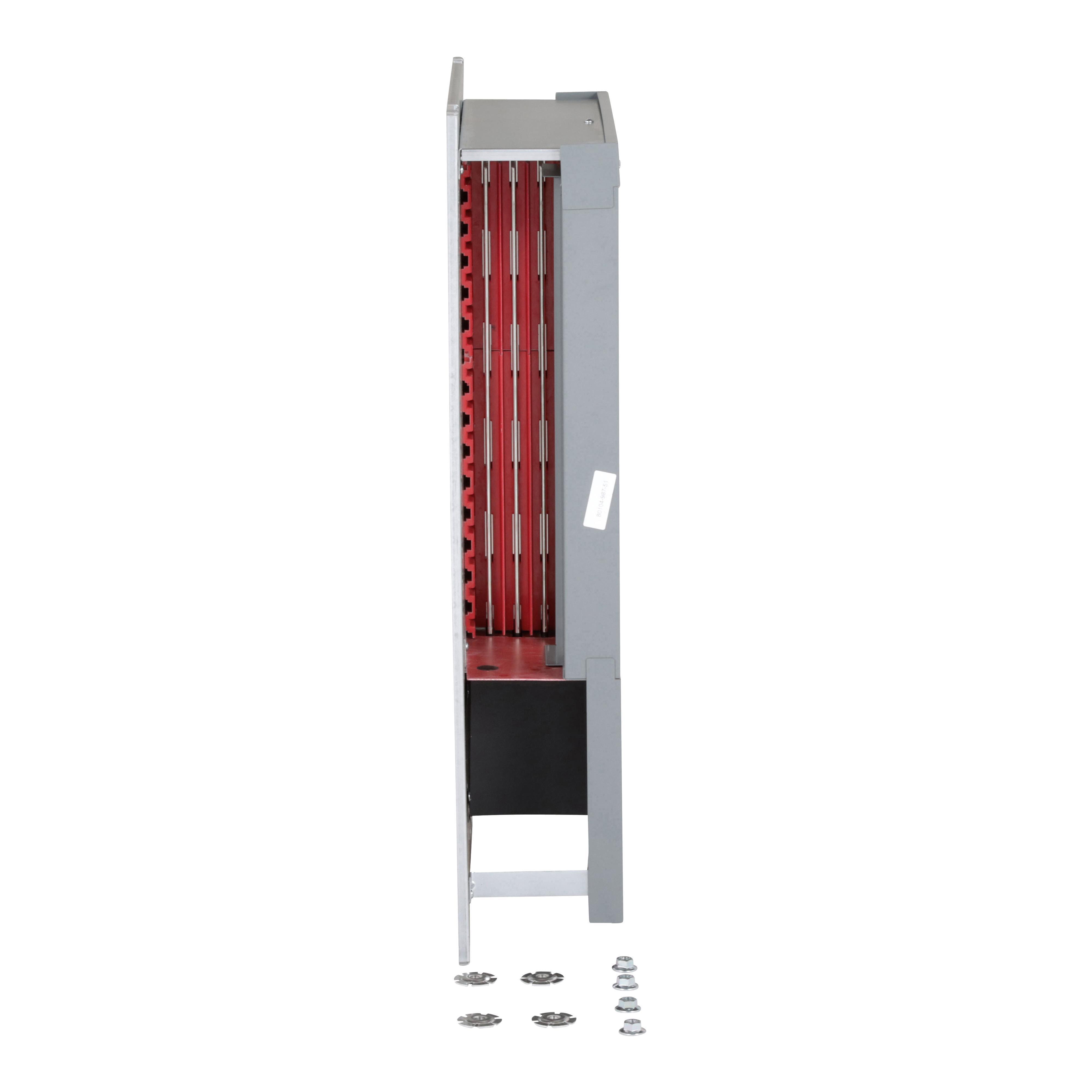

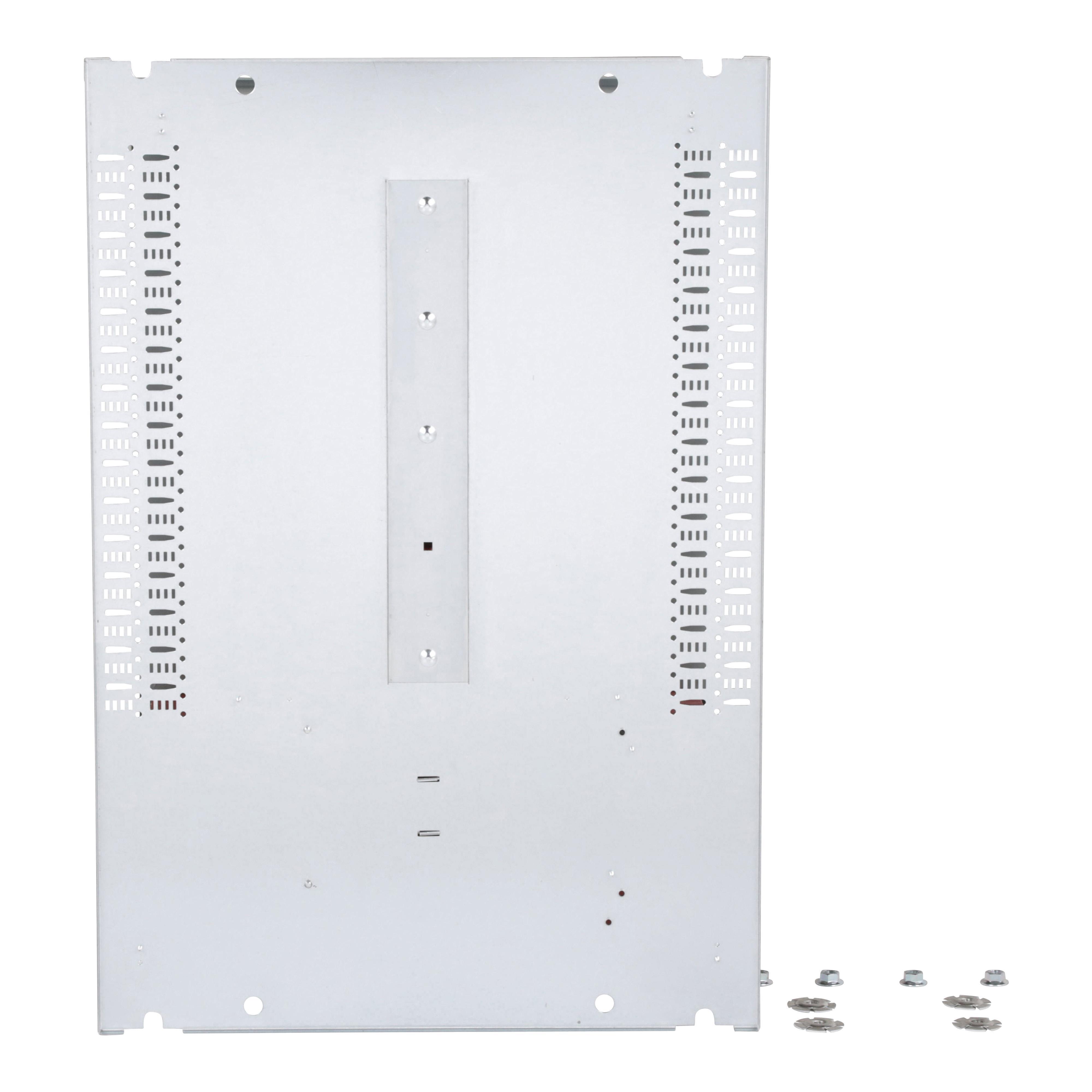

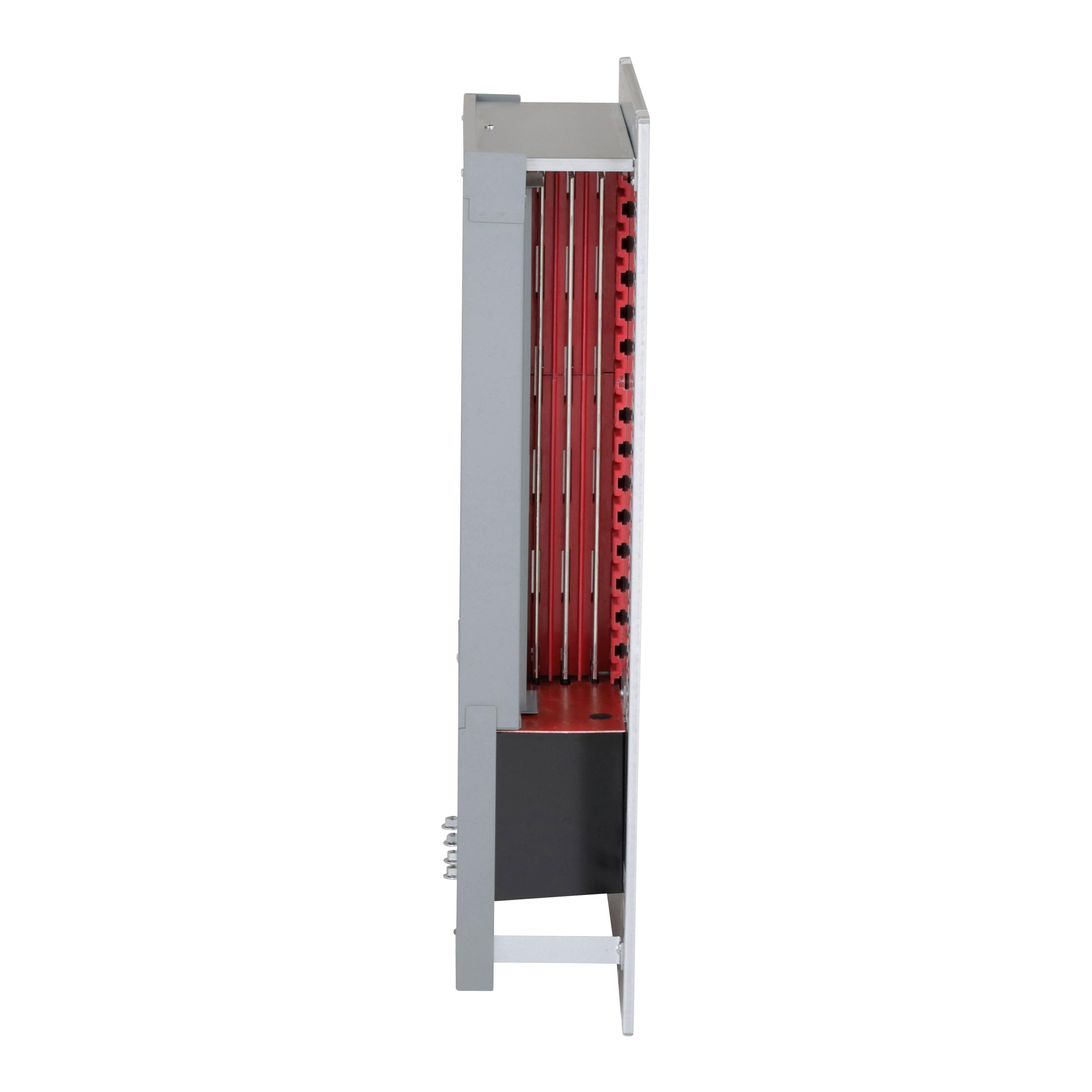

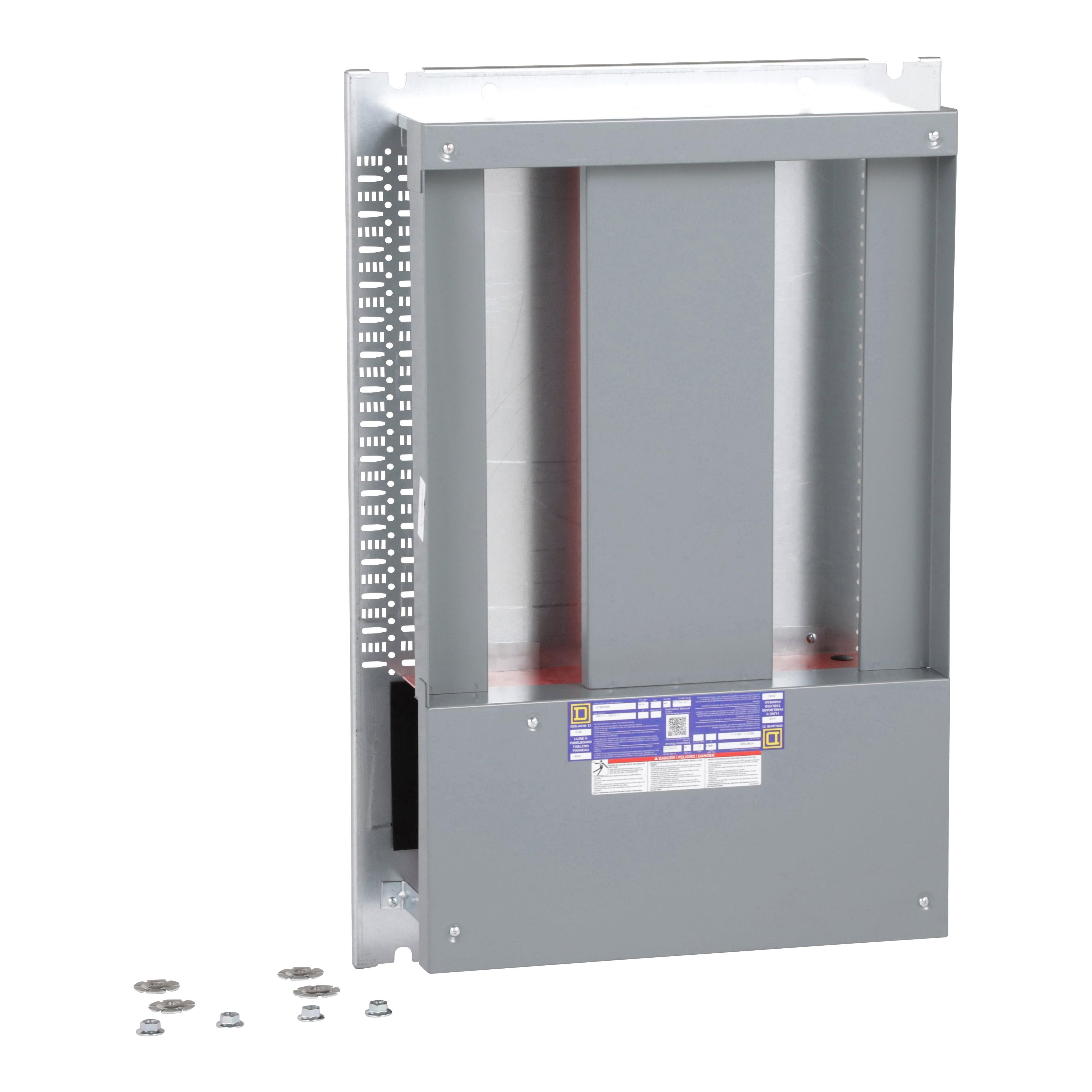

Square D™ I-Line™ HCM23646 3-Phase Bottom Panelboard Interior, 600 VAC, 250 VDC, 600 A, 45 Spaces, 200 kA SCCR
Brand: Square D™
Item ID: 460340
MPN: HCM23646
UPC: 785901780656
Login for Price
Description
Interior - I-Line PNLBRD - hcm - 600 A - main lugs - 32x64x8.25 in
Square D™ I-Line™ Panelboard Interior, 3-Phase Bottom, Series: HCM, 600 VAC, 250 VDC, 600 A, 60 Hz Frequency, 45 Spaces, 200 kA Short Circuit, FA/HD Breaker, 3-Wire Wiring Configuration, Aluminum/Copper Bus, Panel Mounting, Aluminum/Copper Housing Material, 64 in H x 32 in W x 8-1/4 in D Dimensions
Specifications
Amperage Rating |
600 A |
Breaker Type |
FA/HD |
Bus Material |
Aluminum/Copper |
Dimensions |
64 in H x 32 in W x 8-1/4 in D |
Frequency Rating |
60 Hz |
Housing Material |
Aluminum/Copper |
Mounting Type |
Panel |
Number of Spaces |
45 |
Series |
HCM |
Short Circuit Current Rating |
200 kA |
Type |
3-Phase Bottom |
Voltage Rating |
600 VAC, 250 VDC |
Wiring Configuration |
3-Wire |
Standard Approval |
RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For main lug load center |
Documentation
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf
