Square D™ HCM48TS

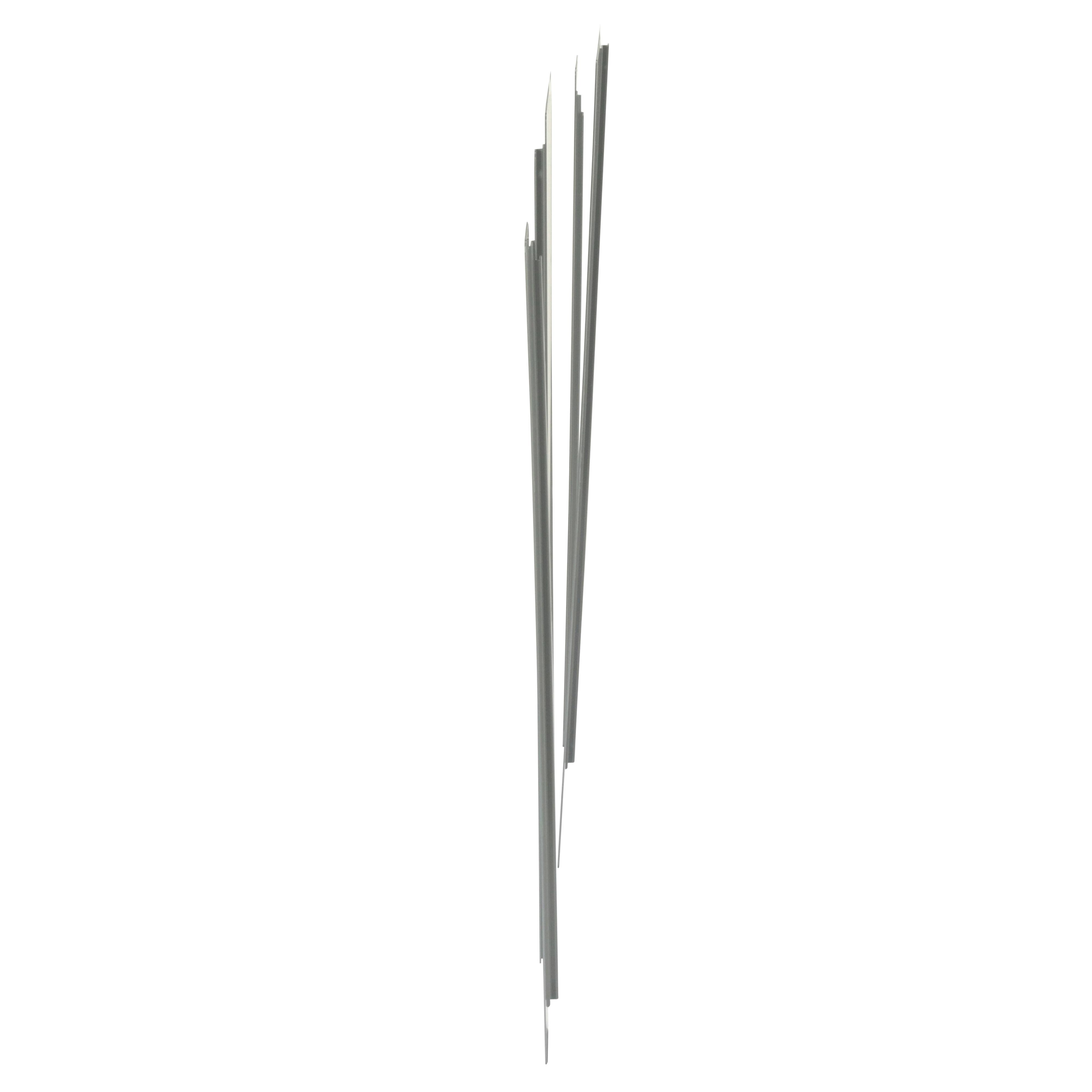

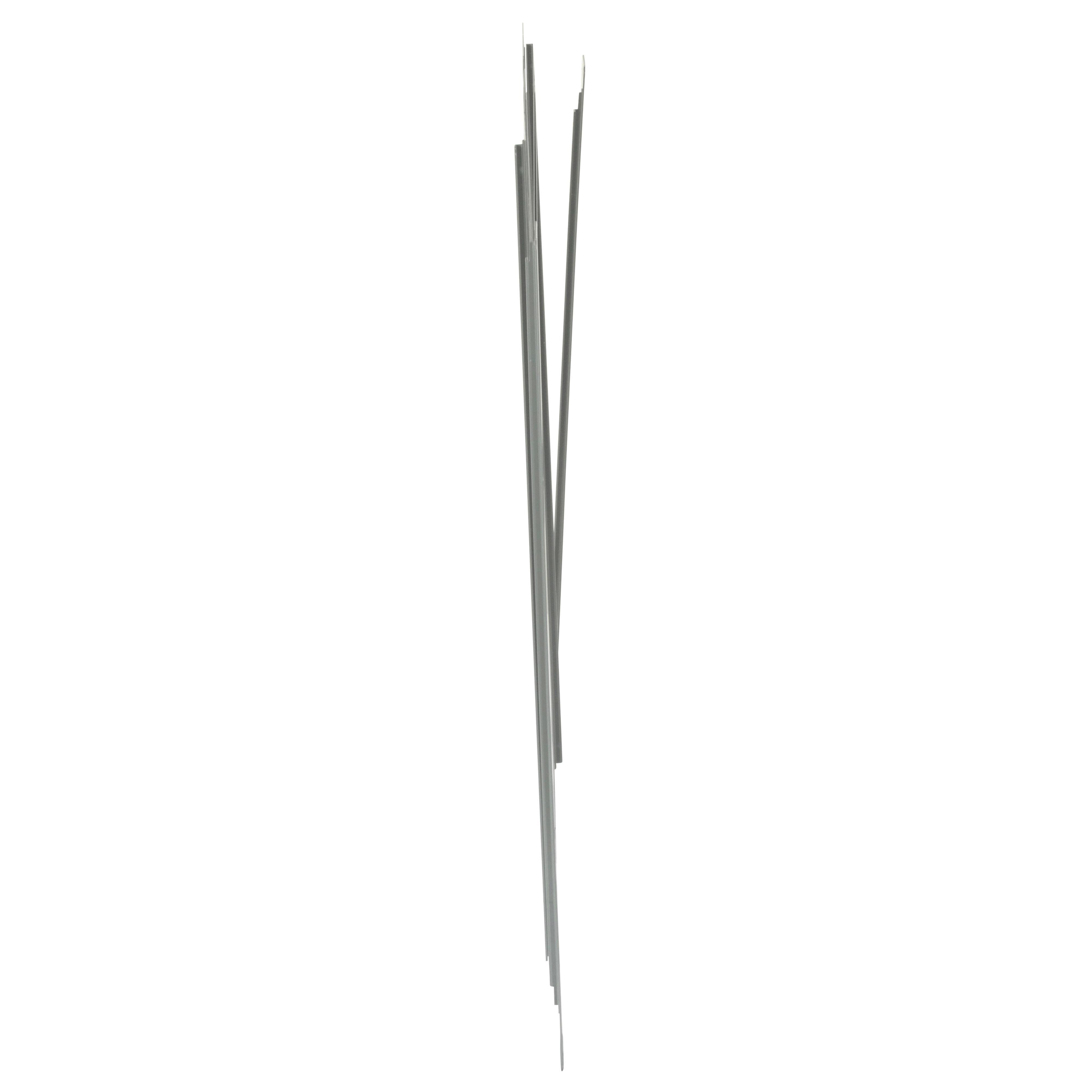

Square D™ I-Line™ HCM48TS 4-Piece Trim Front, 48 in L x 32-1/4 in W, For Use With I-Line™ HCM 3-Pole Main Lug and Circuit Breaker Panelboard, Surface Mount
Brand: Square D™
Item ID: 515170
MPN: HCM48TS
UPC: 785901089049
Login for Price
Description
Trim - I-Line PNLBRD - hcm - surface - 4 pcs - 32x48x8.25 in
Square D™ I-Line™ Trim Front, 4-Piece, 48 in Length, 32-1/4 in Width, 8-1/4 in Depth, Surface Mounting, For Use With: I-Line™ HCM 3-Pole Main Lug and Circuit Breaker Panelboard
Specifications
Depth |
8-1/4 in |
Length |
48 in |
Mounting Type |
Surface |
Suitable For Use With |
I-Line™ HCM 3-Pole Main Lug and Circuit Breaker Panelboard |
Type |
4-Piece |
Width |
32-1/4 in |
Standard Approval |
RoHS Compliant|UL Listed|CE Certified|cULus Listed|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For service equipment when provided with a main circuit breaker |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCN65TSD_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM48TS_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM48TS_Specification_Sheet.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Technical_Bulletin.pdf
