Square D™ HCM48TSD

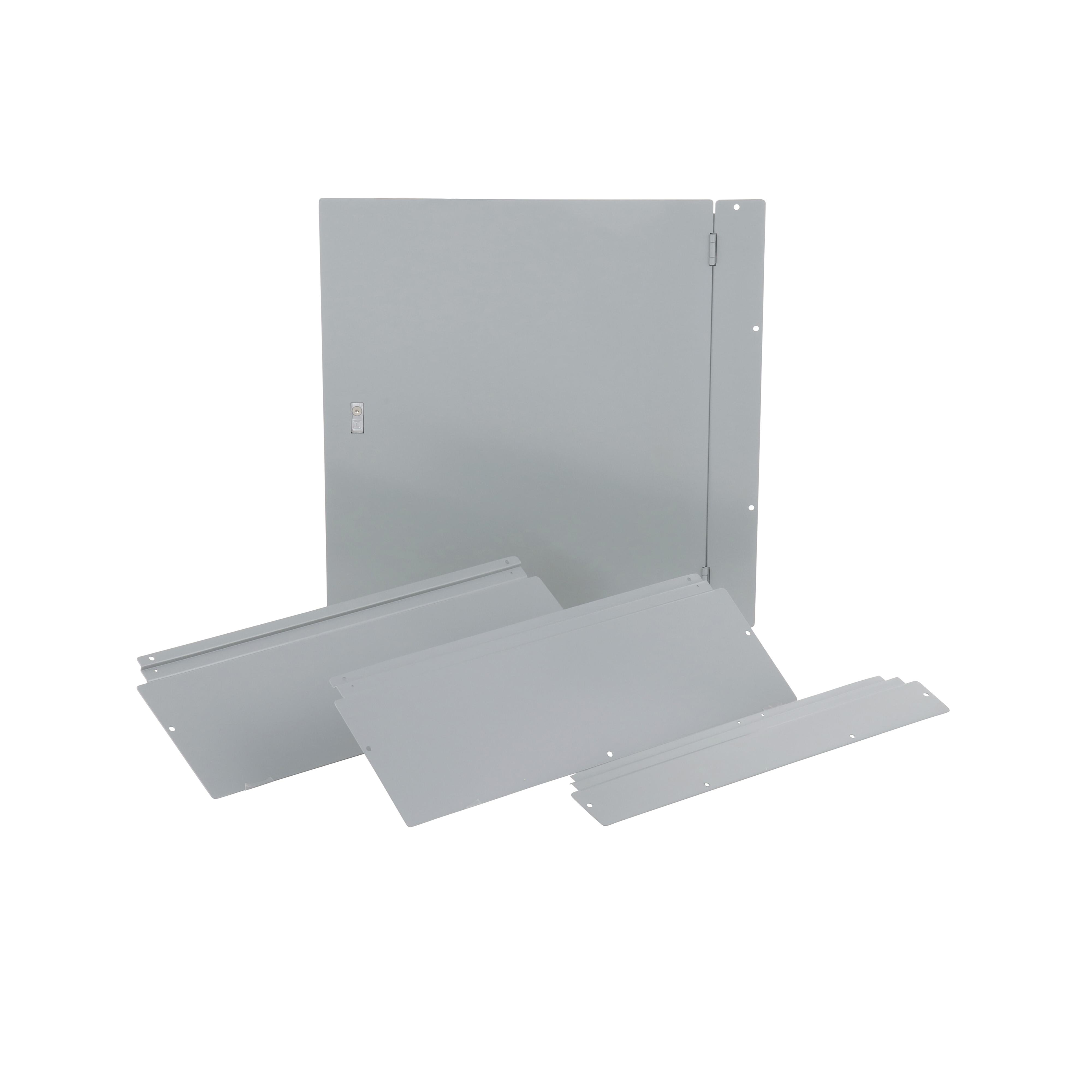

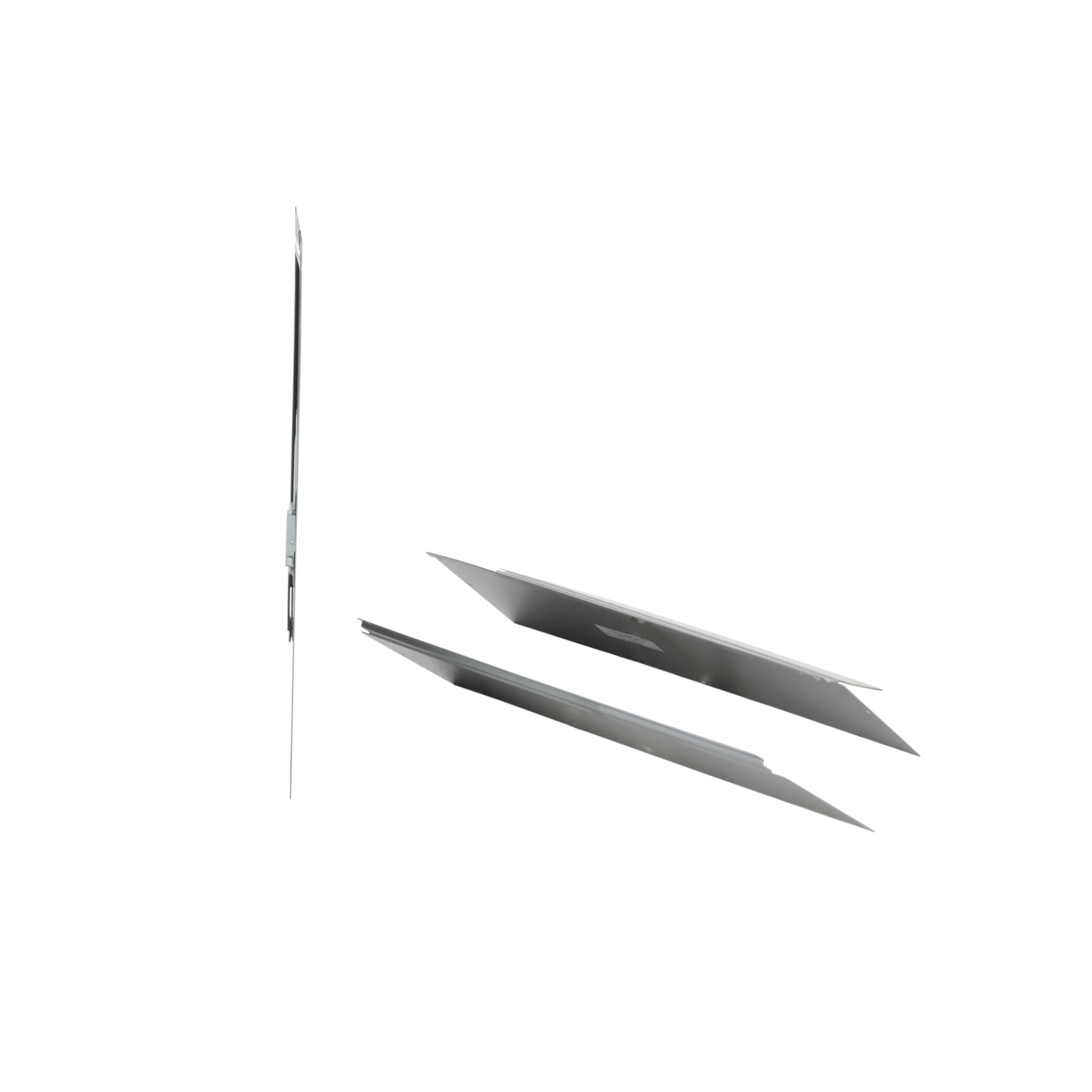

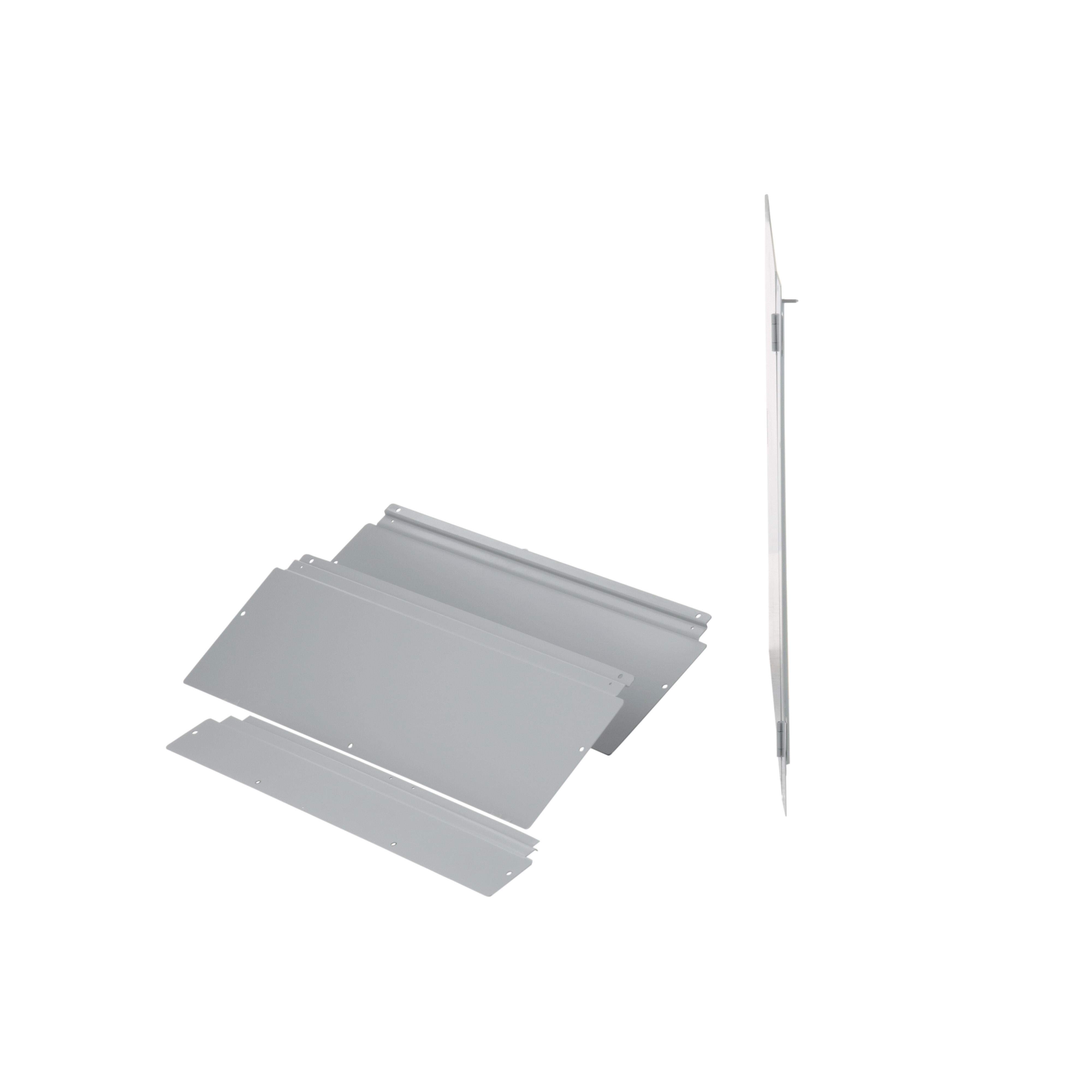

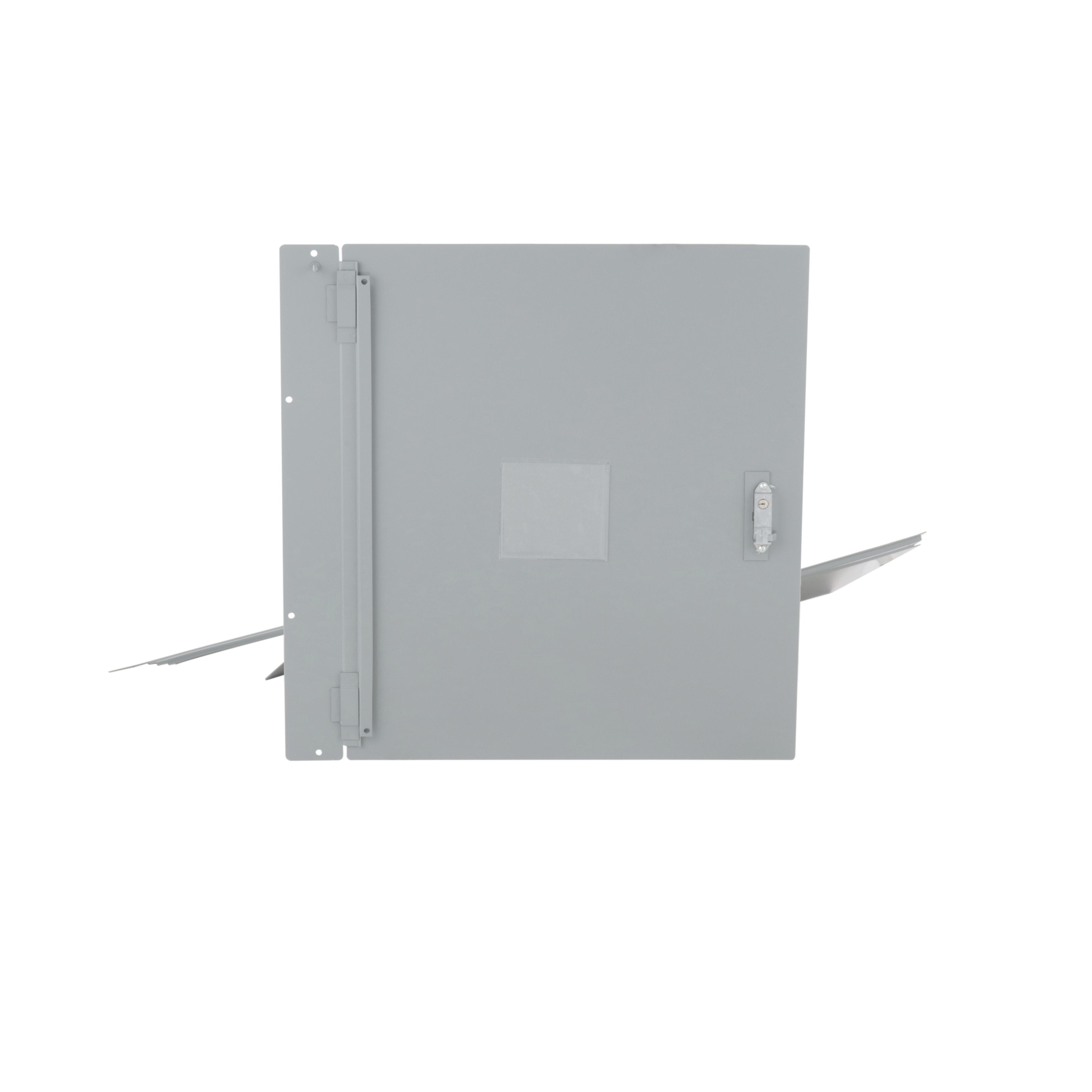

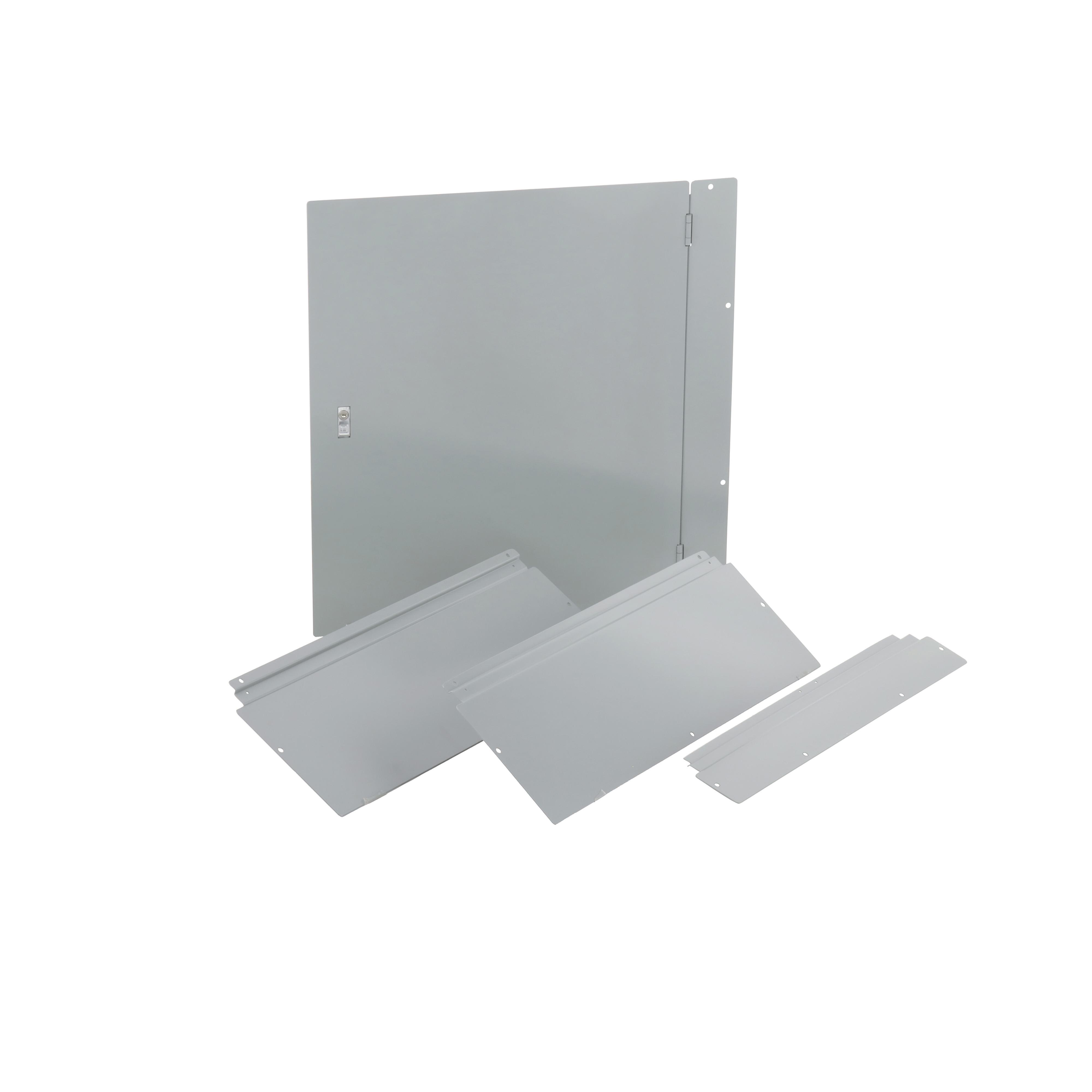

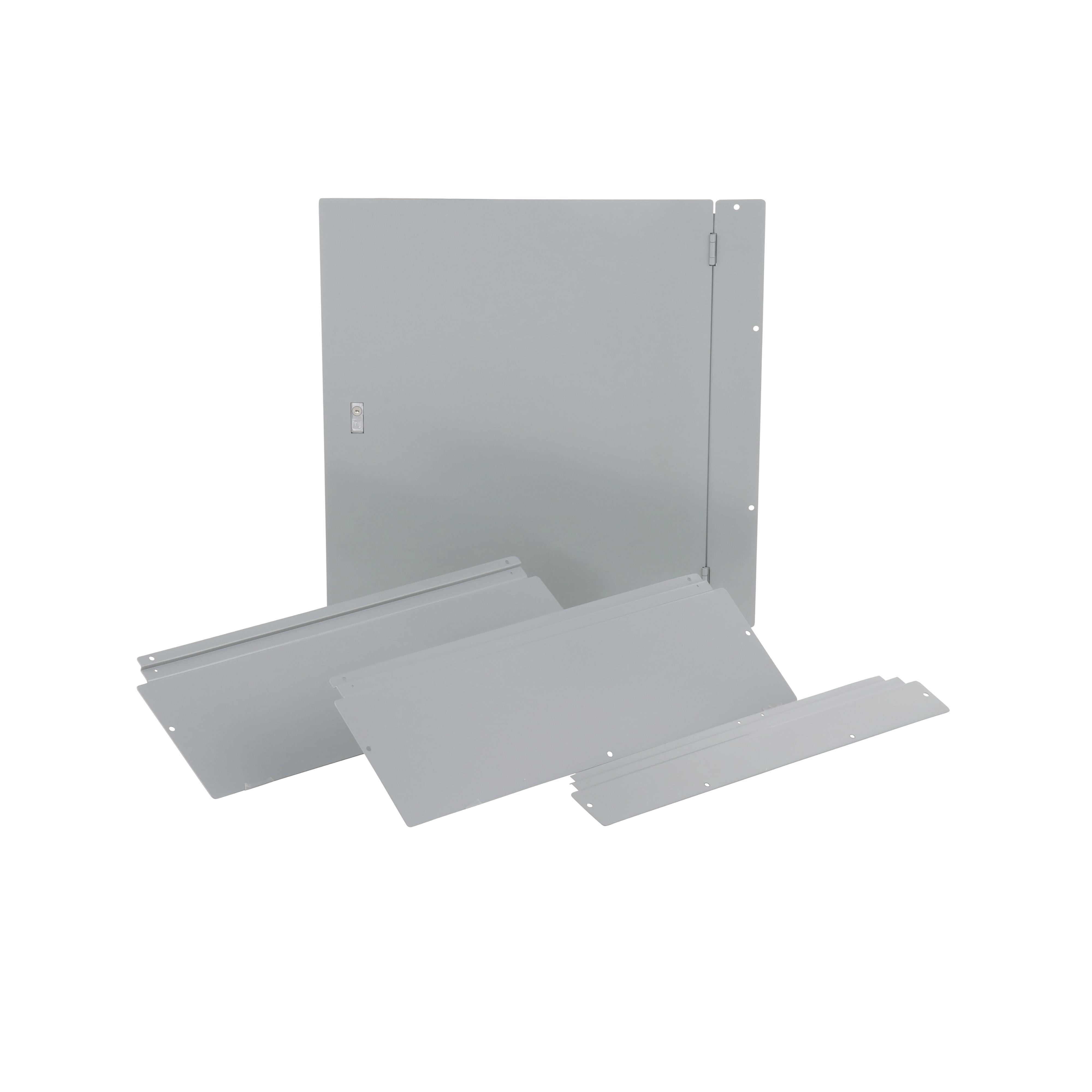

Square D™ I-Line™ HCM48TSD 4-Piece Cover/Trim Kit With Door, 48 in L x 32-1/4 in W, For Use With I-Line™ 225/400/600/800 A Main Lug Panelboard, Surface Mount
Brand: Square D™
Item ID: 382433
MPN: HCM48TSD
UPC: 785901089070
Login for Price
Features
- 48 in H
- Panelboard component
Description
Square D™ I-Line™ Cover/Trim Kit, 4-Piece, Series: HCM, 48 in Length, 32-1/4 in Width, 8-1/4 in Depth, Surface Mounting, For Use With: I-Line™ 225/400/600/800 A Main Lug Panelboard, Painted
Specifications
Depth |
8-1/4 in |
Finish |
Painted |
Length |
48 in |
Mounting Type |
Surface |
Series |
HCM |
Suitable For Use With |
I-Line™ 225/400/600/800 A Main Lug Panelboard |
Type |
4-Piece |
Width |
32-1/4 in |
Standard Approval |
Buy American Act Compliant|CSA Certified|RoHS Compliant|UL Listed|cULus Listed|CE Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For panelboard component |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d5e86692853407af06e1db2392a27924bce74a09487bdf003ba66dbf7eacf061.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9974e8af5e6d0094bb42f61b419476881402c66974d92e9b2a8dfaf3cdf4fb8a.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCN65TSD_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_67fb3d76faa8fb8205598e90f0f3072d20b7cbb8783e0b7b5ab45c180da6354e.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR8P38LGG_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM48TSD_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_92c7b4733473e3b839da503669d0ccde286b1c8f5dc662056b1b89a6cb05046a.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM48TSD_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Technical_Bulletin.pdf
