Square D™ HCM64TSD

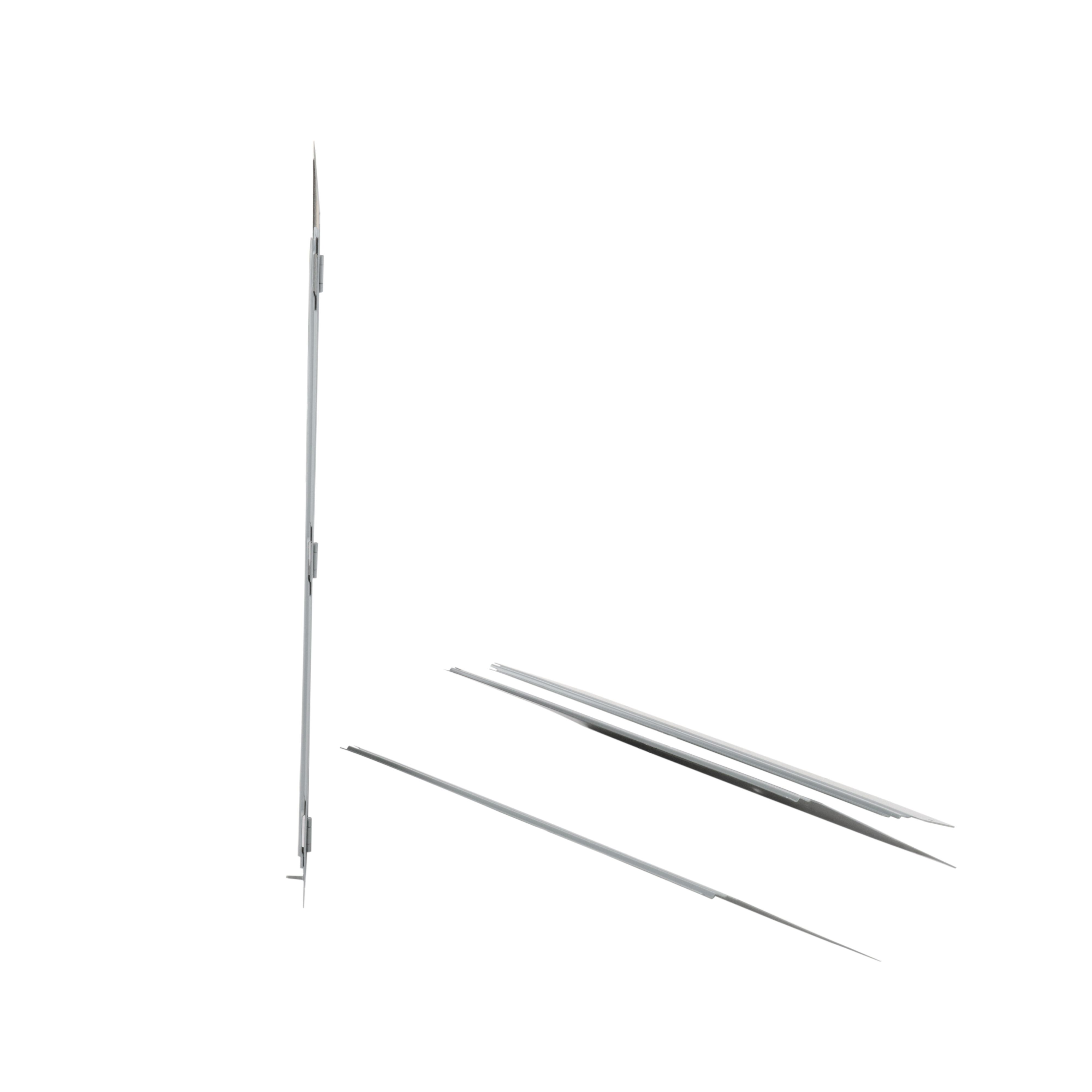

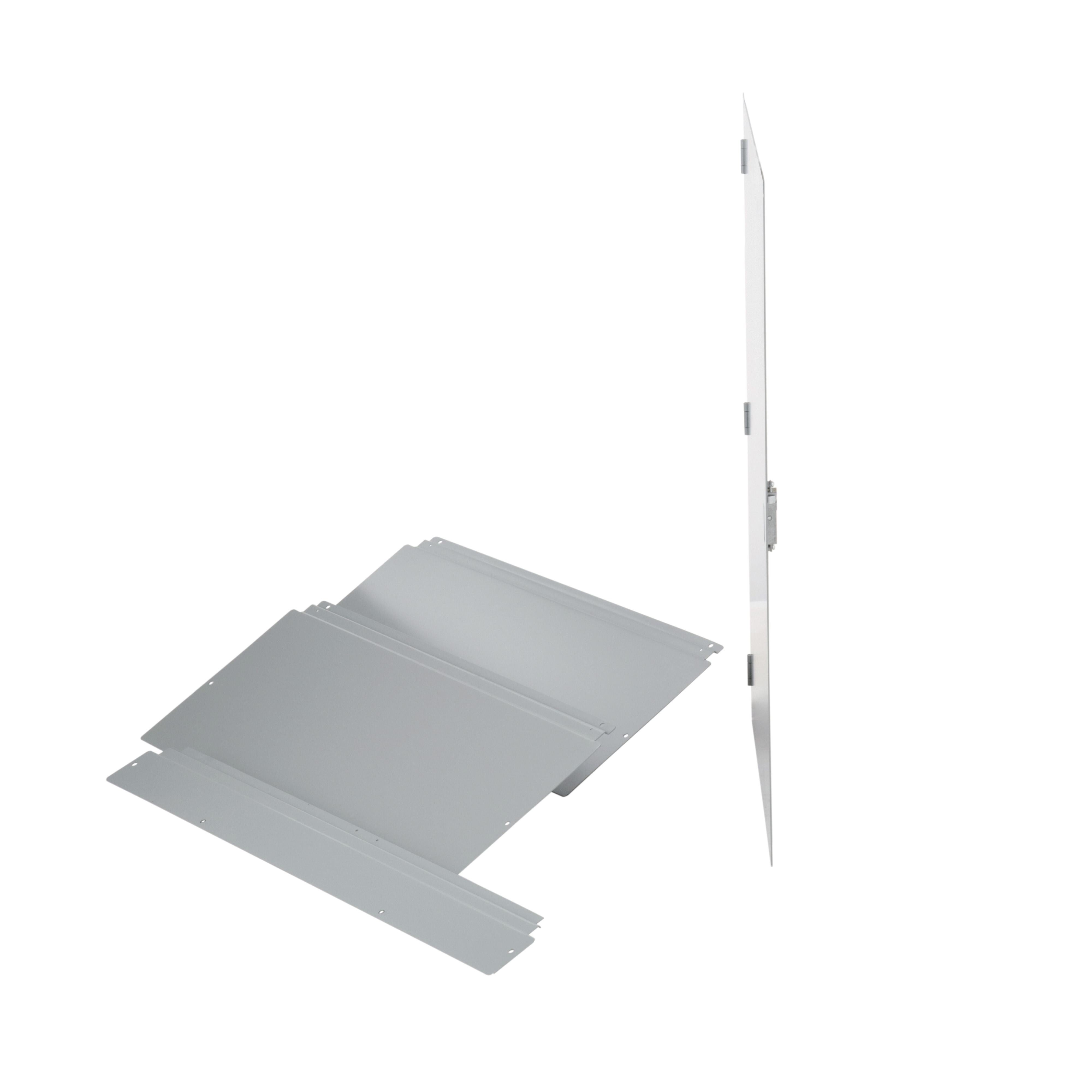

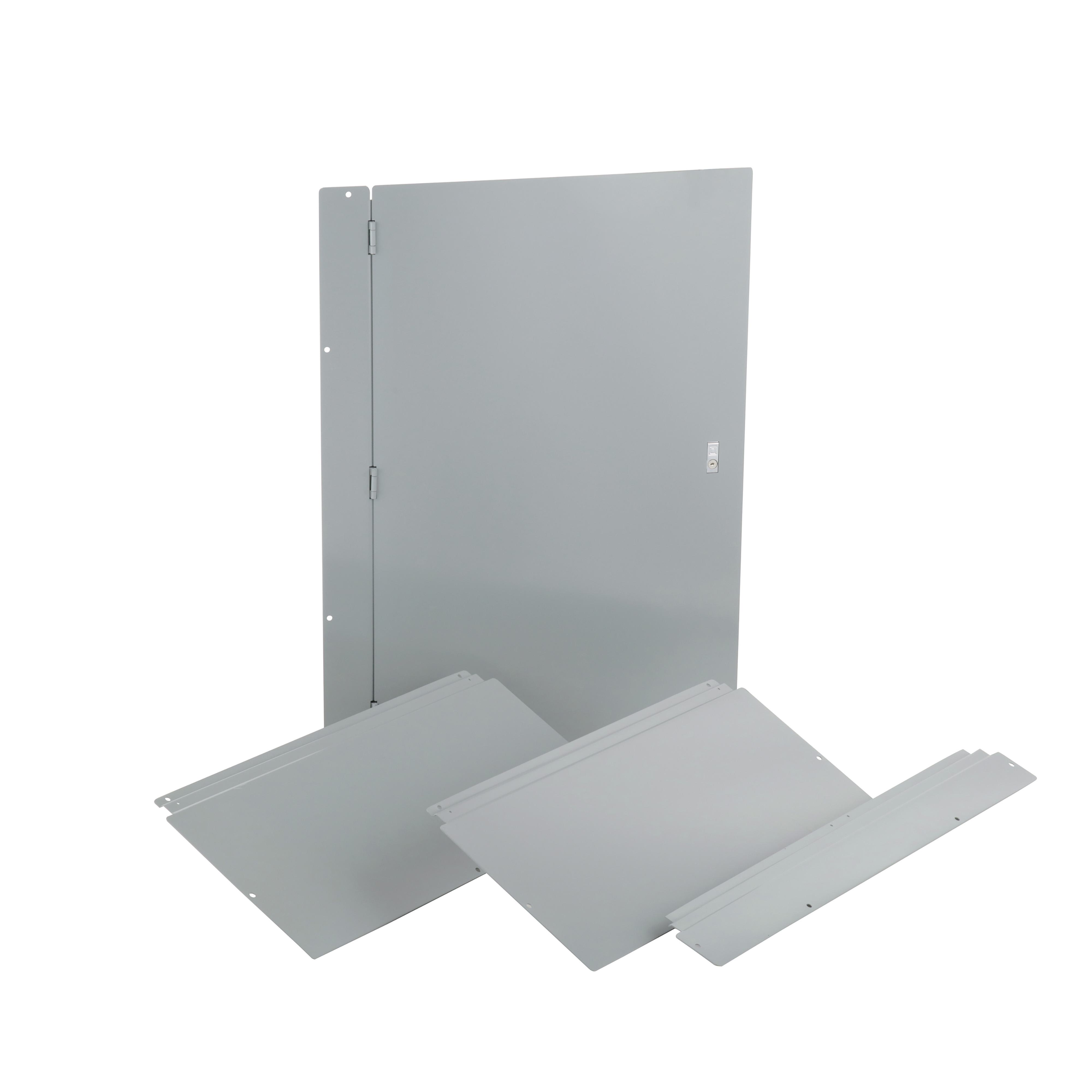

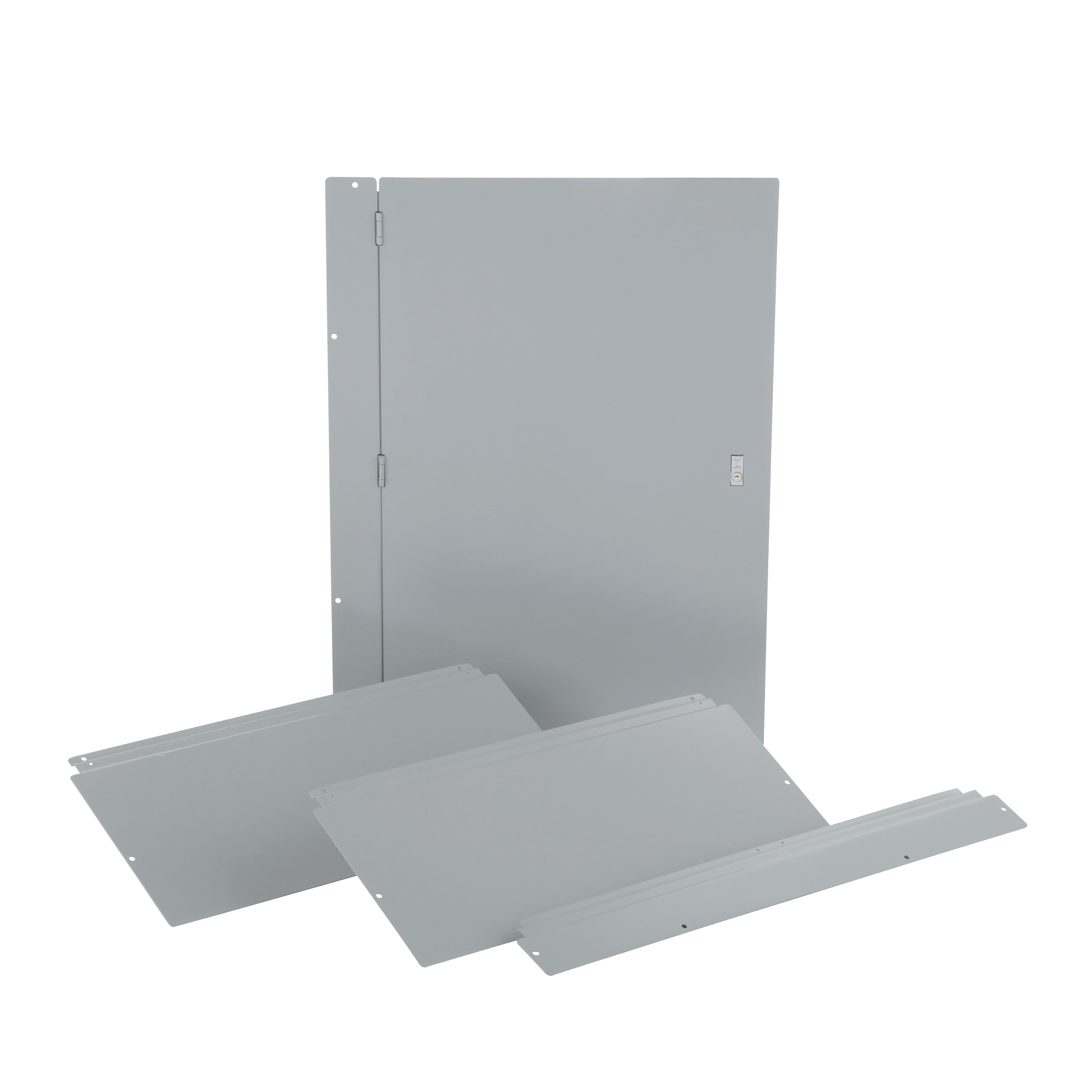

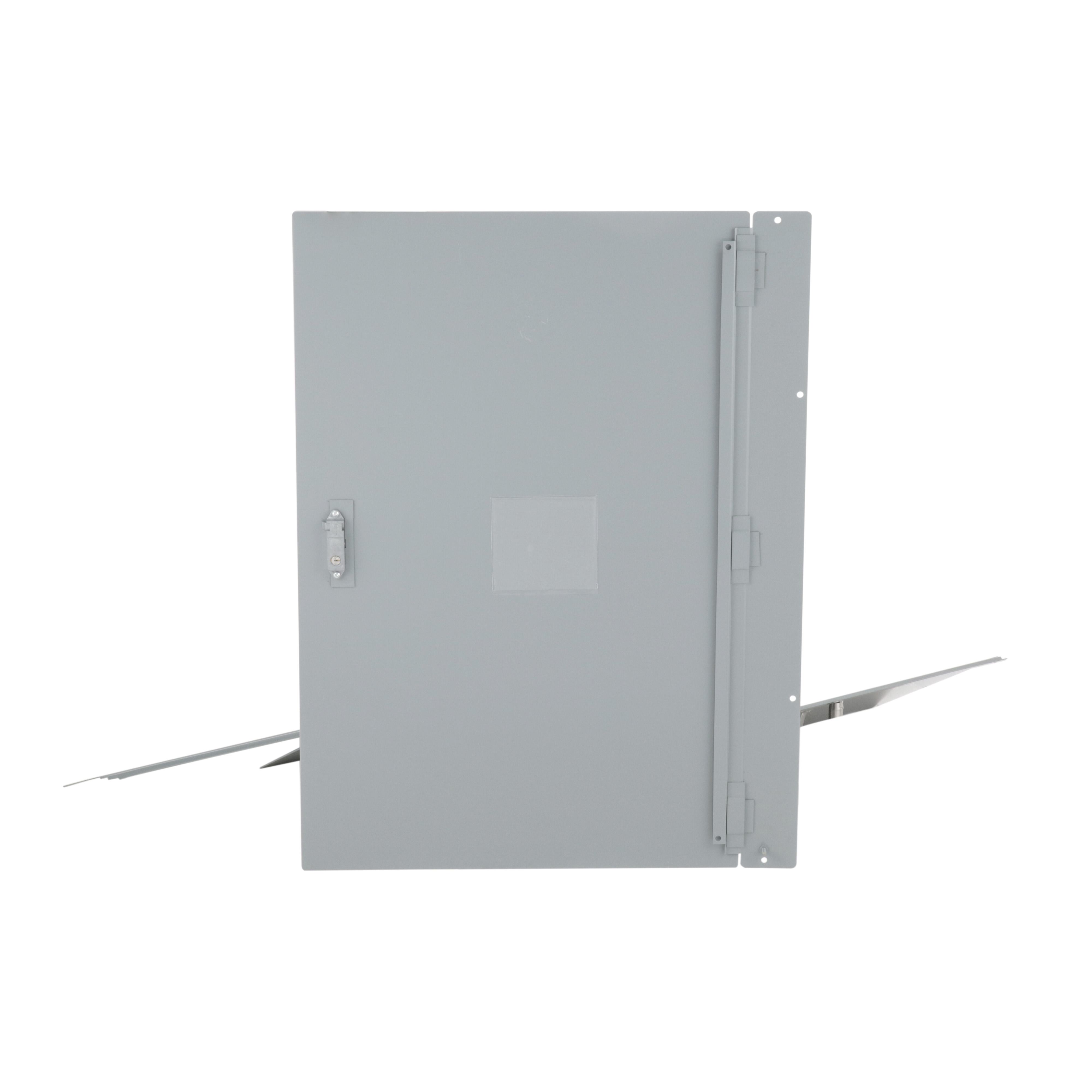

Square D™ I-Line™ HCM64TSD 4-Piece Bottom Feed Standard Cover/Trim Kit With Door, 64 in L x 32-1/4 in W, For Use With I-Line™ HCM 3-Pole Main Lug and Main Circuit Breaker Panelboard, Surface Mount
Brand: Square D™
Item ID: 52138
MPN: HCM64TSD
UPC: 785901089117
Login for Price
Description
Square D™ I-Line™ Cover/Trim Kit, 4-Piece Bottom Feed Standard, Series: HCM, 64 in Length, 32-1/4 in Width, 8-1/4 in Depth, Surface Mounting, For Use With: I-Line™ HCM 3-Pole Main Lug and Main Circuit Breaker Panelboard, Painted
Specifications
Depth |
8-1/4 in |
Finish |
Painted |
Length |
64 in |
Mounting Type |
Surface |
Series |
HCM |
Suitable For Use With |
I-Line™ HCM 3-Pole Main Lug and Main Circuit Breaker Panelboard |
Type |
4-Piece Bottom Feed Standard |
Width |
32-1/4 in |
Standard Approval |
RoHS Compliant|UL Listed|cULus Listed|CE Certified|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For panelboard component |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_38883d9af2fb32181f8bca874df3f5842627c8bedd5020f055c26b745d7f3963.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM64TSD_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1eecc9c07e0c09b6c2befffdac166c989a7f6b823c5e69fdfb7b7758dd978437.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM64TSD_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Technical_Bulletin.pdf
