Square D™ HCM73TSD

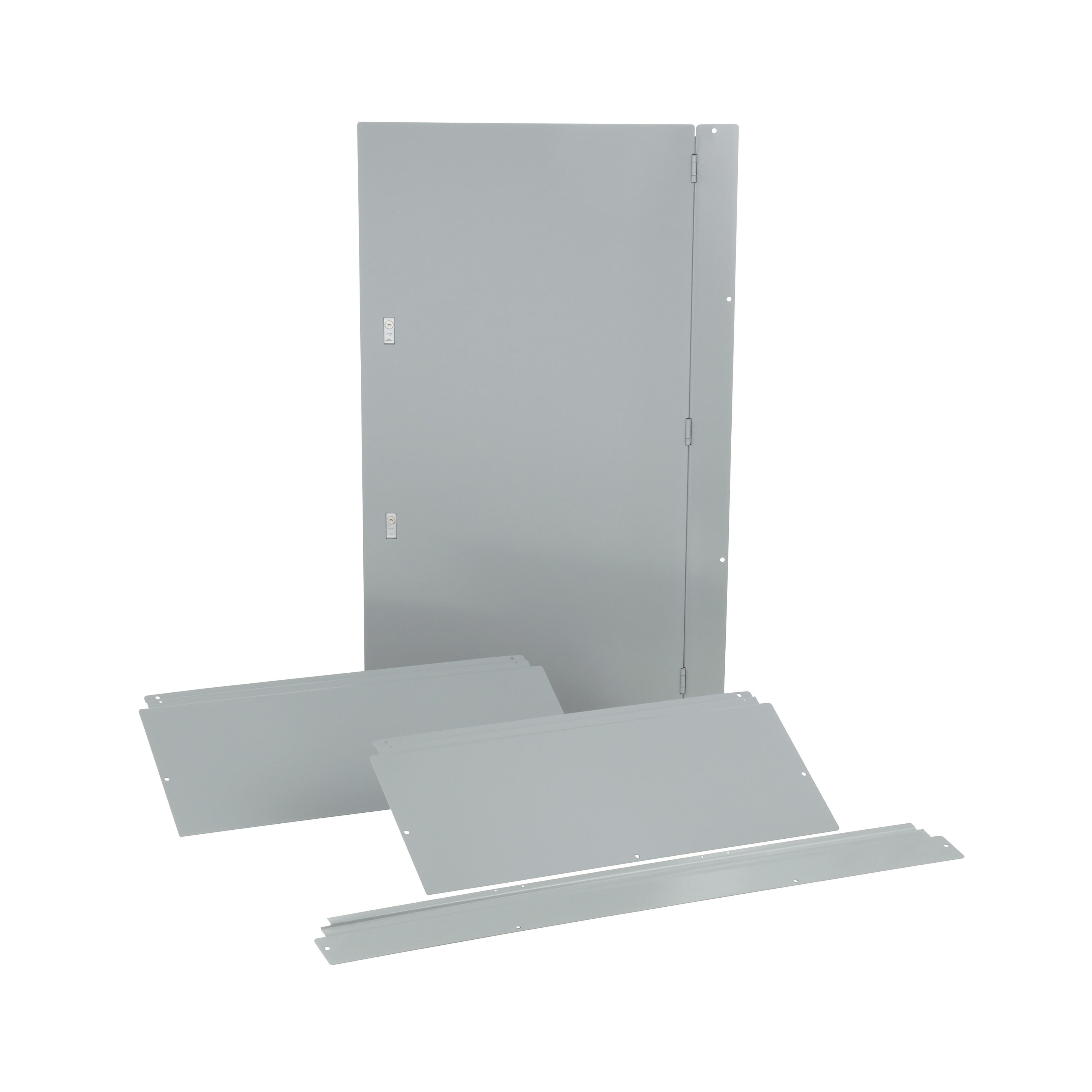

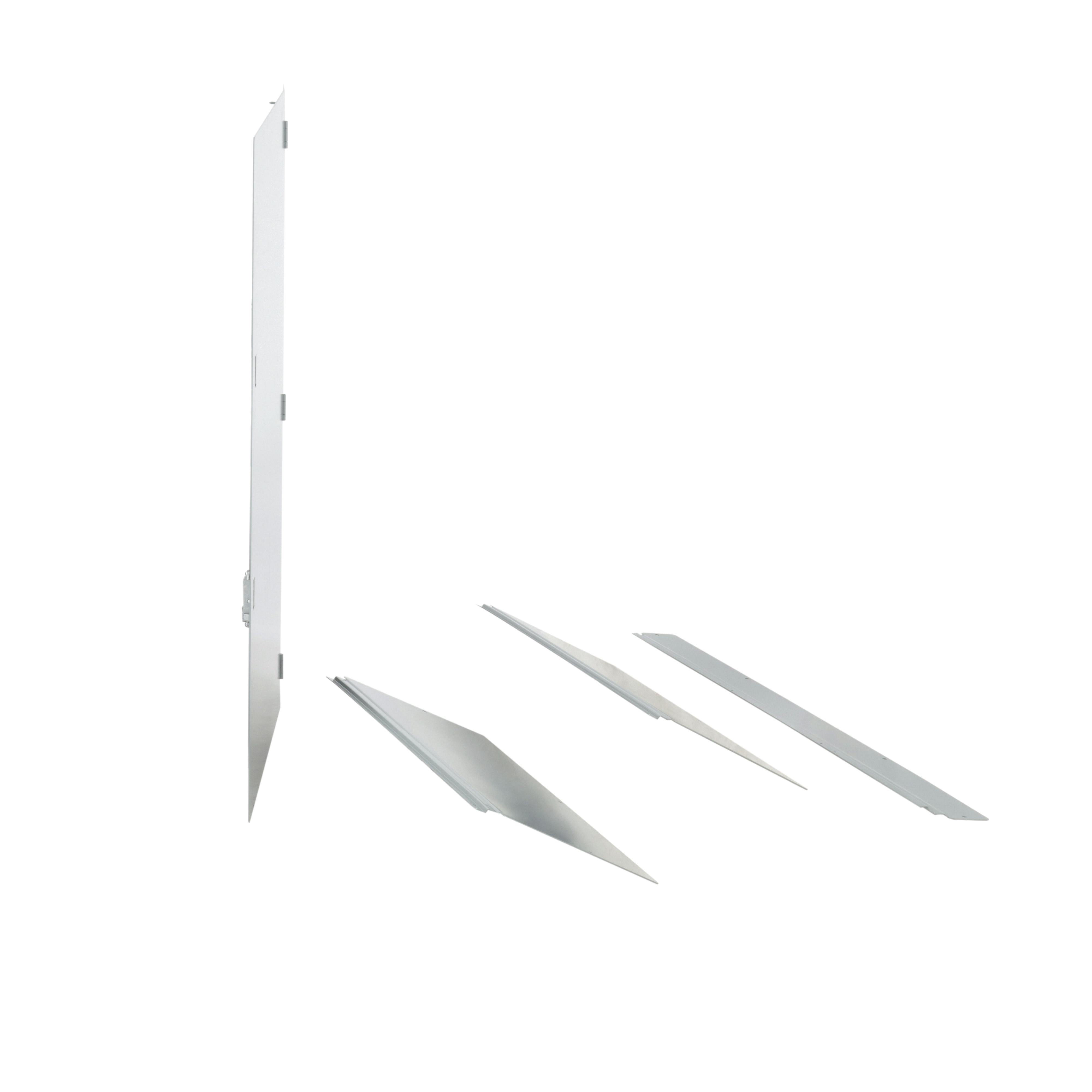

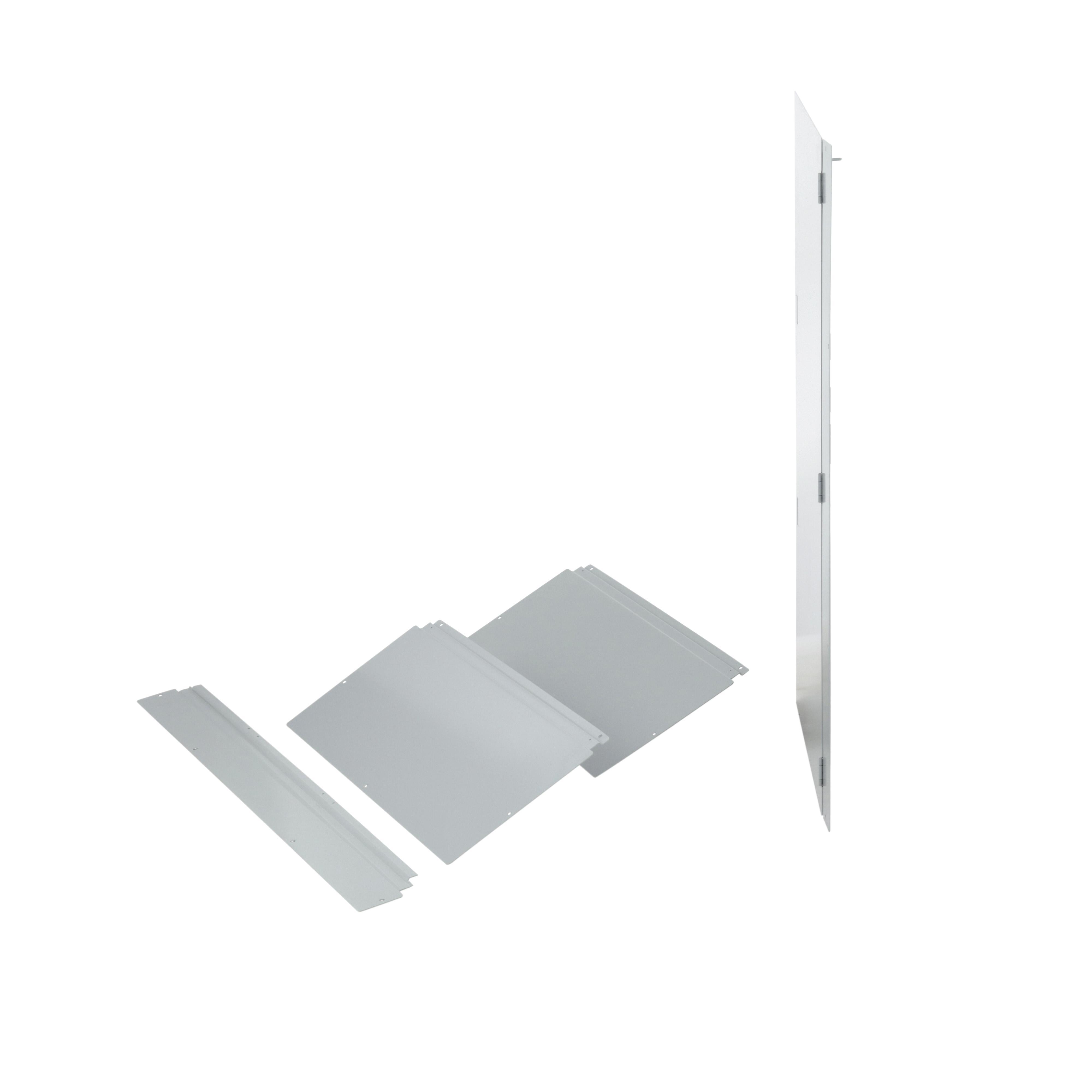

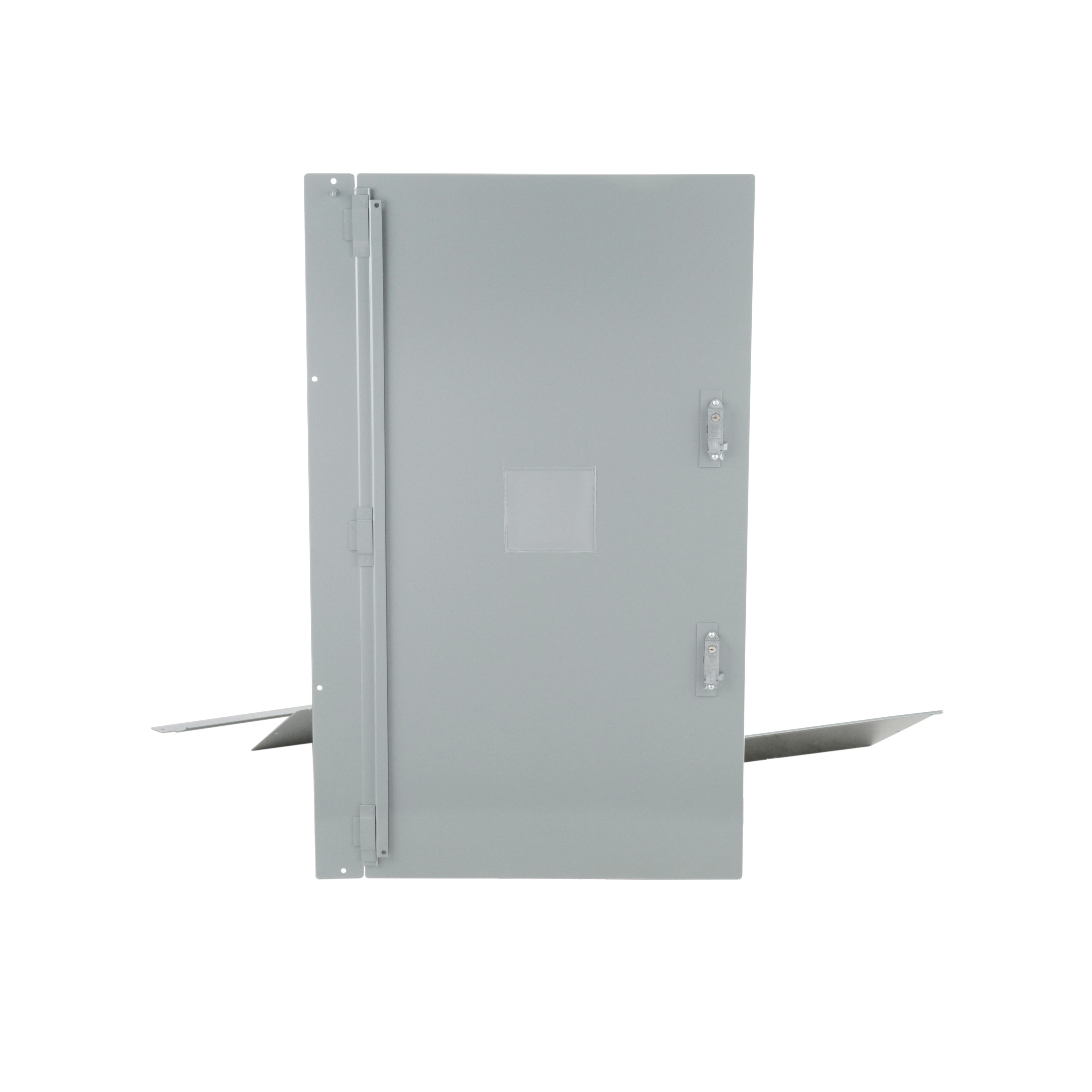

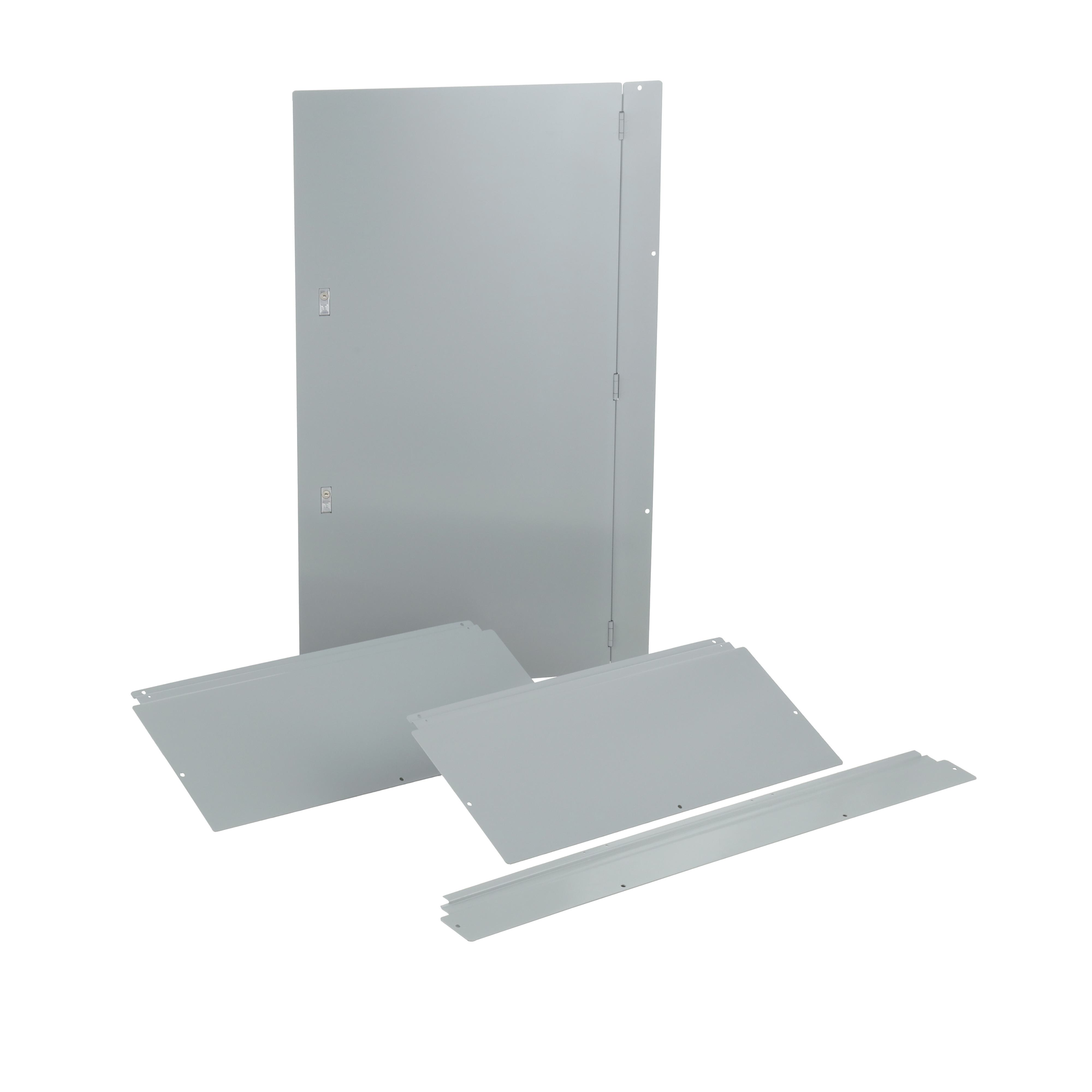

Square D™ I-Line™ HCM73TSD 4-Piece Cover/Trim Kit With Door, 73 in L x 32-1/4 in W, For Use With I-Line™ 225/400/600/800 A Main Lug and Main Breaker Panelboard, Surface Mount
Brand: Square D™
Item ID: 52140
MPN: HCM73TSD
UPC: 785901089162
Login for Price
Features
- Panelboard component
Description
Square D™ I-Line™ Cover/Trim Kit, 4-Piece, Series: HCM, 73 in Length, 32-1/4 in Width, 8-1/4 in Depth, Surface Mounting, For Use With: I-Line™ 225/400/600/800 A Main Lug and Main Breaker Panelboard, Painted
Specifications
Depth |
8-1/4 in |
Finish |
Painted |
Length |
73 in |
Mounting Type |
Surface |
Series |
HCM |
Suitable For Use With |
I-Line™ 225/400/600/800 A Main Lug and Main Breaker Panelboard |
Type |
4-Piece |
Width |
32-1/4 in |
Standard Approval |
Buy American Act Compliant|CSA Certified|RoHS Compliant|UL Listed|cULus Listed|CE Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For panelboard component |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cf3547f9abc240364c0fabc6df808511e260b1a209c184934d68ba9eb315a411.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c9f33c9d86c58b8a55b35ff28aff0f1a764c5b3e23fe7cd77bf235550918e982.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCN65TSD_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_04c1c820588ca97f100fc4f4dcb68dd59e9dad6e0697448c18a38cc70b168888.pdf
Owners/User Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4259WP_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_TSXTLYEX_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM73TSD_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2dd2bb4d917b177d3fb803405403bd35ac9061186a7fd9ad38eb20b616bd2995.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM73TSD_Specification_Sheet.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Technical_Bulletin.pdf
