Square D™ HCM91TSD

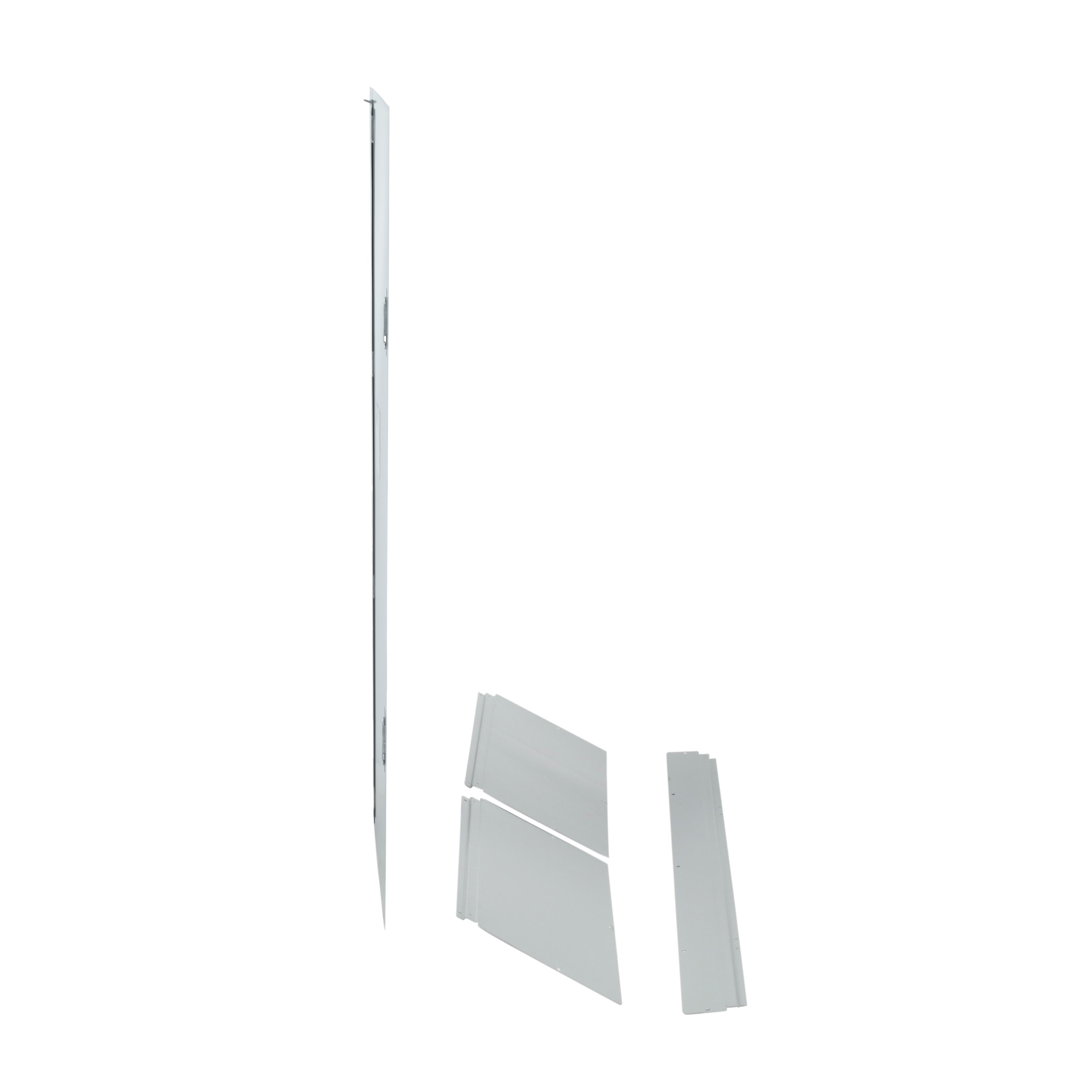

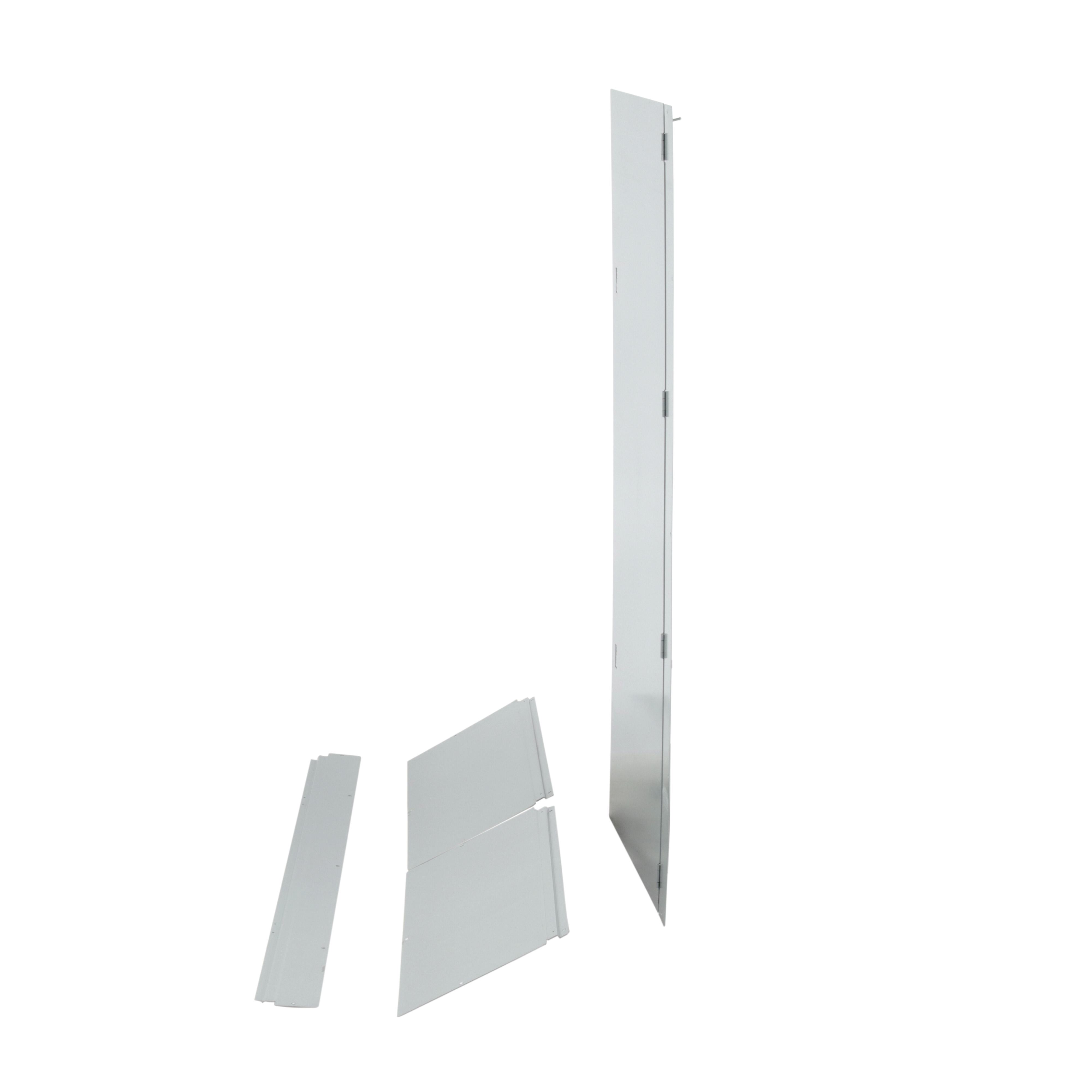

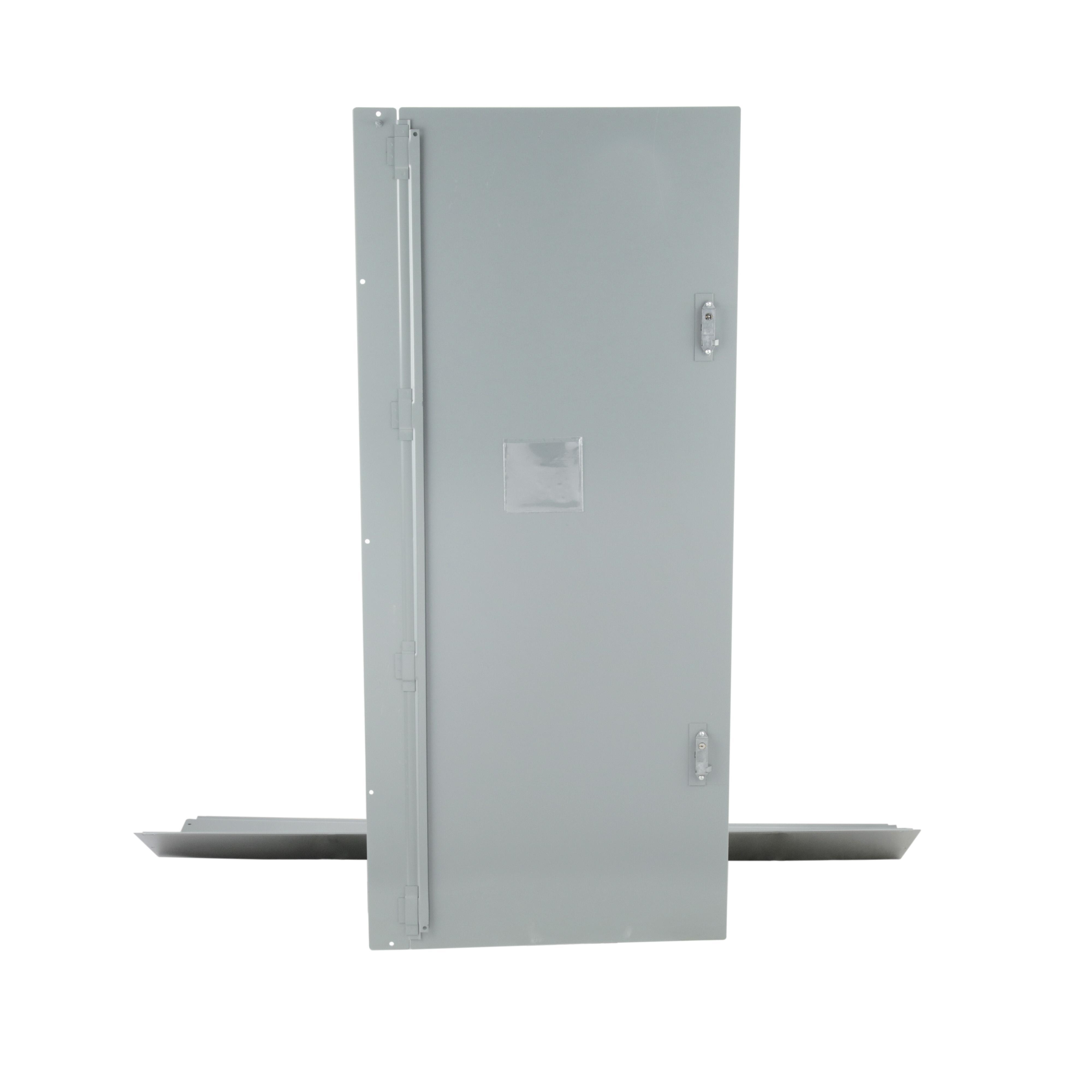

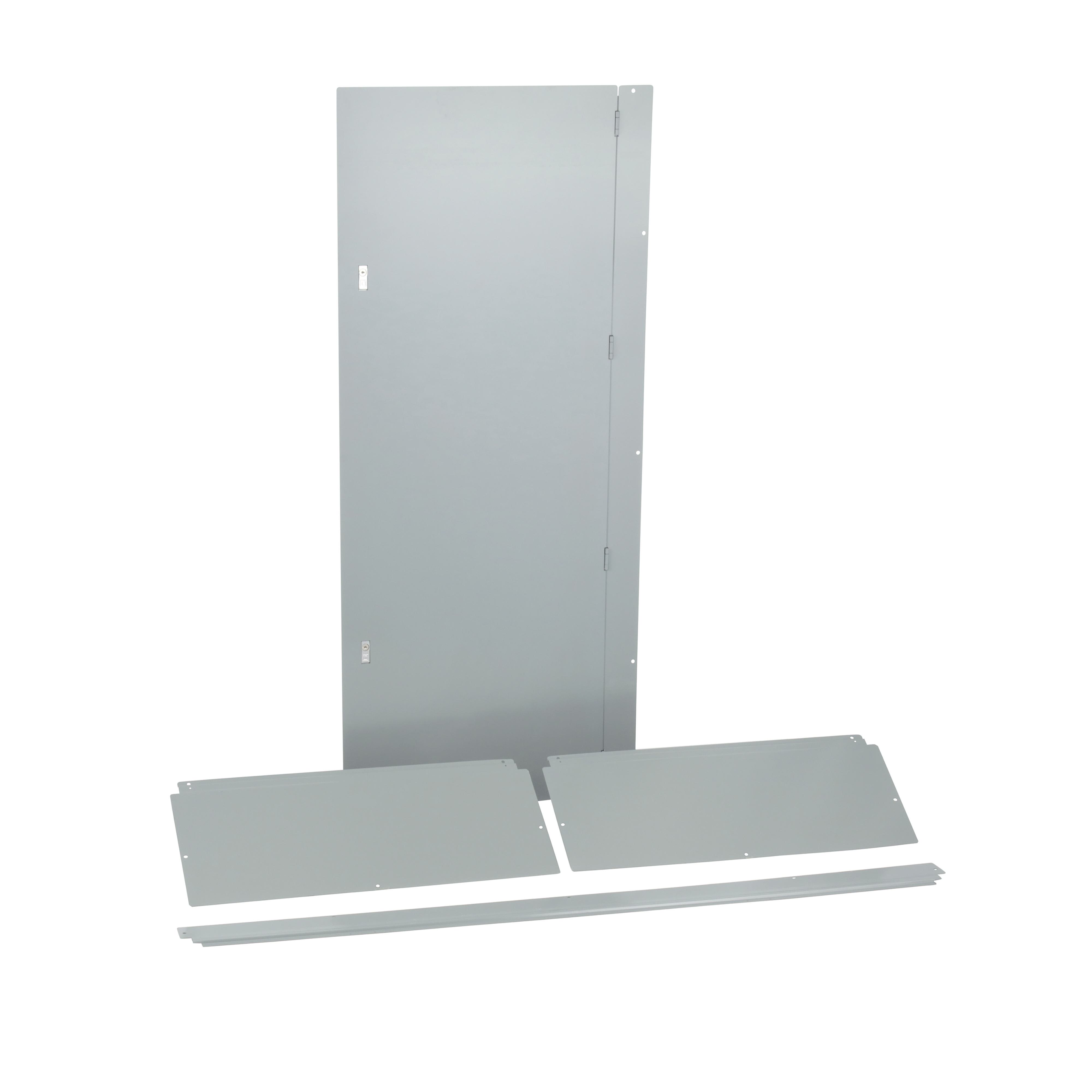

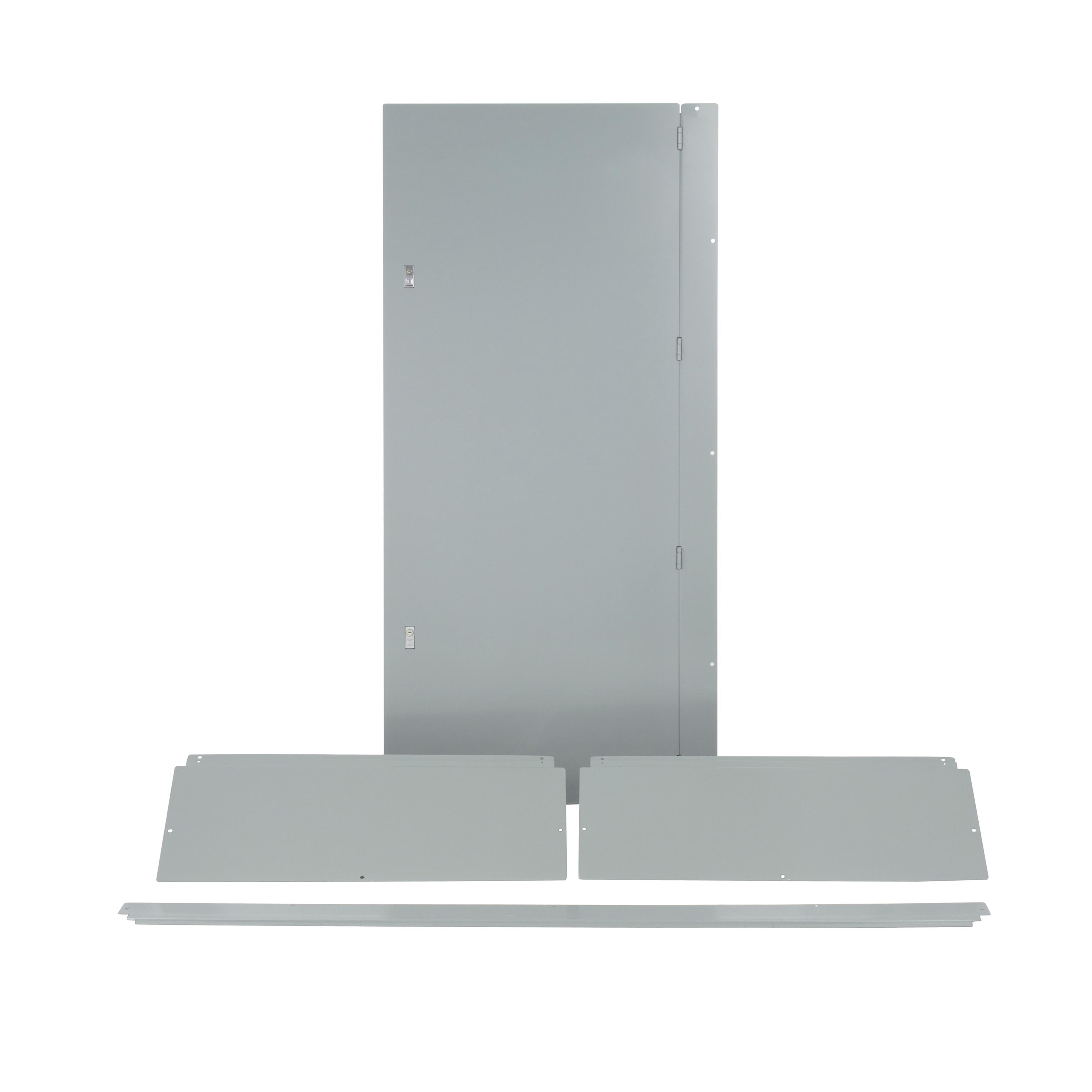

Square D™ I-Line™ HCM91TSD 4-Piece Cover/Trim Kit With Door, 91 in L x 32-1/4 in W, For Use With I-Line™ 225/400/600/800 A Main Lug Panelboard and 400/600/800 A Main Breaker Panelboard, Surface Mount
Brand: Square D™
Item ID: 52145
MPN: HCM91TSD
UPC: 785901089216
Login for Price
Description
Square D™ I-Line™ Cover/Trim Kit, 4-Piece, Series: HCM, 91 in Length, 32-1/4 in Width, 8-1/4 in Depth, Surface Mounting, For Use With: I-Line™ 225/400/600/800 A Main Lug Panelboard and 400/600/800 A Main Breaker Panelboard, Painted
Specifications
Depth |
8-1/4 in |
Finish |
Painted |
Length |
91 in |
Mounting Type |
Surface |
Series |
HCM |
Suitable For Use With |
I-Line™ 225/400/600/800 A Main Lug Panelboard and 400/600/800 A Main Breaker Panelboard |
Type |
4-Piece |
Width |
32-1/4 in |
Standard Approval |
Buy American Act Compliant|CSA Certified|RoHS Compliant|UL Listed|cULus Listed|CE Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For panelboard component |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_724786d99632e1c91de4c1c7b29518016710111f94231f9e6ce0f3a7f2b85541.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCN65TSD_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_85f0535371933e7e8ff9d8d8323b134c28b9a745c7241324e1c112a700f796cf.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Technical_Bulletin.pdf
