Square D™ HCP235912N

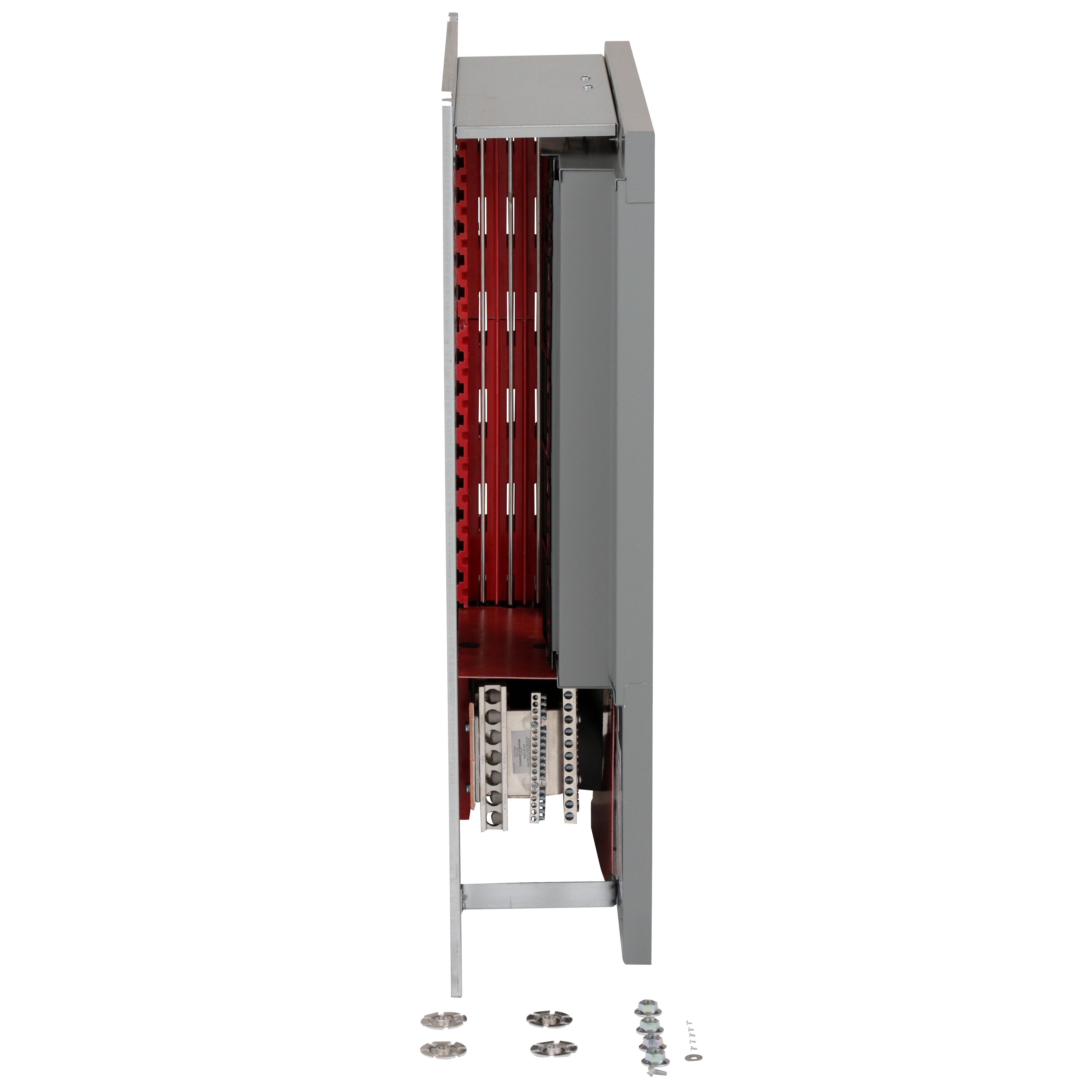

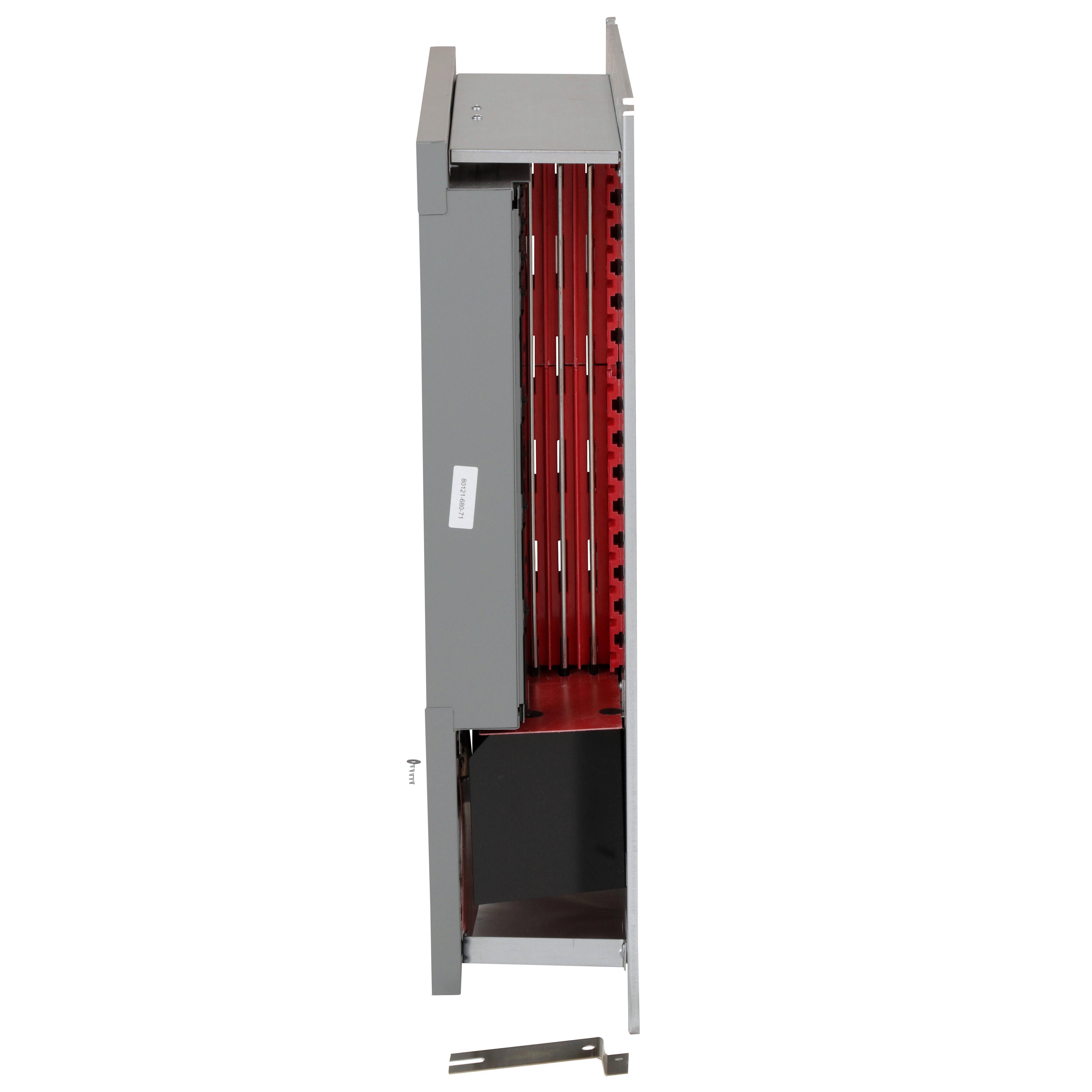

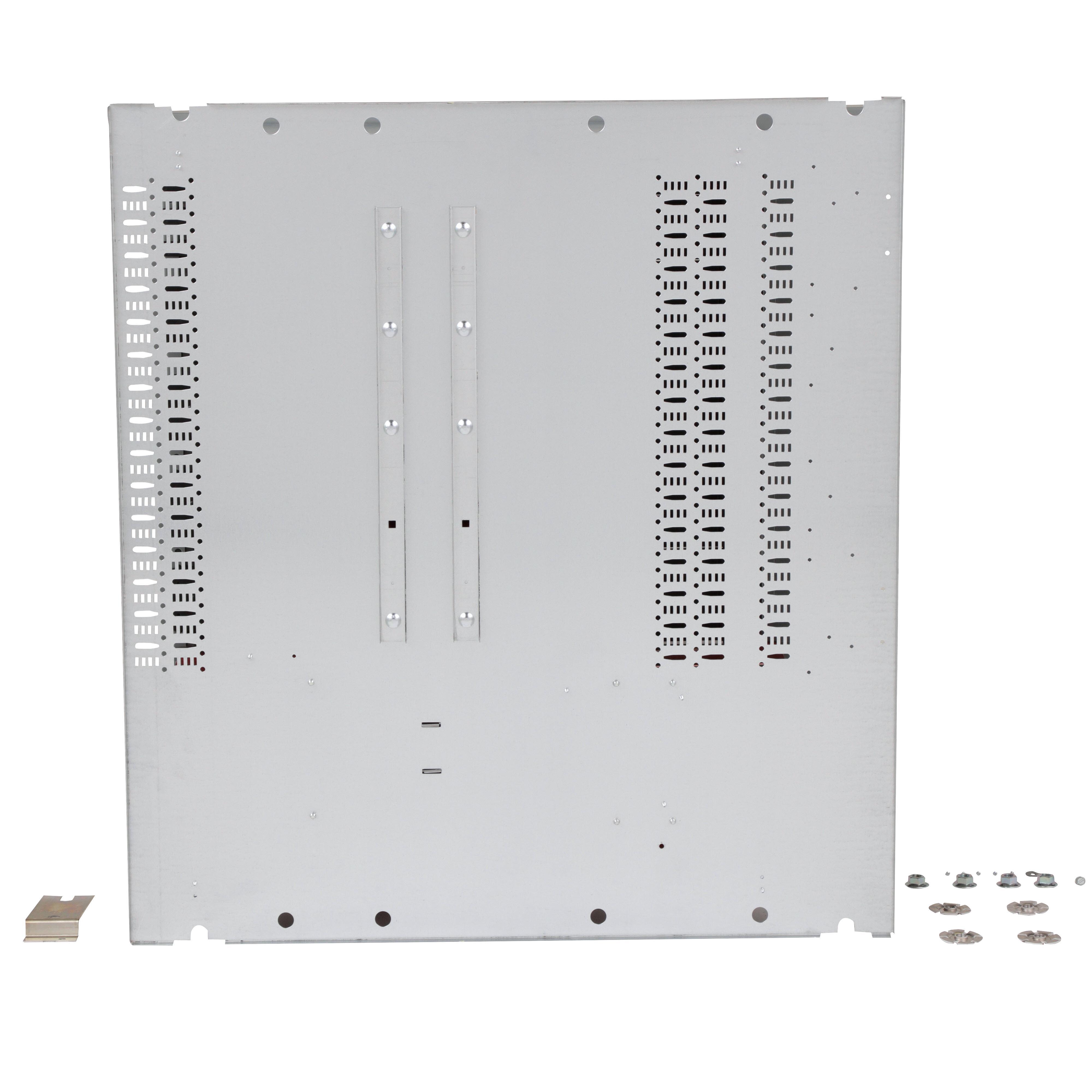

Square D™ I-Line™ HCP235912N Bottom Panelboard Interior, 600 VAC, 250 VDC, 1200 A, 45 Spaces, 200 kA SCCR
Brand: Square D™
Item ID: 471584
MPN: HCP235912N
UPC: 785901430599
Login for Price
Description
Square D™ I-Line™ Panelboard Interior, Bottom, Series: HCP, 600 VAC, 250 VDC, 1200 A, 45 Spaces, 200 kA Short Circuit, FA/FI/HD/JD Breaker, 3-Phase, 3-Wire Wiring Configuration, Aluminum/Copper Bus, Panel Mounting, Aluminum/Copper Housing Material, 42 in W x 9-1/2 in D x 59 in H Dimensions
Specifications
Amperage Rating |
1200 A |
Breaker Type |
FA/FI/HD/JD |
Bus Material |
Aluminum/Copper |
Dimensions |
42 in W x 9-1/2 in D x 59 in H |
Housing Material |
Aluminum/Copper |
Mounting Type |
Panel |
Number of Spaces |
45 |
Series |
HCP |
Short Circuit Current Rating |
200 kA |
Type |
Bottom |
Voltage Rating |
600 VAC, 250 VDC |
Wiring Configuration |
3-Phase, 3-Wire |
Standard Approval |
RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For main lug load center applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d70182799fe5cd406adb03417710c7c6786ef08b0ce5efcb6d05d75754bb8119.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3291B_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Instruction_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCP23594_Owners_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c5348fadf8253dd407fa7df14d09562bc5cd4db2b363b6163e9331963be7c93f.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW68TSD_Technical_Bulletin.pdf
