Square D™ HCP23598

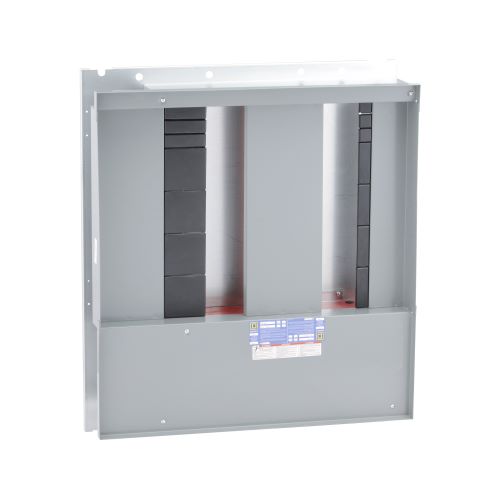

Square D™ I-Line™ HCP23598 3-Phase Bottom Type HCP Panelboard Interior, 600 VAC/250 VDC, 800 A, 45 Spaces, 200 kA SCCR
Brand: Square D™
Item ID: 535316
MPN: HCP23598
Login for Price
Description
Square D™ I-Line™ Panelboard Interior, 3-Phase Bottom Type HCP, 600 VAC/250 VDC, 800 A, 60 Hz Frequency, 45 Spaces, 200 kA Short Circuit, FA/FI/HD/JD Breaker, 3-Wire Wiring Configuration, Aluminum/Copper Bus, Panel Mounting, 42 in W x 9-1/2 in D x 59 in H Dimensions
Specifications
Amperage Rating |
800 A |
Breaker Type |
FA/FI/HD/JD |
Bus Material |
Aluminum/Copper |
Dimensions |
42 in W x 9-1/2 in D x 59 in H |
Frequency Rating |
60 Hz |
Mounting Type |
Panel |
Number of Spaces |
45 |
Short Circuit Current Rating |
200 kA |
Type |
3-Phase Bottom Type HCP |
Voltage Rating |
600 VAC/250 VDC |
Wiring Configuration |
3-Wire |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For main lug load center |
