Square D™ HCP508612N

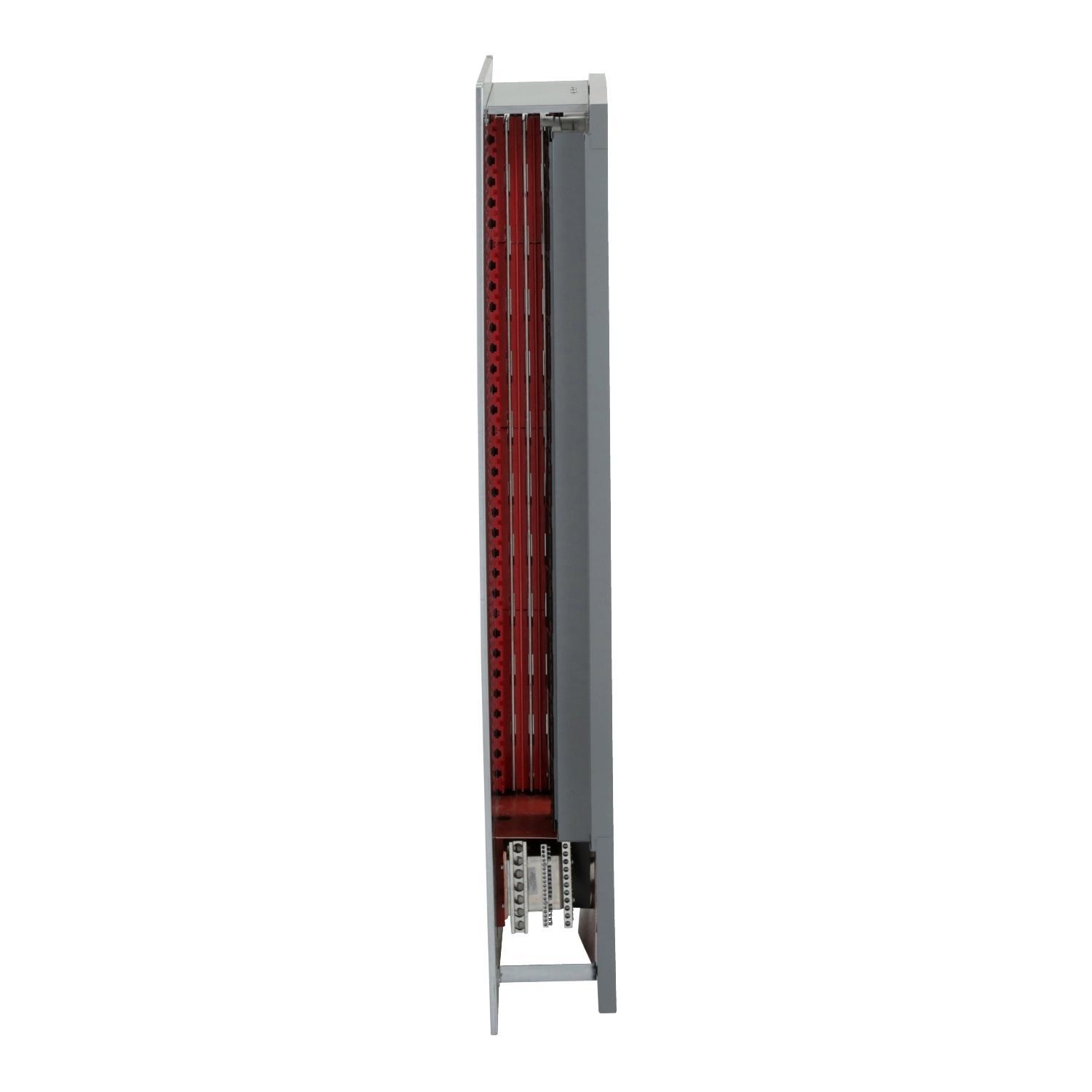

Square D™ I-Line™ HCP508612N 3-Phase Type HCP Panelboard Interior, 600 VAC, 250 VDC, 1200 A, 99 Spaces, 200 kA SCCR
Brand: Square D™
Item ID: 446543
MPN: HCP508612N
UPC: 785901430704
Login for Price
Features
- Bottom connection
- Three pole feeder
- Main lugs only
- FA/FH/FI/FY/HD/HG/HJ/HL/JD/JG/JJ/JL/KI/LA/LC/LE/LH/LI/LX/LXI/MG/MJ/PG/PGC/PJ/PJC/PL/PLC/Q4/QB/QD/QG/QJ branch breaker
- Solid neutral
Description
Square D™ I-Line™ Panelboard Interior, 3-Phase Type HCP, 600 VAC, 250 VDC, 1200 A, 99 Spaces, 200 kA Short Circuit, QJ Breaker, 3-Wire Wiring Configuration, Copper Bus, Panel Mounting, NEMA 1 Enclosure, Aluminum/Copper Housing Material, 42 in W x 9-1/2 in D x 86 in H Dimensions
Specifications
Amperage Rating |
1200 A |
Breaker Type |
QJ |
Bus Material |
Copper |
Dimensions |
42 in W x 9-1/2 in D x 86 in H |
Enclosure Type |
NEMA 1 |
Housing Material |
Aluminum/Copper |
Mounting Type |
Panel |
Number of Spaces |
99 |
Short Circuit Current Rating |
200 kA |
Type |
3-Phase Type HCP |
Voltage Rating |
600 VAC, 250 VDC |
Wiring Configuration |
3-Wire |
Standard Approval |
RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
