Square D™ HCR86TSD

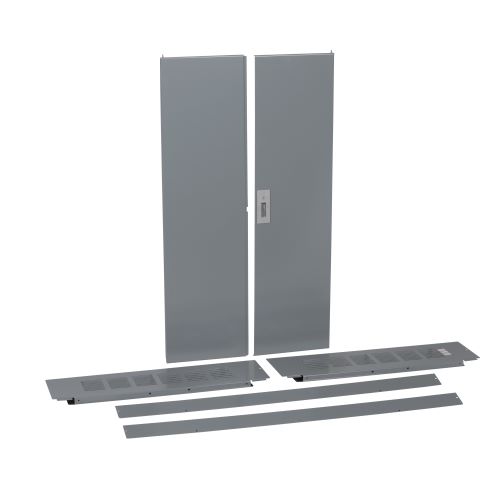

Square D™ HCR86TSD 4-Piece Trim Front With Door, 86 in L x 44 in W, For Use With I-Line™ Circuit Breaker Combination Panelboard, Surface Mount
Brand: Square D™
Item ID: 452817
MPN: HCR86TSD
Login for Price
Description
Square D™ Trim Front, 4-Piece, 86 in Length, 44 in Width, Surface Mounting, For Use With: I-Line™ Circuit Breaker Combination Panelboard, Painted
Specifications
Finish |
Painted |
Length |
86 in |
Mounting Type |
Surface |
Suitable For Use With |
I-Line™ Circuit Breaker Combination Panelboard |
Type |
4-Piece |
Width |
44 in |
Standard Approval |
UL Listed|cULus Listed|CE Certified|RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ccd41679cb0af59a8c882dbd370d72c8e0302487b3746c2ff38b47fb31b89de8.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7fa640d0942335961a30ab61b9c2e4401ac30a0111179ebe01a31a12714110aa.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW50TSD_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCR86TSD_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_12d53e29128326c2684d4f69d6d66e034f6f72b670389394b8636b3a26f6e845.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCR86TSD_Specification_Sheet.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Technical_Bulletin.pdf
