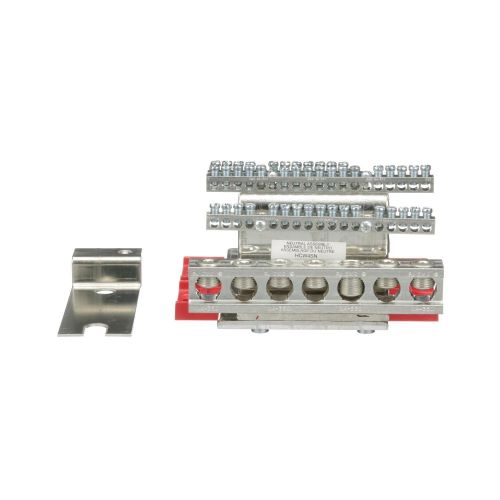

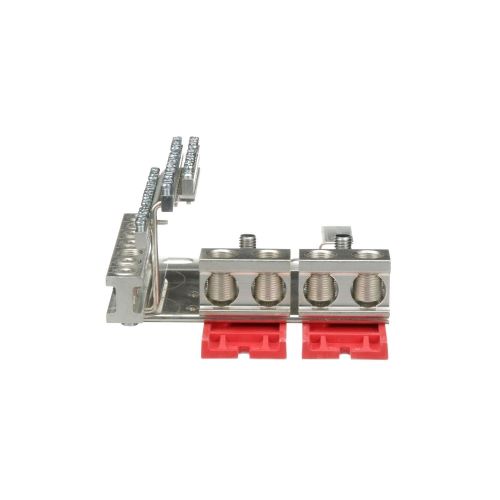

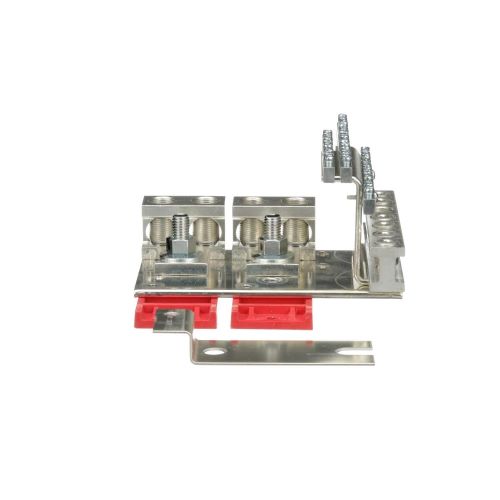

Square D™ HCW4SN
Square D™ I-Line™ HCW4SN Solid Neutral Assembly, For Use With I-Line™ Main Breaker, Main Lug Merchandised Panelboard, 600 VAC/250 VDC, 400 A, 3 Phase, 60 Hz, 4 AWG to 600 kcmil Al/Cu Lug, Surface Mount, Aluminum/Copper
Brand: Square D™
Item ID: 52216
MPN: HCW4SN
Login for Price
Features
- HCP distribution board
- Mechanical lug connection
Description
Square D™ I-Line™ Solid Neutral Assembly, For Use With: I-Line™ Main Breaker, Main Lug Merchandised Panelboard, Specifications: 600 VAC/250 VDC, 400 A, 3 Phase, 60 Hz, 4 AWG to 600 kcmil Al/Cu Lug, Surface Mount, Aluminum/Copper
Specifications
Material |
Aluminum/Copper |
Specifications |
600 VAC/250 VDC, 400 A, 3 Phase, 60 Hz, 4 AWG to 600 kcmil Al/Cu Lug, Surface Mount |
Suitable For Use With |
I-Line™ Main Breaker, Main Lug Merchandised Panelboard |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d887ca3345ec1776e22b5c05d270a44c39725a7c5245c8abc5c0b671c9251690.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCN65TSD_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC6SNCU_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW12SN_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW12SN_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW8SNCU_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XUX5APANM12_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW4SN_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_37bcd9925fa4605afa9ce1082b8bd1c8c54120f8a4bdc9b1b7bed22b57871f35.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW4SN_Specification_Sheet.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Technical_Bulletin.pdf
