Square D™ HCW59TSD

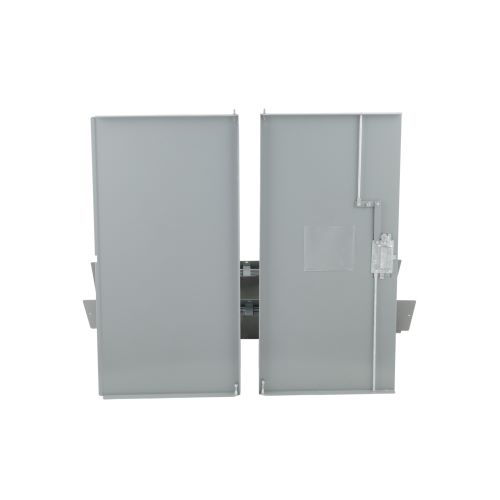

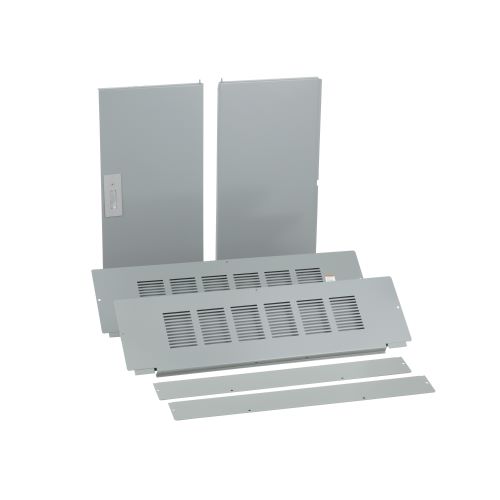

Square D™ I-Line™ HCW59TSD 4-Piece Cover/Trim Kit With Door, 59 in L x 42-1/4 in W, For Use With I-Line™ 400/600/800/1200 A Main Lug Panelboard, Surface Mount
Brand: Square D™
Item ID: 52224
MPN: HCW59TSD
Login for Price
Features
- Panelboard component
Description
Square D™ I-Line™ Cover/Trim Kit, 4-Piece, Series: HCW, 59 in Length, 42-1/4 in Width, 9-1/2 in Depth, Surface Mounting, For Use With: I-Line™ 400/600/800/1200 A Main Lug Panelboard, Painted
Specifications
Depth |
9-1/2 in |
Finish |
Painted |
Length |
59 in |
Mounting Type |
Surface |
Series |
HCW |
Suitable For Use With |
I-Line™ 400/600/800/1200 A Main Lug Panelboard |
Type |
4-Piece |
Width |
42-1/4 in |
Standard Approval |
CSA Certified|RoHS Compliant|UL Listed|cULus Listed|CE Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For panelboard component |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_101bd28fdf58b99c34977537205c894c1d0b6f125e5f7d788d9aec94a550ba7a.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7c2326c2bb0eef352f05440aac531ecb8fb5aaa275e05796bb7d7018a39619f6.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW50TSD_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW59TSD_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_02b8b17509189fd584924956df77148aa5232b86f85929a6ce2bd7e61201662b.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW59TSD_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC3248WP_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC4250WP_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCM91TSD_Technical_Bulletin.pdf
