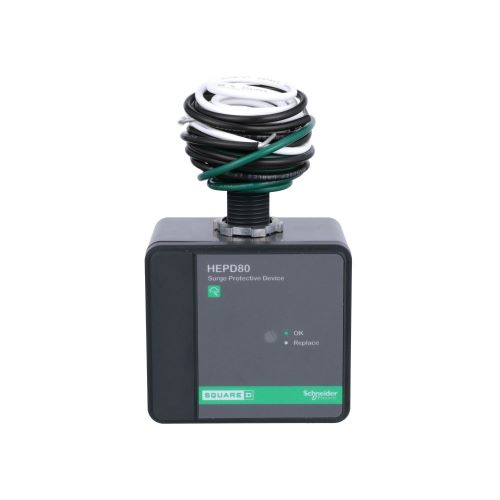

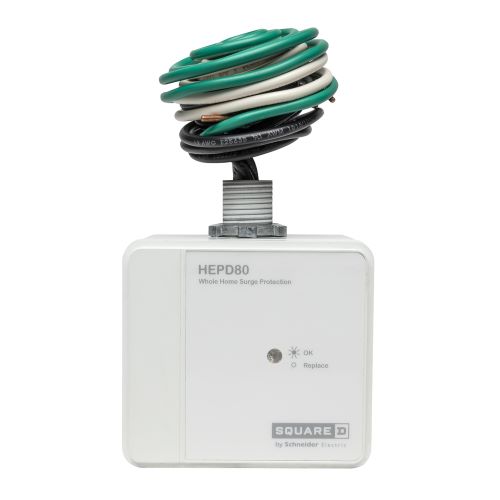

Square D™ HEPD80
Square D™ HEPD80 Type 1 HEPD Surge Protective Load Center, 120/240 VAC, 50/60 Hz, 1 Poles, 1 Phase
Brand: Square D™
Item ID: 419328
MPN: HEPD80
Login for Price
Features
- Easy to install - mounts next to load center
- Small footprint and cost - compact and affordable surge suppressor
- Maximum protection - long-lasting protection against more powerful surges, up to 80 ka
- Downstream equipment protection
- Application flexibility - rated for indoor or outdoor use, withstand harsh condition
- 3658 m operating altitude
- Convenient side nipple mounting
Description
The square D™ HEPD80 is a compact and affordable surge suppressor designed for residential load centers. The HEPD80 reduces surges that might otherwise overwhelm plug strips and damage connected household equipment. It also provides surge suppression for important items that are not compatible with plug strips such as washers, dryers, refrigerators, stoves, heating and air conditioning equipment and lighting.
Square D™ Surge Protective Load Center, Type 1 HEPD, 120/240 VAC Electrical Rating, 50/60 Hz Frequency, 1 Pole, 3 Wires, 80 kA Peak Surge Current, 1 ph, NEMA 4X Enclosure, 3.6 in L x 3 in W x 3.75 in H Dimensions
Specifications
Dimensions |
3.6 in L x 3 in W x 3.75 in H |
Electrical Ratings |
120/240 VAC |
Enclosure Type |
NEMA 4X |
Frequency Rating |
50/60 Hz |
Number of Poles |
1 |
Number of Wires |
3 |
Peak Surge Current |
80 kA |
Phase |
1 |
Type |
Type 1 HEPD |
Standard Approval |
RoHS Compliant|CSA Certified|cULus Listed|UL 1449|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
Residential, Small Business, Electrical Protection, Control, Monitoring Solutions, Whole Home, Building Surge Protection, Solar, Temperature Control, Uninterruptible Power Supply, Electric Vehicle Charging and Load Centers/CSED/Metering Applications |
