Square D™ HL4IMA16C

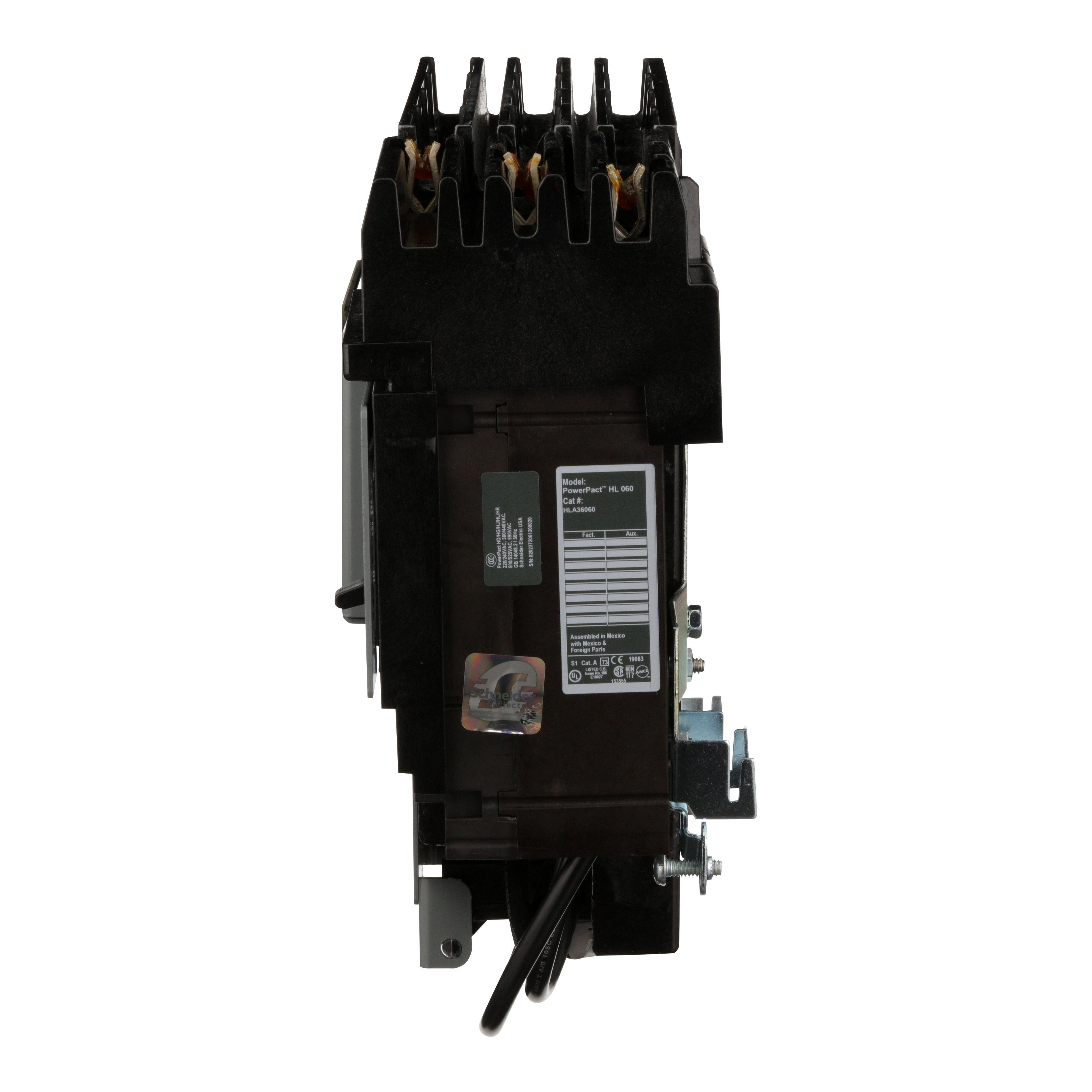

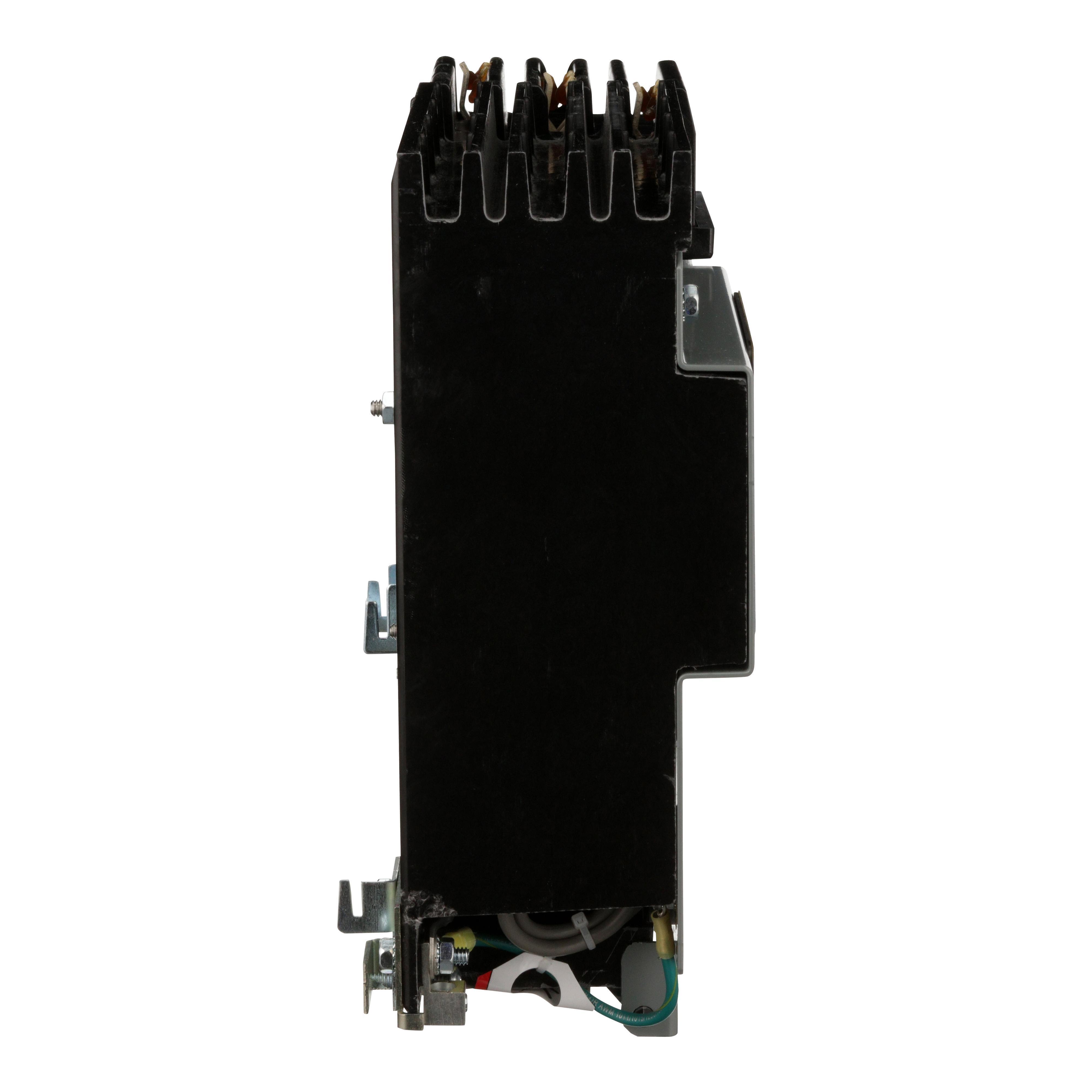

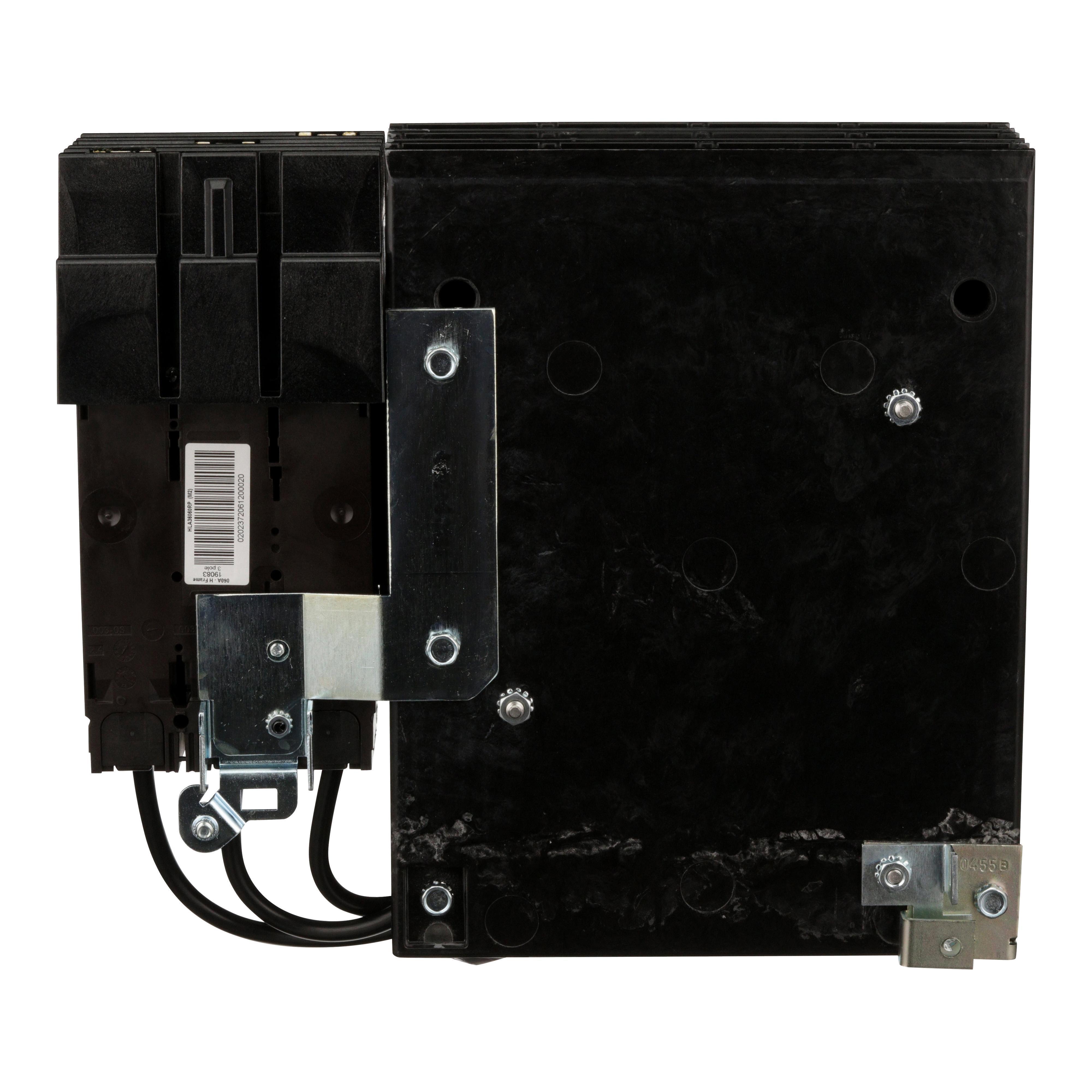

Square D™ Surgelogic™ HL4IMA16C I-Line Type HL Internally Mounted Surge Protective Device, 480Y/277 VAC, 60 A, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase
Brand: Square D™
Item ID: 554223
MPN: HL4IMA16C
UPC: 785901865179
Login for Price
Features
- Audible alarm with enable/disable switch, dry contacts and surge counter standard
- Integral to electrical gear and panels
- EMI/RFI noise rejection
Description
To ensure high performance surge suppression at critical power locations, a variety of Surgelogic™ products have been designed specifically for retrofitting into commonly used Square D™ systems. The QMB fusible switch, 6 in. MCC bucket, I-Line and Busway plug-on units and the new SurgeLoc for the NQ panelboards come read to install. Retrofitting SPD units into I-Line, QMB, MCC, Busway and NQ Panelboard applications is simple.
Square D™ Surgelogic™ Surge Protective Device, Type HL Internally Mounted, Series: I-Line, 480Y/277 VAC, 60 A, 50/60 Hz, 3 Pole, 4 Wires, 200 kA Short Circuit Current, 160 kA Peak Surge, 150 VAC Clamping, Modes of Protection: L-N/L-G/L-L/N-G, LED Indicator, 3, Environmental Conditions: -40 to 149 deg F Operating Temperature, 0 to 95% Non-Condensing Relative Humidity, NEMA 2, Panel/Plug-On Mount, 12.16 in H x 13.46 in W x 5.59 in D
Specifications
Clamping Voltage |
150 VAC |
Dimensions |
12.16 in H x 13.46 in W x 5.59 in D |
Electrical Ratings |
480Y/277 VAC, 60 A |
Enclosure Type |
NEMA 2 |
Environmental Conditions |
-40 to 149 deg F Operating Temperature, 0 to 95% Non-Condensing Relative Humidity |
Frequency Rating |
50/60 Hz |
Indicator Type |
LED |
Modes of Protection |
L-N/L-G/L-L/N-G |
Mounting Type |
Panel/Plug-On |
Number of Poles |
3 |
Number of Wires |
4 |
Peak Surge Current |
160 kA |
Phase |
3 |
Series |
I-Line |
Short Circuit Current Rating |
200 kA |
Type |
Type HL Internally Mounted |
Standard Approval |
CSA C22.2 File No. 5-09, 8 1986|UL 1449 ed. 3,1283 ed. 5, 96A ed. 12, 489 ed. 11|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
