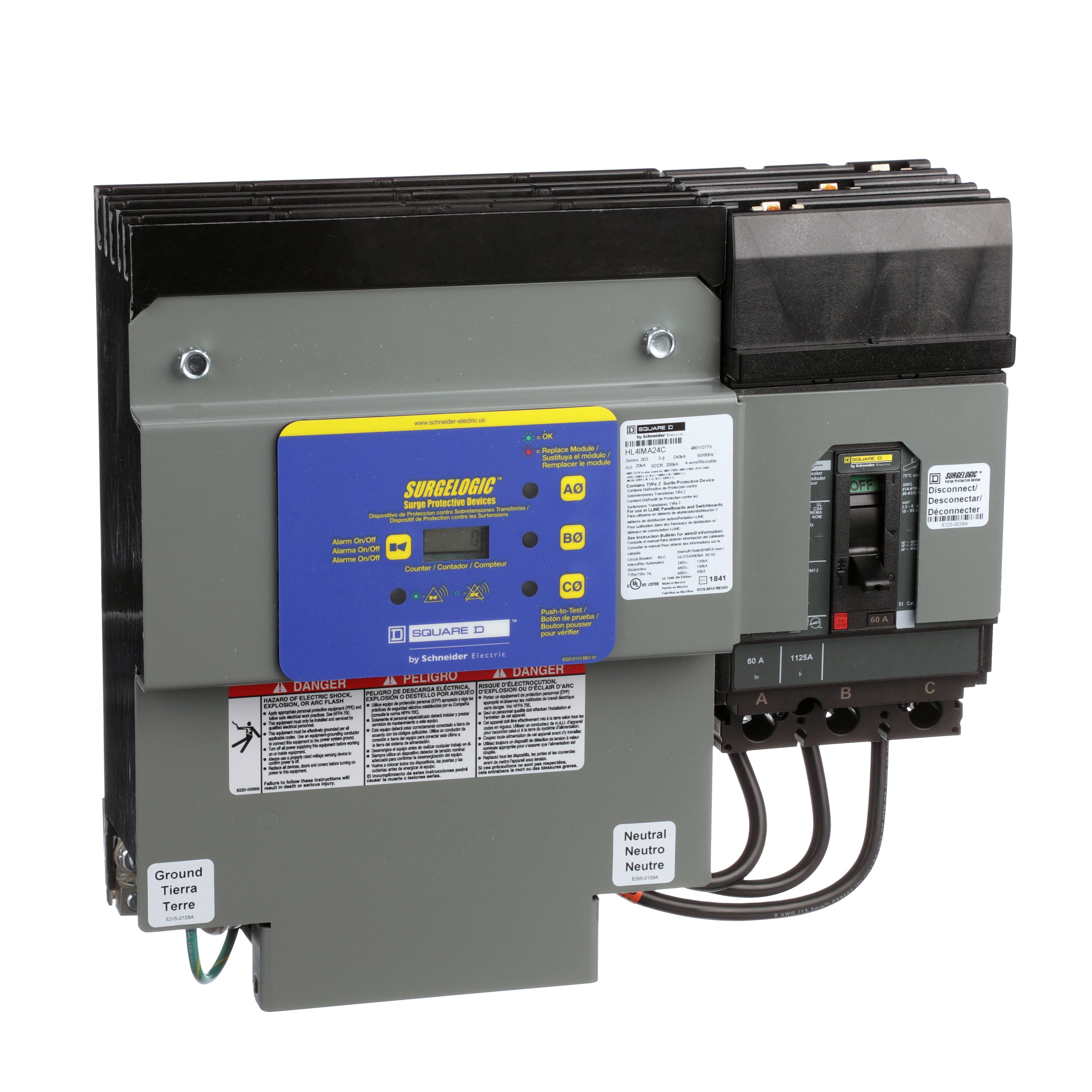

Schneider Electric HL4IMA24C1
Schneider Electric Square D™ Surgelogic™ HL4IMA24C1 Type 1 HL High Frequency Surge Protection Device, 480Y/277 VAC, 60 A VAC, 3 Poles, 200 kA SCCR, 3 ph
Brand: Schneider Electric
Item ID: 526406
MPN: HL4IMA24C1
UPC: 785901072157
Login for Price
Description
Schneider Electric Square D™ Surgelogic™ Surge Protection Device, Type 1 HL High Frequency, 480Y/277 VAC, 60 A VAC Electrical Rating, 3 Pole, 4 Wires, 200 kA Short Circuit, 240 kA Peak Surge Current, LED Indicator, 3 ph, NEMA 1 Enclosure, Panel Mounting, 13.46 in W x 5.59 in D x 12.16 in H Dimensions
Specifications
Dimensions |
13.46 in W x 5.59 in D x 12.16 in H |
Electrical Ratings |
480Y/277 VAC, 60 A VAC |
Enclosure Type |
NEMA 1 |
Indicator Type |
LED |
Mounting Type |
Panel |
Number of Poles |
3 |
Number of Wires |
4 |
Peak Surge Current |
240 kA |
Phase |
3 ph |
Short Circuit Current Rating |
200 kA |
Type |
Type 1 HL High Frequency |
Standard Approval |
CSA C22.2 No. 8:1986|CSA C22.2 No. 5-09|ECCN: EAR99|UL 96A:ed. 12|UL 489:ed. 11|UL 1449:ed. 3|Green Premium™|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2e97178523d89dad35c9b52db39ea0ff26aff27eaad4df45f0604b6b899e9b37.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_HL4IMA24C1_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HL5IMA20C1_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b5f85a8f537dbaa58d15b3128517b9a82a3b2c6e47fdd635d1cb5944fa708971.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_HL4IMA24C1_Specification_Sheet.pdf
