Square D™ HOM115DF

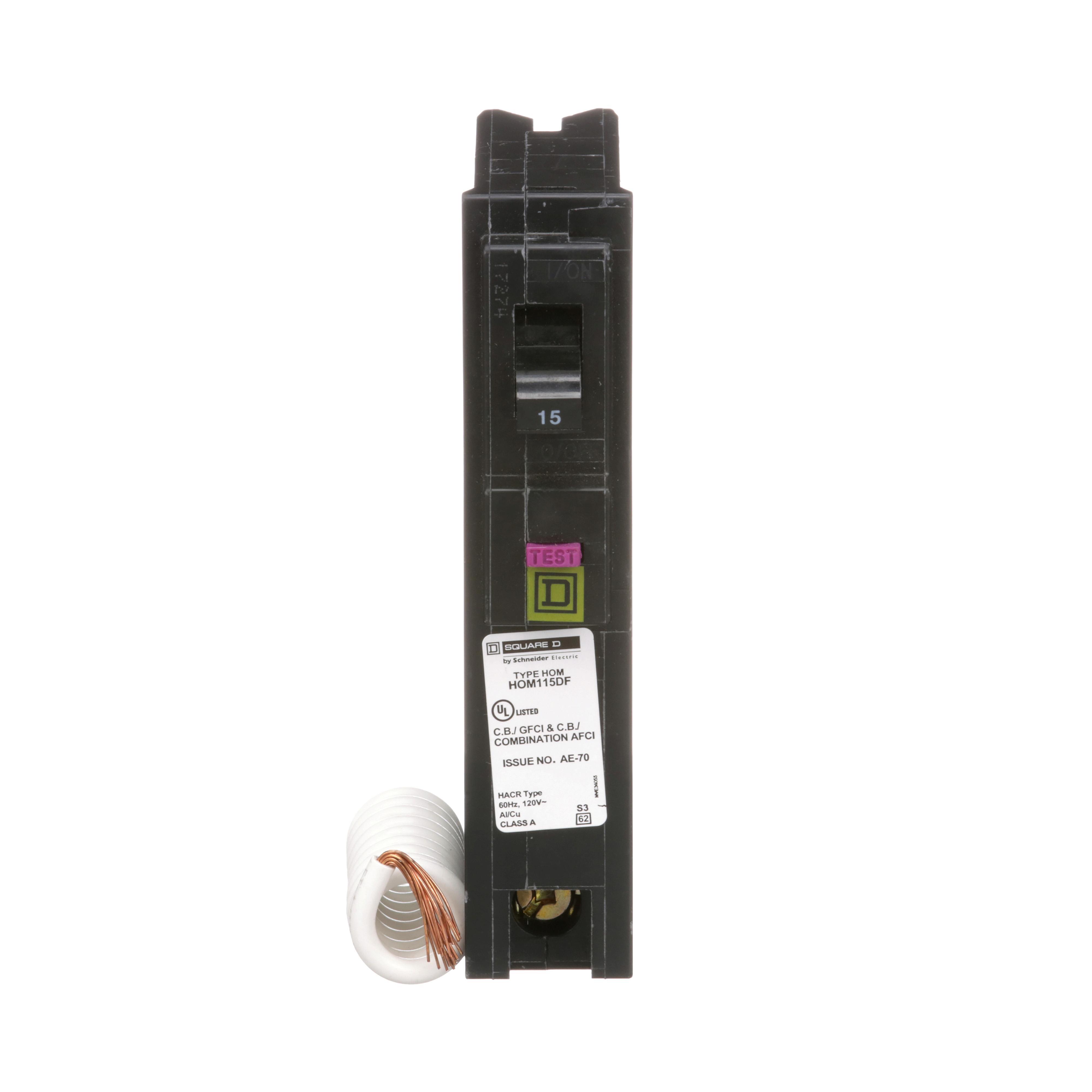

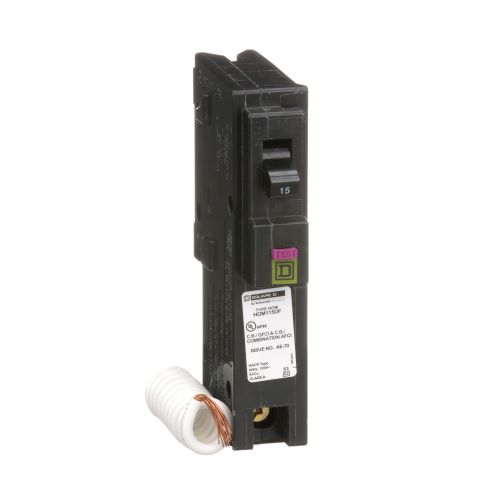

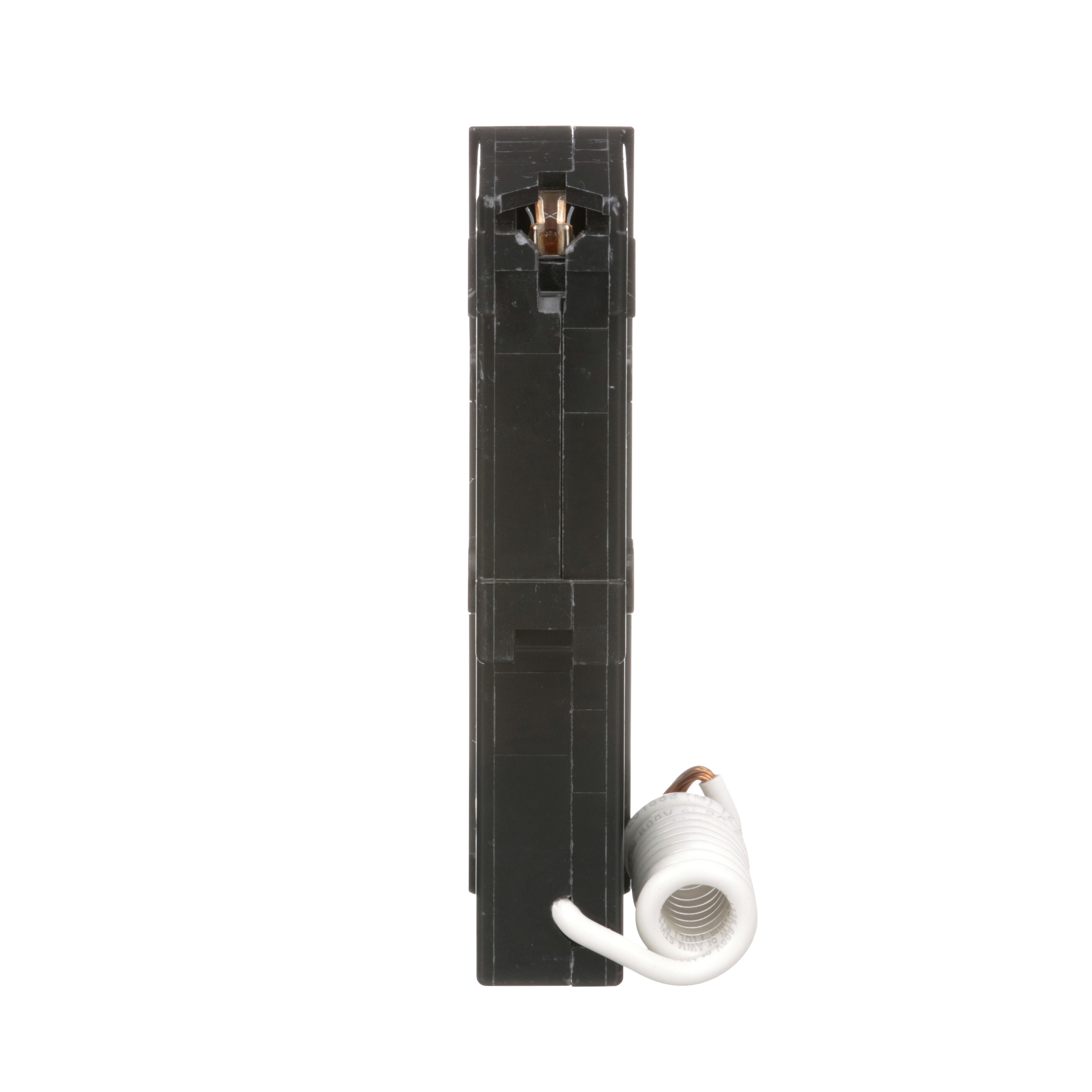

Square D™ Homeline™ HOM115DF Miniature Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Brand: Square D™
Item ID: 427384
MPN: HOM115DF
Login for Price
Features
- Combination arc fault and ground fault Class A 6 mA
Description
Square D™ Homeline™ Miniature Circuit Breaker, 120 VAC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Clamp, 14 to 8 AWG, 14 to 10 AWG Wire, NEMA 1/2, Plug-On Mount, 75 deg C, 2.98 in L x 1 in W x 3.13 in H
Specifications
Amperage Rating |
15 A |
Connection Type |
Clamp |
Dimensions |
2.98 in L x 1 in W x 3.13 in H |
Enclosure Type |
NEMA 1/2 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
1 |
Temperature Rating |
75 deg C |
Trip Type |
Thermal Magnetic |
Voltage Rating |
120 VAC |
Wire Size |
14 to 8 AWG, 14 to 10 AWG |
Standard Approval |
Federal Specification W-P-115B|HACR Rated|NEC/CSA Certified|RoHS Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
