Square D™ HOM115GFI

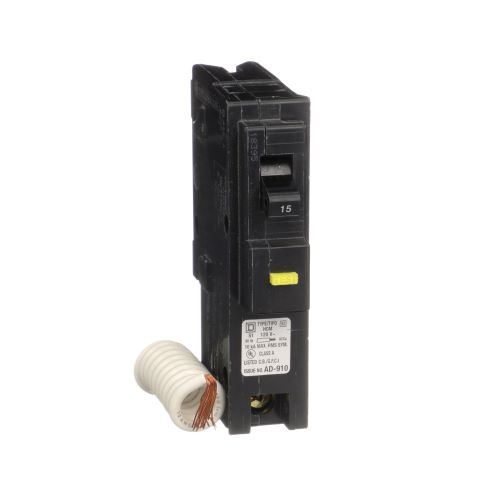

Square D™ Homeline™ HOM115GFI Class A Ground Fault Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Brand: Square D™
Item ID: 52307
MPN: HOM115GFI
Login for Price
Features
- Ground fault protecting class A 6 mA
- HACR rated
- Al/Cu wire
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ Homeline™ Miniature Circuit Breaker, Class A Ground Fault, Series: HOM, 120/240 VAC, 15 A, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Screw Terminal, 14 to 10 AWG Wire, NEMA 1/2, Plug-In Mount, 40 deg C, 2.98 in L x 1 in W x 3.13 in H
Specifications
Amperage Rating |
15 A |
Connection Type |
Screw Terminal |
Dimensions |
2.98 in L x 1 in W x 3.13 in H |
Enclosure Type |
NEMA 1/2 |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Phase |
1 ph |
Series |
HOM |
Temperature Rating |
40 deg C |
Trip Type |
Thermal Magnetic |
Type |
Class A Ground Fault |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 10 AWG |
Standard Approval |
UL E-6294, Federal Specifications W-P-115b, NEC|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov|RoHS Compliant |
Application |
For providing overload and short circuit protection and AC systems |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_34fdb7b60260501c1793d18f04c8784cbbeb22416fdf09827fe17389f8aadcc2.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM115GFI_Full_Engineering_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120VHDF_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120VHDF_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM115GFI_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6706baf231fc651304ccffc5d2b7e6d1810cae27ec20a3fe60cd5f30f68f99fd.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM115GFI_Specification_Sheet.pdf
