Square D™ HOM120CAFI

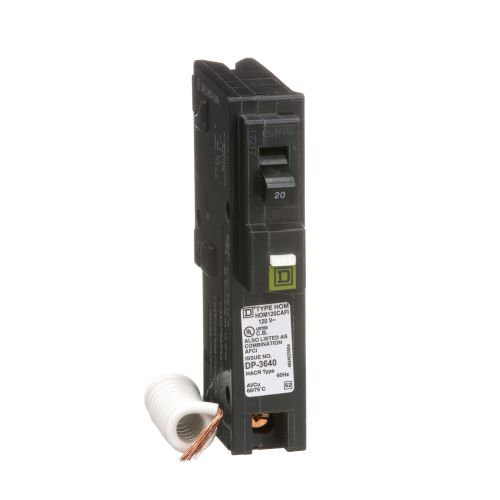

Square D™ HomeLine™ HOM120CAFI Type HOM Combination Arc Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Long Time/Instantaneous Trip
Brand: Square D™
Item ID: 372291
MPN: HOM120CAFI
Login for Price
Features
- Square D™ is the industry leader in circuit protection with a long standing reputation for quality and reliability
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Homeline™ combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ HomeLine™ Combination Arc Fault Circuit Breaker, Type HOM, 120/240 VAC, 20 A, 50/60 Hz, 10 kA Interrupt, Long Time/Instantaneous Trip, 1 Pole, 1 ph, Terminal Screw, 14 to 8 AWG Wire, Plug-In Mount, 104 deg F, 2.98 in L x 1 in W x 3.13 in H
Specifications
Amperage Rating |
20 A |
Connection Type |
Terminal Screw |
Dimensions |
2.98 in L x 1 in W x 3.13 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
104 deg F |
Trip Type |
Long Time/Instantaneous |
Type |
Type HOM |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 8 AWG |
Standard Approval |
Buy American Act Compliant|CSA Certified|HACR Rated|NEMA Compliant|RoHS Compliant|UL 1699|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For Homeline™ load centers, residential and light commercial circuit protection, 1-phase applications, ground fault protection, overload and short circuit protection designed to detect arc faults |
