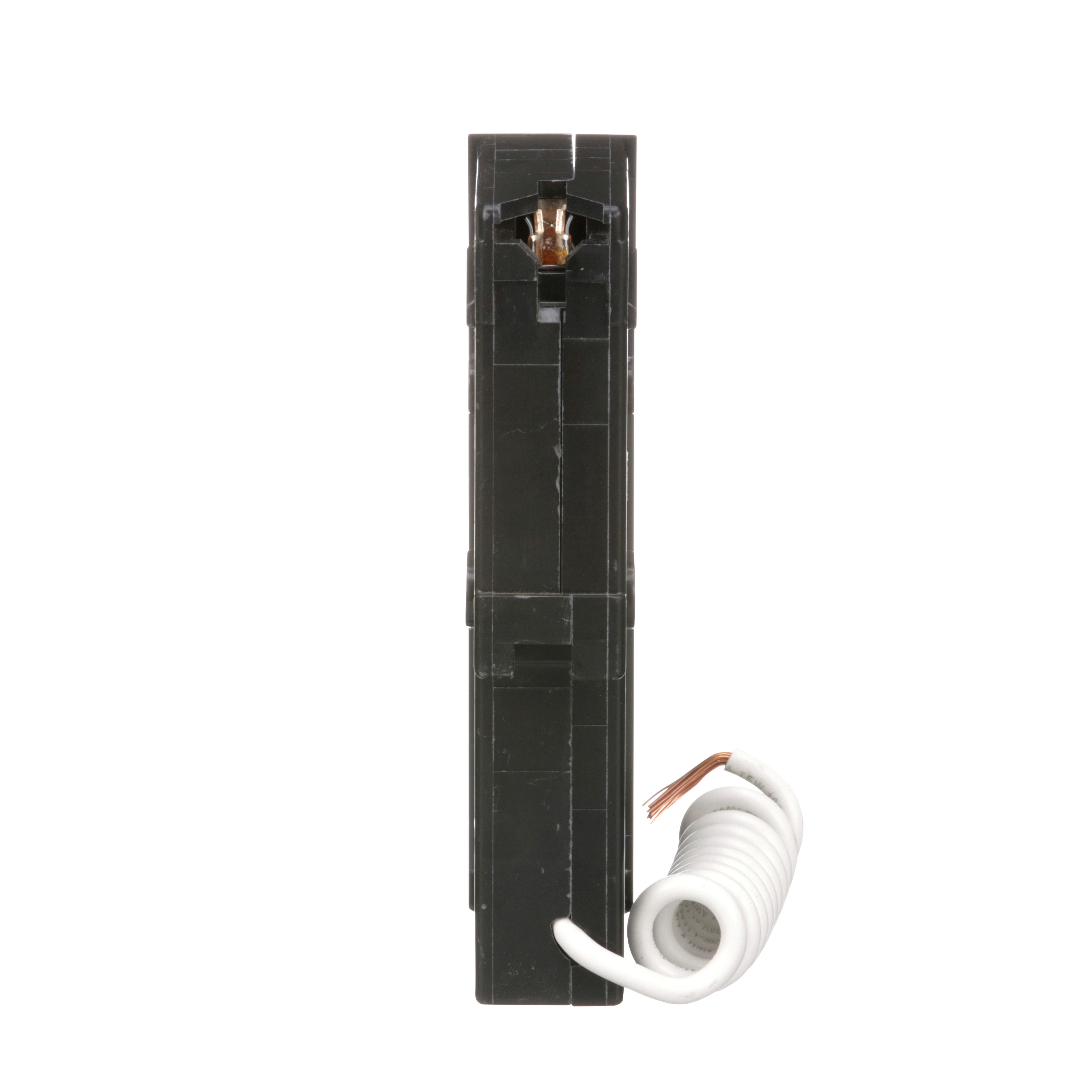

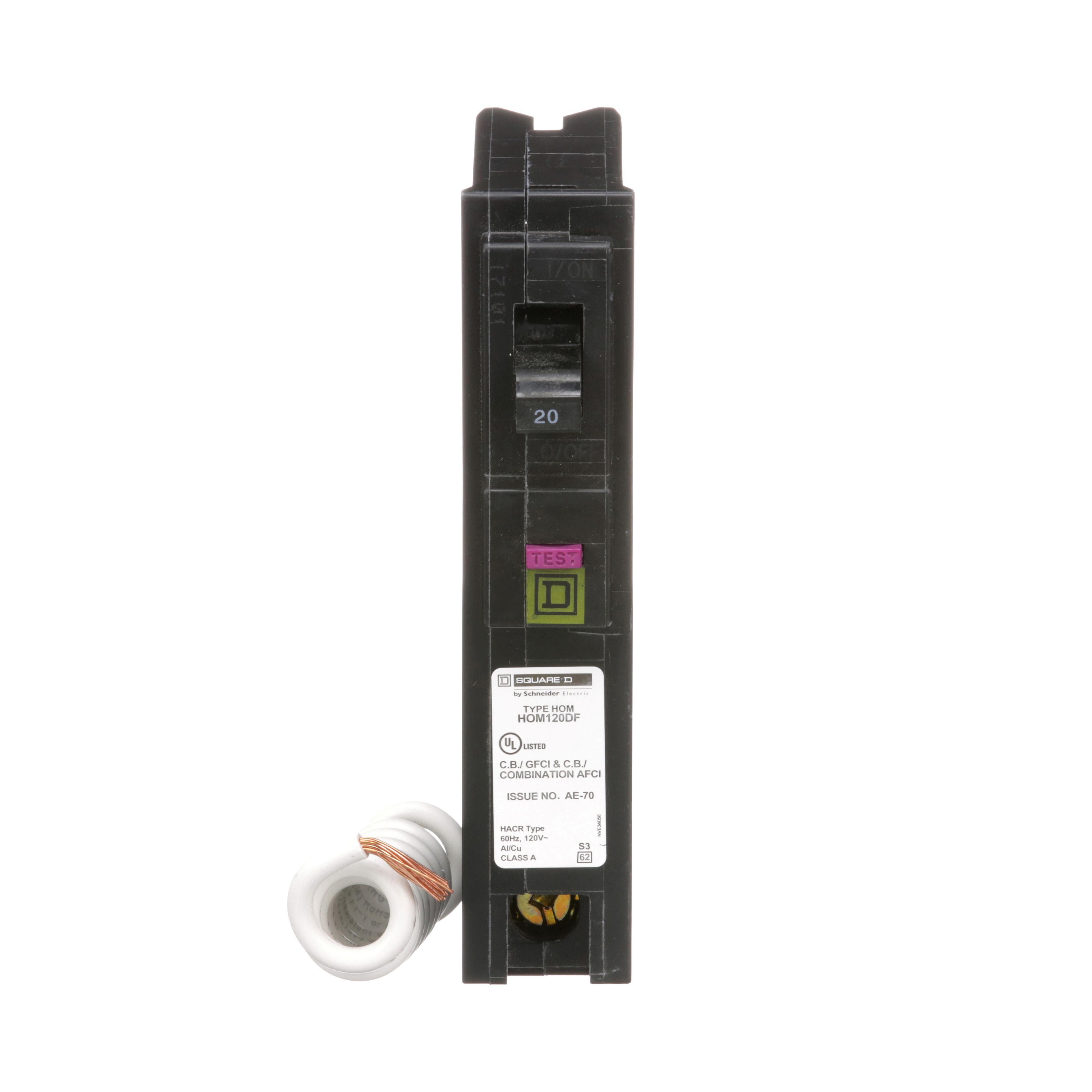

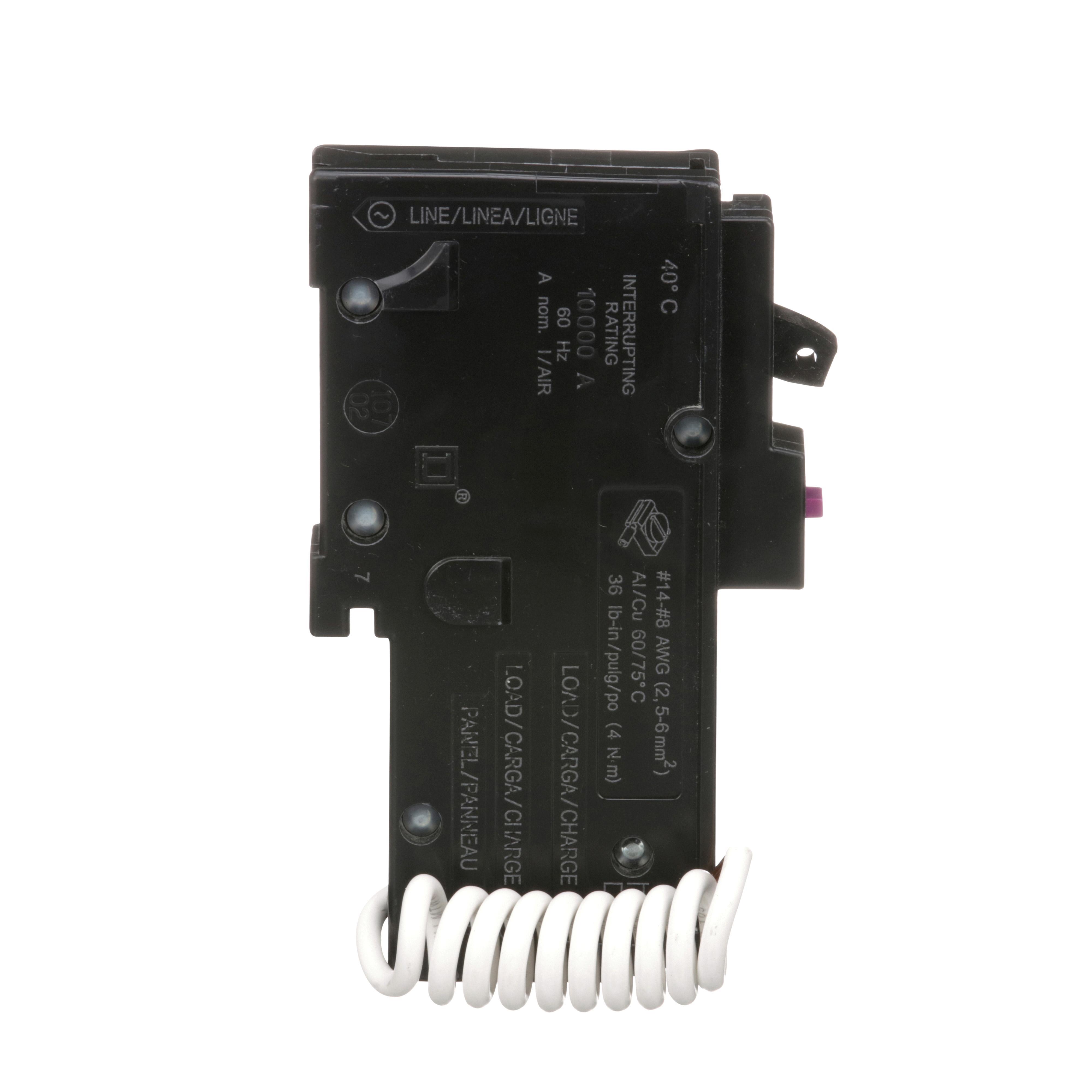

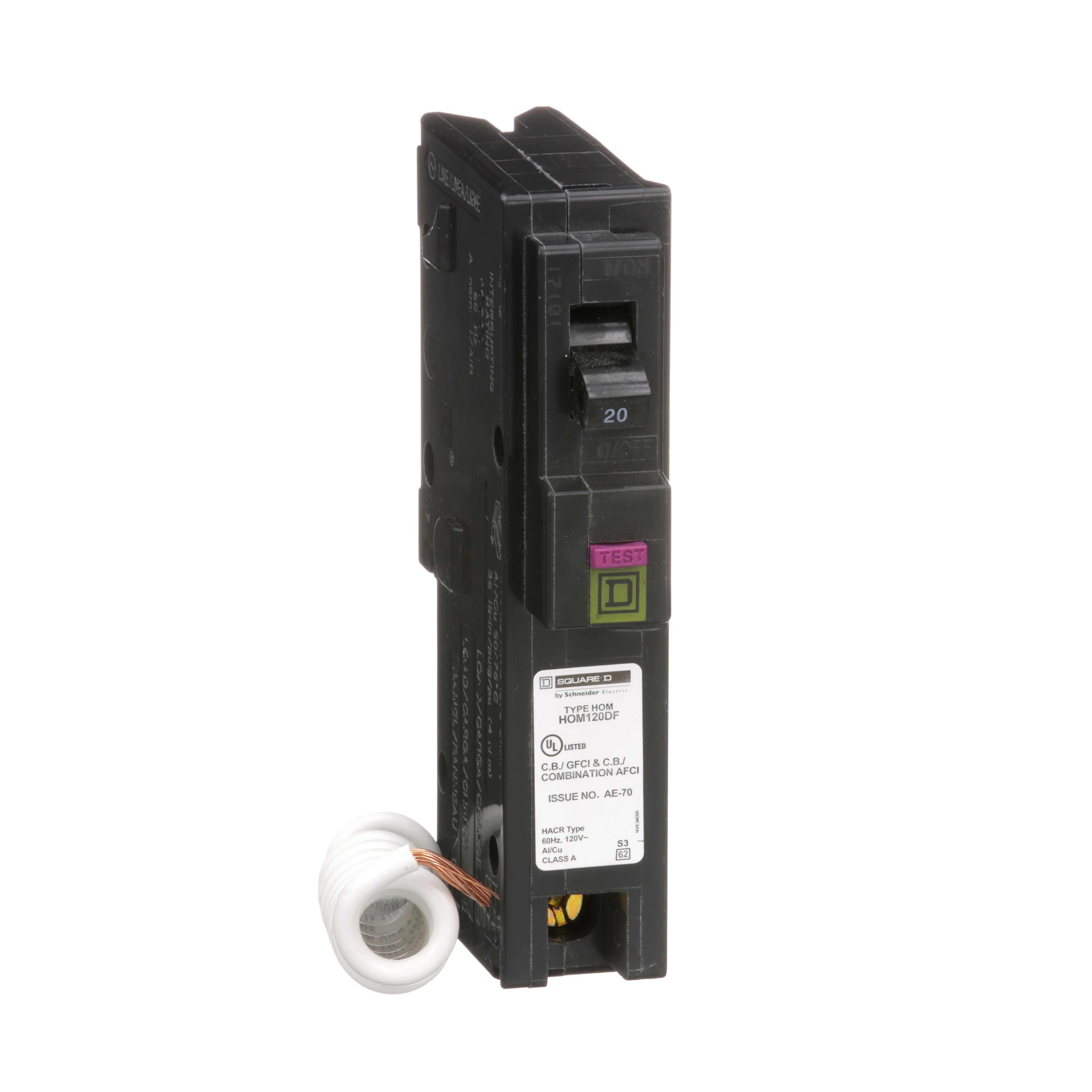

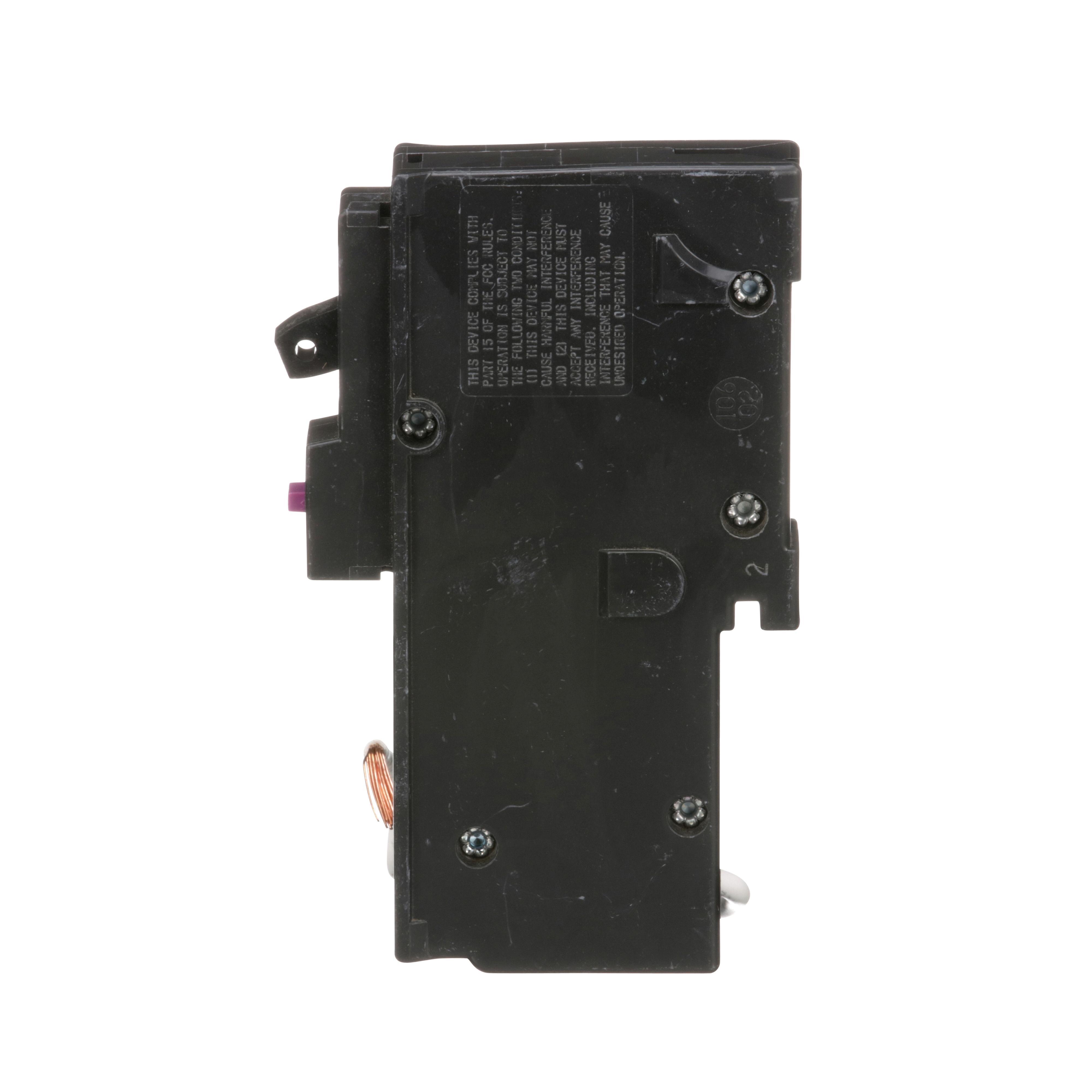

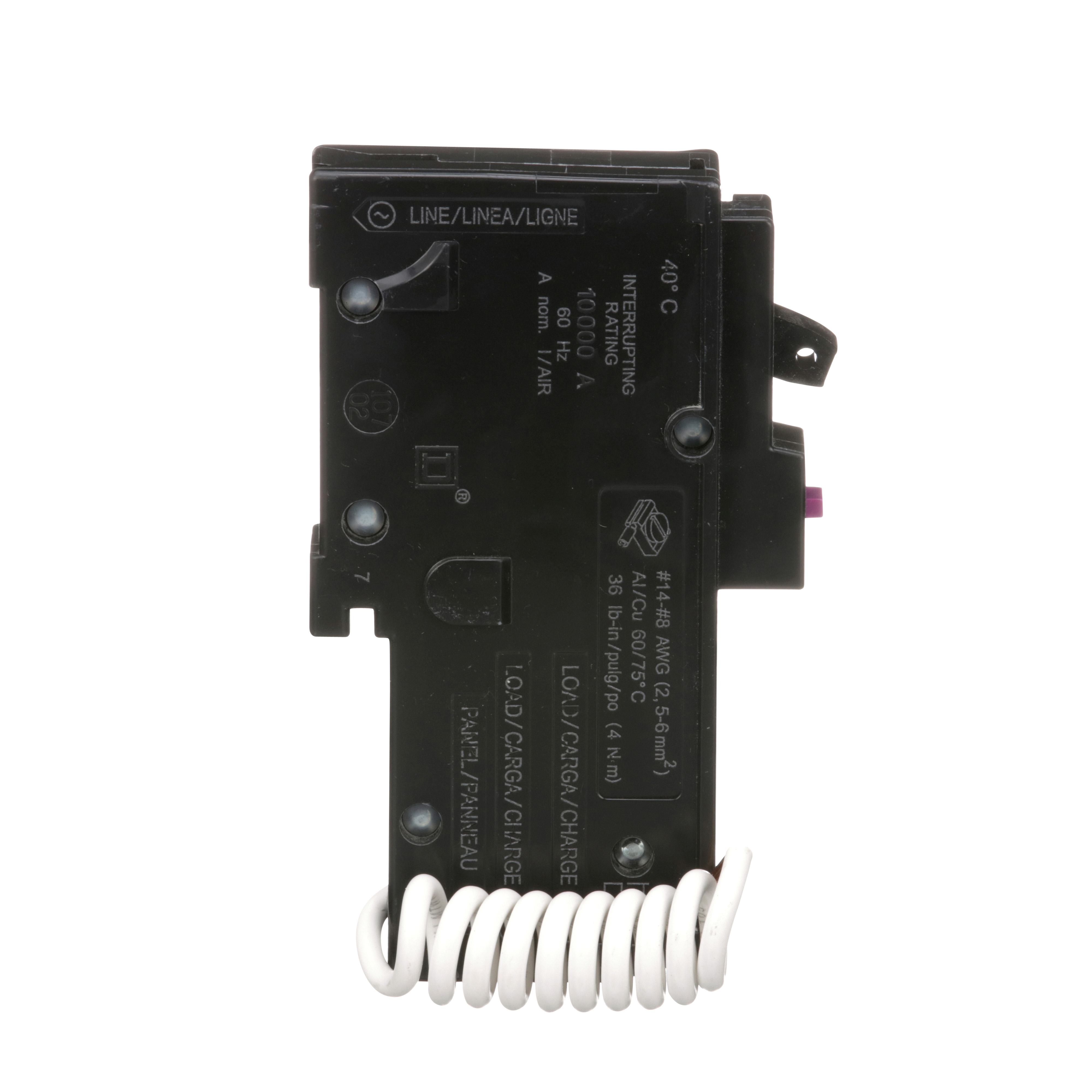

Square D™ HOM120DF
Square D™ Homeline™ HOM120DF Class A Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Brand: Square D™
Item ID: 423140
MPN: HOM120DF
Login for Price
Features
- Combination arc fault and ground fault Class A 6 mA
- Al/Cu wire
Description
Square D™ Homeline™ Miniature Circuit Breaker, Class A, 120 VAC, 20 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Terminal Screw, 14 to 8 AWG, 14 to 10 AWG Wire, NEMA 1/2, Plug-On Mount, 104 deg F, 2.98 in L x 1 in W x 3.13 in H
Specifications
Amperage Rating |
20 A |
Connection Type |
Terminal Screw |
Dimensions |
2.98 in L x 1 in W x 3.13 in H |
Enclosure Type |
NEMA 1/2 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
1 |
Temperature Rating |
104 deg F |
Trip Type |
Thermal Magnetic |
Type |
Class A |
Voltage Rating |
120 VAC |
Wire Size |
14 to 8 AWG, 14 to 10 AWG |
Standard Approval |
Federal Specification W-P-115B|HACR Rated|NEC/CSA Certified|RoHS Compliant|UL File No. E6294|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a346bd925f4b50ba68b7a3d528328fcbed112f8a5ffbe1e52a980bcc345077ff.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120DF_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120DF_Full_Engineering_Drawing.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_084f3522ea6550d849563907f24170b76053351e3ad9c74b6c39b46c3a6dd684.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM115DF_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120DF_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120DF_Specification_Sheet.pdf
