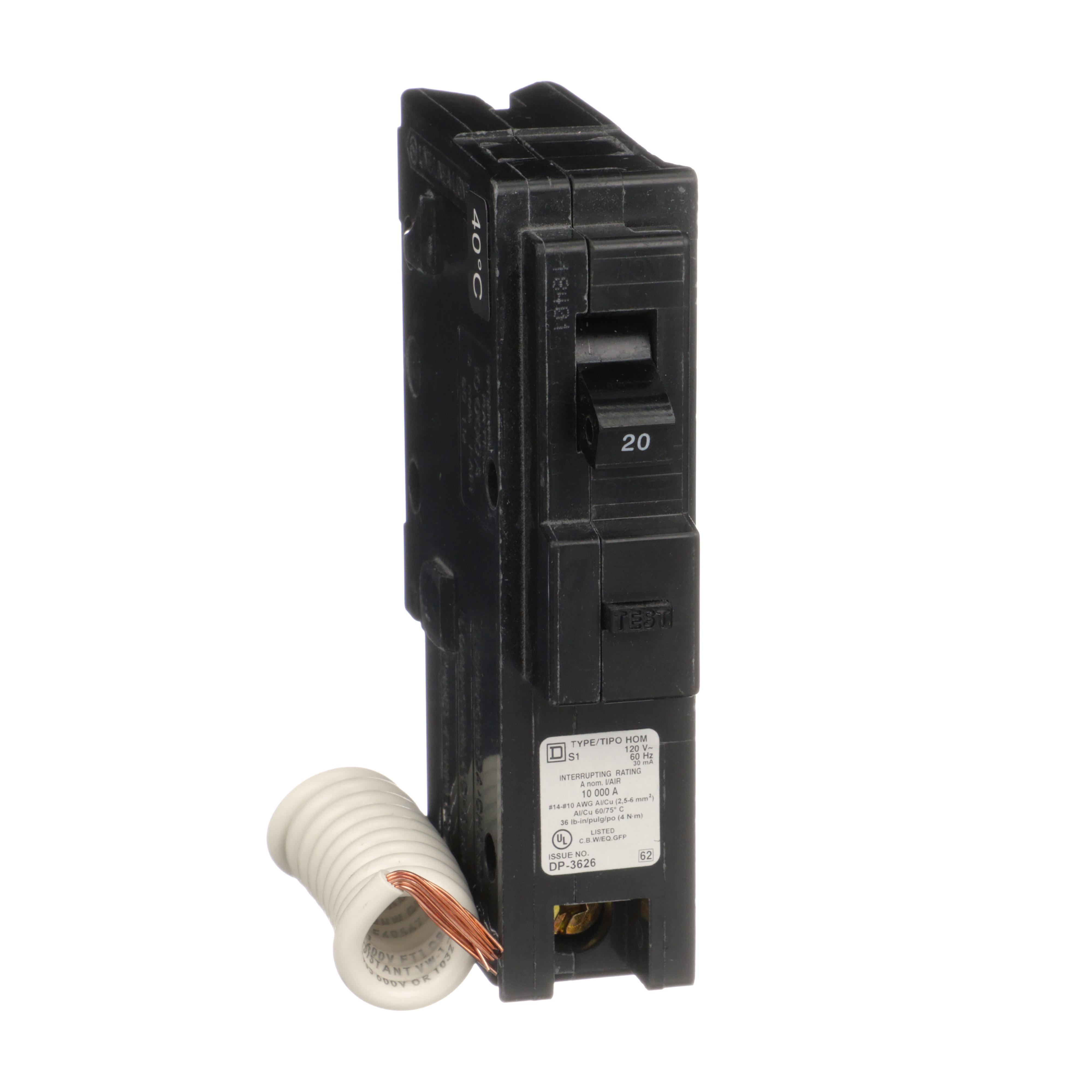

Square D™ HOM120EPD
Square D™ Homeline™ HOM120EPD Class B Ground Fault Standard Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Brand: Square D™
Item ID: 529462
MPN: HOM120EPD
UPC: 785901636502
Login for Price
Features
- HACR rated
- Al/Cu wire
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ Homeline™ Miniature Circuit Breaker, Class B Ground Fault Standard, Series: HOM, 120/240 VAC, 20 A, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Screw Terminal Connection, 14 to 8 AWG Wire, NEMA 1/2 Enclosure, Plug-In Mounting, 75 deg C
Specifications
Amperage Rating |
20 A |
Connection Type |
Screw Terminal |
Enclosure Type |
NEMA 1/2 |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Phase |
1 ph |
Series |
HOM |
Temperature Rating |
75 deg C |
Trip Type |
Thermal Magnetic |
Type |
Class B Ground Fault Standard |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 8 AWG |
Standard Approval |
Buy American Act Compliant|CSA Certified|RoHS Compliant|UL File No. E6294|Federal Specification W-P-115b|NEC Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
