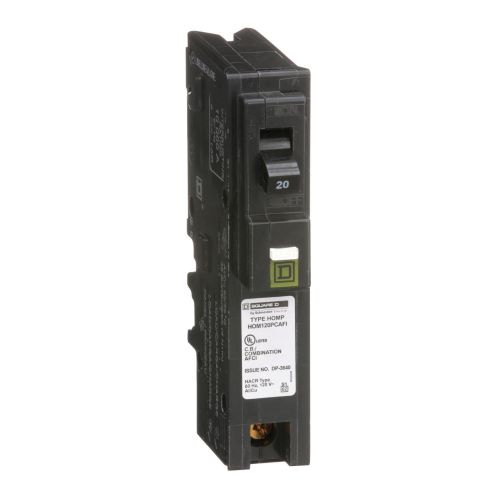

Square D™ HOM120PCAFI
Square D™ HomeLine™ HOM120PCAFI Combination Miniature Arc Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Instantaneous/Long Time Trip
Brand: Square D™
Item ID: 426506
MPN: HOM120PCAFI
Login for Price
Features
- Square D™ is the industry leader in circuit protection with a long standing reputation for quality and reliability
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Faster installation fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Homeline™ combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection
- Al/Cu wire
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ HomeLine™ Combination Miniature Arc Fault Circuit Breaker, 120/240 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Instantaneous/Long Time Trip, 1 Pole, 1 ph, Screw Clamp Connection, 14 to 8/14 to 10 AWG Wire, Plug-On Mounting, 40 deg C, 2.98 in L x 1 in W x 3.13 in H Dimensions
Specifications
Amperage Rating |
20 A |
Connection Type |
Screw Clamp |
Dimensions |
2.98 in L x 1 in W x 3.13 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Type |
Instantaneous/Long Time |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 8/14 to 10 AWG |
Standard Approval |
Buy American Act Compliant|CSA Certified|HACR Rated|RoHS Compliant|NEC Certified|UL 1699|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For overload short circuit protection and parallel arc fault protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6421fe8e802613a1f9a0984a28a4e1ac6d97149384c7b22dfd03e19fb2dfcd14.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120PCAFI_Full_Engineering_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120PDF_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120PDF_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220CAFI_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a40de0203b9088db5ca6d6bdf9c49fb98877efdd7c2bc16d92bde9a82a52d014.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_Owners_User_Manual.pdf
Owners/User Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU370_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Stelpro_DRI0481C24W_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120PCAFI_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_82e0be8845ea1f4ac4f3d68edbfcafbc08adef33fc41ecc64f42f972b9e42658.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120PCAFI_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO220CAFI_Technical_Bulletin.pdf
