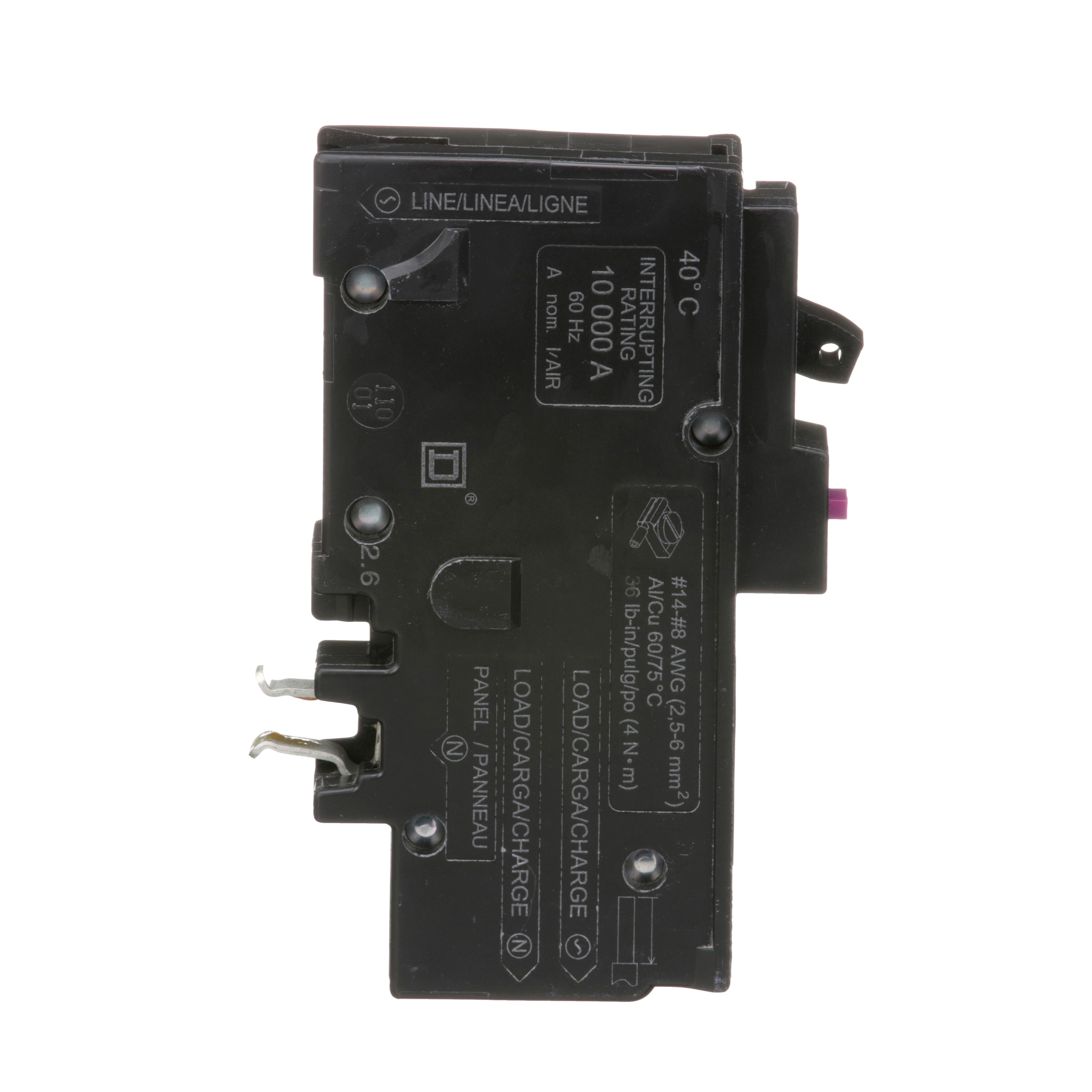

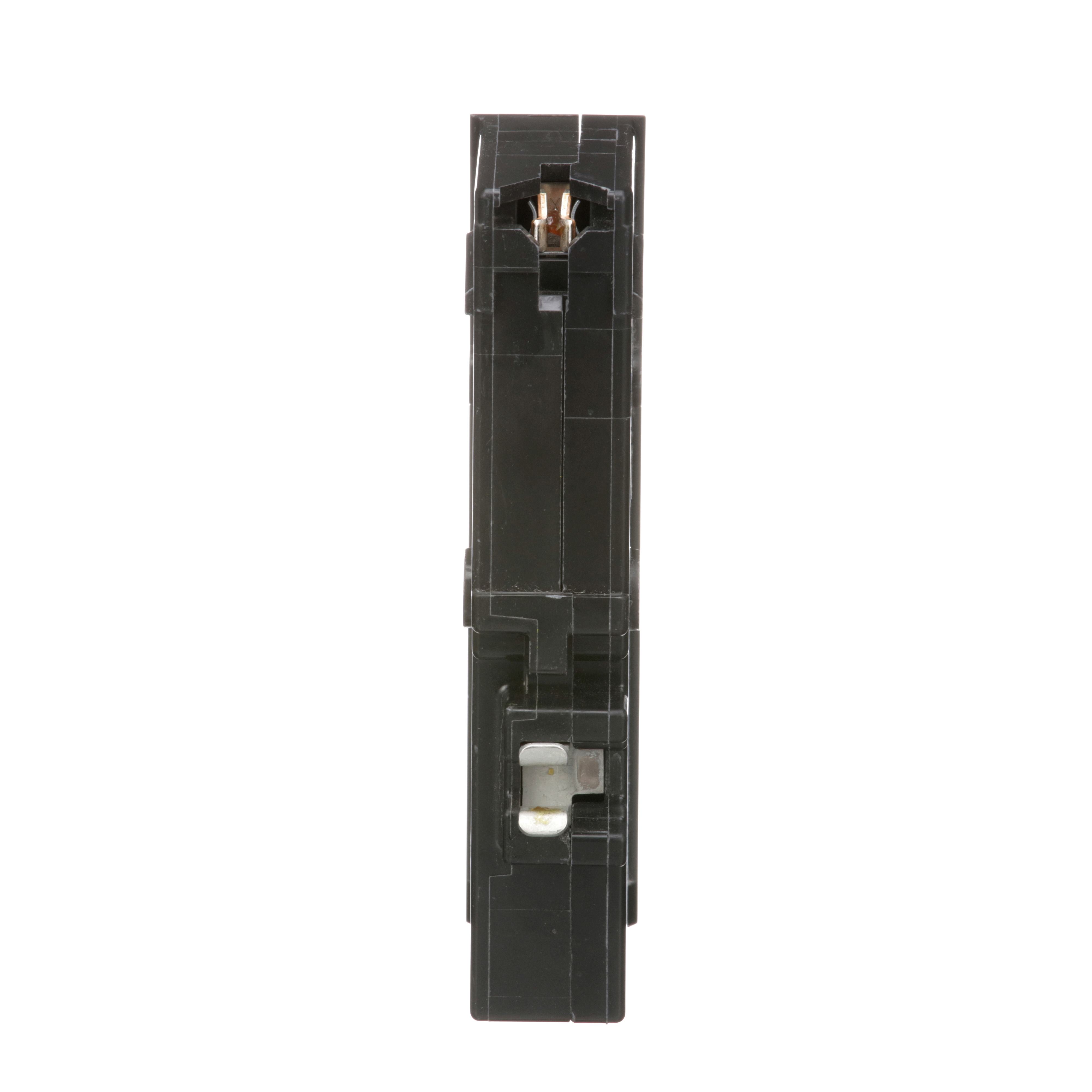

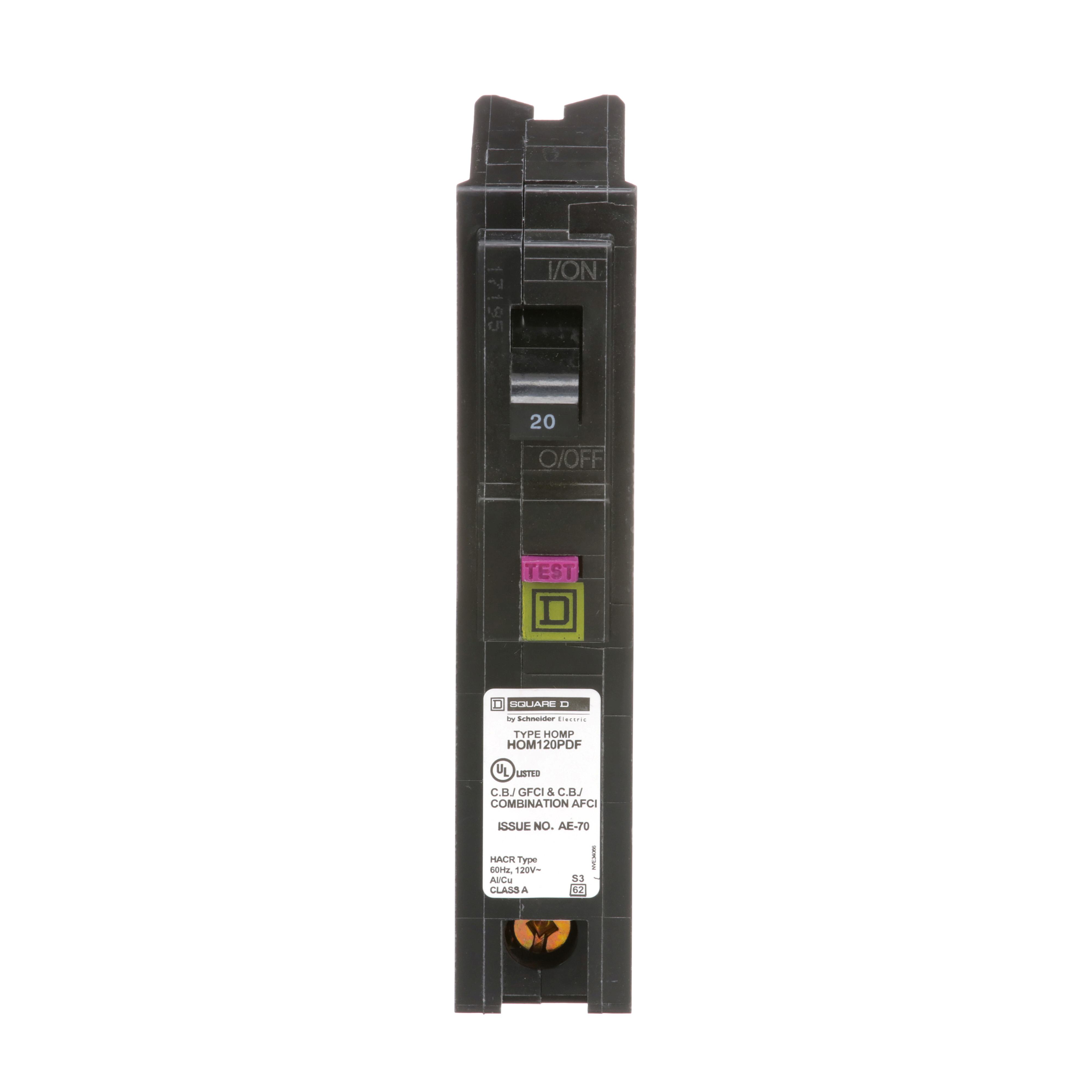

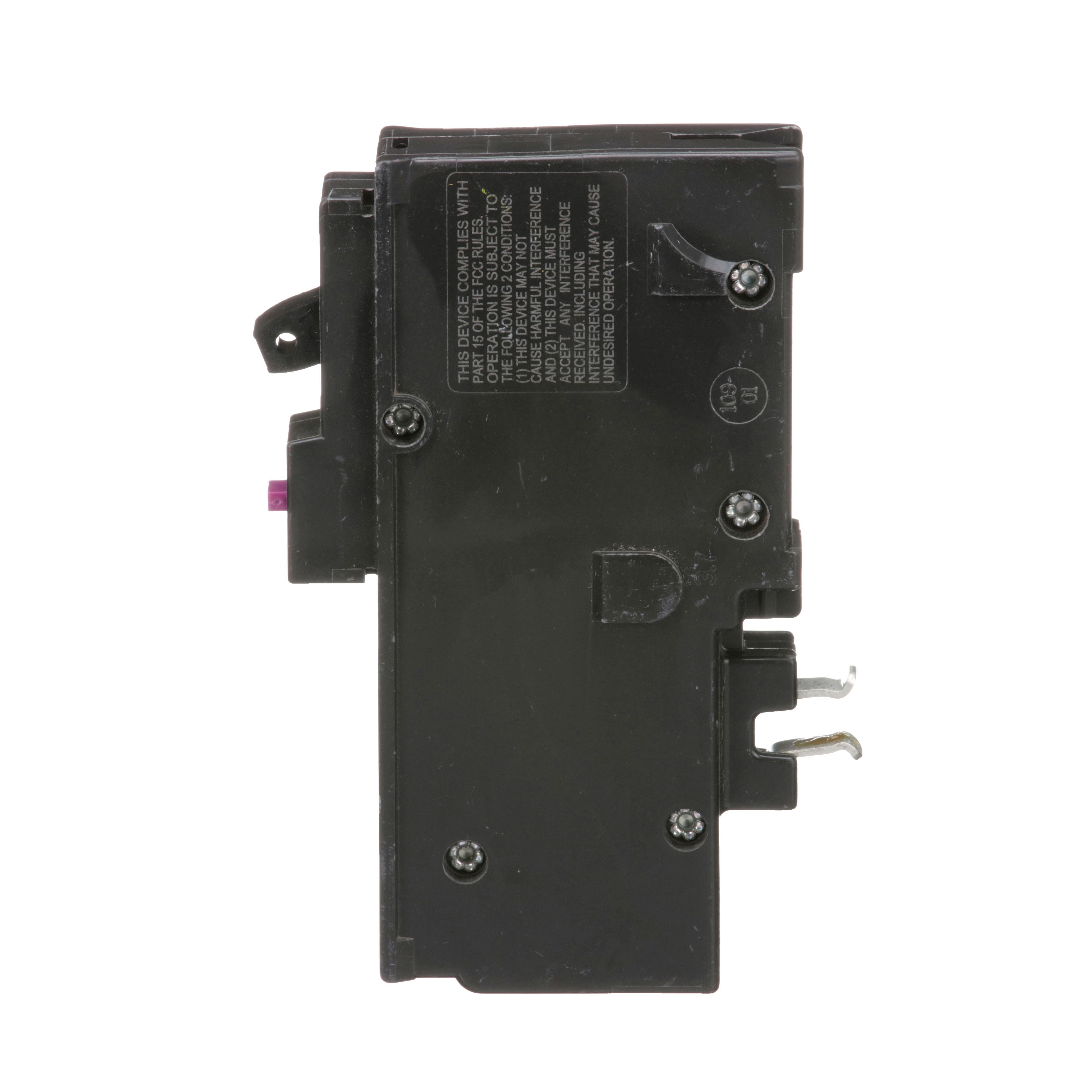

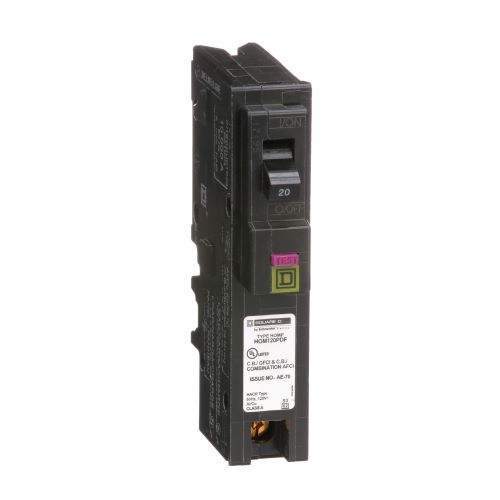

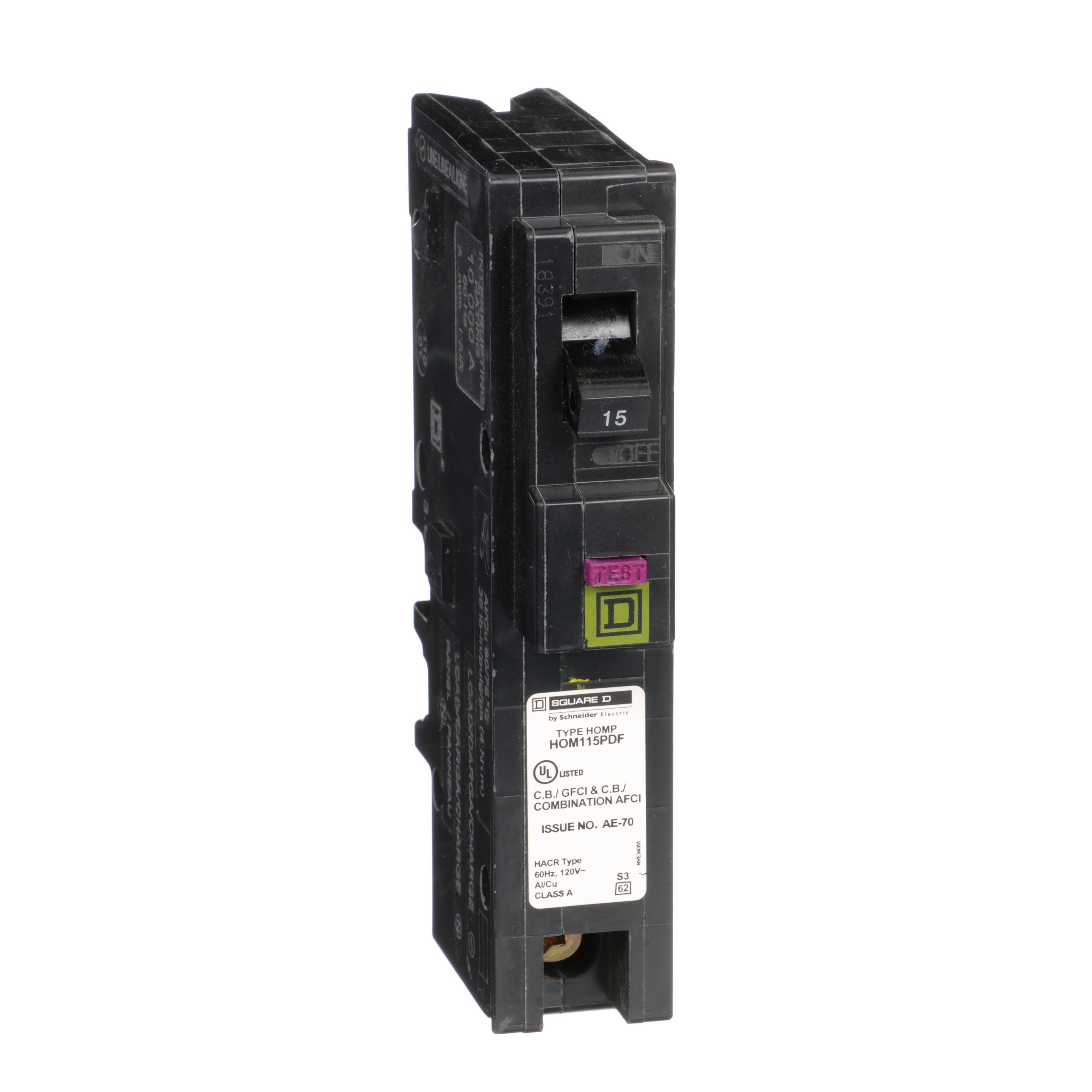

Square D™ Homeline™ HOM120PDF Dual Function Combination Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Brand: Square D™
Item ID: 427596
MPN: HOM120PDF
Login for Price
Features
- Square D™ is the industry leader in circuit protection with a long standing reputation for quality and reliability
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Homeline™ combination arc fault and ground fault circuit interrupters (dual function) provide overload and short circuit protection, plus arc fault and ground fault protection in a single device
- Al/Cu wire
- Plug-on neutral mounting mode
- Dual function - combination arc fault and ground fault class A 6 mA
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ Homeline™ Combination Miniature Circuit Breaker, Dual Function, 120 VAC, 20 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Clamp, 14 to 8 AWG, 14 to 10 AWG Wire, Plug-In Mount, 40 deg C, 2.98 in L x 1 in W x 3.13 in H
Specifications
Amperage Rating |
20 A |
Connection Type |
Clamp |
Dimensions |
2.98 in L x 1 in W x 3.13 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Type |
Thermal Magnetic |
Type |
Dual Function |
Voltage Rating |
120 VAC |
Wire Size |
14 to 8 AWG, 14 to 10 AWG |
Standard Approval |
CSA Certified|HACR Rated|NEMA Compliant|RoHS Compliant|UL 1699/943|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For Homeline™ load centers and providing overload and short circuit protection |
