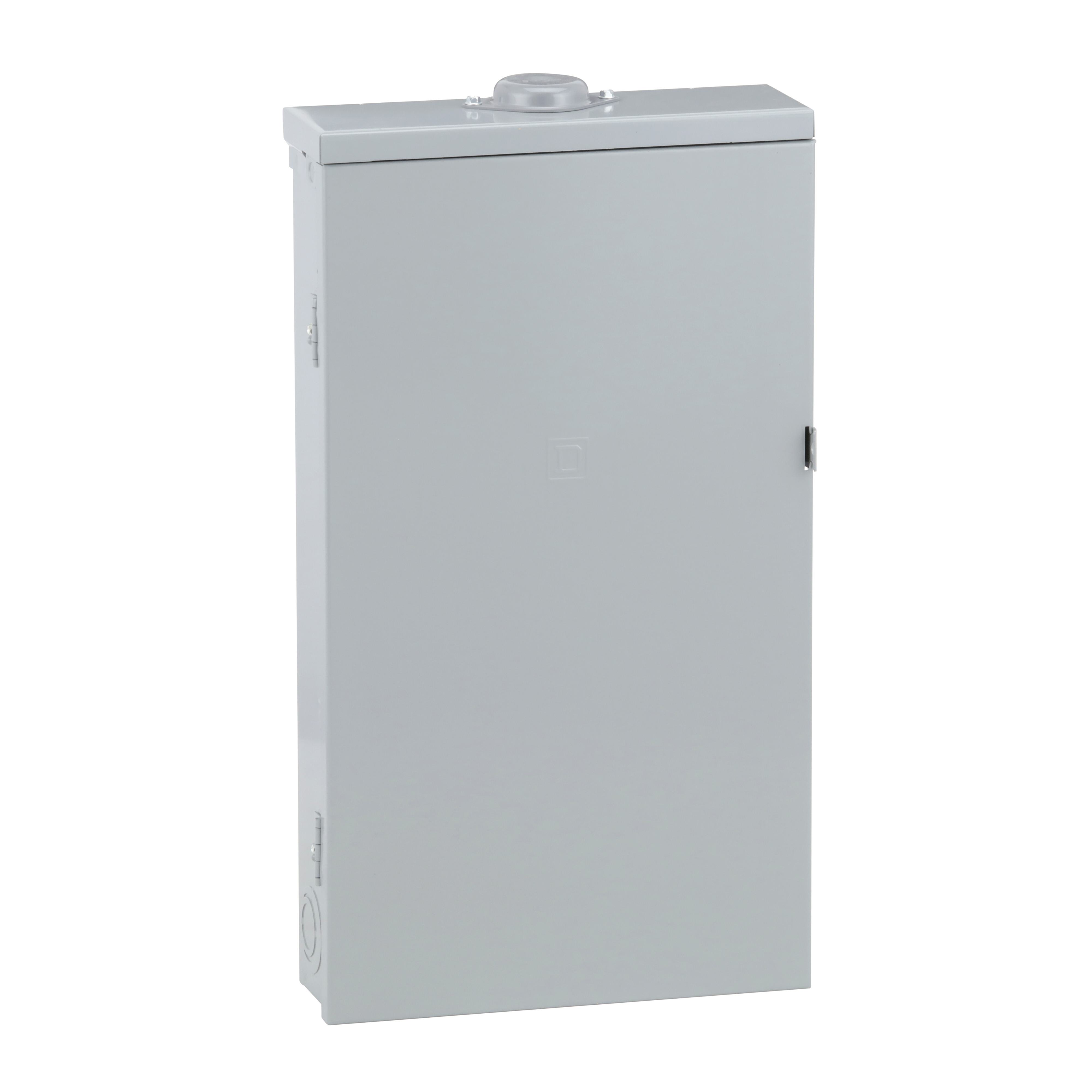

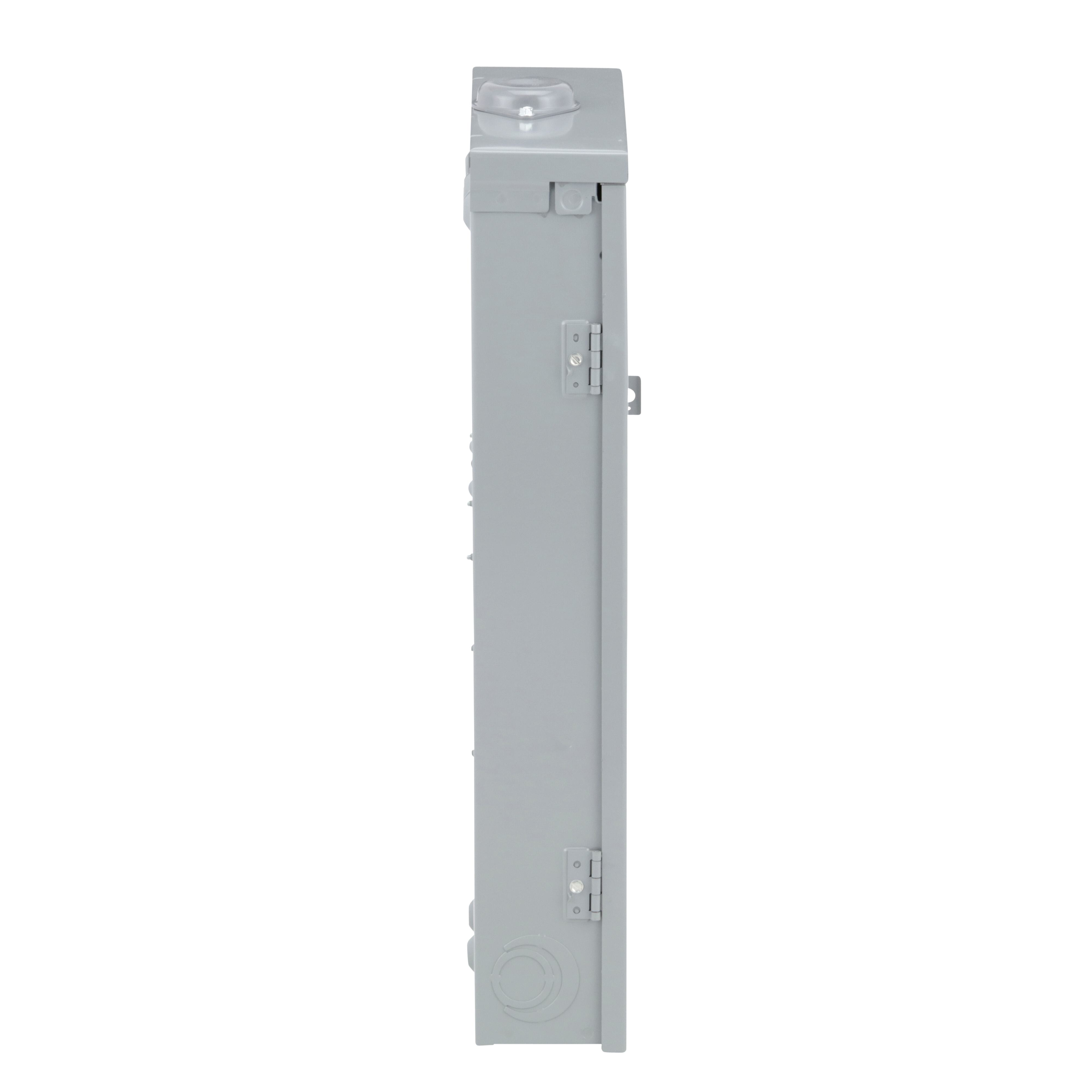

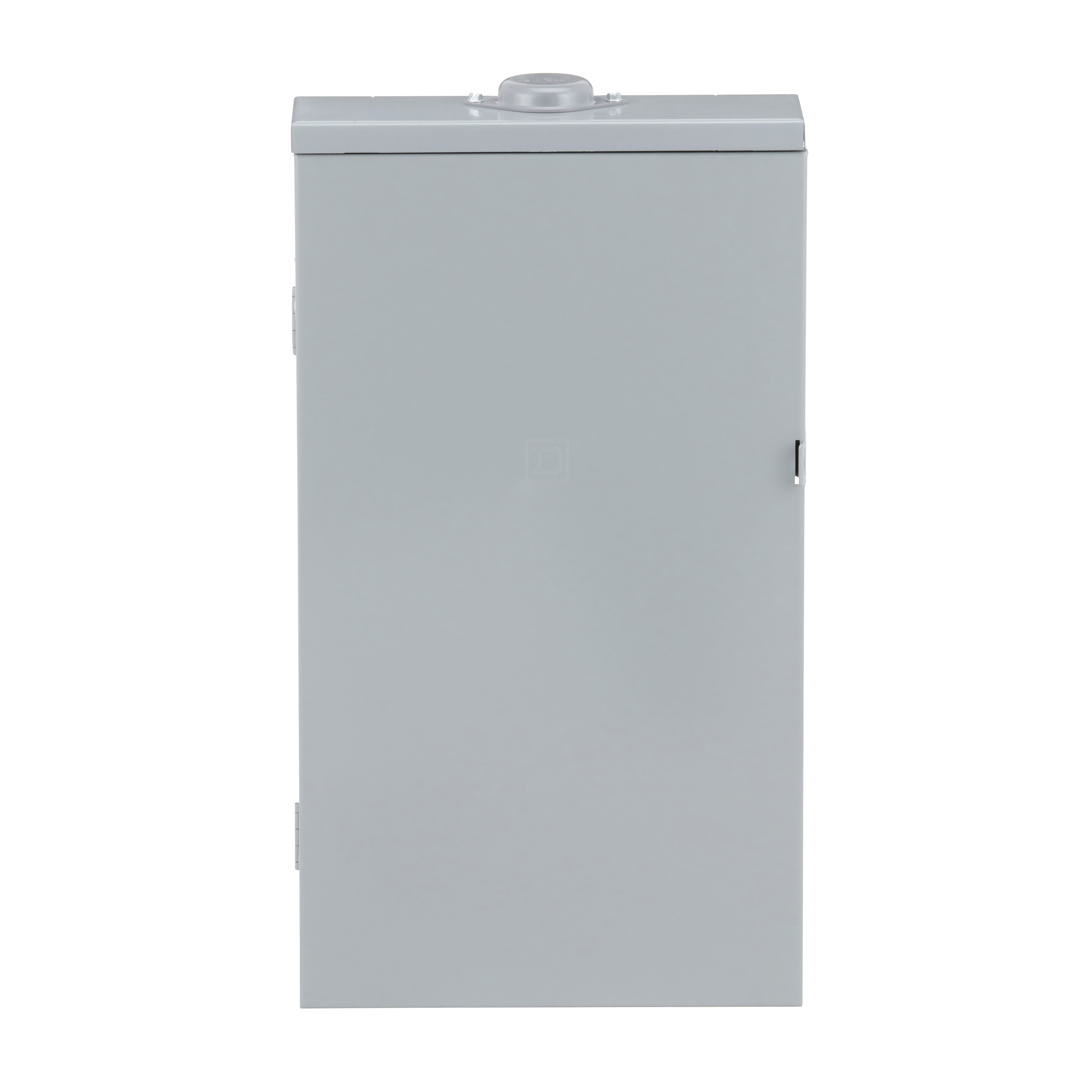

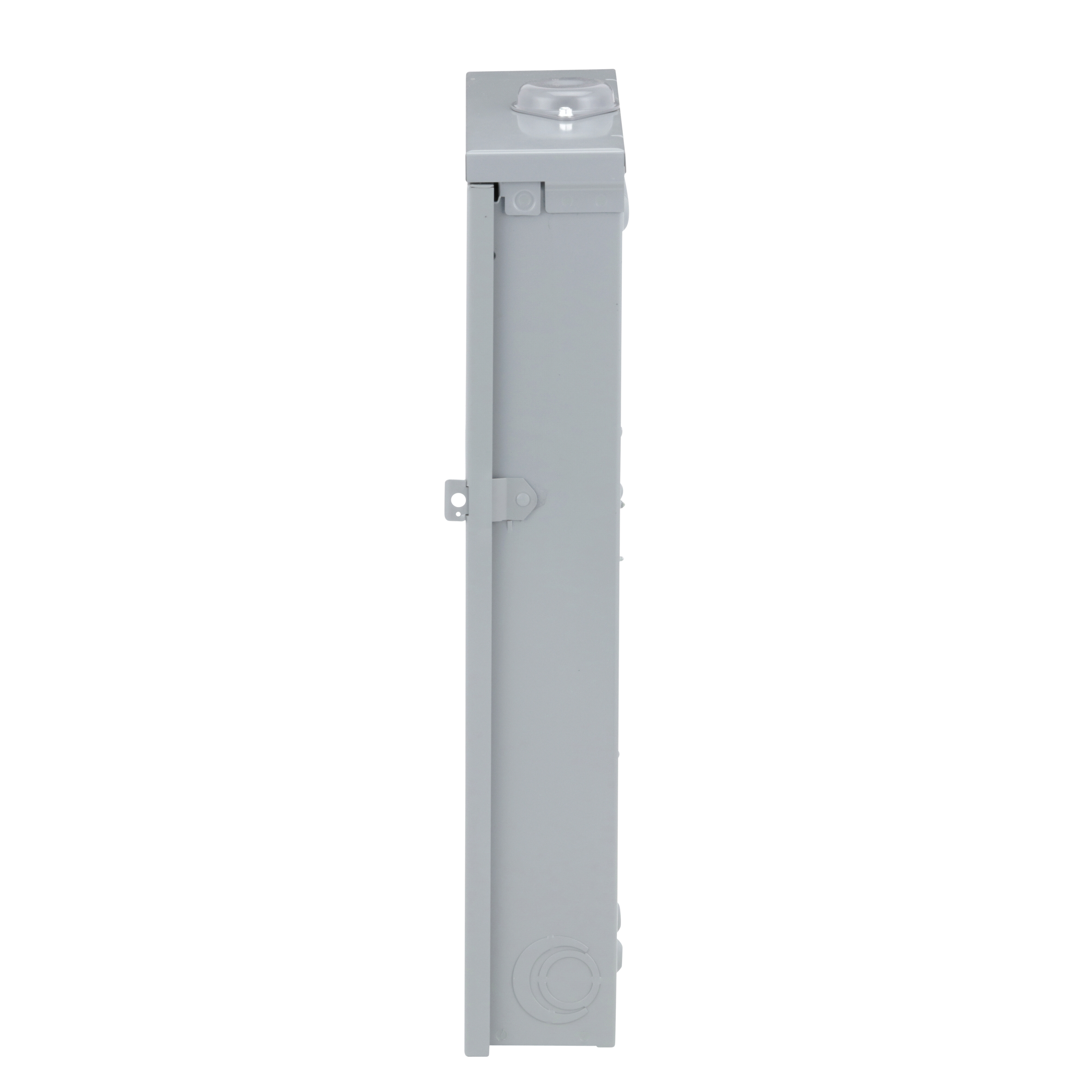

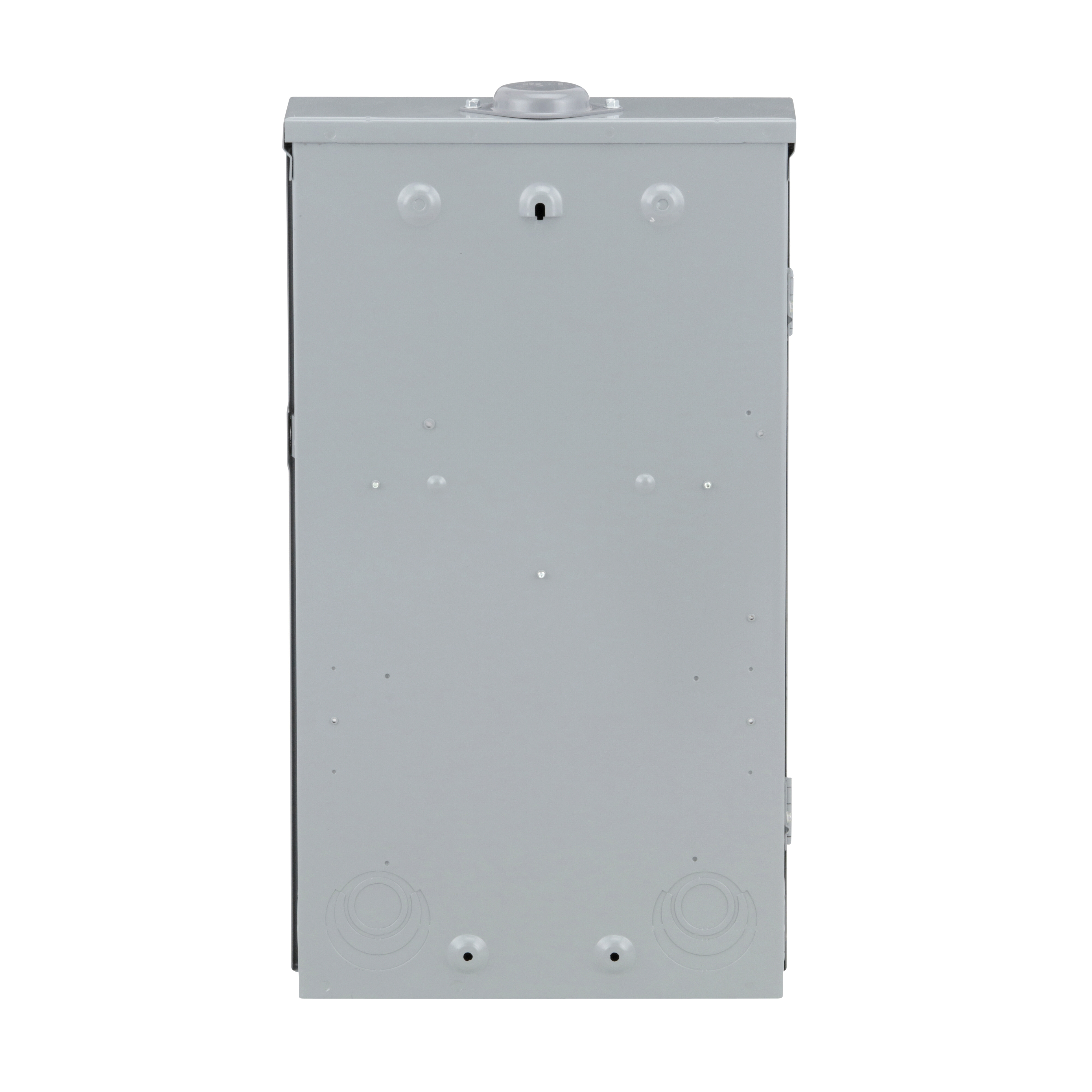

Square D™ HOM12L225PRB
Square D™ Homeline™ HOM12L225PRB 1-Phase Convertible Neutral Rainproof Main Lug Load Center With Rainproof Cover, 120/240 VAC, 225 A, 1 Poles, 10 kA Interrupt
Brand: Square D™
Item ID: 486710
MPN: HOM12L225PRB
UPC: 785901861102
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installation
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating convertible mains panels 180 deg
- Split branch neutral for clutter-free wiring
- Provisions for door lock on convertible mains panel covers
- Lug electrical connection
Description
Square D™ Homeline™ Main Lug Load Center, 1-Phase Convertible Neutral Rainproof, 120/240 VAC, 225 A, 1 Pole, 50/60 Hz, 10 kA Interrupt, 12 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 12 Spaces, 6 to 1 AWG/6 to 2/0 AWG Wire, Plug-On Mount, NEMA 3R, 5R Enclosure Box, Steel Housing, 14.75 in W x 4.52 in D x 26.04 in H
Specifications
Amperage Rating |
225 A |
Breaker Mounting |
Panel |
Breaker Type |
HOM |
Dimensions |
14.75 in W x 4.52 in D x 26.04 in H |
Enclosure Box Size |
5R |
Enclosure Type |
NEMA 3R |
Frequency Rating |
50/60 Hz |
Housing Material |
Steel |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Circuits |
12 |
Number of Poles |
1 |
Number of Spaces |
12 |
Type |
1-Phase Convertible Neutral Rainproof |
Voltage Rating |
120/240 VAC |
Wire Size |
6 to 1 AWG/6 to 2/0 AWG |
Wiring Configuration |
3-Wire |
Standard Approval |
BAA Compliant|UL File #E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people |
