Square D™ HOM2040M100PC1AVP

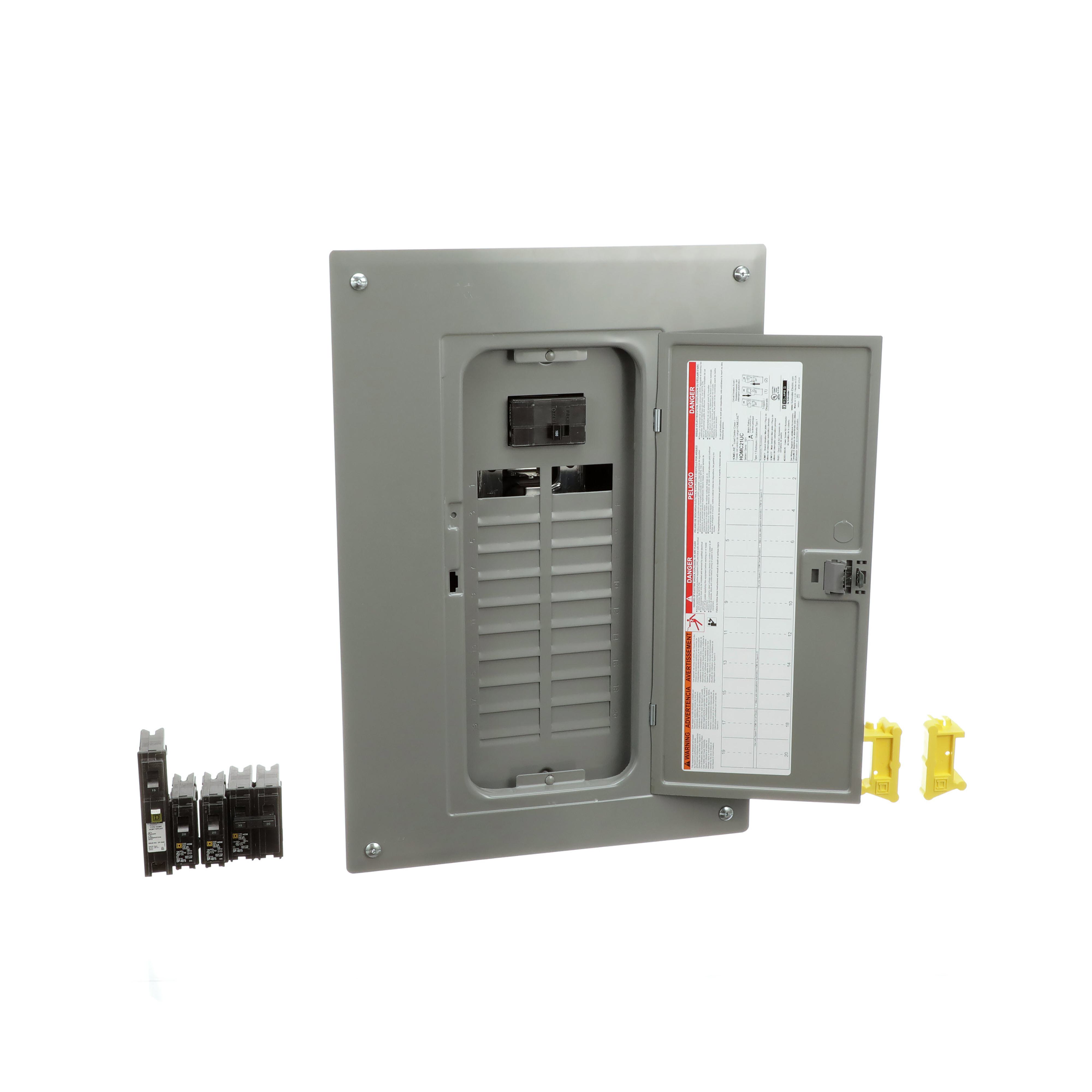

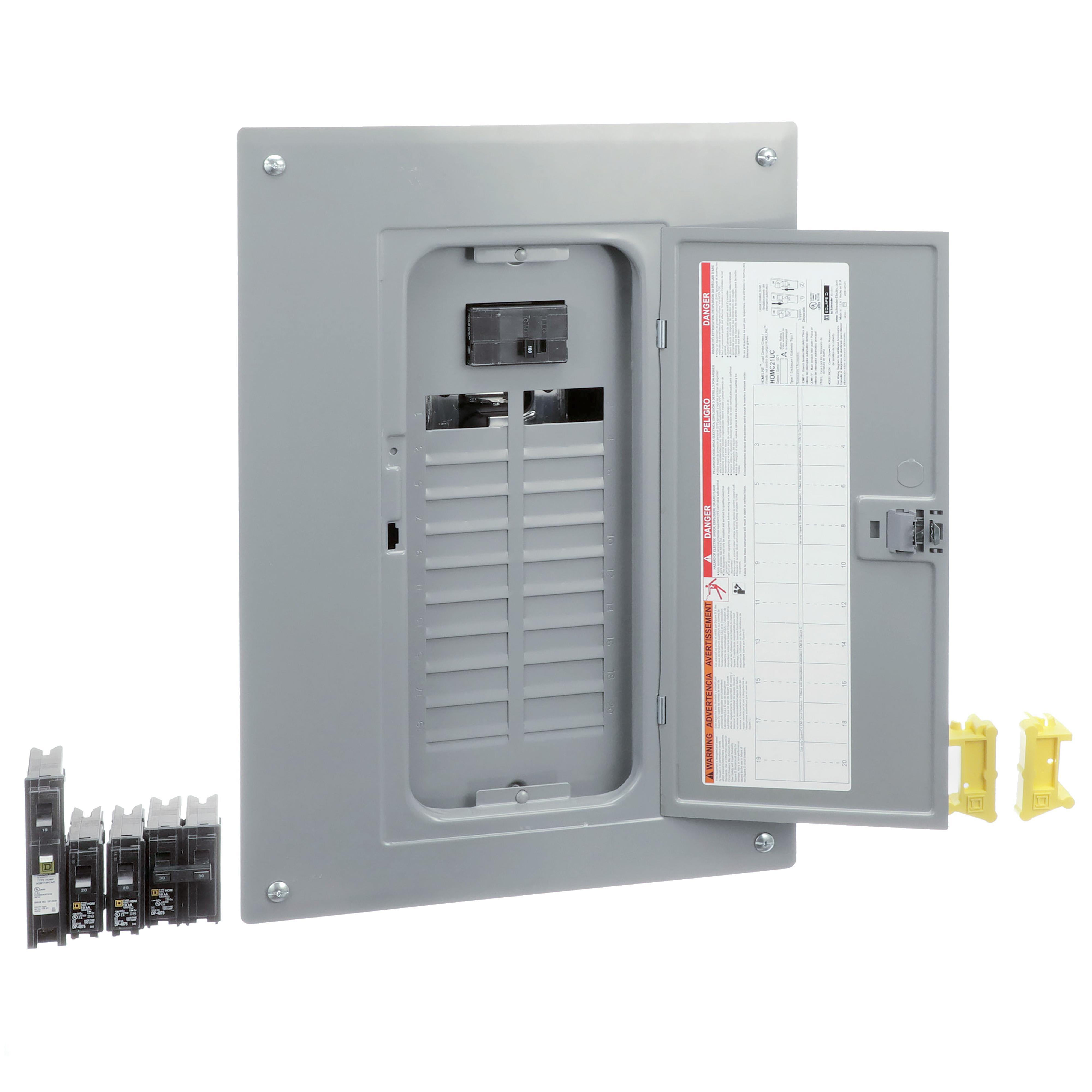

Square D™ Homeline™ HOM2040M100PC1AVP 1-Phase Convertible Value Pack Main Breaker Load Center With Combination Flush/Surface Cover, 120/240 VAC, 100 A, 22 kA Interrupt
Brand: Square D™
Item ID: 430771
MPN: HOM2040M100PC1AVP
UPC: 785901977353
Login for Price
Features
- Single captive screw interior mounting on indoor panels to ease removal
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating convertible mains panels 180 deg
- Straight in wiring to help minimize service cable installation
- Provisions for door lock on convertible mains panel covers
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel surface finish
- Tin plated aluminum busbar
Description
Square D™ Homeline™ Main Breaker Load Center, 1-Phase Convertible Value Pack, 120/240 VAC, 100 A, 50/60 Hz Frequency, 22 kA Interrupt, 40 Circuits, HOM Breaker, 3-Wire Wiring Configuration, 20 Spaces, 6 to 2/0 AWG Aluminum, 6 to 1/0 AWG Copper Wire, Flush Mounting, NEMA 1 Enclosure, 7 Enclosure Box, Sheet Steel Housing Material, 14.25 in W x 3.75 in D x 20.92 in H Dimensions
Specifications
Amperage Rating |
100 A |
Breaker Type |
HOM |
Dimensions |
14.25 in W x 3.75 in D x 20.92 in H |
Enclosure Box Size |
7 |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Sheet Steel |
Interrupt Rating |
22 kA |
Mounting Type |
Flush |
Number of Circuits |
40 |
Number of Spaces |
20 |
Type |
1-Phase Convertible Value Pack |
Voltage Rating |
120/240 VAC |
Wire Size |
6 to 2/0 AWG Aluminum, 6 to 1/0 AWG Copper |
Wiring Configuration |
3-Wire |
Standard Approval |
BAA Compliant|UL File #E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people |
