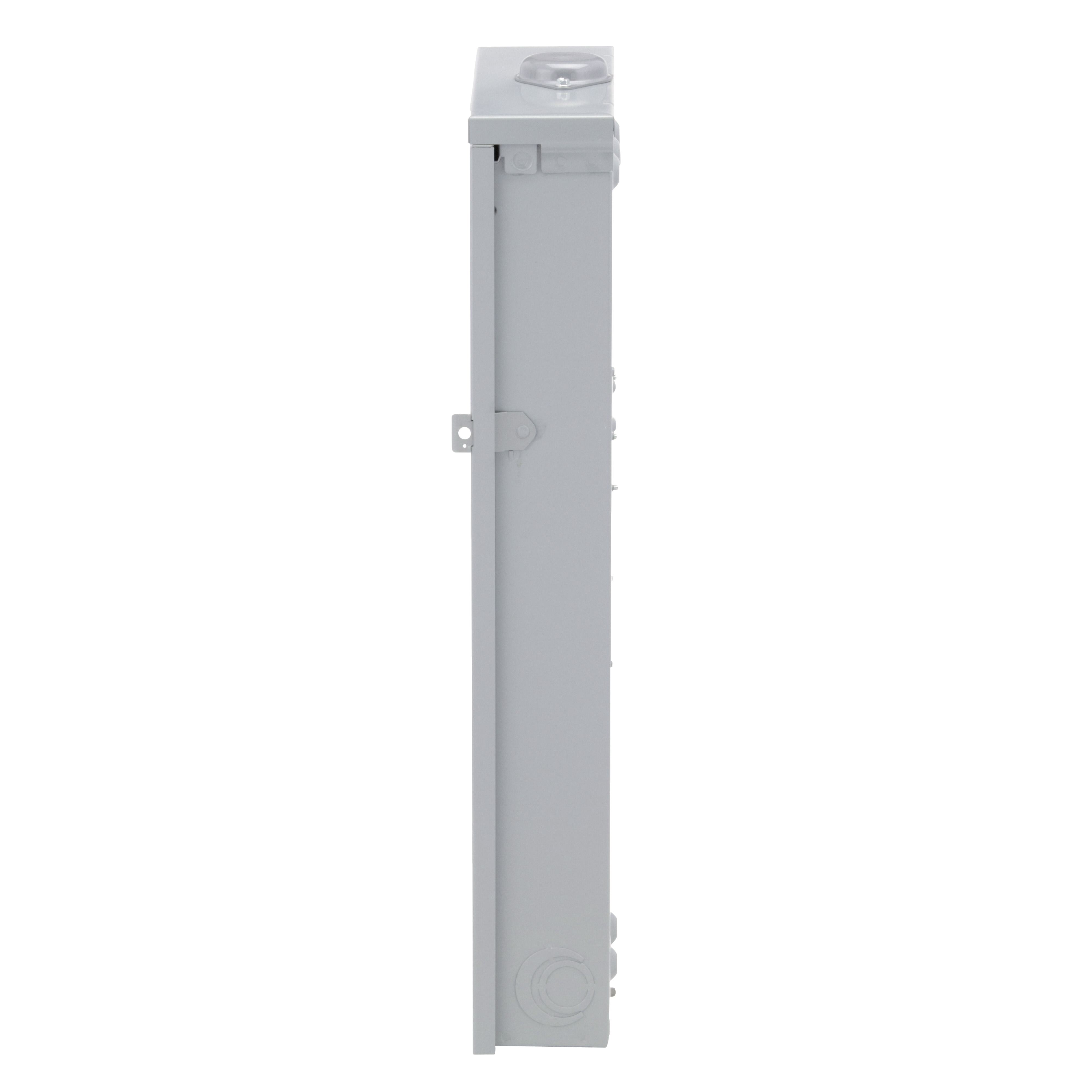

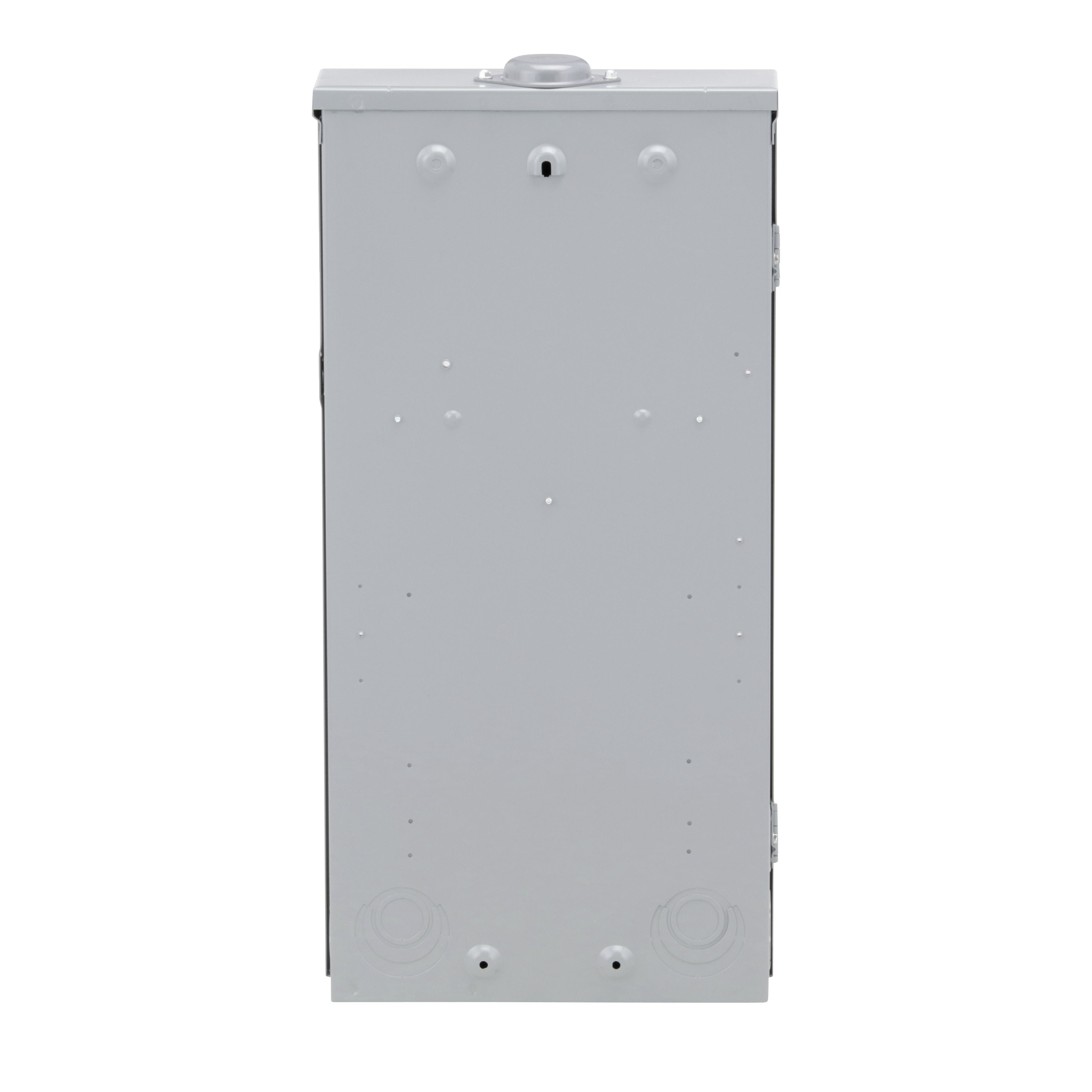

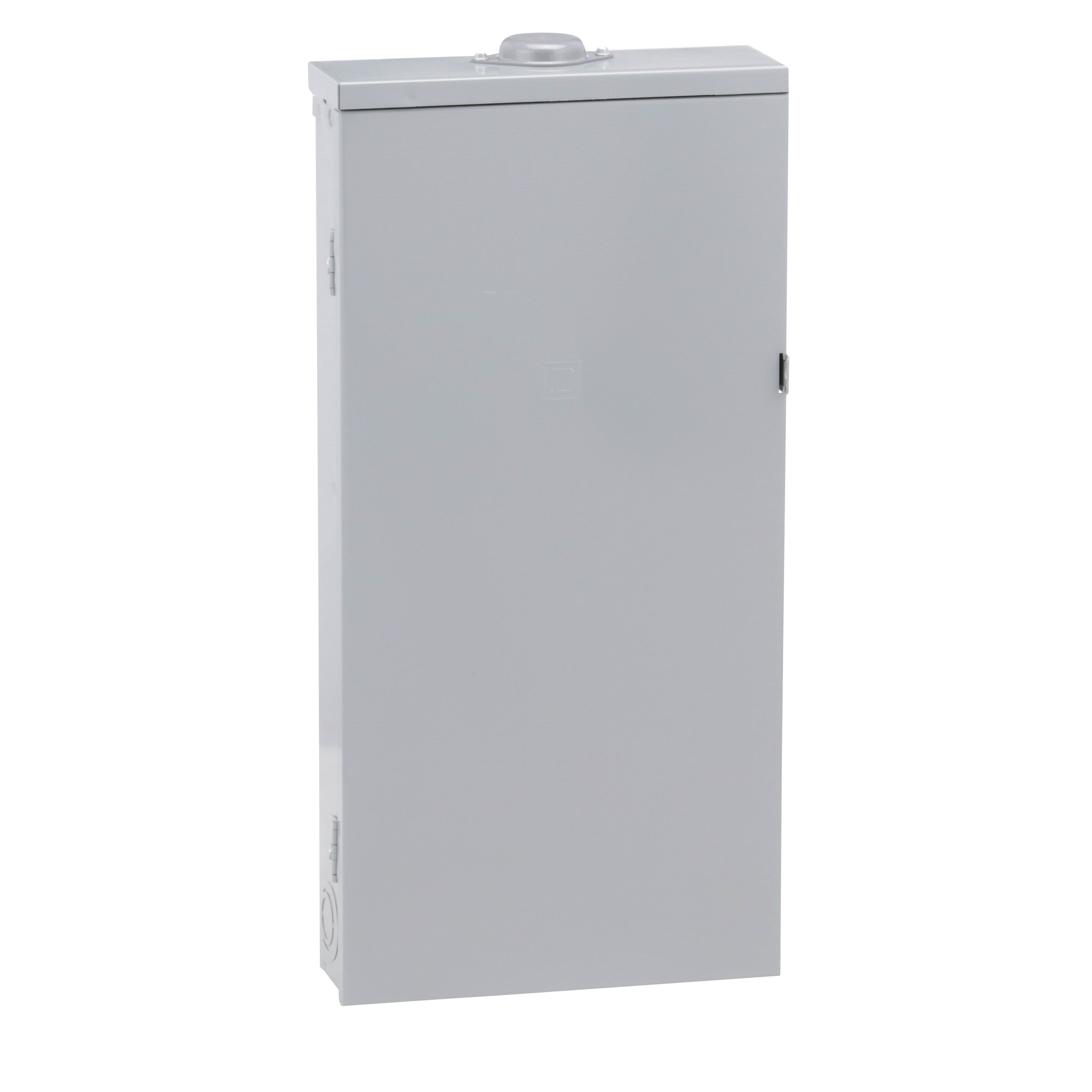

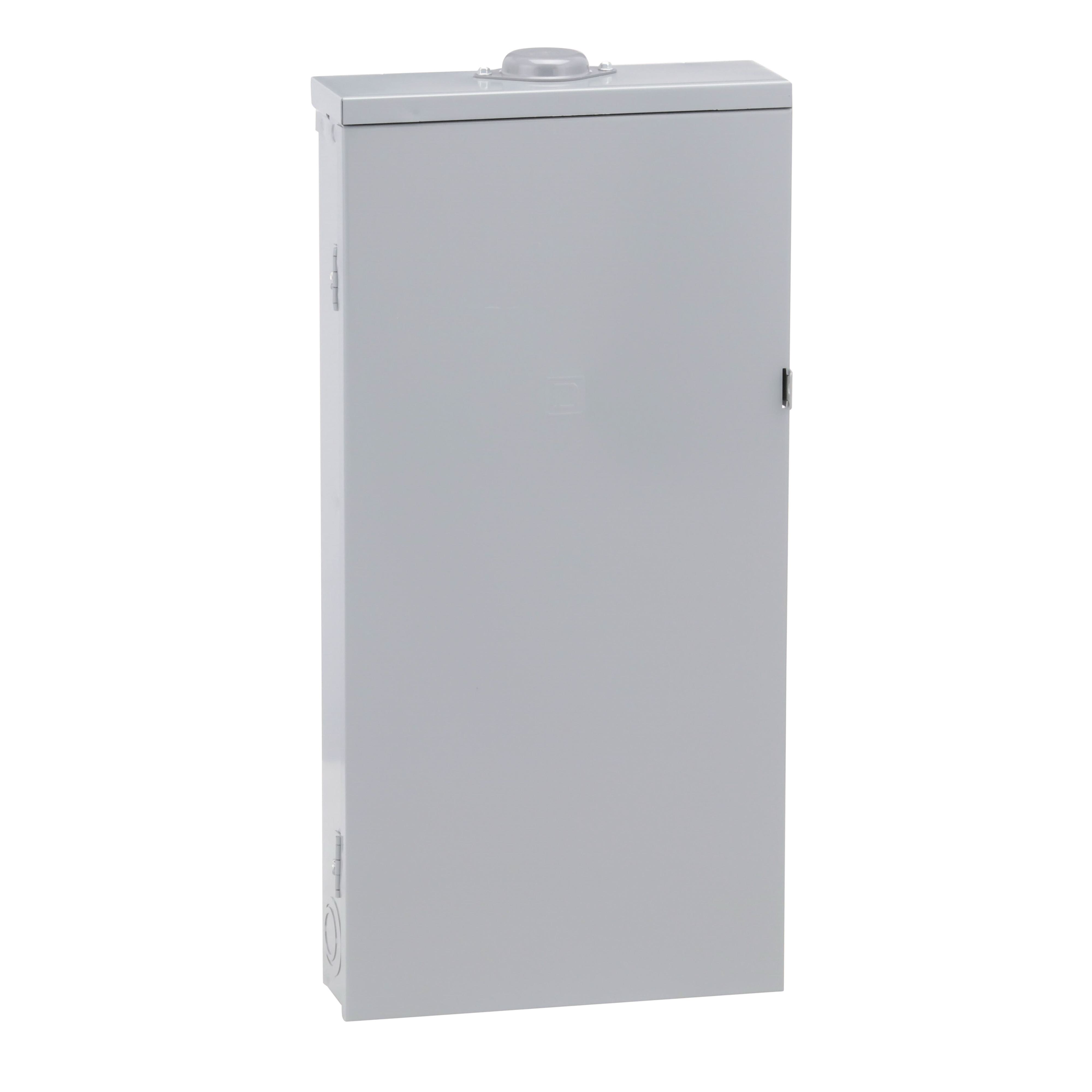

Square D™ Homeline™ HOM2040M200PRB 1-Phase Convertible Neutral Rainproof Main Breaker Loadcenter, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
Brand: Square D™
Item ID: 518445
MPN: HOM2040M200PRB
UPC: 785901977186
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installation
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating convertible mains panels 180 deg
- Split branch neutral for clutter-free wiring
- Provisions for door lock on convertible mains panel covers
- Lug electrical connection
Description
Square D™ Homeline™ Main Breaker Loadcenter, 1-Phase Convertible Neutral Rainproof, 120/240 VAC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 40 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 20 Spaces, 6 to 3 AWG, 6 to 1 AWG, 4 AWG to 250 kcmil Wire, Plug-On Mounting, NEMA 3R Enclosure, 6R Enclosure Box, Steel Housing Material, 14.75 in W x 4.52 in D x 29.86 in H Dimensions
Specifications
Amperage Rating |
200 A |
Breaker Mounting |
Panel |
Breaker Type |
HOM |
Dimensions |
14.75 in W x 4.52 in D x 29.86 in H |
Enclosure Box Size |
6R |
Enclosure Type |
NEMA 3R |
Frequency Rating |
50/60 Hz |
Housing Material |
Steel |
Interrupt Rating |
22 kA |
Mounting Type |
Plug-On |
Number of Circuits |
40 |
Number of Poles |
1 |
Number of Spaces |
20 |
Type |
1-Phase Convertible Neutral Rainproof |
Voltage Rating |
120/240 VAC |
Wire Size |
6 to 3 AWG, 6 to 1 AWG, 4 AWG to 250 kcmil |
Wiring Configuration |
3-Wire |
Standard Approval |
RoHS Compliant|Buy American Act Compliant|UL File No. E6294|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people |
