Square D™ Homeline™ HOM2100 Standard Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, 2 Poles, Instantaneous/Long Time/Thermal Magnetic Trip
Brand: Square D™
Item ID: 52347
MPN: HOM2100
Login for Price
Features
- Square D™ is the industry leader in circuit protection with a long standing reputation for quality and reliability
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Square D™ Homeline™ circuit breakers are in a 1 in wide format for 1-pole circuit breakers
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.

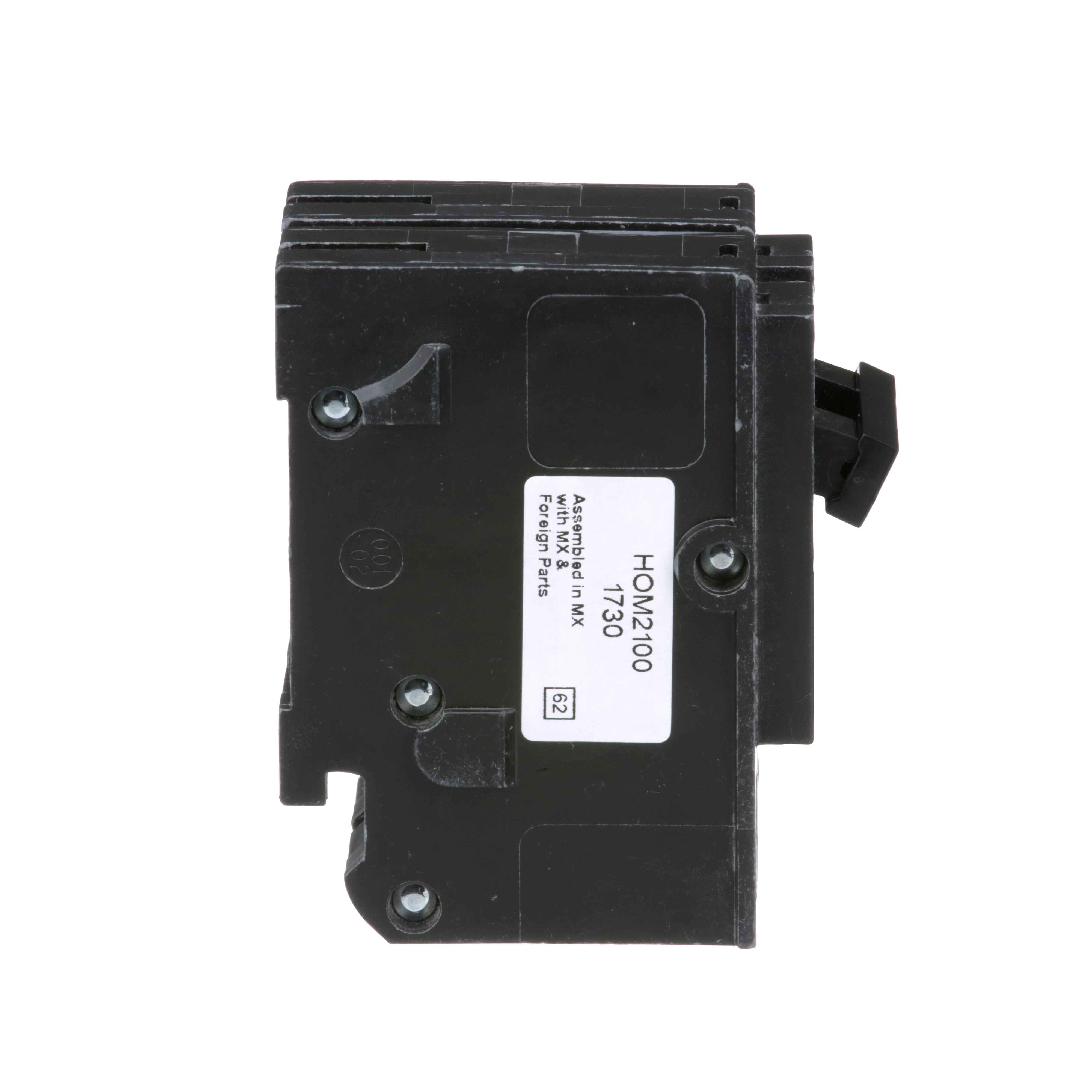

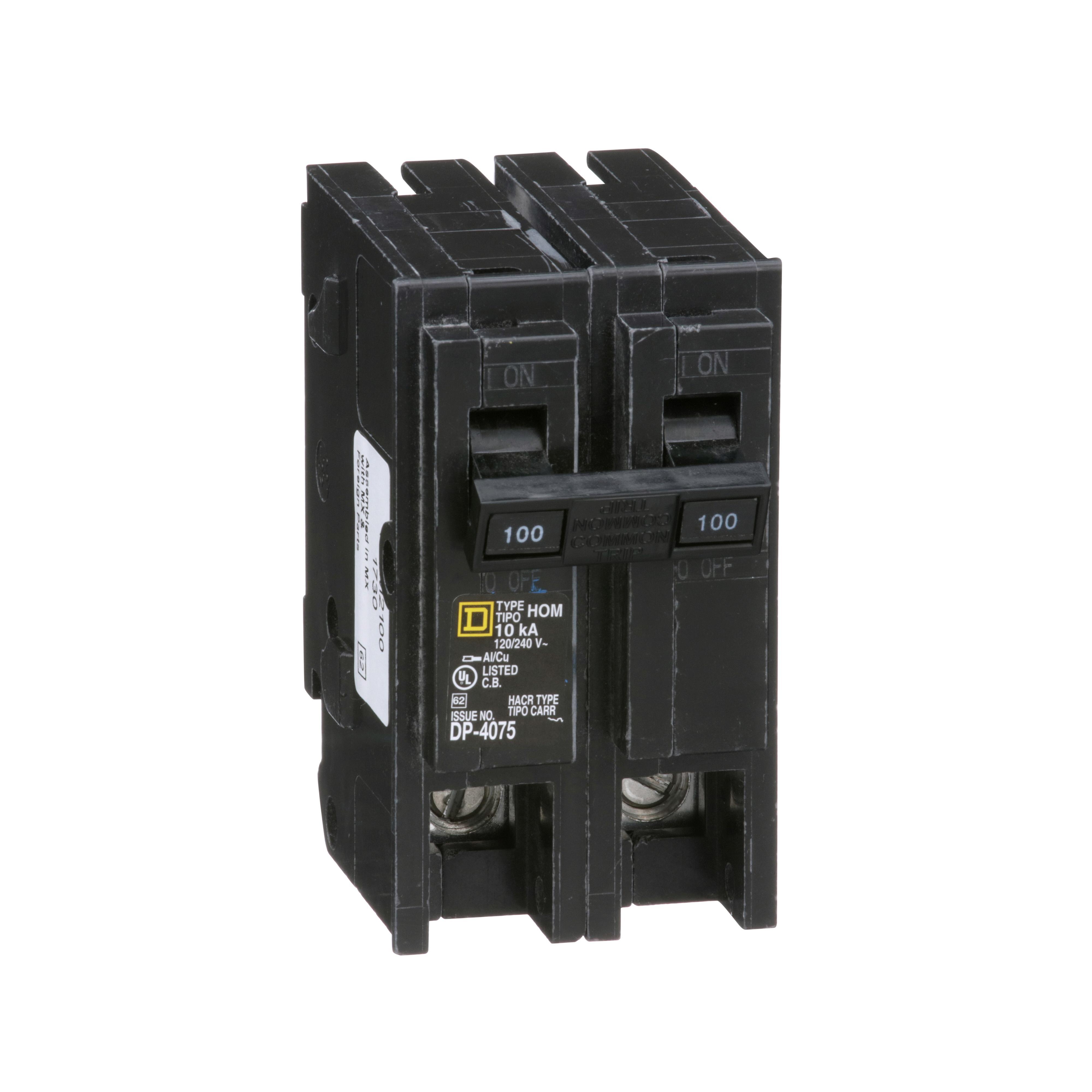

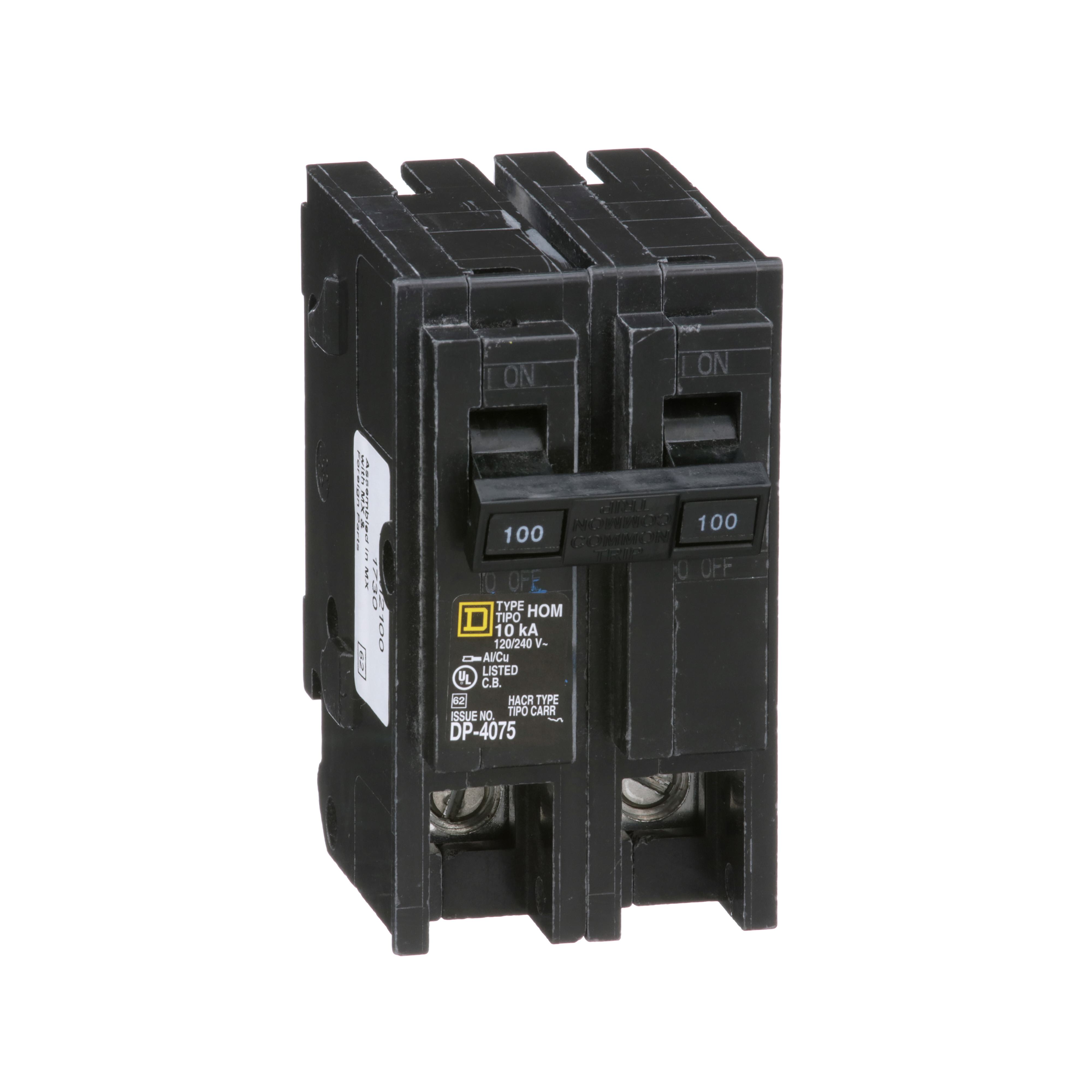

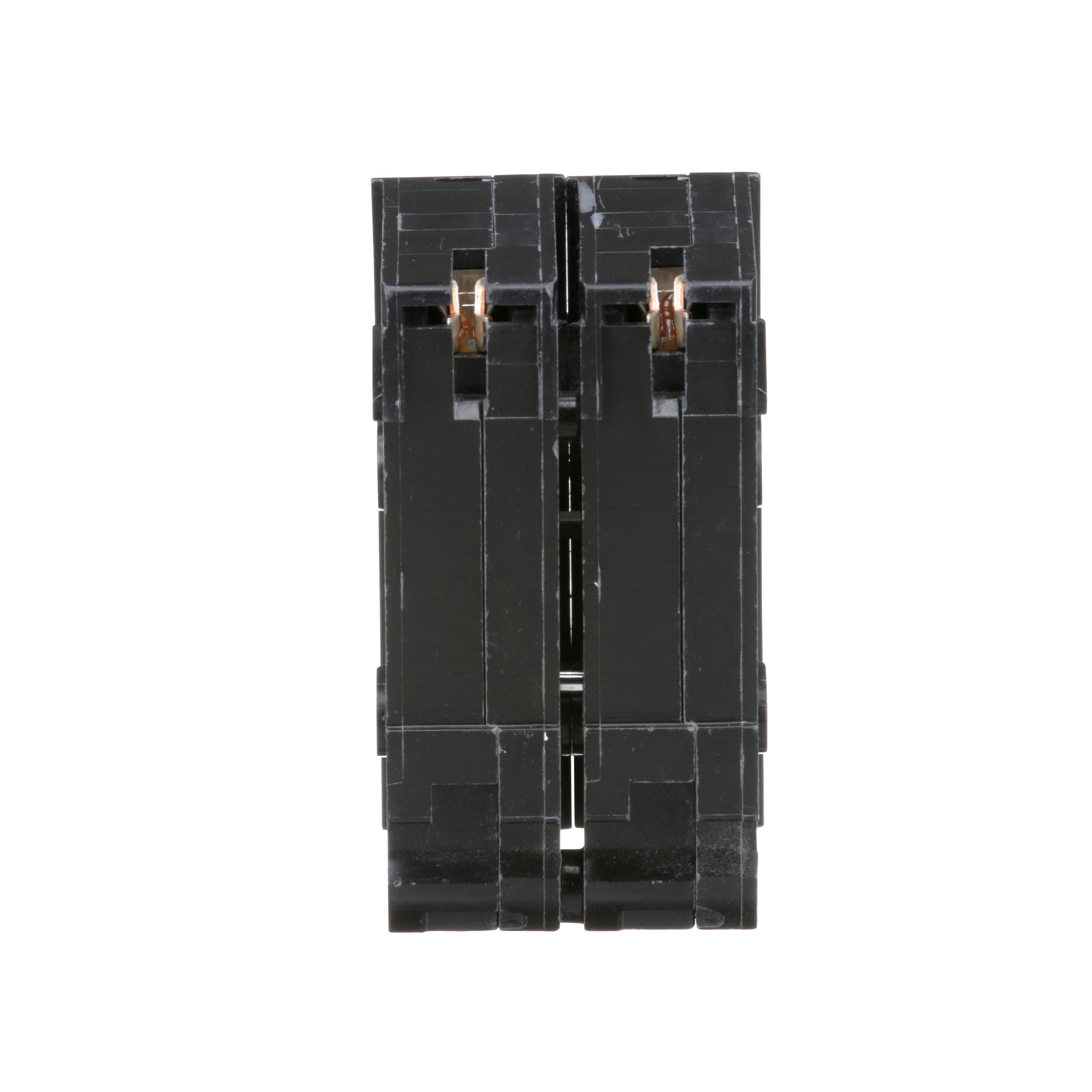

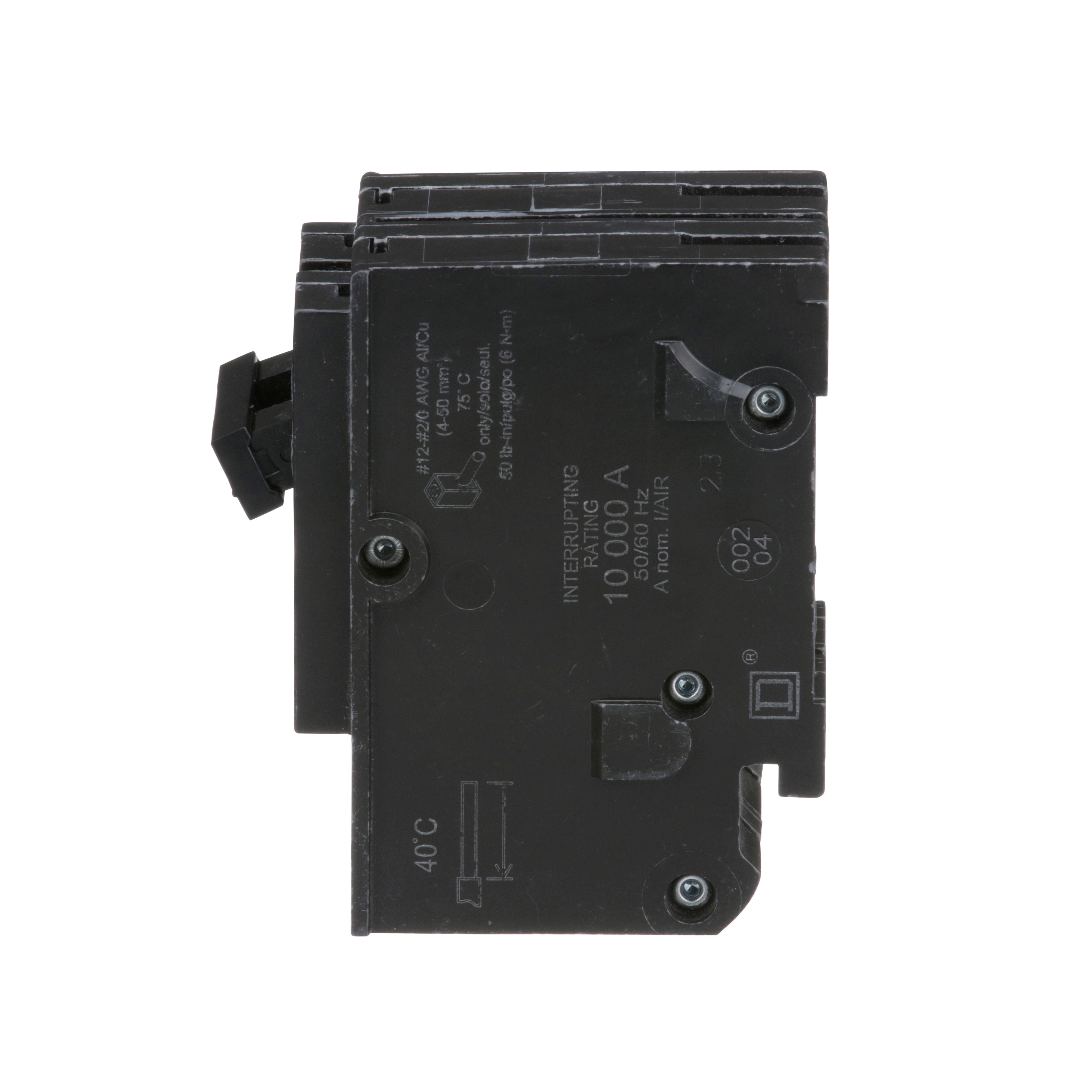

Square D™ Homeline™ Miniature Circuit Breaker, Standard, 120/240 VAC, 100 A, 50/60 Hz, 10 kA Interrupt, Instantaneous/Long Time/Thermal Magnetic Trip, 2 Pole, 1 ph, Terminal Screw, 4 to 2/0 AWG Wire, Plug-On Mount, 104 deg F, 2.98 in L x 2 in W x 3.13 in H
Specifications
Amperage Rating |
100 A |
Connection Type |
Terminal Screw |
Dimensions |
2.98 in L x 2 in W x 3.13 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
104 deg F |
Trip Type |
Instantaneous/Long Time/Thermal Magnetic |
Type |
Standard |
Voltage Rating |
120/240 VAC |
Wire Size |
4 to 2/0 AWG |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|HACR Rated|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f9526878e3ba5e4ea004c9fb6be531e279498f7f4cf8574b98cd844f1eb3fc82.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_926bc187891b24ab86a1e1ab5cfb527079d7be3c9c199fe5e6fee5a99e996364.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM2100_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Telemecanique_XMLR2D5G1N26_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_375eaddaee16a87e6f4f3f6f33ccb3b13f7e06b348e7847eb3e0598f8c6f1f71.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM2100_Specification_Sheet.pdf
