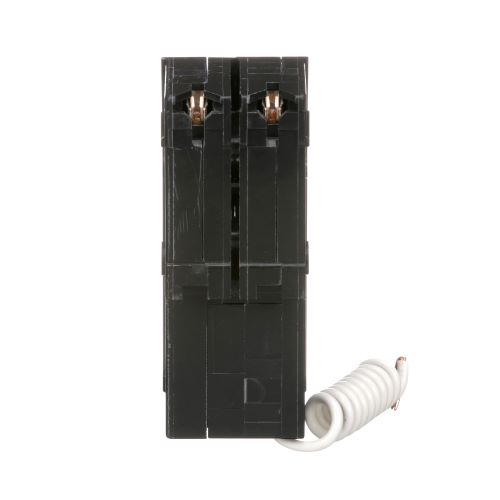

Square D™ HOM215CAFI
Square D™ HomeLine™ HOM215CAFI Combination Miniature Arc Fault Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, Instantaneous/Long Time/Thermal Magnetic Trip
Brand: Square D™
Item ID: 427816
MPN: HOM215CAFI
Login for Price
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ HomeLine™ Combination Miniature Arc Fault Circuit Breaker, 120/240 VAC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, Instantaneous/Long Time/Thermal Magnetic Trip, 2 Pole, 1 ph, Clamp Connection, 14 to 8/14 to 10 AWG Wire, Plug-In Mounting, 40 deg C, 2.98 in L x 2 in W x 3.13 in H Dimensions
Specifications
Amperage Rating |
15 A |
Connection Type |
Clamp |
Dimensions |
2.98 in L x 2 in W x 3.13 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Type |
Instantaneous/Long Time/Thermal Magnetic |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 8/14 to 10 AWG |
Standard Approval |
Buy American Act Compliant|CSA Certified|HACR Rated|RoHS Compliant|UL 1699|NEC Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
Air Conditioning, Heating and Refrigeration Equipment Having Motor Group Combination |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220CAFI_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU370_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215CAFI_RoHS.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e867daa790874d5c875d4fc3542a7daee94bc2dc1717a05574dfff4c38298b2e.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_98c2735b771e03341b87e8cd19862587507fc7dc1ef096216a20d9402986b4bf.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215CAFI_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO220CAFI_Technical_Bulletin.pdf
VIDEO LINK
https://www.youtube.com/embed/aVvIVVo14po
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Warranty.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf
