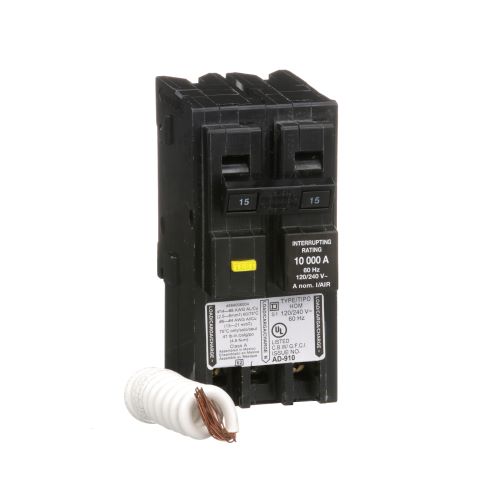

Square D™ HOM215GFI
Square D™ Homeline™ HOM215GFI Class A Ground Fault Protecting Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Brand: Square D™
Item ID: 52352
MPN: HOM215GFI
Login for Price
Features
- Ground fault protecting class A 6 mA
- HACR rated
- Al/Cu wire
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ Homeline™ Miniature Circuit Breaker, Class A Ground Fault Protecting, Series: HOM, 120/240 VAC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Terminal Screw, 12 to 4 AWG, 14 to 6 AWG Wire, NEMA 1/2, Plug-In Mount, 75 deg C, 2.98 in L
Specifications
Amperage Rating |
15 A |
Connection Type |
Terminal Screw |
Dimensions |
2.98 in L |
Enclosure Type |
NEMA 1/2 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Phase |
1 ph |
Series |
HOM |
Temperature Rating |
75 deg C |
Trip Type |
Thermal Magnetic |
Type |
Class A Ground Fault Protecting |
Voltage Rating |
120/240 VAC |
Wire Size |
12 to 4 AWG, 14 to 6 AWG |
Standard Approval |
UL E-6294, Federal Specifications W-P-115b|NEC|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant |
Application |
For providing overload and short circuit protection and AC systems |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_329dac7a30b1c43288fb6a8d624ce71e75d089a3b3c505cf3b354dddb3811019.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM250GFI_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a9252263b82e055d76369e4ef47593f618add540660345f261d1598f8ced0bdc.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM250GFI_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215GFI_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e5377e5a496fb3ba5a3443661f4ba52fba0cb7247dbb4b782473152ebec18f09.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215GFI_Specification_Sheet.pdf
