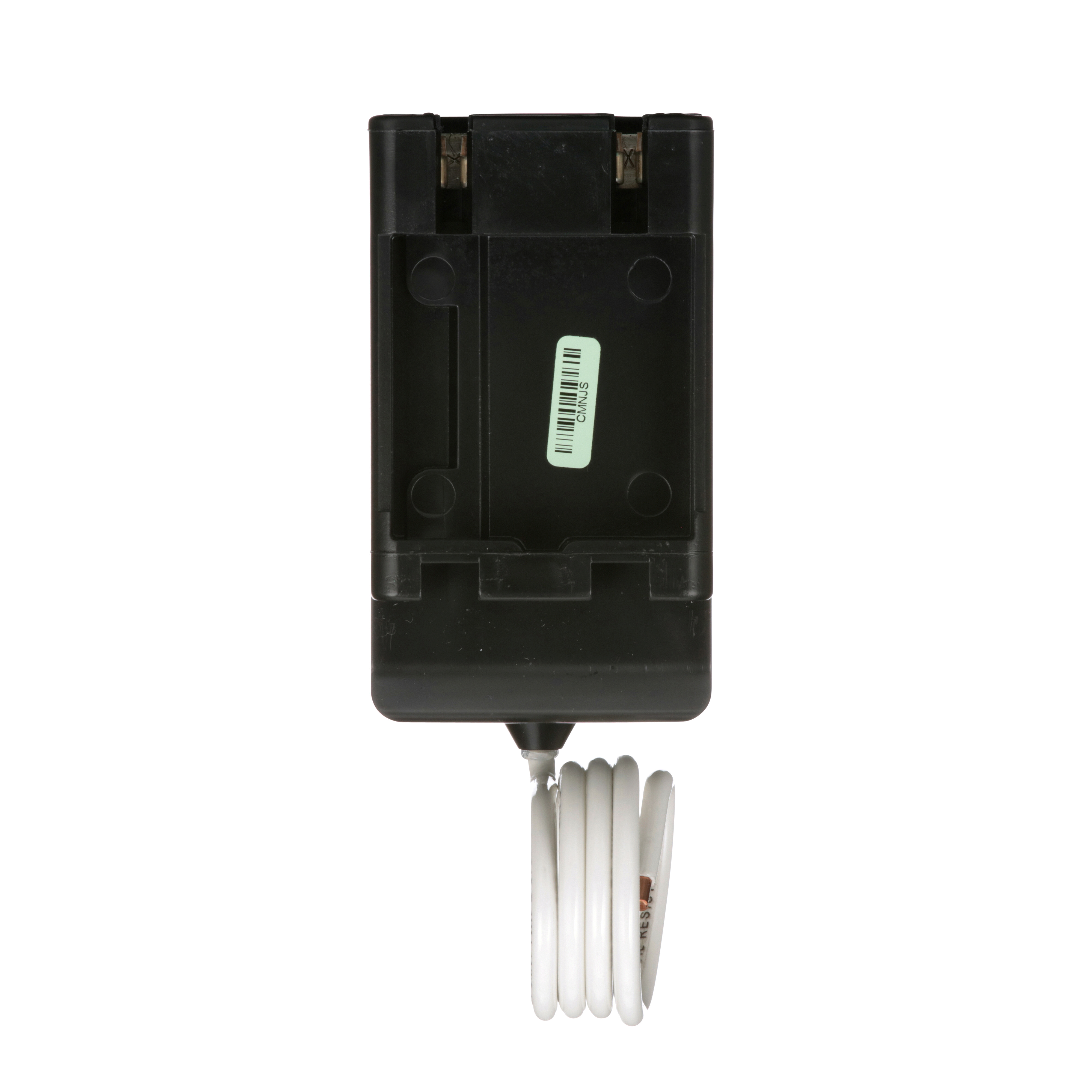

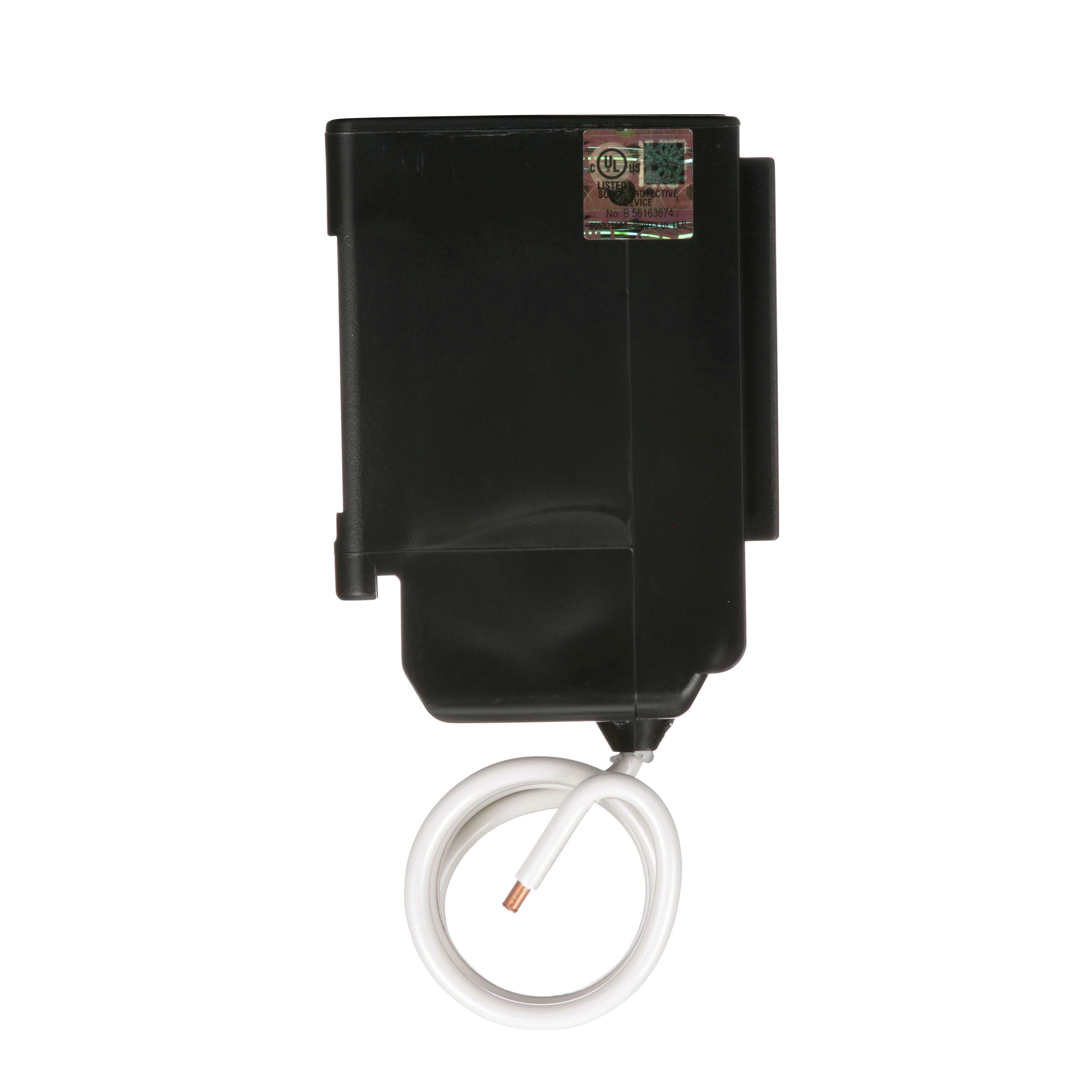

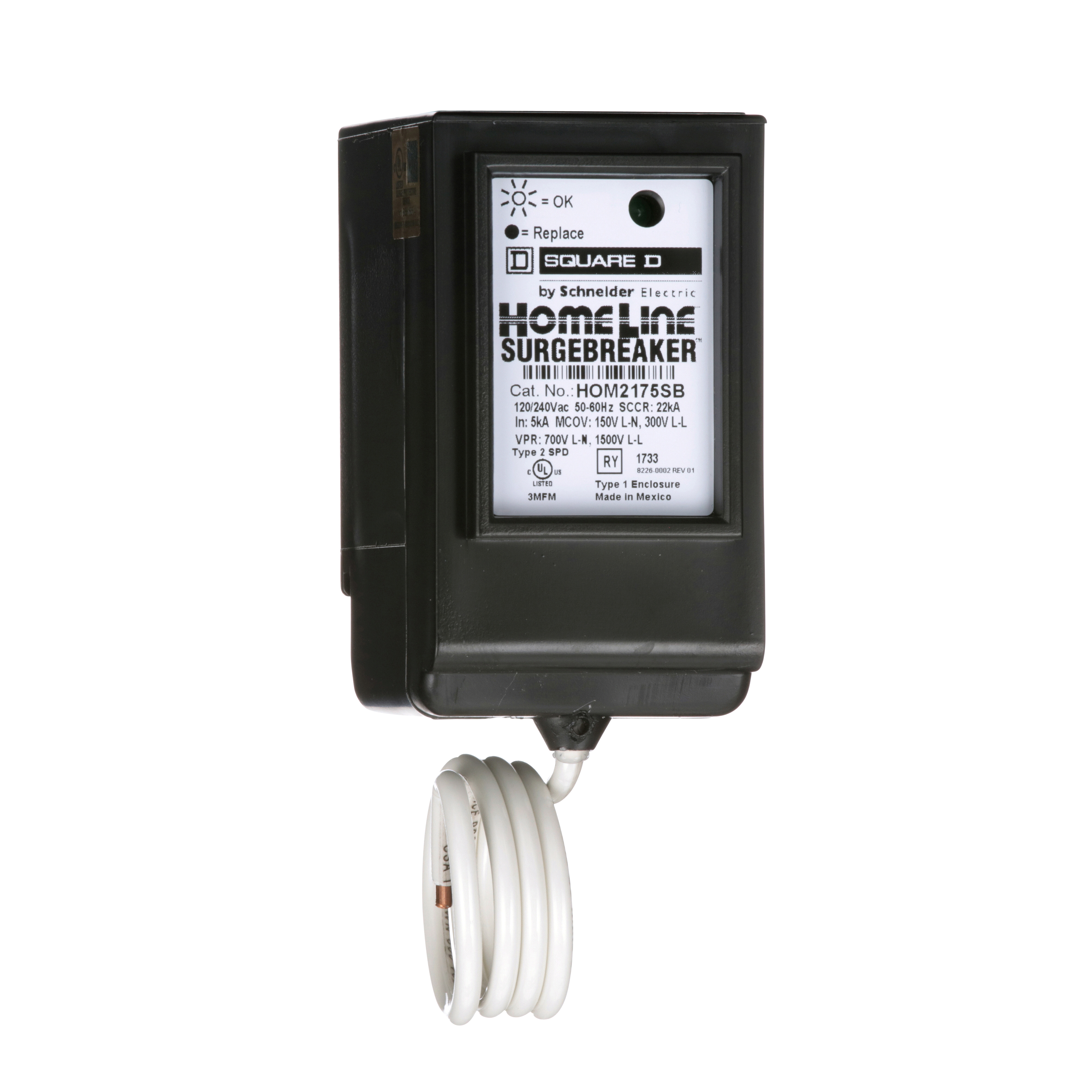

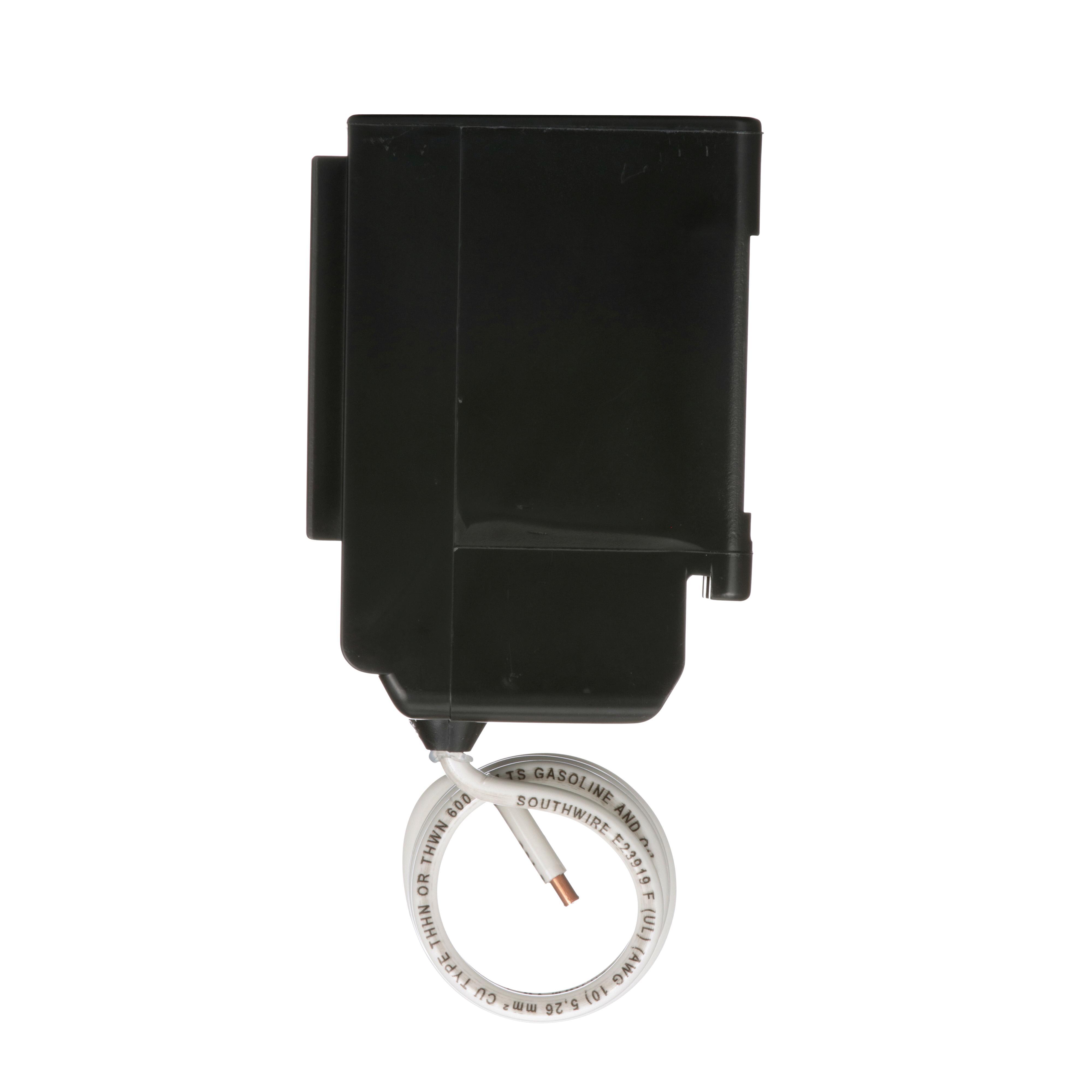

Square D™ HOM2175SB
Square D™ HOM2175SB 2-Space Secondary SPD Type 2 Surge Protection Module, Electrical Ratings: 175 VAC, 50/60 Hz, 22 kA Short Circuit, 1 Phase
Brand: Square D™
Item ID: 52353
MPN: HOM2175SB
Login for Price
Features
- LED indicator shows operational status of the unit
- Type 2 rated device with led indicator shows operational status of the unit
Description
Plug-in unit that installs as easily as a circuit breaker. Uses 2-pole spaces for use in load centers and panelboards. Provides surge suppression for most secondary distribution wiring. Square D™ brand Homeline™ load center products feature compact and affordable Surge Protective Devices (SPDs). HOM2175SB SPDs offer a simple means to bring down initial surges to manageable levels and can offer additional value in a cascaded SPD system. HOM2175SB SPDs Square D™ brand Surgelogic™ Homeline™ load center SPDs utilize high-energy circuitry that provides surge suppression from severe transient activity. Each MOV is individually fused. Directly connected to the equipment bus, the HOM2175SB delivers superior surge suppression performance by providing the shortest lead lengths. Quick plug-on device for use in a Homeline™ load center. The SPD requires two adjacent mounting spaces.
Square D™, HOM2175SB, Surge Protection Module, 2-Space Secondary SPD Type 2, 175 VAC Electrical Rating, 50/60 Hz Frequency, 3 Wires, 22 kA Short Circuit, 22.5 kA Peak Surge Current, 150/300 VAC Clamping, LED Indicator, 1 ph, Environmental Conditions: 149 deg F Operating Temperature, NEMA 1 Enclosure, Plastic, 2 in W x 2.6 in D x 3.7 in H Dimensions
Specifications
Clamping Voltage |
150/300 VAC |
Dimensions |
2 in W x 2.6 in D x 3.7 in H |
Electrical Ratings |
175 VAC |
Enclosure Type |
NEMA 1 |
Environmental Conditions |
149 deg F Operating Temperature |
Frequency Rating |
50/60 Hz |
Indicator Type |
LED |
Material |
Plastic |
Number of Wires |
3 |
Peak Surge Current |
22.5 kA |
Phase |
1 |
Short Circuit Current Rating |
22 kA |
Type |
2-Space Secondary SPD Type 2 |
Standard Approval |
ANSI/IEEE C62.11-1987|CAN/CSA C223.1-87|cUL Listed|NEC 285|UL 1449|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For surge suppression of 1-phase, 3-wire, 120/240 VAC, 50/60 Hz electrical services and appliances and load centers and CSEDS |
