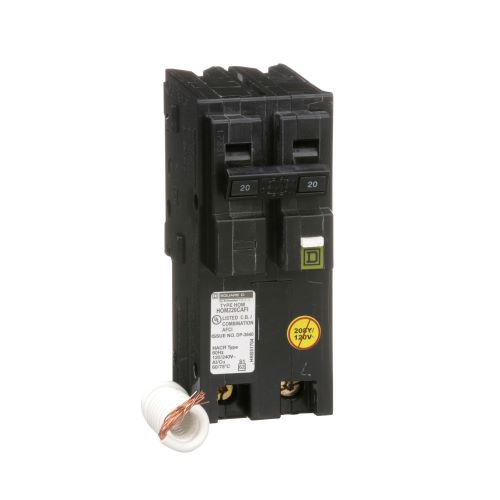

Square D™ HOM220CAFI
Square D™ HomeLine™ HOM220CAFI Combination Miniature Arc Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Micrologic LI Trip
Brand: Square D™
Item ID: 427818
MPN: HOM220CAFI
Login for Price
Features
- Plug-on design, easy to install
- Compatible with QO™ load centers
- Provide overload and short circuit protection and plus ARC-Fault protection
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ HomeLine™ Combination Miniature Arc Fault Circuit Breaker, 120/240 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Micrologic LI Trip, 2 Pole, 1 ph, Clamp Connection, 14 to 8/14 to 10 AWG Wire, Plug-In Mounting, 40 deg C, 2.98 in L x 2 in W x 3.13 in H Dimensions
Specifications
Amperage Rating |
20 A |
Connection Type |
Clamp |
Dimensions |
2.98 in L x 2 in W x 3.13 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Type |
Micrologic LI |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 8/14 to 10 AWG |
Standard Approval |
ANSI Specified|Buy American Act Compliant|CSA Certified|HACR Rated|RoHS Compliant|UL 1699|W-C-375B/GEN|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RDLED4R12D_50N_B_B_Installation_Sheet.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220CAFI_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU370_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220CAFI_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220CAFI_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO220CAFI_Technical_Bulletin.pdf
