Square D™ HOM230GFI

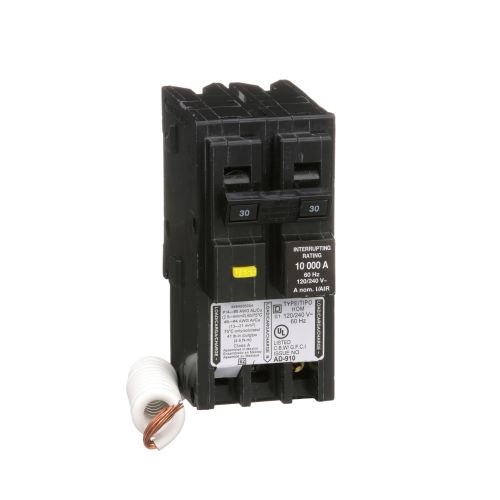

Square D™ Homeline™ HOM230GFI Class A Ground Fault Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Long Time/Instantaneous Trip
Brand: Square D™
Item ID: 52361
MPN: HOM230GFI
Login for Price
Features
- Square D™ is the industry leader in circuit protection with a long standing reputation for quality and reliability
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- HOM-GFI circuit breakers provide overload and short circuit protection, combined with class a ground fault protection
- Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 mA or more
- Ground fault protecting class A 6 mA
- Al/Cu wire
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ Homeline™ Miniature Circuit Breaker, Class A Ground Fault, Series: HOM, 120/240 VAC, 30 A, 50/60 Hz, 10 kA Interrupt, Long Time/Instantaneous Trip, 2 Pole, 1 ph, Terminal Screw, 14 to 6 AWG, 12 to 4 AWG Wire, Plug-In Mount, 40 deg C, 2.98 in L x 2 in W x 3.13 in H
Specifications
Amperage Rating |
30 A |
Connection Type |
Terminal Screw |
Dimensions |
2.98 in L x 2 in W x 3.13 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Phase |
1 ph |
Series |
HOM |
Temperature Rating |
40 deg C |
Trip Type |
Long Time/Instantaneous |
Type |
Class A Ground Fault |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 6 AWG, 12 to 4 AWG |
Standard Approval |
RoHS Compliant|UL Listed|HACR Rated|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For Homeline™ load centers and providing overload and short circuit protection |
