Square D™ HOM240

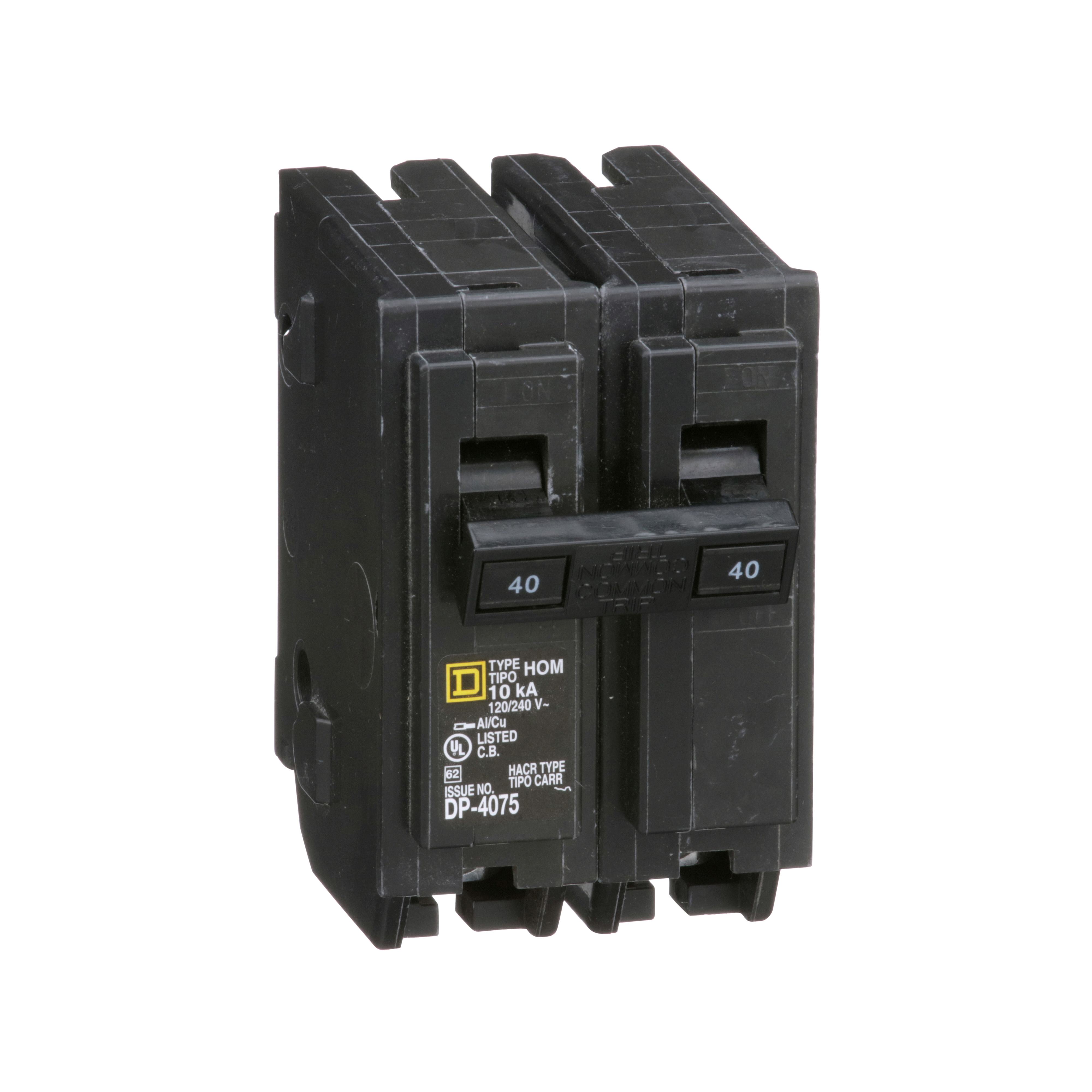

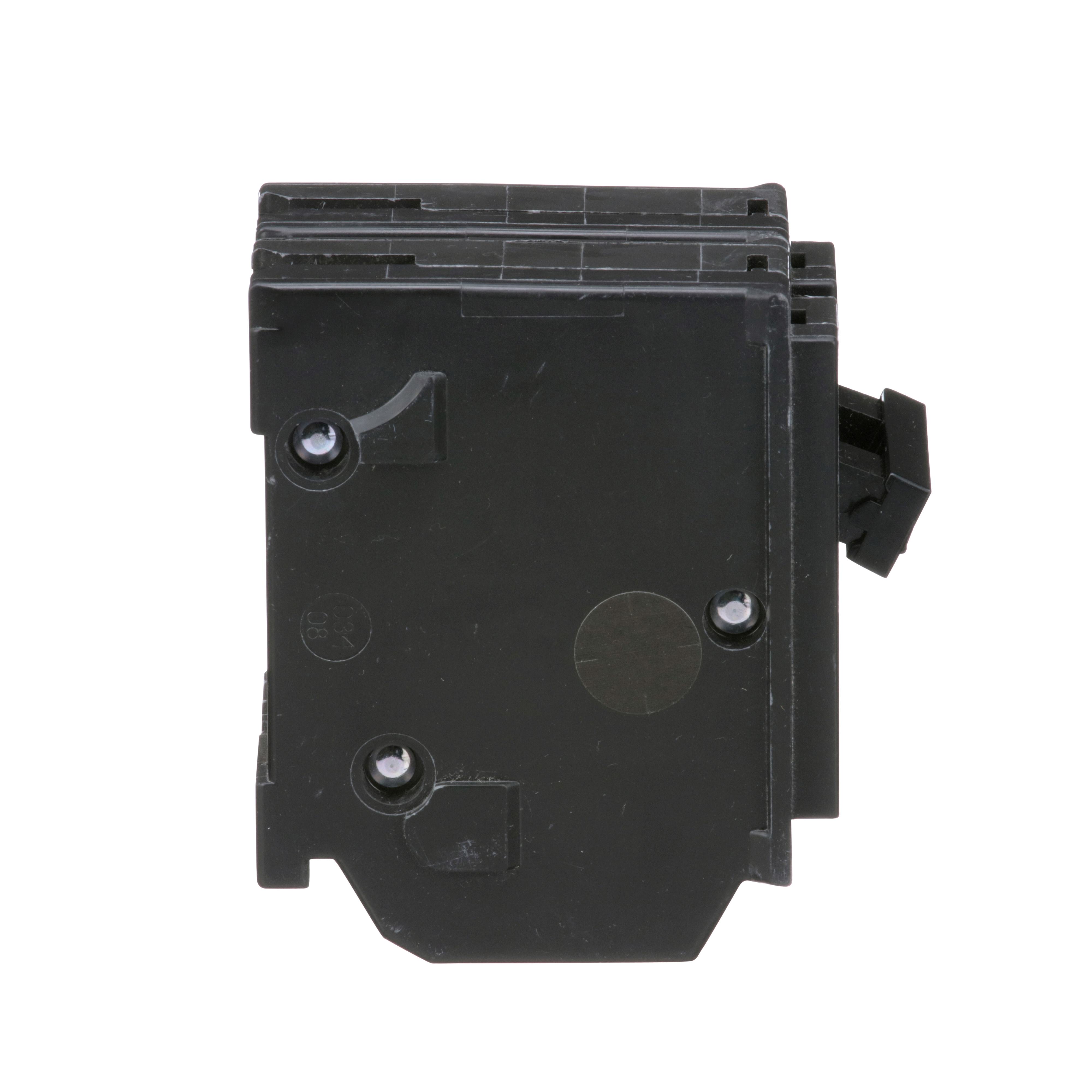

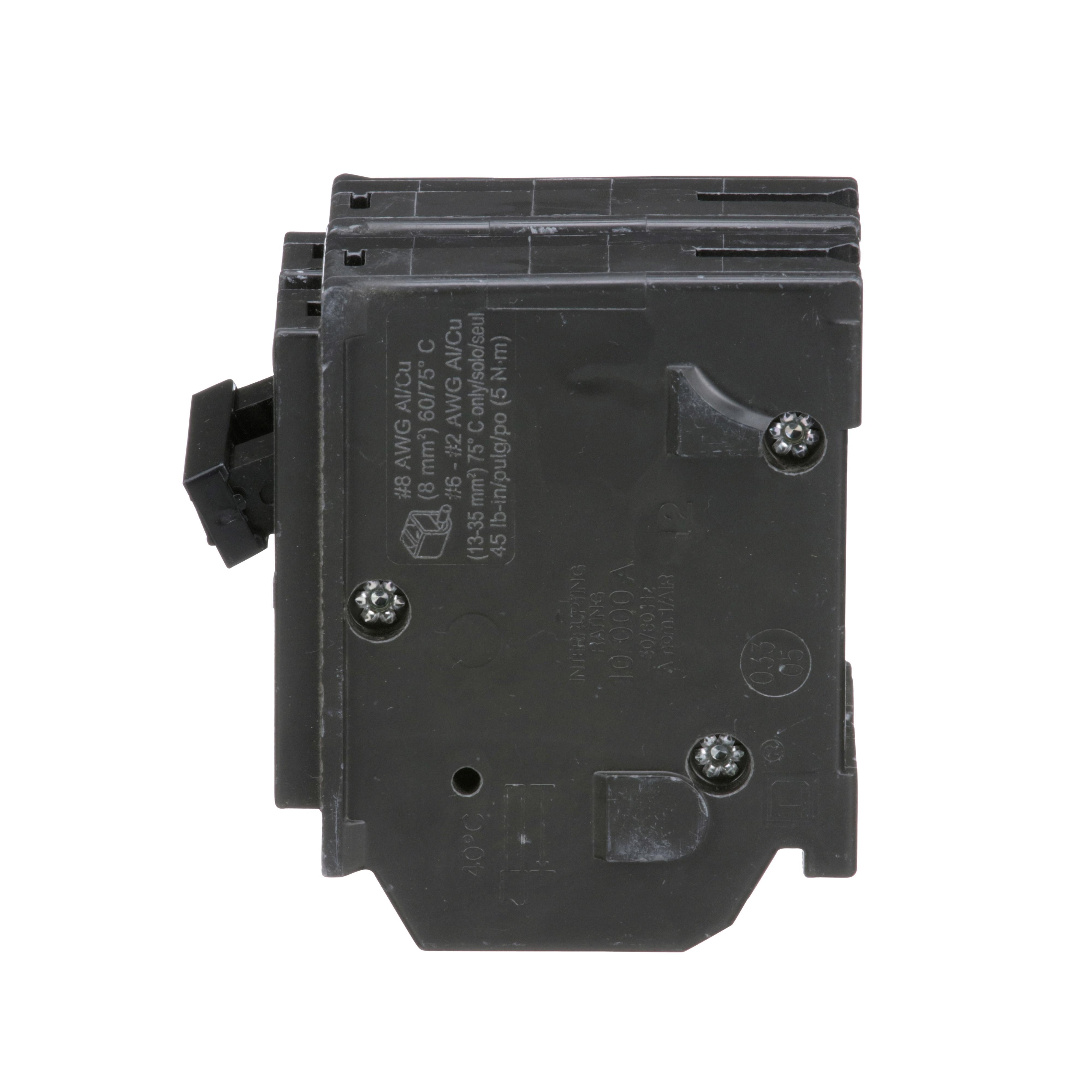

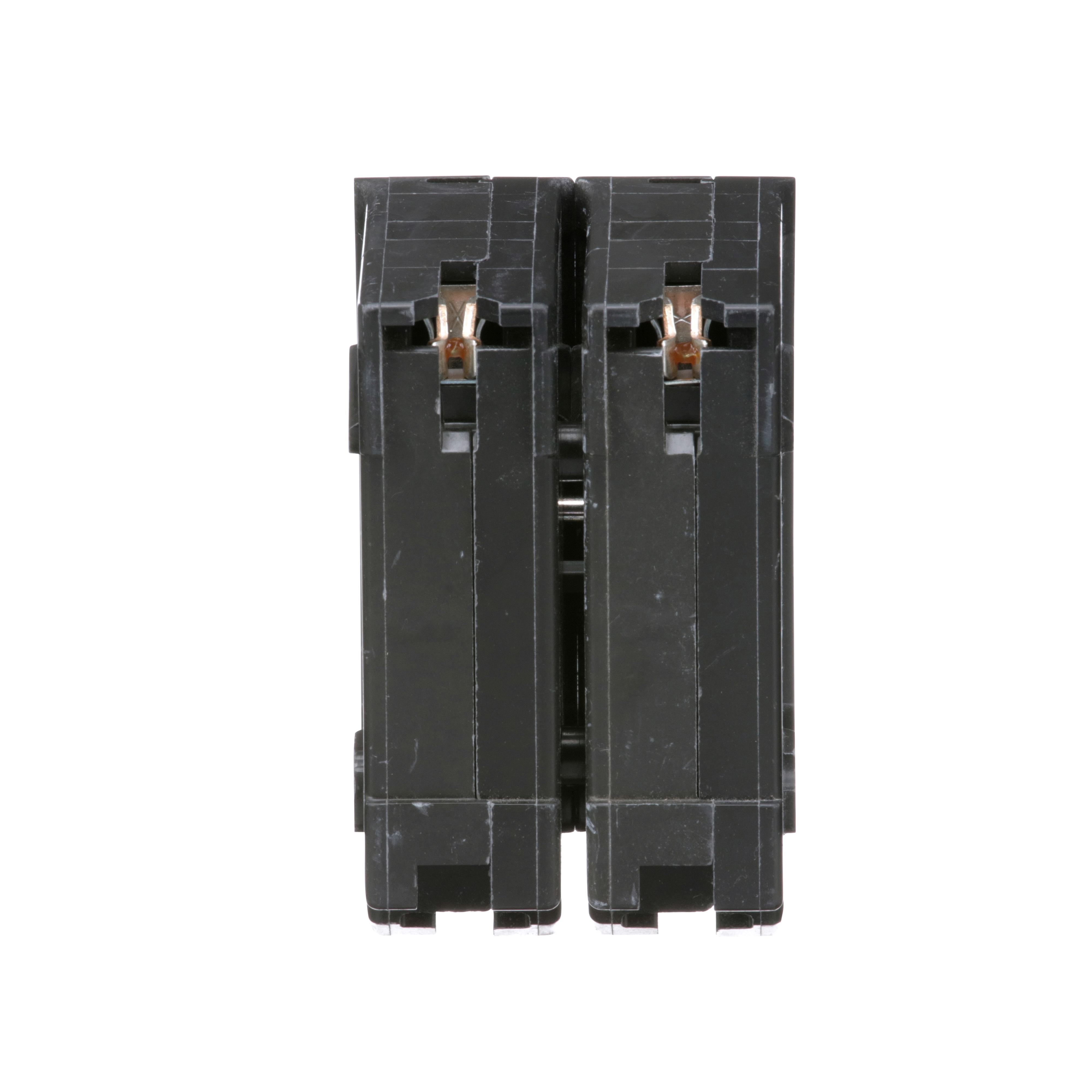

Square D™ HOM240 Standard Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2 Poles, K-Curve/Thermal Magnetic Trip
Brand: Square D™
Item ID: 52364
MPN: HOM240
Login for Price
Features
- Square D™ is the industry leader in circuit protection with a long standing reputation for quality and reliability
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Square D™ Homeline™ circuit breakers are in a 1 in wide format for 1-pole circuit breakers
- Square D offers Homeline a wide range of circuit breakers to meet all National Electric Code requirements and provide superior electrical safety
- Faster installation - Fewer connections
- Multiple applications - Homeline Circuit Breakers offer a full range of amperage, poles, and advanced function devices that offer superior Arc Fault, Combination Arc Fault (CAFI), and Ground Fault (Class A, GFCI), and Dual Function (CAFI and GFCI) Protection
- 8 - 2 AWG copper/aluminum
- K-Curve trip
- Standard
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™, HOM240, Miniature Circuit Breaker, Standard, 120/240 VAC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, HOM Frame, K-Curve/Thermal Magnetic Trip, 2 Pole, 1 ph, Terminal Screw Connection, 8 to 2 AWG Wire, Plug-On Mounting, 104 deg F, 2.98 in L x 2 in W x 3.13 in H Dimensions
Specifications
Amperage Rating |
40 A |
Connection Type |
Terminal Screw |
Dimensions |
2.98 in L x 2 in W x 3.13 in H |
Frame |
HOM |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
104 deg F |
Trip Type |
K-Curve/Thermal Magnetic |
Type |
Standard |
Voltage Rating |
120/240 VAC |
Wire Size |
8 to 2 AWG |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_SSP04EMA48SF_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_18a2a3dd6cfe3277c1ba29f626e85c2796a2e58a949a7f33ab55e8e95724643b.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM240_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_SSP06XDSE15A1_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_441078b14559a6c7505899d8080cc3f53c7351f4eca4889d67261294aa00a5f8.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM240_Specification_Sheet.pdf
