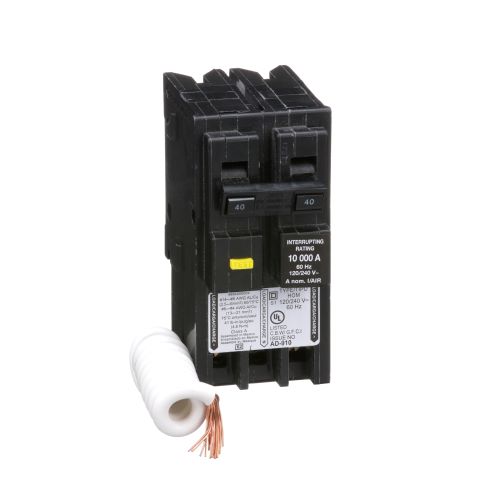

Square D™ HOM240GFI
Square D™ Homeline™ HOM240GFI Class A Ground Fault Protecting Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Brand: Square D™
Item ID: 52365
MPN: HOM240GFI
Login for Price
Features
- Ground fault protecting class A 6 mA
- HACR rated
- Al/Cu wire
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ Homeline™ Miniature Circuit Breaker, Class A Ground Fault Protecting, Series: HOM, 120/240 VAC, 40 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Terminal Screw, 12 to 4 AWG, 14 to 6 AWG Wire, NEMA 1/2, Plug-In Mount, 75 deg C, 2.98 in L
Specifications
Amperage Rating |
40 A |
Connection Type |
Terminal Screw |
Dimensions |
2.98 in L |
Enclosure Type |
NEMA 1/2 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Phase |
1 ph |
Series |
HOM |
Temperature Rating |
75 deg C |
Trip Type |
Thermal Magnetic |
Type |
Class A Ground Fault Protecting |
Voltage Rating |
120/240 VAC |
Wire Size |
12 to 4 AWG, 14 to 6 AWG |
Standard Approval |
UL E-6294, Federal Specifications W-P-115b|NEC|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant |
Application |
For providing overload and short circuit protection and AC systems |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d5e86692853407af06e1db2392a27924bce74a09487bdf003ba66dbf7eacf061.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM250GFI_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM250GFI_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM240GFI_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b644b7d38ecdb27fa984e81aa382b1ad7bf1a63afbe773b8c7ff1bd76eeb3222.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM240GFI_Specification_Sheet.pdf
VIDEO LINK
https://www.youtube.com/embed/aVvIVVo14po
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Warranty.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf
