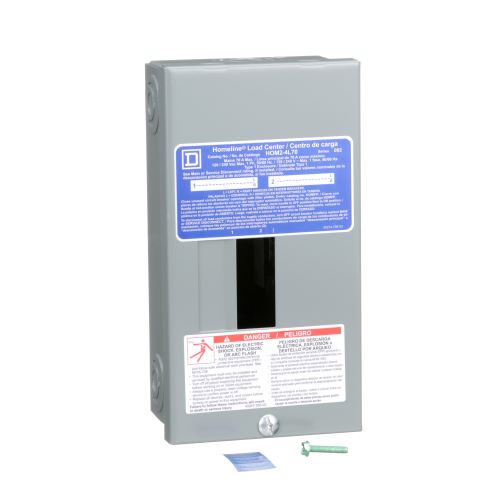

Square D™ Homeline™ HOM24L70S 1-ph Fixed Main Lug Loadcenter, 120/240 VAC, 70 A, 1 Pole, 10 kA Interrupt
Brand: Square D™
Item ID: 52370
MPN: HOM24L70S
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installations
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
- Two tandem circuit breaker
- 12 to 3 AWG aluminum, 14 to 4 AWG copper
Description
Homeline™ circuit breaker load centers from Square D™ are UL Listed panel boards. They are designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.
Square D™ Homeline™ Main Lug Loadcenter, 1-ph Fixed, 120/240 VAC, 70 A, 1 Pole, 50/60 Hz, 10 kA Interrupt, 4 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 2 Spaces, 12 to 3 AWG, 14 to 4 AWG Wire, Surface Mount, NEMA 1, Steel Housing, 4.81 in W x 3.19 in D x 9.3 in H
Specifications
Amperage Rating |
70 A |
Breaker Mounting |
Panel |
Breaker Type |
HOM |
Dimensions |
4.81 in W x 3.19 in D x 9.3 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Steel |
Interrupt Rating |
10 kA |
Mounting Type |
Surface |
Number of Circuits |
4 |
Number of Poles |
1 |
Number of Spaces |
2 |
Type |
1-ph Fixed |
Voltage Rating |
120/240 VAC |
Wire Size |
12 to 3 AWG, 14 to 4 AWG |
Wiring Configuration |
3-Wire |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
