Square D™ HOM250

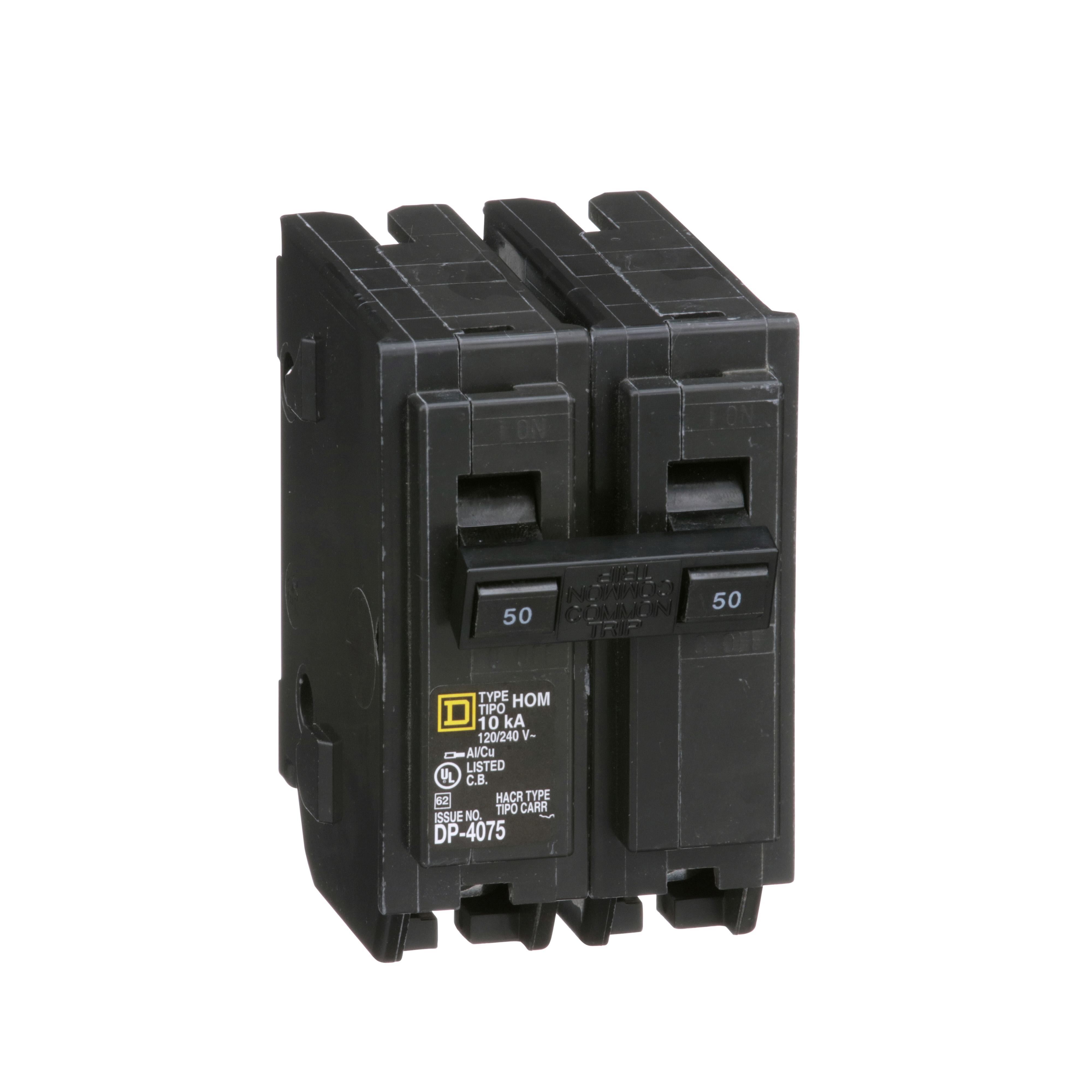

Square D™ Homeline™ HOM250 Standard Miniature Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 52374
MPN: HOM250
Login for Price
Features
- Market leading circuit protection, designed for superior safety quality and reliability
- Multiple applications Homeline™ circuit breakers offer a full range of amperage, poles and advanced function devices that offer superior arc fault, combination arc fault (CAFI) and ground fault (Class A, GFCI) and dual function (CAFI and GFCI) protection
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- For heating, air conditioning and refrigeration
- 8 to 2 AWG Cu or Al conductor
- Screw clamp terminal connections
Description
Square D™ is the industry leader in circuit protection with a long-standing reputation for quality and reliability. Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electric Code requirements and provide superior electrical safety, including: Dual Function, 1 and 2-Pole Combination Arc-Fault Circuit Interrupters (CAFIs) and Arc-D-Tect CAFI Circuit Breakers. Homeline™ Load Centers accept Plug-On Neutral, pigtail, full-size and tandem circuit breakers on every space.
Square D™ Homeline™ Miniature Circuit Breaker, Standard, 120/240 VAC, 50 A, 50/60 Hz, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Screw, 8 to 2 AWG Wire, Plug-In Mount, 40 deg C, 2.98 in L x 2 in W x 3.13 in H
Specifications
Amperage Rating |
50 A |
Connection Type |
Screw |
Dimensions |
2.98 in L x 2 in W x 3.13 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Type |
Thermal/Magnetic |
Type |
Standard |
Voltage Rating |
120/240 VAC |
Wire Size |
8 to 2 AWG |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9007MS05G0410_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XCKJAEQ3669_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM250_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_47e14010f4bb1e4cfff43741caeb2f3416b92e1c09af6ebc43782b0ff72785cd.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM250_Specification_Sheet.pdf
