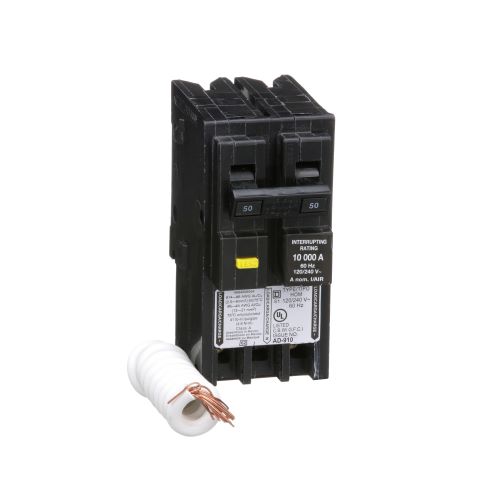

Square D™ HOM250GFI
Square D™ HOM250GFI HOM Class A Ground Fault Miniature Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, K-Curve/Thermal Magnetic Trip
Brand: Square D™
Item ID: 52375
MPN: HOM250GFI
Login for Price
Features
- Square D™ is the industry leader in circuit protection with a long standing reputation for quality and reliability
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Market leading circuit protection designed for superior safety, quality and reliability, engineered with the quality and craftsmanship that have made square D™ the preferred brand of electrician and homeowners
- Homeline™ circuit breakers offer a full range of amperage, poles and advanced function devices that offer superior arc fault, combination arc fault (CAFI) and ground fault (Class A, GFCI) and dual function (CAFI and GFCI) protection
- 14 to 8 AWG Al/Cu wire
- Square D offers Homeline a wide range of circuit breakers to meet all National Electric Code requirements and provide superior electrical safety
- Faster installation - Fewer connections
- Multiple applications - Homeline Circuit Breakers offer a full range of amperage, poles, and advanced function devices that offer superior Arc Fault, Combination Arc Fault (CAFI), and Ground Fault (Class A, GFCI), and Dual Function (CAFI and GFCI) Protection
- 14 - 8 AWG copper/aluminum
- K-Curve trip
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™, HOM250GFI, Miniature Circuit Breaker, Class A Ground Fault, Series: HOM, 120/240 VAC, 50 A, 50/60 Hz Frequency, 10 kA Interrupt, HOM Frame, K-Curve/Thermal Magnetic Trip, 2 Pole, 1 ph, Terminal Screw Connection, 14 to 6 AWG, 12 to 4 AWG Wire, Plug-In Mounting, 40 deg C, 2.98 in L x 2 in W x 3.13 in H Dimensions
Specifications
Amperage Rating |
50 A |
Connection Type |
Terminal Screw |
Dimensions |
2.98 in L x 2 in W x 3.13 in H |
Frame |
HOM |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Phase |
1 ph |
Series |
HOM |
Temperature Rating |
40 deg C |
Trip Type |
K-Curve/Thermal Magnetic |
Type |
Class A Ground Fault |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 6 AWG, 12 to 4 AWG |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
