Square D™ HOM250PSPD

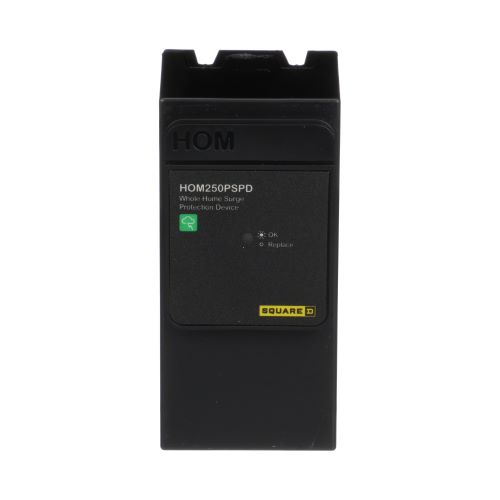

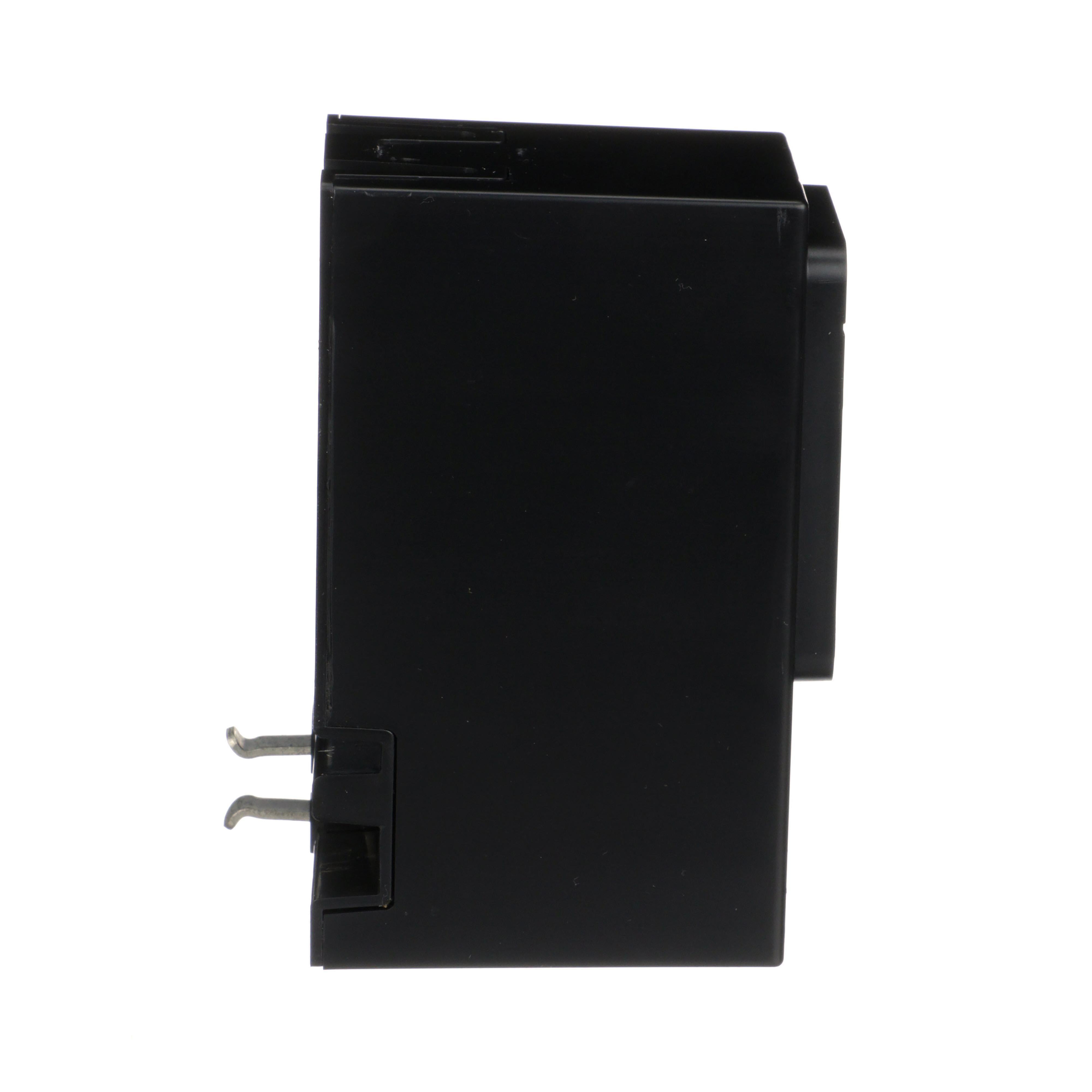

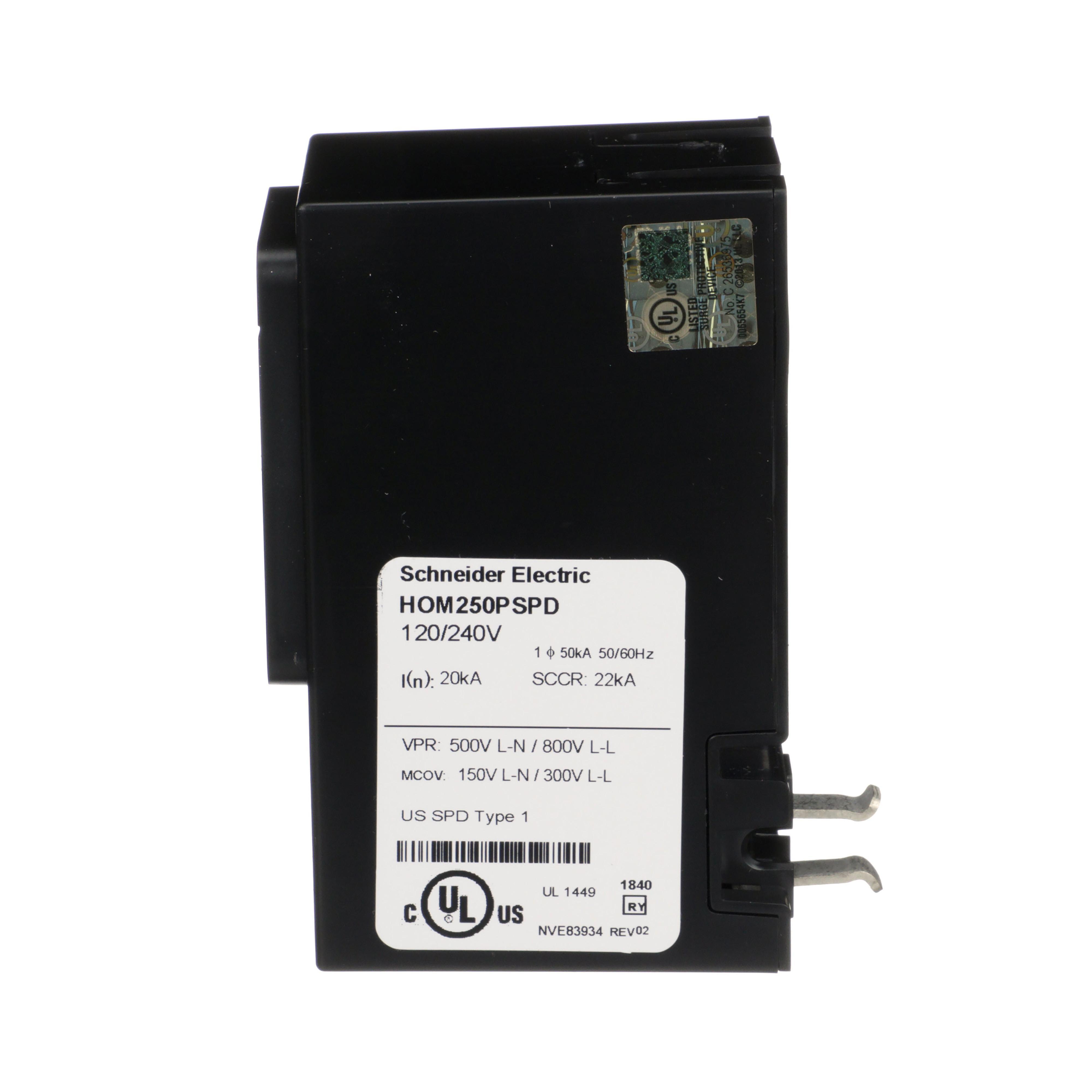

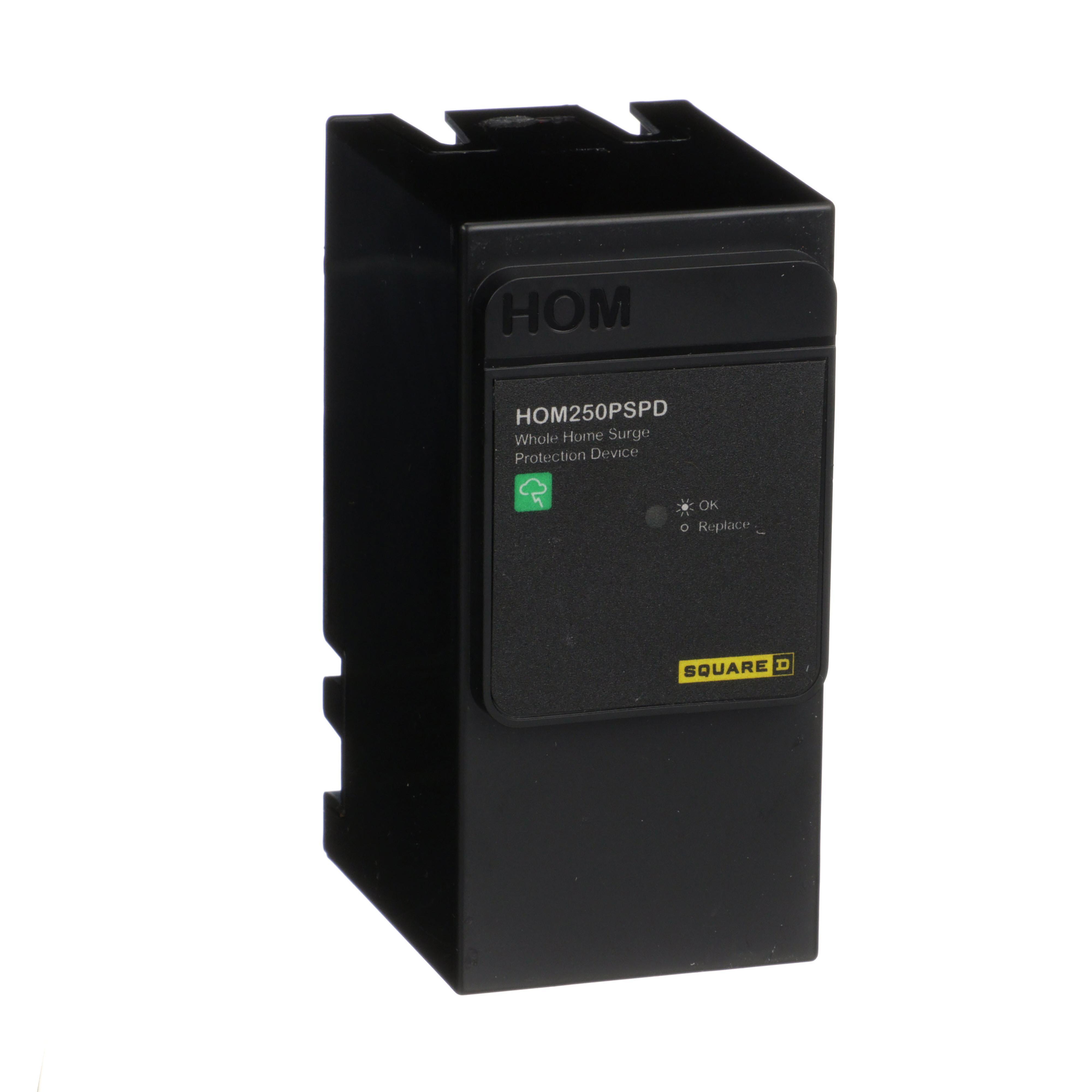

Square D™ HomeLine™ HOM250PSPD 1-Phase Surge Protective Device, 120/240 VAC, 22 kA SCCR
Brand: Square D™
Item ID: 470732
MPN: HOM250PSPD
Login for Price
Features
- LED indicates operational status
- Whole house protection
Description
The industry's first exclusive plug-on neutral surge protective device. Square D™ load center PoN SPDs are a simple and quick installation. It's as easy as snap, click, done! PoN SPDs are easier to install than a standard circuit breaker. No wires are needed for installation. The PoN SPD simply plugs on to the bus and neutral bar. The surge suppressors use two-pole spaces in a QO™ or HomeLine™ load center.
Square D™ HomeLine™ Surge Protective Device, 1-Phase, 120/240 VAC, 3 Wires, 22 kA Short Circuit Current, 50 kA Peak Surge, 20 kA Nominal Discharge, NEMA 2, Plug-In Terminal, 3.98 in H x 1.97 in W x 2.6 in D, Plastic, Black
Specifications
Color |
Black |
Dimensions |
3.98 in H x 1.97 in W x 2.6 in D |
Enclosure Type |
NEMA 2 |
Material |
Plastic |
Nominal Discharge Current |
20 kA |
Number of Wires |
3 |
Peak Surge Current |
50 kA |
Short Circuit Current Rating |
22 kA |
Terminal Type |
Plug-In |
Type |
1-Phase |
Voltage Rating |
120/240 VAC |
Standard Approval |
BAA Compliant|UL 1449ed.4|CSA C22.2 File #269.1|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For load centers |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6a90fa016a0a0220ff19b42b8ba4ddf17f6a563915e669f257a83f2642f3175d.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM250PSPD_Full_Engineering_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM250PSPD_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2dadf0333ddaba8ecce828f89e5e0bfcedfa5d016a3ae27f63be594d17131fb8.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM250PSPD_Specification_Sheet.pdf
