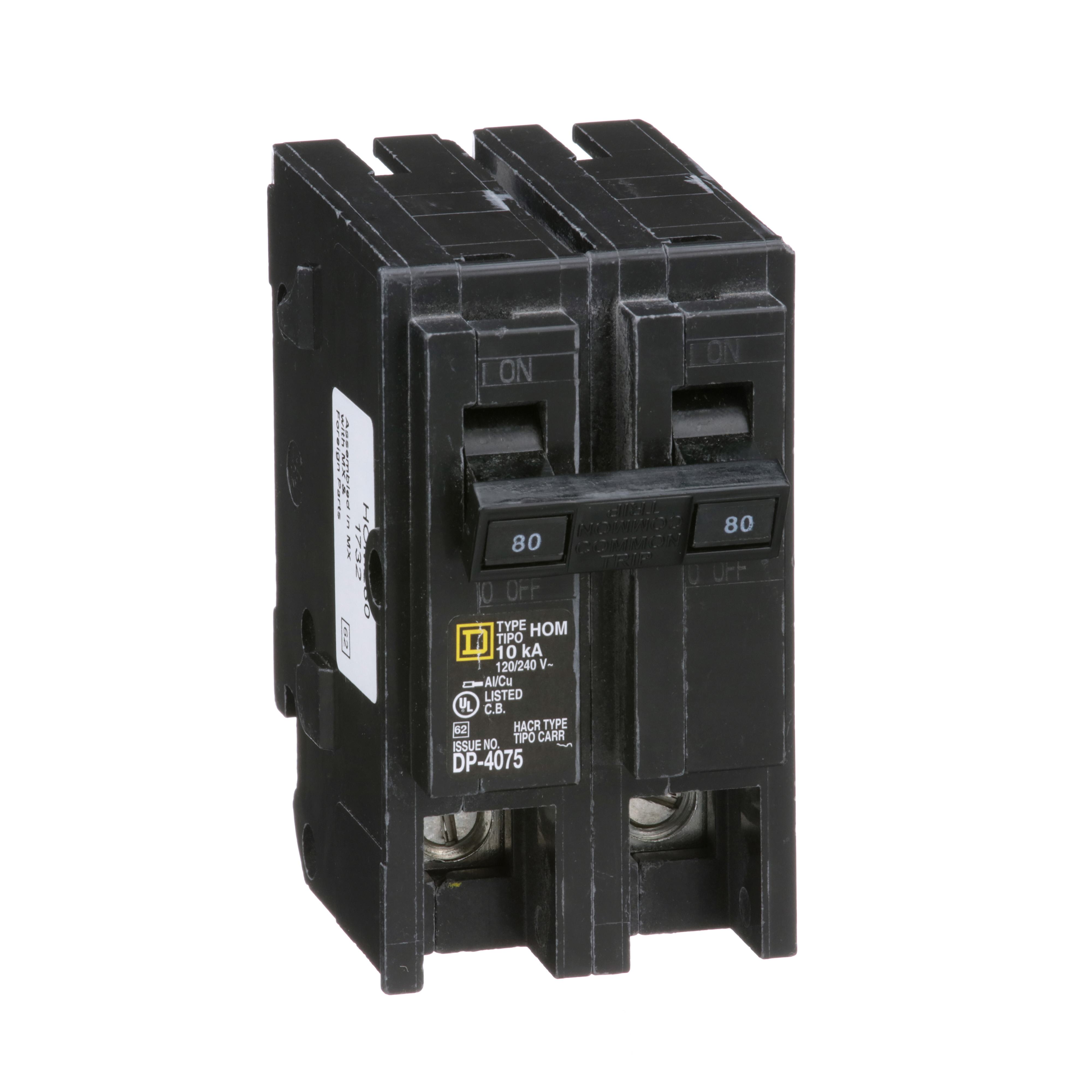

Square D™ Homeline™ HOM280 Standard Miniature Circuit Breaker, 120/240 VAC, 80 A, 10 kA Interrupt, 2 Poles, Instantaneous/Long Time/Thermal Magnetic Trip
Brand: Square D™
Item ID: 52379
MPN: HOM280
Login for Price
Features
- Square D™ is the industry leader in circuit protection with a long standing reputation for quality and reliability
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Square D™ Homeline™ circuit breakers are in a 1 in wide format for 1-pole circuit breakers
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ Homeline™ Miniature Circuit Breaker, Standard, 120/240 VAC, 80 A, 50/60 Hz, 10 kA Interrupt, Instantaneous/Long Time/Thermal Magnetic Trip, 2 Pole, 1 ph, Terminal Screw, 4 to 2/0 AWG Wire, Plug-On Mount, 104 deg F, 2.98 in L x 2 in W x 3.13 in H
Specifications
Amperage Rating |
80 A |
Connection Type |
Terminal Screw |
Dimensions |
2.98 in L x 2 in W x 3.13 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
104 deg F |
Trip Type |
Instantaneous/Long Time/Thermal Magnetic |
Type |
Standard |
Voltage Rating |
120/240 VAC |
Wire Size |
4 to 2/0 AWG |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|HACR Rated|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ea61a13beb1edd58aed3771df7c471287b5ac0302f404424351408d45b29d960.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_73dd77d4f0e9f94ec26b4f833809e9ba3c0c5562ddf5df4c874eb68ab8bc8d72.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM280_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a69dc42fc2677239cba206617d9f280135f0f46c7ac3f0642cef2d71ba473143.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM280_Specification_Sheet.pdf
