Square D™ HOM3060L225PGCVP

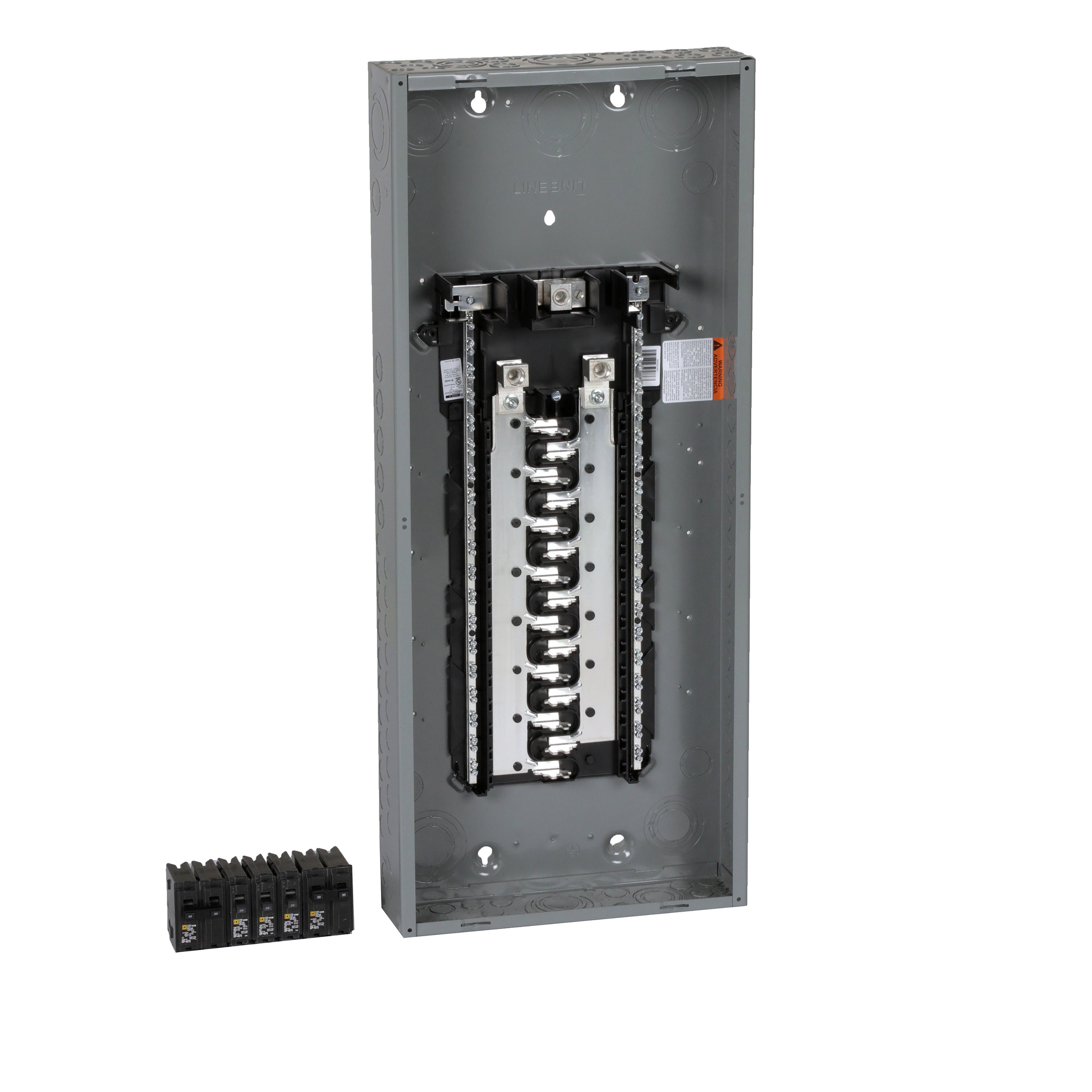

Square D™ Homeline™ HOM3060L225PGCVP 1-Phase Convertible Neutral Value Pack Main Lug Load Center, 120/240 VAC, 225 A, 10 kA Interrupt
Brand: Square D™
Item ID: 430765
MPN: HOM3060L225PGCVP
UPC: 785901977230
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installation
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- 30-tandem circuit breaker
- Lug electrical connection
Description
Square D™ Homeline™ Main Lug Load Center, 1-Phase Convertible Neutral Value Pack, 120/240 VAC, 225 A, 10 kA Interrupt, 60 Circuits, HOM Breaker, 3-Wire Wiring Configuration, 30 Spaces, 6 to 1/0 AWG/6 to 2/0 AWG Wire, Flush/Plug-On/Surface Mount, NEMA 1, 10 Enclosure Box, Steel Housing
Specifications
Amperage Rating |
225 A |
Breaker Type |
HOM |
Enclosure Box Size |
10 |
Enclosure Type |
NEMA 1 |
Housing Material |
Steel |
Interrupt Rating |
10 kA |
Mounting Type |
Flush/Plug-On/Surface |
Number of Circuits |
60 |
Number of Spaces |
30 |
Type |
1-Phase Convertible Neutral Value Pack |
Voltage Rating |
120/240 VAC |
Wire Size |
6 to 1/0 AWG/6 to 2/0 AWG |
Wiring Configuration |
3-Wire |
Standard Approval |
BAA Compliant|UL File #E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For residential, commercial and industrial requirements to protect electrical systems, equipment and people |
