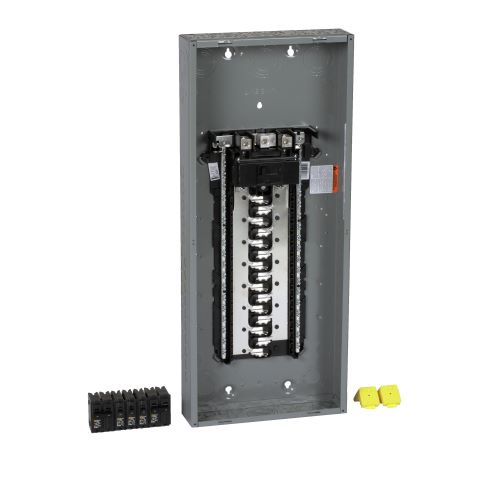

Square D™ HOM3060M150PCVP
Square D™ HomeLine™ HOM3060M150PCVP 1-Phase Convertible Neutral Value Pack Main Breaker Load Center With Combination Flush/Surface Cover, 120/240 VAC, 150 A, 1 Poles, 22 kA Interrupt
Brand: Square D™
Item ID: 430766
MPN: HOM3060M150PCVP
Login for Price
Features
- Tin plated aluminum busbar
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installation
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating convertible mains panels 180 deg
- Split branch neutral for clutter-free wiring
- Provisions for door lock on convertible mains panel covers
- Lug electrical connection
Description
Square D™ HomeLine™ Main Breaker Load Center, 1-Phase Convertible Neutral Value Pack, 120/240 VAC, 150 A, 1 Pole, 50/60 Hz, 22 kA Interrupt, 60 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 4 AWG to 300 kcmil Aluminum/4 AWG to 250 kcmil Copper Wire, Flush/Plug-On/Surface Mount, NEMA 1, 10 Enclosure Box, Sheet Steel Housing, 14.25 in W x 3.75 in D x 33.78 in H
Specifications
Amperage Rating |
150 A |
Breaker Mounting |
Panel |
Breaker Type |
HOM |
Dimensions |
14.25 in W x 3.75 in D x 33.78 in H |
Enclosure Box Size |
10 |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Sheet Steel |
Interrupt Rating |
22 kA |
Mounting Type |
Flush/Plug-On/Surface |
Number of Circuits |
60 |
Number of Poles |
1 |
Number of Spaces |
30 |
Type |
1-Phase Convertible Neutral Value Pack |
Voltage Rating |
120/240 VAC |
Wire Size |
4 AWG to 300 kcmil Aluminum/4 AWG to 250 kcmil Copper |
Wiring Configuration |
3-Wire |
Standard Approval |
BAA Compliant|UL File #E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people |
