Square D™ HOM612L100RB

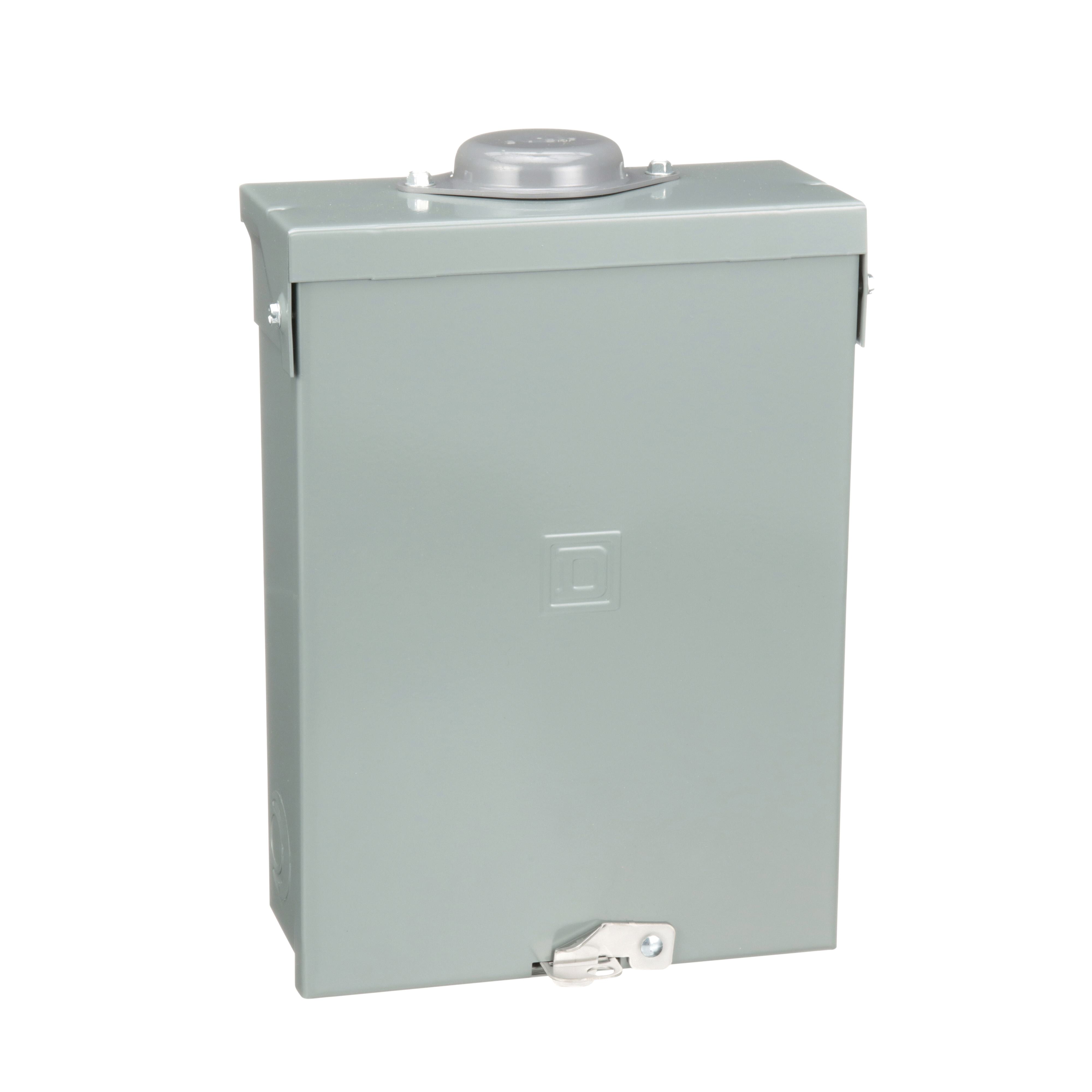

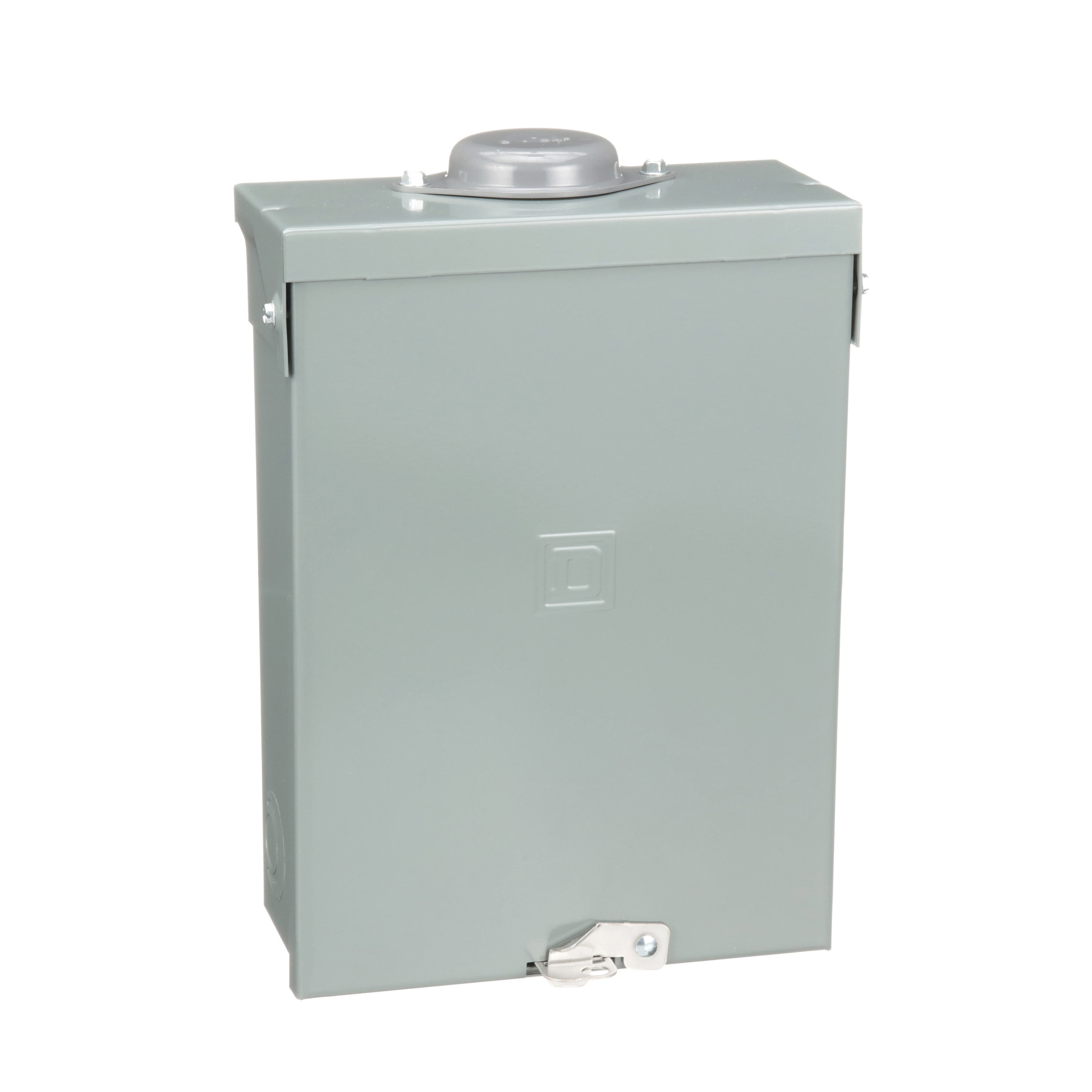

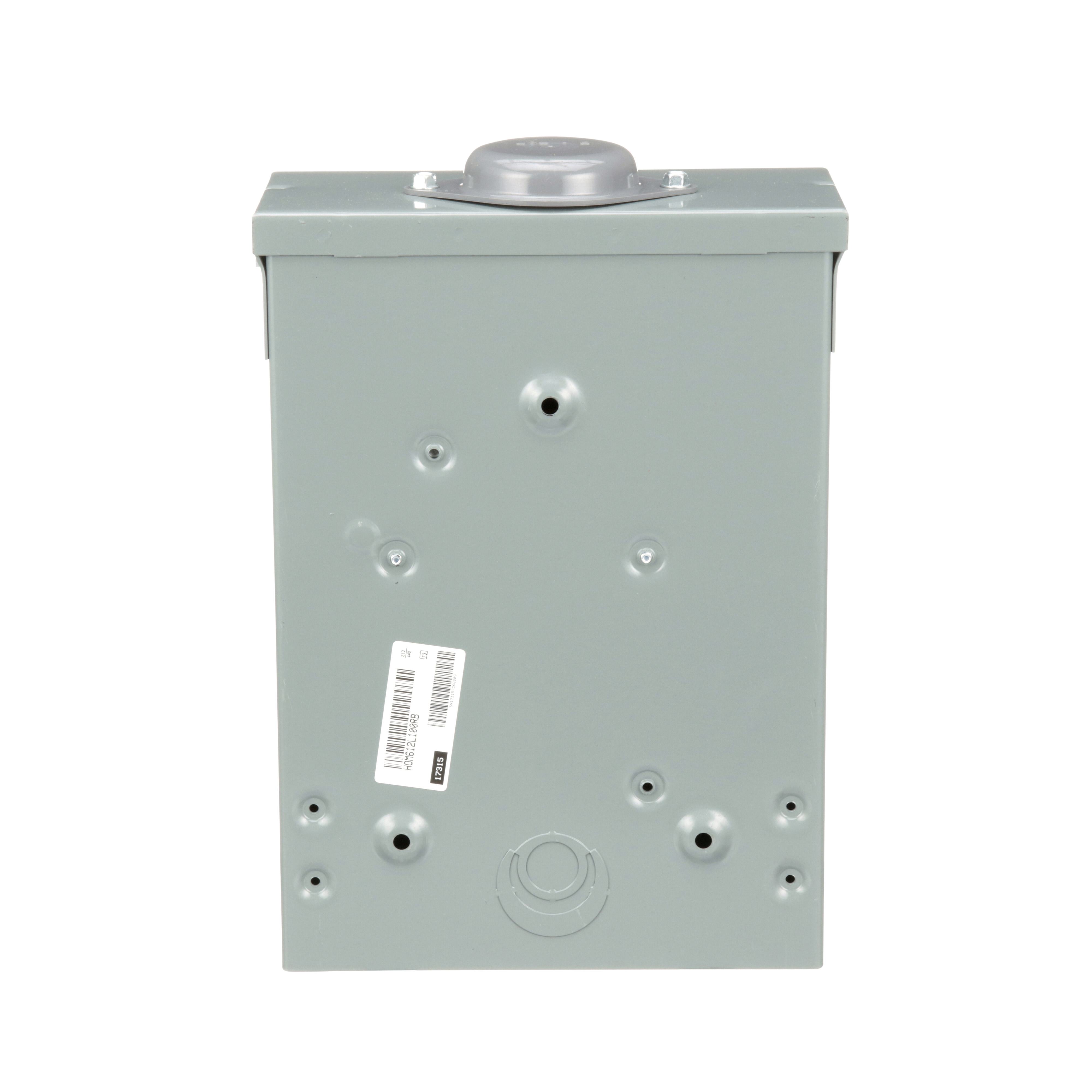

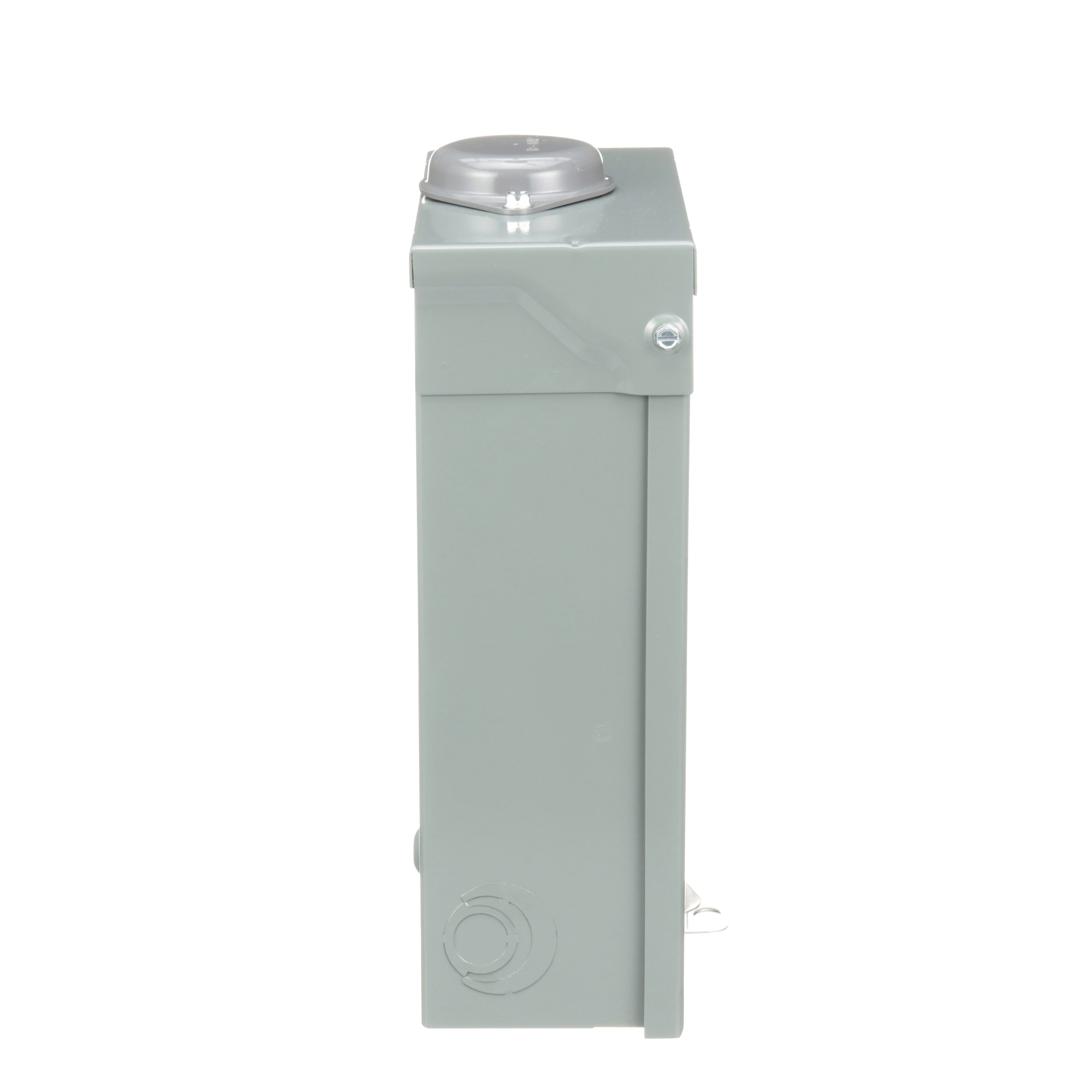

Square D™ Homeline™ HOM612L100RB 1-ph Fixed Main Lug Loadcenter, 120/240 VAC, 100 A, 1 Pole, 10 kA Interrupt
Brand: Square D™
Item ID: 52402
MPN: HOM612L100RB
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installations
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
- 6 tandem circuit breaker
Description
Homeline™ circuit breaker load centers from Square D™ are UL Listed panel boards. They are designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.
Square D™ Homeline™ Main Lug Loadcenter, 1-ph Fixed, 120/240 VAC, 100 A, 1 Pole, 50/60 Hz, 10 kA Interrupt, 12 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 6 Spaces, 8 to 1 AWG Wire, Bolt-On/Flush Mount, NEMA 3R, Galvanized Steel Housing, 8.88 in W x 4.27 in D x 12.65 in H
Specifications
Amperage Rating |
100 A |
Breaker Mounting |
Panel |
Breaker Type |
HOM |
Dimensions |
8.88 in W x 4.27 in D x 12.65 in H |
Enclosure Type |
NEMA 3R |
Frequency Rating |
50/60 Hz |
Housing Material |
Galvanized Steel |
Interrupt Rating |
10 kA |
Mounting Type |
Bolt-On/Flush |
Number of Circuits |
12 |
Number of Poles |
1 |
Number of Spaces |
6 |
Type |
1-ph Fixed |
Voltage Rating |
120/240 VAC |
Wire Size |
8 to 1 AWG |
Wiring Configuration |
3-Wire |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
