Square D™ HOM816L125PC

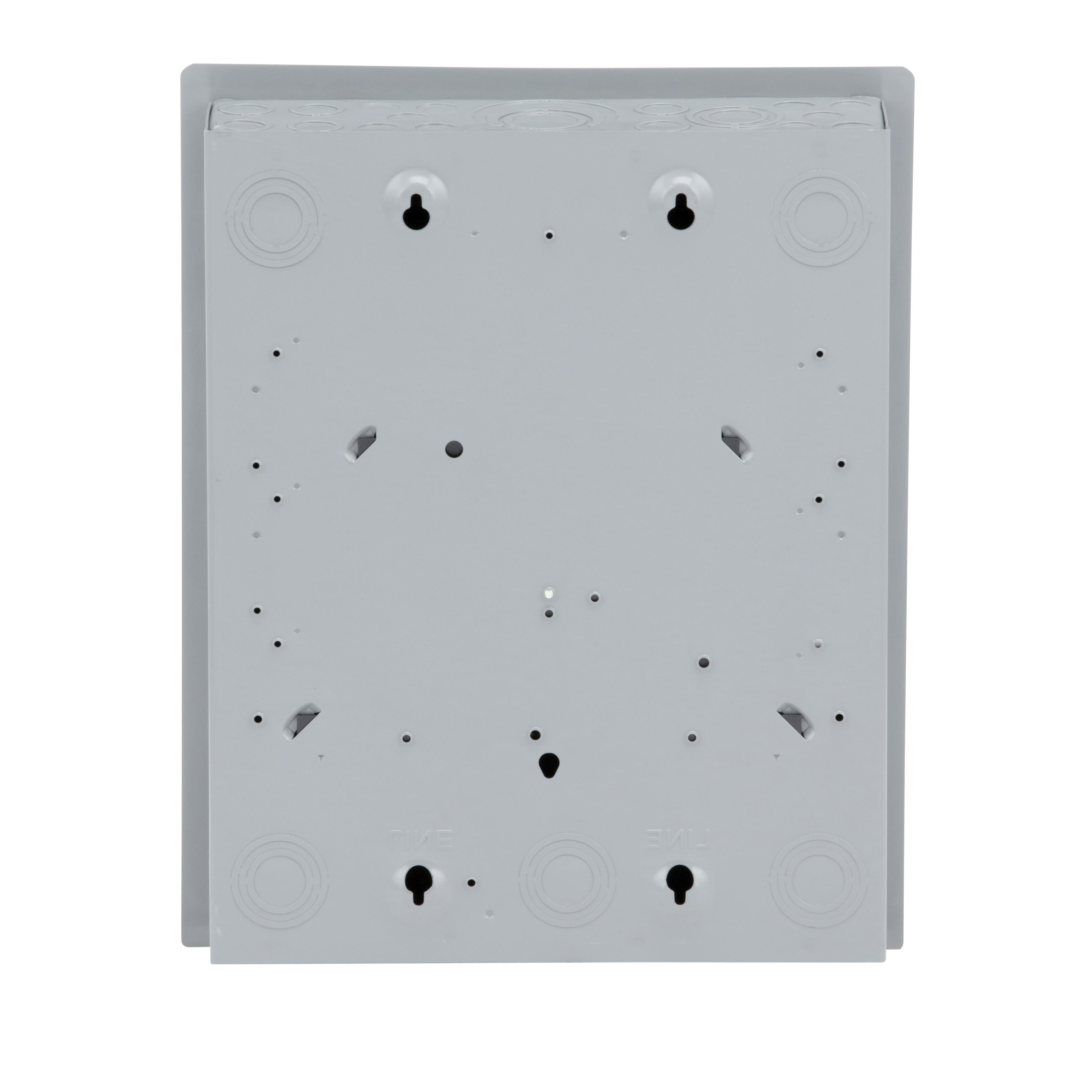

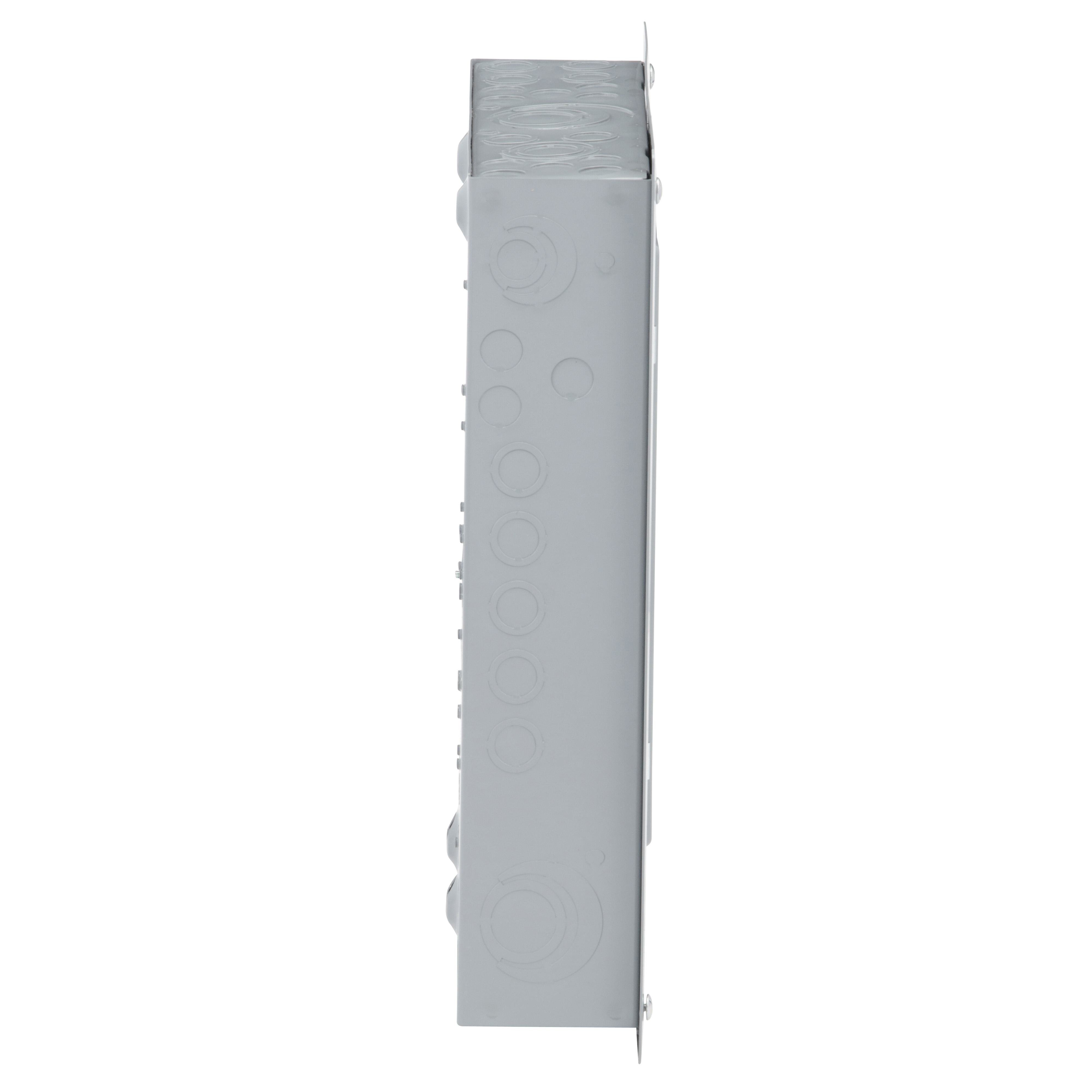

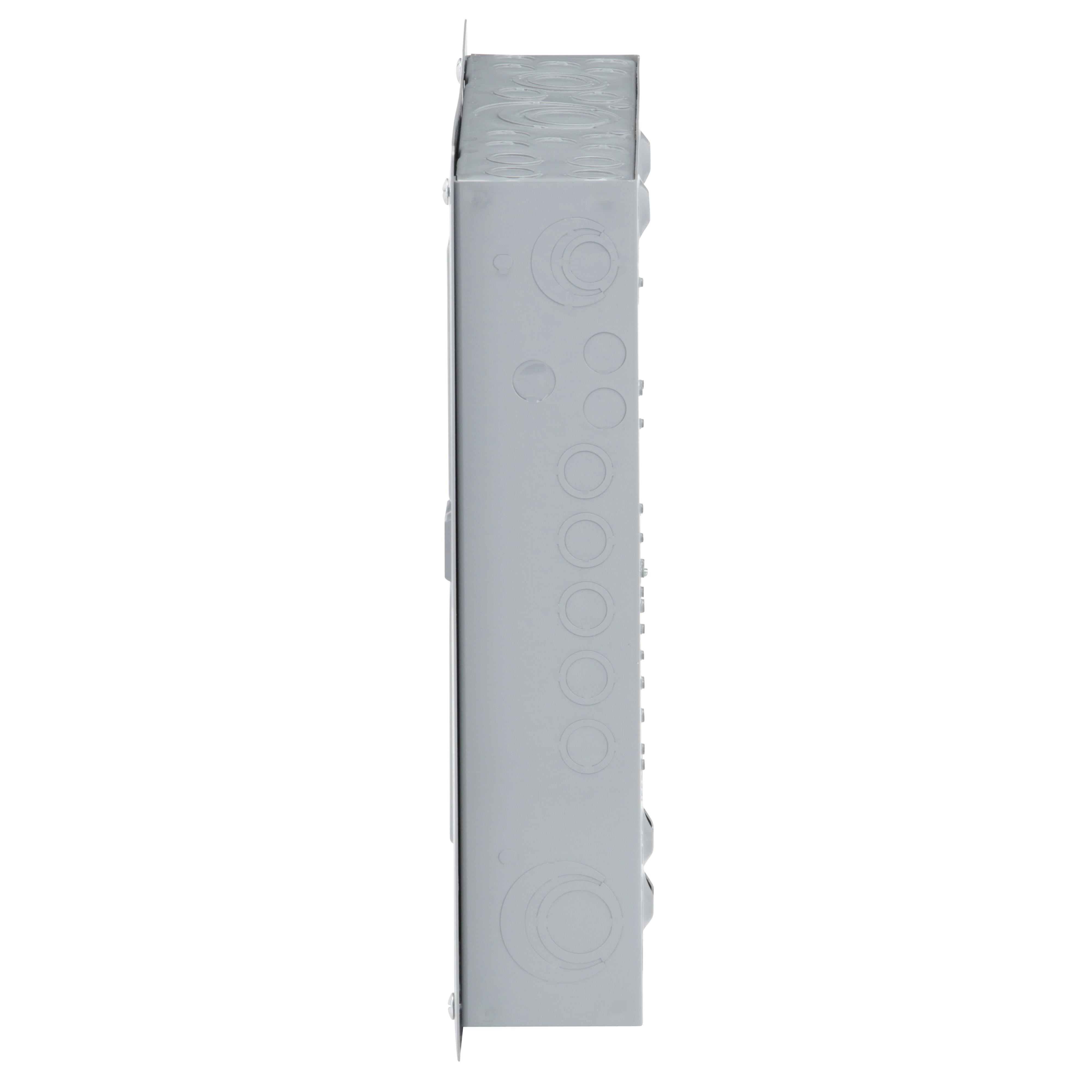

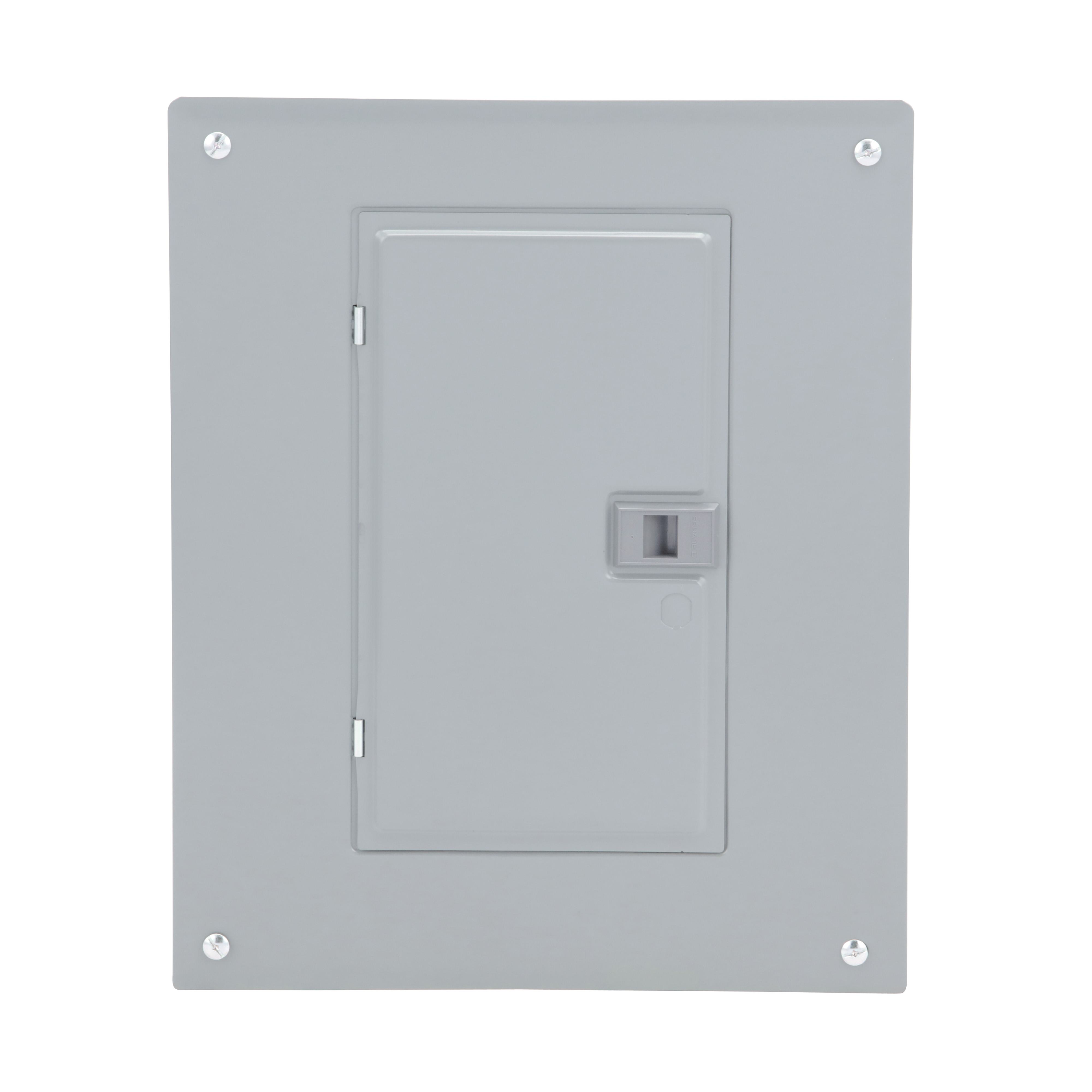

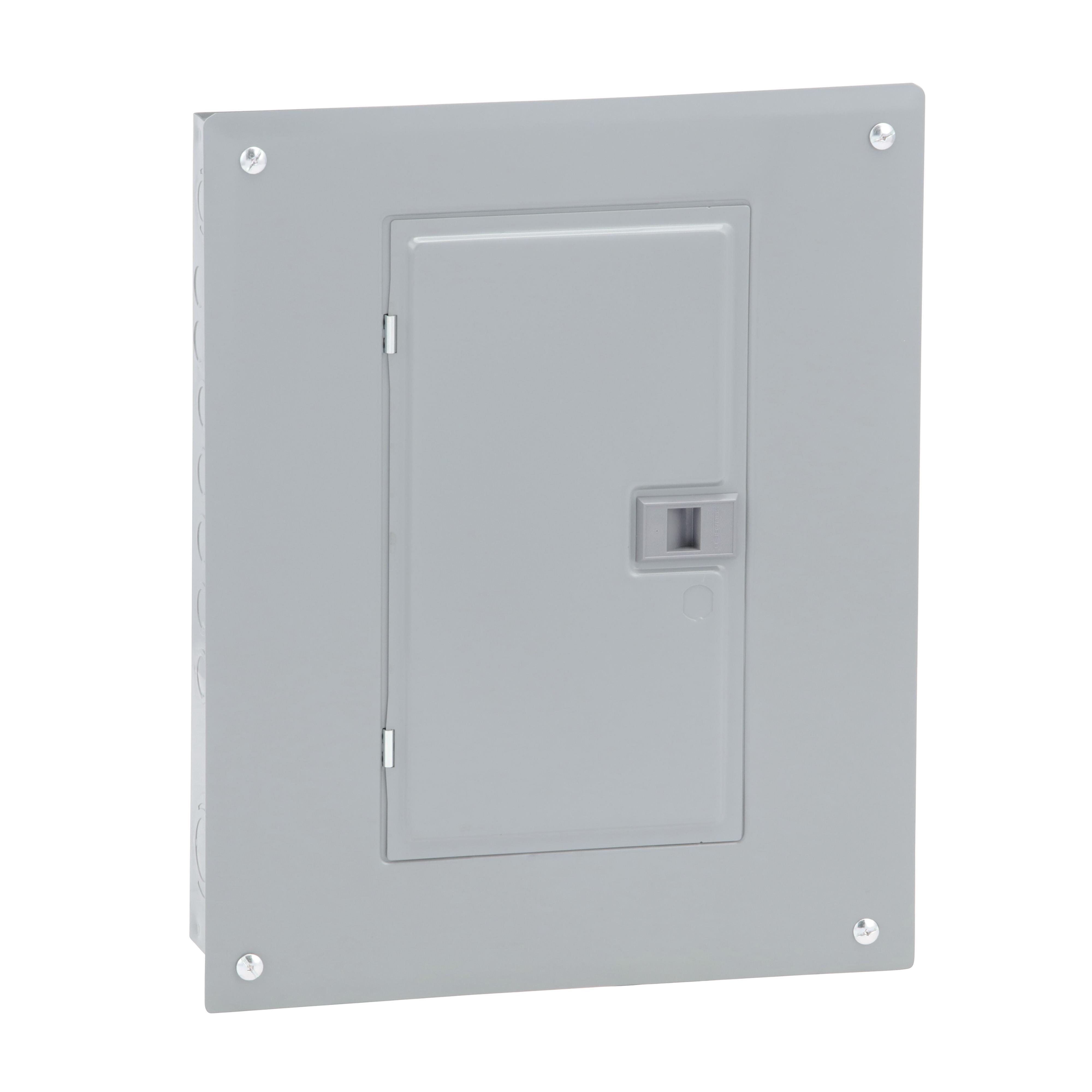

Square D™ Homeline™ HOM816L125PC 1-Phase Convertible Neutral Main Lug Loadcenter, 120/240 VAC, 125 A, 1 Pole, 10 kA Interrupt
Brand: Square D™
Item ID: 426509
MPN: HOM816L125PC
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installation
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating convertible mains panels 180 deg
- Split branch neutral for clutter-free wiring
- Provisions for door lock on convertible mains panel covers
- Lug electrical connection
Description
Square D™ Homeline™ Main Lug Loadcenter, 1-Phase Convertible Neutral, 120/240 VAC, 125 A, 1 Pole, 50/60 Hz Frequency, 10 kA Interrupt, 16 Circuits, HOM Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 8 Spaces, 4 AWG to 250 kcmil, 4 AWG to 300 kcmil Wire, Flush/Plug-On/Surface Mounting, NEMA 1 Enclosure, 6 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 17.92 in H Dimensions
Specifications
Amperage Rating |
125 A |
Breaker Mounting |
Panel |
Breaker Type |
HOM |
Dimensions |
14.25 in W x 3.75 in D x 17.92 in H |
Enclosure Box Size |
6 |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Steel |
Interrupt Rating |
10 kA |
Mounting Type |
Flush/Plug-On/Surface |
Number of Circuits |
16 |
Number of Poles |
1 |
Number of Spaces |
8 |
Type |
1-Phase Convertible Neutral |
Voltage Rating |
120/240 VAC |
Wire Size |
4 AWG to 250 kcmil, 4 AWG to 300 kcmil |
Wiring Configuration |
3-Wire |
Standard Approval |
RoHS Compliant|Buy American Act Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people |
